WIN CLIMATIC S400with a louvered roof

Unrivaled louvered pergola system designed and created by SUN WINNERWIN CLIMATIC S400 is not only an innovative solution, but also offers exceptional functionality, a distinctive design, and impressive pergola dimensions.
SINGLE PERGOLA on three posts (additional central post): 7000 mm x 4500 mm (31.5 m²)
SINGLE PERGOLA roof module (without posts): 7000 mm x 4500 mm (31.5 m²)
SINGLE PERGOLA on two posts: 7000 mm x 4000 mm (28 m²)

Aesthetic fixings and no visible screw connections. The structure features a hidden drive and perfectly matched components, which make the WIN CLIMATIC pergola not only uniquely functional but also exceptionally attractive in terms of design.
Adjustment of aluminum slats rotating from 0° to 135° using a remote control, smartphone, or tablet. Full control over sunlight and protection against excessive sun exposure and precipitation.
Possibility of using additional insulation in the roof slats, which effectively protects the pergola from heating up on hot days and from heat loss in winter. In addition, the insulation significantly improves rain noise reduction and enhances the acoustics of the space.
The solid frame of the pergola provides high resistance to loads caused by heavy snowfall and strong wind gusts. The use of additional reinforcing chambers and the special shape of the profiles make WIN CLIMATIC one of the most durable pergolas available on the market.
Innovative water drainage system, integrated and hidden within the pergola structure.

Perimeter LED lighting integrated with the pergola crown. Several lighting and light adjustment options available.
Heat radiators. Power adjustment and control via remote control, smartphone, and tablet. Two power ranges of 1500 W, 2000 W, and 4000 W, with adjustable output. The radiator housing, made of powder-coated aluminum, is available in white or black. The LOW GLARE function reduces the amount of light emitted by the radiators.
LED lighting integrated with the roof slats, with the option to choose the color and intensity of the light.
Audio system integrated into the pergola crown. The set includes two waterproof speakers with a total power of 50 W and an AUDIO BLUETOOTH control unit, which allows sound management via an app on a phone or tablet. The speakers are weather-resistant and do not require disassembly, e.g., during the autumn-winter season.

WIN PANELS
A modern shading product, providing an ideal solution dedicated to pergolas, terrace roofs, and more. The panels offer additional protection against weather conditions, increase privacy, and enhance the aesthetics of any space with their stunning design. The use of rotating slats, adjustable from 0 to 90 degrees, provides an additional option for regulating sunlight intensity.
WIN GLASS
An incredible combination of optimal visual comfort and protection against external conditions. Thanks to the use of certified 10 mm tempered glass and unique solutions, the system ensures safe use of any terrace space, whether at home, in a restaurant, or in a hotel.
Thanks to the additional use of modern WIN SCREEN blinds, the system gains extra benefits such as full sun protection, insect shielding, increased privacy, and thermal properties. A very wide range of colors matched to the pergola and impressive blind sizes – up to 7000 mm.
Video
PERGOLA WIN CLIMATIC S400
WIN CLIMATIC S400 is the latest model in the SUN WINNER product range. The S400 pergola represents the most revolutionary and innovative fully automatic terrace roofing system, made of durable powder-coated extruded aluminum and stainless steel. The impressive dimensions of the pergola surpass the world’s leading manufacturers, making our product unmatched on the market.
The S400 model incorporates as many as 28 new patents, including 8 proprietary inventions and 20 innovative profiles.
The roof of the pergola is made up of aluminum louvers rotating from 0° to 135°, allowing control over the amount of sunlight, while in the closed position they provide protection against excessive sun exposure and atmospheric precipitation.
WIN CLIMATIC S400 is a solution designed for modern and demanding outdoor spaces such as terraces and gardens, as well as for commercial areas such as restaurant and hotel patios.
The sides of the structure can be enclosed with: WIN SCREEN external roller blinds, WIN GLASS sliding glass system, and WIN VERTO vertical profile lighting system.
OPTIONAL EQUIPMENT
Every SUN WINNER structure can be equipped with weather automation, heat emitters, LED lighting, thermal insulation, an integrated audio system, and many other accessories.
LED Lighting
Impressive possibilities for configuring and integrating LED lighting with the pergola structure.
Innovative LED louvers with an integrated diffuser in black or white.
Controlled via the pergola’s remote control, the waterproof LED COB WHITE, RGB, or RGB-W tape (WHITE 320 diodes/m, RGB 840 diodes/m) provides a continuous line of light without visible points.
Light color options: 3000 K – warm, 4000 K – neutral, or 6500 K – cold.
Impressive possibilities for configuring and integrating LED lighting with the pergola structure.
Spot LED lighting in the roof louvers discreetly blends with the pergola structure. The 2 W LED points, placed in the louvers, have a warm white color of 3000 K or a neutral color of 4000 K.
They have an IP 44 protection rating, while the power supply has an IP 67/65 rating. The lighting receiver allows control via the pergola’s remote control.
In a single pergola, 9 to 35 light points can be installed in the roof louvers.
Impressive possibilities for configuring and integrating LED lighting with the pergola structure.
LED lamps in the roof louvers are an interesting alternative to spot lighting. The 4 W LED lamps, placed in the louvers, have a warm white color of 3000 K or a neutral color of 4000 K.
They have an IP 44 protection rating, while the power supply has an IP 67/65 rating. The lighting receiver allows control via the pergola’s remote control.
In a single pergola, 4 to 28 LED lamps can be installed in the roof louvers.
Impressive possibilities for configuring and integrating LED lighting with the pergola structure.
Innovative aluminum LED profile with integrated diffuser in black or white.
Controlled via the pergola’s remote control, the waterproof LED COB WHITE, RGB, or RGB-W tape (WHITE 320 diodes/m, RGB 840 diodes/m) provides a continuous line of light without visible points.
Light color options: 3000 K – warm, 4000 K – neutral, or 6500 K – cold.
Impressive possibilities for configuring and integrating LED lighting with the pergola structure.
Spot lighting in the pergola crown is a great visual addition to pergola structures without side coverings, which can be controlled via the pergola’s remote control.
The 2 W LED points have a warm white color of 3000 K or a neutral color of 4000 K.
ADDITIONAL ACCESSORIES
Ensure thermal comfort in your relaxation area!
Equip your pergola with the chosen heater and use it all year round.
We offer single heaters with a power of 1500 W / 2000W or double heaters with a power of 4000 W, in white or black, with the option to choose control: with heating power regulation or with an ON/OFF option. For user convenience, the heater can be controlled via the pergola’s remote control.
Additionally, the LOW GLARE function reduces the amount of light emitted by the heater.
The perfect pergola is a pergola with built-in sound!
Do you love music and value interior aesthetics? Perfect! Equip your pergola with an integrated audio system consisting of two waterproof speakers with a total power of 50 W.
The audio set includes an AUDIO BLUETOOTH control unit, which allows system control via a smartphone or tablet app.
The speakers are weather-resistant and do not require disassembly, e.g., during autumn or winter.
The internal box is a practical and aesthetic solution that allows you to conceal control units and power supplies within the pergola structure. Its use provides easy and convenient access to the installation from inside the pergola, eliminating the need to dismantle roof trims, disassemble the structure, or install control units and power supplies outside the pergola.
SMART CONTROL
Welcome to the 21st century!
The smart control unit with a built-in Bluetooth interface is used for local control via a phone or tablet through an app.
It allows the creation of simple scenarios and programming of a weekly timer. Simple and quick installation without the need for online user registration.
Why is a Wi-Fi control unit worth it?
The smart control unit with a built-in Wi-Fi interface allows control via a phone or tablet through an app and offers remote control via the Internet.
It enables easy scenario creation and weekly timer programming.
The Wi-Fi control unit allows connection and control of devices via multiple smartphones or tablets simultaneously and also offers voice control via Google Home or Amazon Assistant.
WHO HAS THE REMOTE, HAS THE POWER!
Additional remotes for controlling the pergola in white or black.
The 63 channels, divided into 9 product groups, allow control of: the pergola roof, WIN SCREEN blinds, LED lighting, and heaters.
WEATHER AUTOMATION
RAIN PROTECTION
The rain sensor automatically closes the roof when precipitation is detected, protecting the interior of the pergola.
By using the rain sensor, you can prevent the pergola’s interior from being flooded by water accumulating on the roof.
The sensor prevents the full opening of the louvers for several hours after detecting precipitation.
Additionally, the sensor has a heating function to prevent false activation in the case of snowfall or icing.
FORT HE MOST DEMANDING CUSTOMERS!
Comprehensive protection for your pergola is guaranteed by the installation of all available weather automation solutions.
Thanks to intelligent control, you don’t have to worry about your pergola being damaged by unexpected weather changes during your absence.
All-In-One Package = Peace of Mind

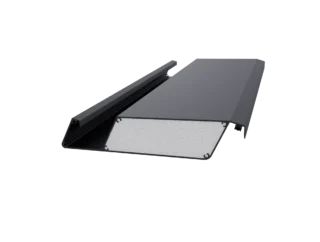

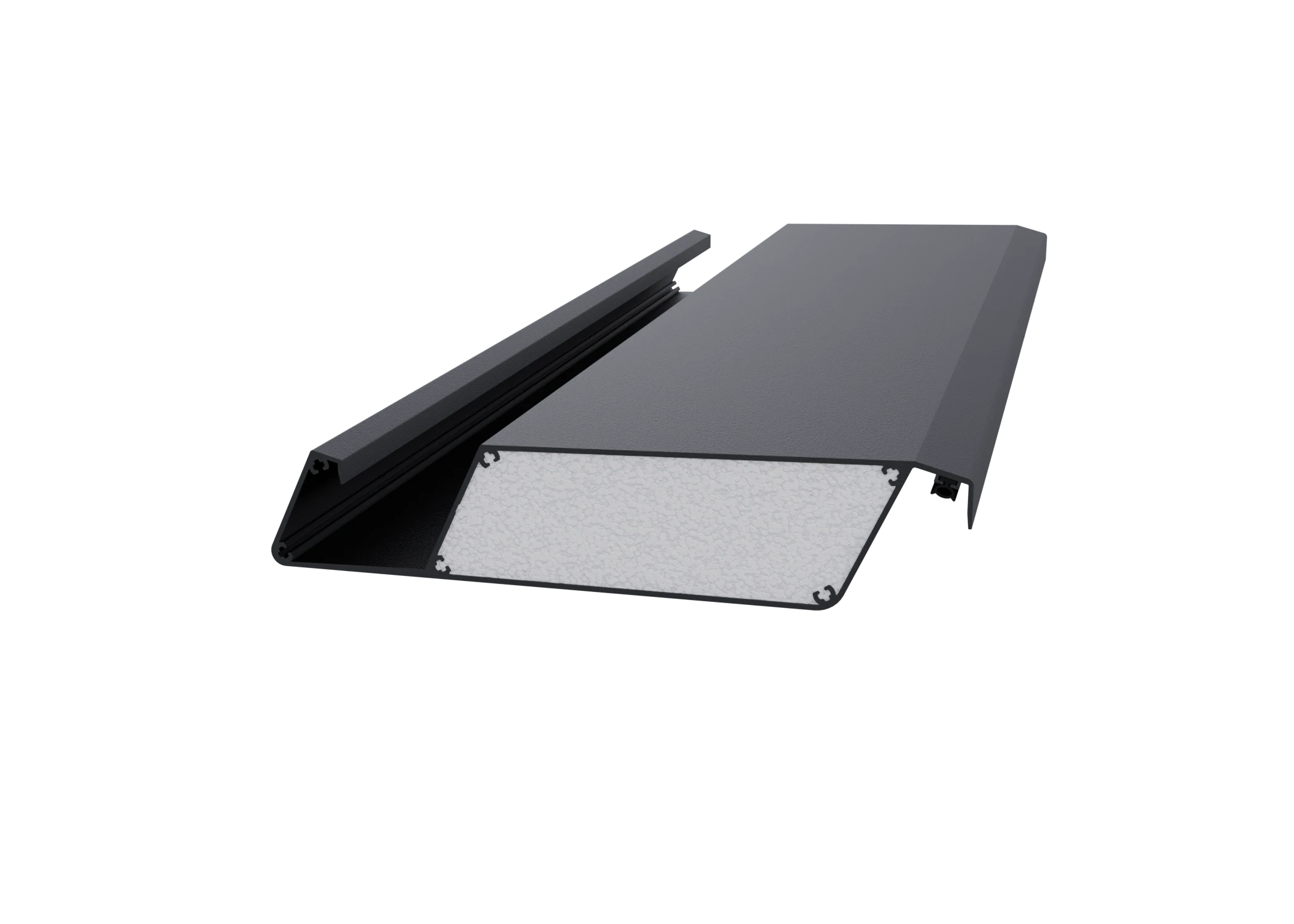

THERMAL ISOLATION
WIN CLIMATIC S400 Pergola Models and Configuration
The innovative pergola structure has been designed so that all screw connections are concealed inside the support posts and pergola crown.
This ensures that no screw connections are visible from the sides, top, or bottom of the pergola, providing exceptional aesthetics.
*Additional central support posts are included in the price for structures with a span over 6000 mm and a width of 4000 mm.
The innovative pergola structure has been designed so that all screw connections are concealed inside the support posts and pergola crown.
This ensures that no screw connections are visible from the sides, top, or bottom of the pergola, providing exceptional aesthetics.
*Additional central support posts are included in the price for structures with a span over 6000 mm and a width of 4000 mm.
The innovative pergola structure has been designed so that all screw connections are concealed inside the support posts and pergola crown.
This ensures that no screw connections are visible from the sides, top, or bottom of the pergola, providing exceptional aesthetics.
*Additional central support posts are included in the price for structures with a span over 6000 mm and a width of 4000 mm.
The innovative pergola structure has been designed so that all screw connections are concealed inside the support posts and pergola crown.
This ensures that no screw connections are visible from the sides, top, or bottom of the pergola, providing exceptional aesthetics.
*Additional central support posts are included in the price for structures with a span over 6000 mm and a width of 4000 mm.
The innovative pergola structure has been designed so that all screw connections are concealed inside the support posts and pergola crown.
This ensures that no screw connections are visible from the sides, top, or bottom of the pergola, providing exceptional aesthetics.
*Additional central support posts are included in the price for structures with a span over 6000 mm and a width of 4000 mm.
Available Colors

STANDARD COLOR RANGE

ANY COLOR FROM THE RAL PALETTE

WOOD-LIKE COLORS

REPEATABLE LOUVER SPAN INCREMENTS EVERY 200 MM
The pergola structure and all profiles have been designed to ensure a consistent, repeatable pergola span based on a louver increment module of 200 mm.

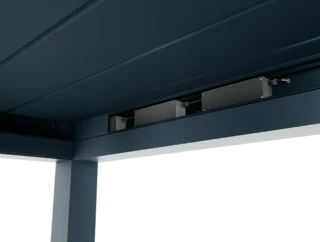

CONTROL UNITS HIDDEN IN THE STRUCTURE
In the S400 pergola, the control units and power supplies have been placed inside the pergola frame, along its width, directly under the closing profile of the roof. This solution ensures aesthetics, protection of the components, and easy service access.

IMPRESSIVE AND UNMATCHED PERGOLA DIMENSIONS
The applied system solutions of the structure allow the following dimensions:
MAX area: 31.5 m²
MAX width: 4500 mm
MAX span: 7000 mm

MORE STABLE AND STRONGER PERGOLA STRUCTURE
The robust pergola frame provides high resistance to loads caused by heavy snowfall and strong wind gusts. Compared to pergolas available on the market, the structure is significantly stronger and more stable, thanks to the use of additional reinforcing chambers, stiffeners, and specially designed profile shapes. Reinforcements and ribs have been applied to most of the profiles used: crown, louvers, gutter, support post, and other profiles.

FASTER AND EASIER INSTALLATION OF ROOF LOUVERS
The pergola roofing system allows for quick and easy installation of louvers without the need to insert and tilt them into the structure. The absence of louver securing and positioning significantly speeds up the installation—up to four times faster—and ensures perfect installation precision.

BOX IN ROOF MODULE
The BOX is a practical and aesthetic solution designed to conceal the pergola’s control units and power supplies. Made from the pergola’s support post, it features an access panel measuring 130 mm x 130 mm x 1500 mm in length. The module is mounted centrally on the pergola frame along its width, ensuring discreet integration with the structure. The BOX not only protects the control elements from weather conditions but also enhances the overall aesthetics of the pergola.

BRUSH SEAL IN THE GUTTER
In the pergola frame, both in the single and double crown, there is a brush seal placed in the gutter section, responsible for collecting water from the slatted roof. When the roof is closed, this seal adheres to the sides of the slats, effectively reducing splashing and water seepage during rainfall. This solution increases the comfort of using the pergola on rainy days, providing better protection against water.

IMPROVED SLAT SEAL
A new type of seal has been used in the pergola slats, providing maximum tightness between the roof slats. The seal has been designed in such a way that its flexibility during roof closing guarantees both complete sealing and quiet operation of the entire system. This innovative solution makes the pergola even more comfortable to use, even in challenging weather conditions.

INVISIBLE SCREW CONNECTION OF THE CROWN TO THE SUPPORT POST
The innovative design of the pergola has been created so that all screw connections are hidden inside the support posts and the pergola crown. As a result, there are no visible screw connections on the sides, top, or bottom of the pergola, which ensures exceptional aesthetics.

HIDDEN ELECTRIC DRIVE OF THE ROOF
The innovative design of the pergola crown has made it possible to hide the electric drive inside the pergola. In addition, all mounting connections are invisible to the user from the outside, which ensures high-quality aesthetics and soundproofing of the electric drive operation.

INVISIBLE CONNECTION OF THE GUTTER JOINT WITH THE PERGOLA CROWN
The pergola crown with the gutter is made as a single extruded profile, which has eliminated visible joints on the underside of the structure, namely at the connection of the gutter with the pergola crown. This also removed the need to connect the gutter with screws or to use sealing compound.

INVISIBLE CONTROL BARS FOR ROOF SLATS
The control bar for the slats in the WIN CLIMATIC S400 pergola is hidden inside the structure, which provides a better visual effect. In most pergolas available on the market, control bars are mounted on the top part of the slats on both sides of the pergola, making them visible from the outside and diminishing the aesthetics of the entire louvered pergola.

INTEGRATED PERIMETER GUTTERS AS STANDARD
Thanks to the use of integrated perimeter guttering as standard, water can circulate freely around the pergola without the risk of overflowing during heavy rainfall. The integrated gutters in the crown additionally reinforce the entire structure, allowing it to transfer and withstand significantly greater loads.

INNOVATIVE INTEGRATED WATER DRAINAGE SYSTEM
Each WIN CLIMATIC S400 pergola is equipped with an innovative system for draining rainwater from the entire roof. Elbows placed inside the pergola posts ensure tightness and eliminate any leaks at the profile joints. The entire drainage system uses a drainpipe with a diameter of 54/63 mm, made in a single section, which further increases the durability and reliability of the entire structure.

PROTECTIVE GRID AGAINST CONTAMINATION
The drainage system is standardly equipped with grids that prevent any debris such as leaves, needles, small branches, etc. from entering the elbows and the downspout funnel.

TIGHT INSTALLATION OF SIDE SCREENS
Thanks to the additional chambers in the pergola profiles, side screens such as WIN PANELS, WIN SCREEN, and WIN GLASS can be safely installed without concerns about the tightness of the connections, completely eliminating leaks.

INTEGRATED WATER DRAINAGE SYSTEM FROM THE SLATS
Each of the available slats has been designed so that during smooth rotation up to 135°, water remains on the slat and flows directly into the perimeter gutters instead of entering the interior of the pergola. In the case of a fully closed roof (0°), the shape and tilt of the slats allow efficient drainage of water, even during heavy rainfall.

POSSIBILITY OF USING BOTTOM AND SIDE DRAINS
In the support post with an inspection opening, water drainage is carried out using a flexible PVC downpipe with a diameter of 54/63 mm, made in a single section. This solution allows the use of both bottom and side drainage. The flexible pipe also provides easy access to electrical control units and installations, with the added advantage of enabling height adjustment of the side drain.

INNOVATIVE CONNECTION OF THE CROWN AND GUTTER WITH THE SUPPORT POST – FASTER, EASIER, AND TIGHTER INSTALLATION
The connection of the crown and gutter with the post is made using hidden screw connections, which speeds up installation, ensures tight joints, and enhances the visual effect. The pergola frame profile is flush with the support posts, providing high-quality aesthetics.

AUTOMATIC CONTROL OF THE ROOF
FROM 0° TO 135°
Thanks to the built-in electric drive, it is possible to automatically control the roof slats within a range from 0° to 135°.

2 MODELS OF PERGOLA CROWN COVERS
Thanks to the use of an additional cover in the pergola crown, all mounts and screw connections, such as the drive and the visible pins of the roof slats, are completely hidden and invisible from the outside.

2 MODELS OF INNOVATIVE AND MODERN ROOF SLATS
Two models of innovative roof slats used in the WIN CLIMATIC S400 pergola are available. The slats are designed and applied depending on the specifics of use and the pergola configuration: the standard slat and the LED slat with integrated lighting. Each of our slats is additionally reinforced, featuring ribs and chambers that increase the durability of the entire roof. The slats have a modern, simple shape – they are perfectly flat on the inside of the pergola, without curves or embossing, making the entire roof form a uniform, modern surface.

INNOVATIVE MOUNTING AND SHAPE OF LED PROFILES INTEGRATED WITH THE GUTTER
Three models of LED profiles integrated with the gutter are available. The profiles feature innovative mounting locks, eliminating the need to attach them to the gutter with screws or adhesive, which speeds up installation. The shape of the profiles has been designed so that the white LED strip is directed downward at an angle, illuminating the entire interior of the pergola. The second, colored RGB LED strip, located in the same profile, is directed upward to illuminate the pergola structure and roof, creating an extraordinary atmospheric ambiance in the evening.

2 INNOVATIVE CLOSING PROFILES IN THE SHAPE OF SLATS
Two models of innovative closing profiles are available. The closing profiles have the shape of slats, which allows maintaining a uniform appearance of the roof across the entire pergola surface. They are equipped with mounting locks, eliminating the need for screw or fastener connections, which significantly speeds up and simplifies pergola installation. Additionally, the closing profile features an integrated seal that ensures proper sealing of the entire structure.

LED COVERS MATCHED TO THE COLOR OF THE SLATS OR STRUCTURE WITHOUT VISIBLE JOINTS
The LED covers used in the WIN CLIMATIC S400 pergola are color-matched to the slats or the structure. The covers are individually extruded in light and dark colors, which provides a better visual effect for the entire structure. In most pergolas available on the market, the covers are available only in white or milky shades, without matching the color scheme of the structure, which negatively affects the aesthetics – for example, using a white cover in an anthracite or black structure. Our proprietary cover system is extruded in long sections, which helps avoid most visible joints, ensuring a consistent and aesthetic appearance.

POSSIBILITY OF USING A HEAT RADIATOR IN THE PERGOLA STRUCTURE TOGETHER WITH WIN SCREEN ROLLER BLINDS OR THE WIN GLASS SLIDING GLASS SYSTEM
Thanks to the innovative design of the pergola and the double-chamber gutter, it is possible to mount a heat radiator directly onto the pergola structure, in combination with WIN SCREEN external blinds or the WIN GLASS sliding tempered glass system. The radiator’s electrical wires are concealed in a special chamber of the main crown, which protects the installation from external factors such as rain or snow.

LED LIGHTING
The richest range of integrated lighting configurations on the market offers the possibility to choose the type of lighting, colors, intensity, and light temperature. Regardless of the selected option, you can conveniently control the lighting using the pergola’s remote control.

TIGHT SHEET METAL WORK
All potential leaks at the connection between the pergola and the wall have been eliminated thanks to sheet metal work produced in our factory. The flashing is available in standard shapes and can also be customized to the individual needs of the client. The color of the flashing is selected from 13 colors of the WIN CLIMATIC S400 palette or can be painted in any RAL color or wood-like finish.

STRUCTURE RESISTANT TO SNOW, WIND, AND RAIN
A snow-resistant structure with one of the best results in the world, with snow loads of up to 318 kg/m² depending on the size and model of the structure. The pergola is also resistant to other weather conditions such as wind, rain, and sun, which makes our WIN CLIMATIC S400 pergola suitable for installation and use anywhere in the world.

STANDARD-INTEGRATED SEALING GASKET BETWEEN THE CROWN AND THE SLATS
Thanks to the use of an integrated sealing gasket between the crown and the slats, the gap between the profiles has been eliminated. This innovative solution has made it possible to remove any light leaks when the roof is closed. The gasket also prevents dirt and rain from entering the inside of the pergola. This solution also significantly enhances the visual effect compared to other available structures on the market.

INTELLIGENT CONTROL
Thanks to the use of an intelligent control unit, it is possible to operate the pergola and additional equipment via a smartphone or tablet from anywhere in the world.

FASTER AND EASIER INSTALLATION OF INTEGRATED LED LIGHTING
All LED lighting components are prepared in our factory to maximize installation speed and convenience. The LED strip is factory-glued to the aluminum profile, soldered, and equipped with quick connectors. Controllers and control units are mounted inside the structure and programmed to work with the remote control. The LED lighting includes complete, labeled wiring, properly distributed throughout the structure. The work of the service technicians is limited only to connecting the quick connectors and plugging the controller into the power supply. This makes the lighting installation faster and easier, saving our customers time and money compared to other solutions available on the market.

FAST DELIVERY TIME
A large stock of raw materials, our own component system, a modern machine park, and extensive production and storage space guarantee the fulfillment of standard orders within as little as 4 to 6 weeks. Thanks to our own components and the majority of production processes carried out in our factory, we are 90% independent from external suppliers. This allows us to achieve faster order completion times, higher product quality, and quick response to complaints and non-standard orders.

PROGRAMMING AND CONFIGURATION OF AUTOMATION AS STANDARD
All purchased control units, controllers, and accessories for the pergola are programmed and configured free of charge in our factory to speed up and simplify installation at the destination site. All devices are programmed and assigned to the appropriate remote control. The ordered pergola includes complete, labeled wiring distributed throughout the entire structure. The work of the service technicians is limited only to connecting the quick connectors and plugging the controllers into the power supply.

PREMIUM MATERIALS
Innovative roofed structure made of extruded aluminum and stainless steel. The extruded profiles are made of high-quality aluminum with thick and strong walls, reinforced with chambers and ribs. The steel elements used in the WIN CLIMATIC structure are made of the highest quality stainless steel with a thick cross-section.

RICH COLOR RANGE OF THE STRUCTURE AS STANDARD
We offer a rich color range of the structure as standard! The structure is powder-coated in seven colors from the standard WIN CLIMATIC S400 palette. It is also possible to powder-coat in any RAL color as well as in wood-like finishes.

CE COMPLIANCE
The WIN CLIMATIC S400 pergola meets the requirements of the PN-EN 1090-1 to PN-EN 1090-3 standard, introduced by the Polish Committee for Standardization for steel and aluminum structures, as confirmed by the CE marking of the product.

TIGER COATINGS
Thanks to the use of thermosetting powder coatings, we gain virtually unlimited possibilities for surface finishing. In our products, we use exclusively coatings from TIGER COATINGS, which ensure durability and uncompromising quality of workmanship.

DURABLE COATING
All structures we manufacture have an international quality certificate for coating finishes. Products marked with the QUALICOAT symbol are characterized by excellent properties, confirmed by accredited testing laboratories.

HIGH QUALITY OF PRODUCT MANUFACTURING AND PACKAGING
A specialized team and the most modern machinery allow us to achieve the highest production quality. Each product is thoroughly inspected by the quality control department before shipment, checking compliance with the order and the quality of workmanship. We also place great importance on careful packaging and securing of the goods for transport. Thanks to the use of specially fitted styrofoam inserts, air mats, and durable, thick cartons, we can ensure that the ordered goods will arrive in perfect condition.
