The robust pergola frame provides high resistance to loads caused by heavy snowfalls and strong wind gusts. The use of additional reinforcing chambers and the special profile shape make the WIN CLIMATIC one of the most durable pergolas available on the market.
Adjustment of aluminum louvers rotating from 0° to 135° via a remote control, smartphone, or tablet. Complete control over sunlight and protection against excessive solar exposure and weather conditions.
Aesthetic fasteners and the absence of visible screw connections. The structure includes a concealed drive system and perfectly matched components, which ensure that the WIN CLIMATIC pergola, in addition to its unique functionality, also presents remarkable aesthetic qualities
Innovative water drainage system, integrated and concealed within the pergola’s structure.
LED lighting integrated into the roof louvers, with options to adjust the color and intensity of the lighting.
Ambient LED lighting integrated with pergola crown. Several lighting and light adjustment options are available.
Heaters with adjustable power and control via remote, smartphone, and tablet. Two power ranges from 1500 W to 4000 W, with adjustable settings. The heater housing is made of powder-coated aluminum, available in white or black. The LOW GLARE function reduces the amount of light emitted by the heaters.

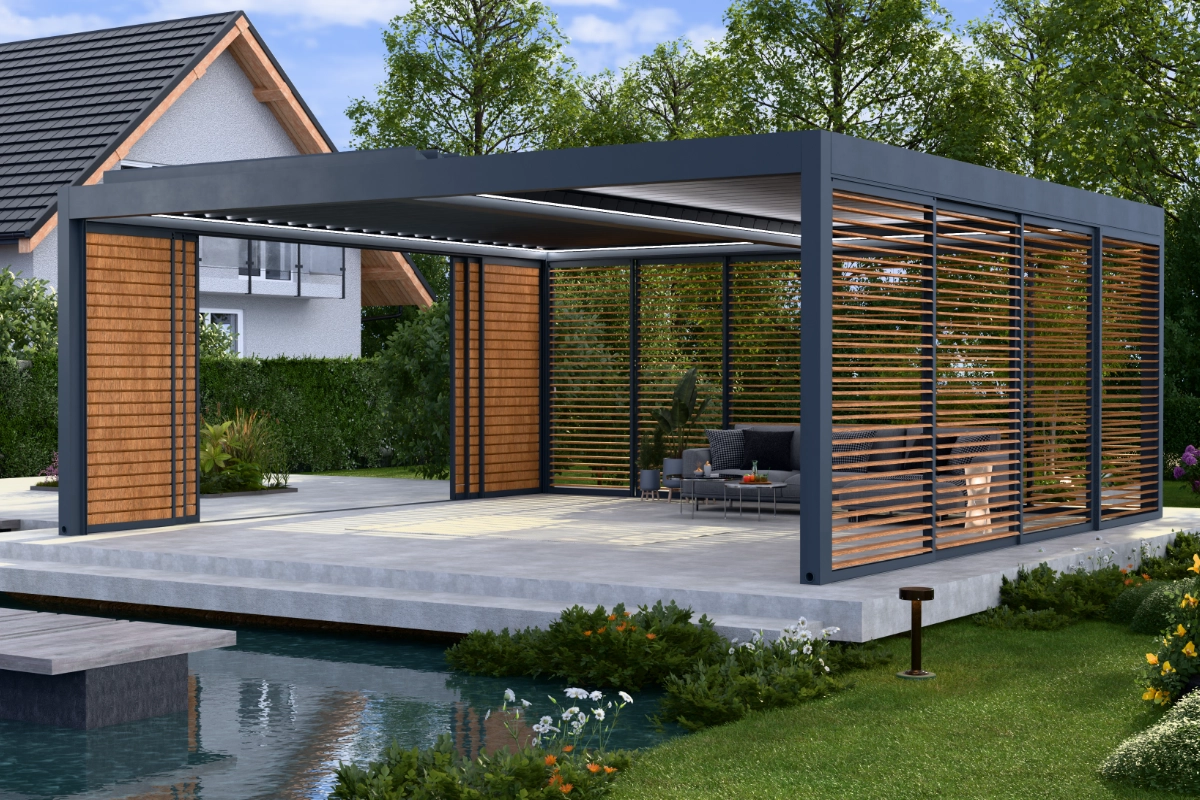

WIN PANELS
A modern shading product, perfect for pergolas, terrace roofs, and more. The panels provide additional protection from the elements, enhance privacy, and elevate the aesthetic appeal of any space with their stunning design. The use of adjustable louvers, which can be rotated from 0 to 90 degrees, allows for precise control of sunlight exposure.

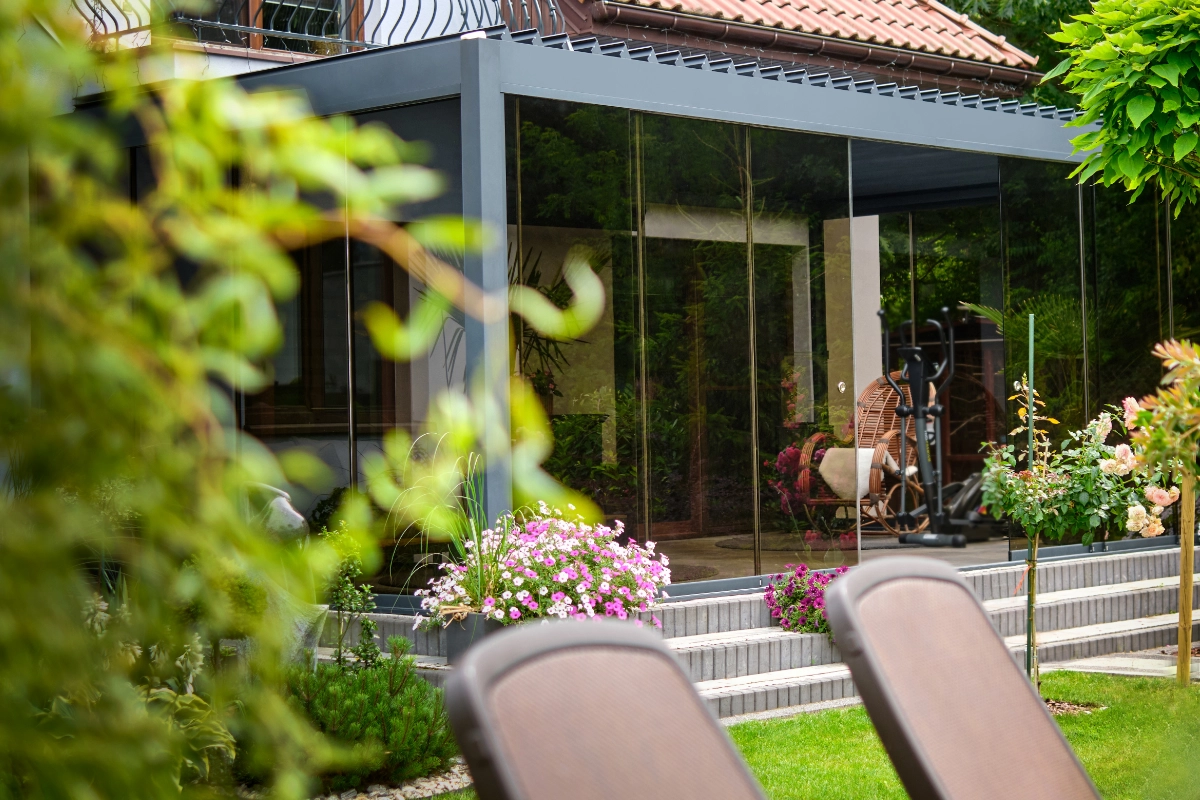

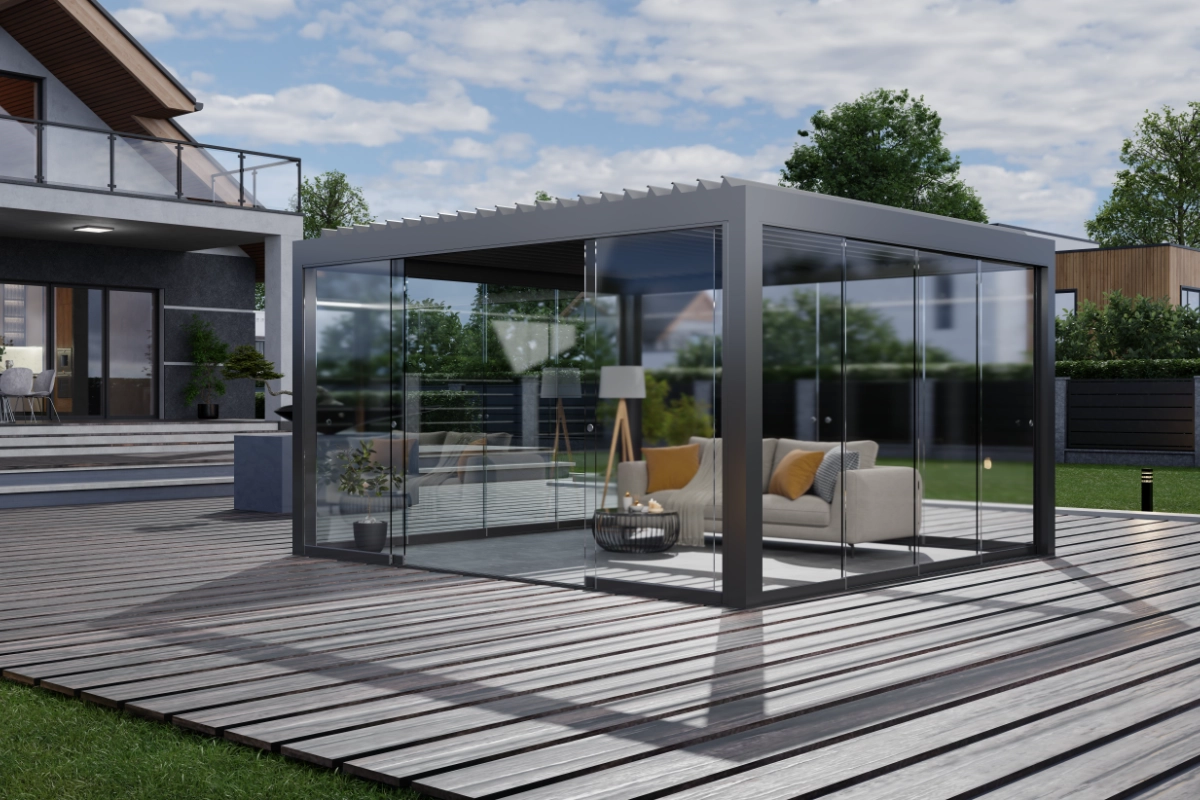

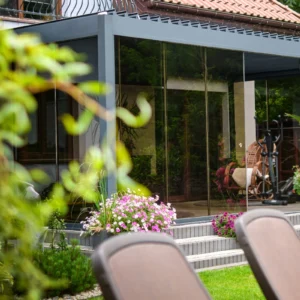

WIN GLASS

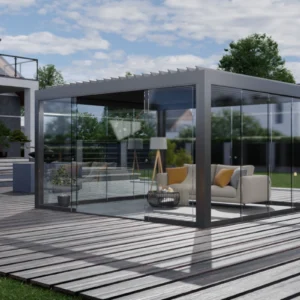

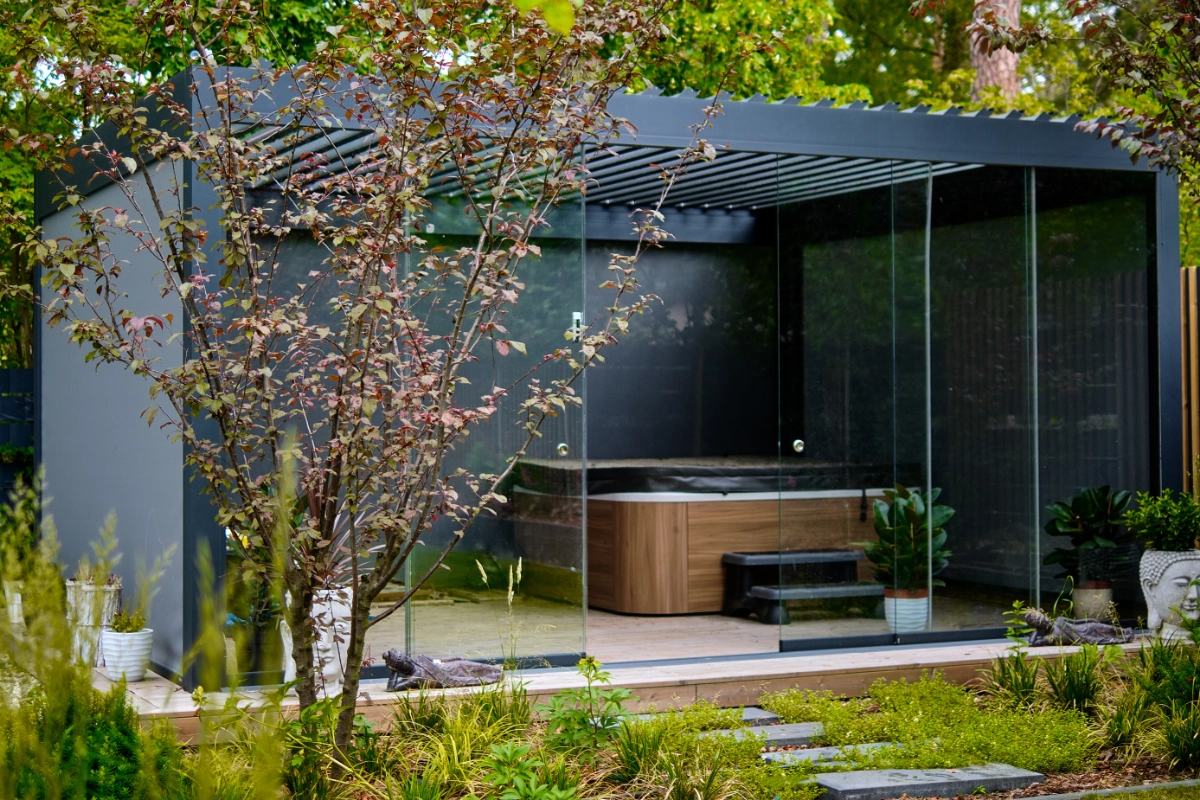

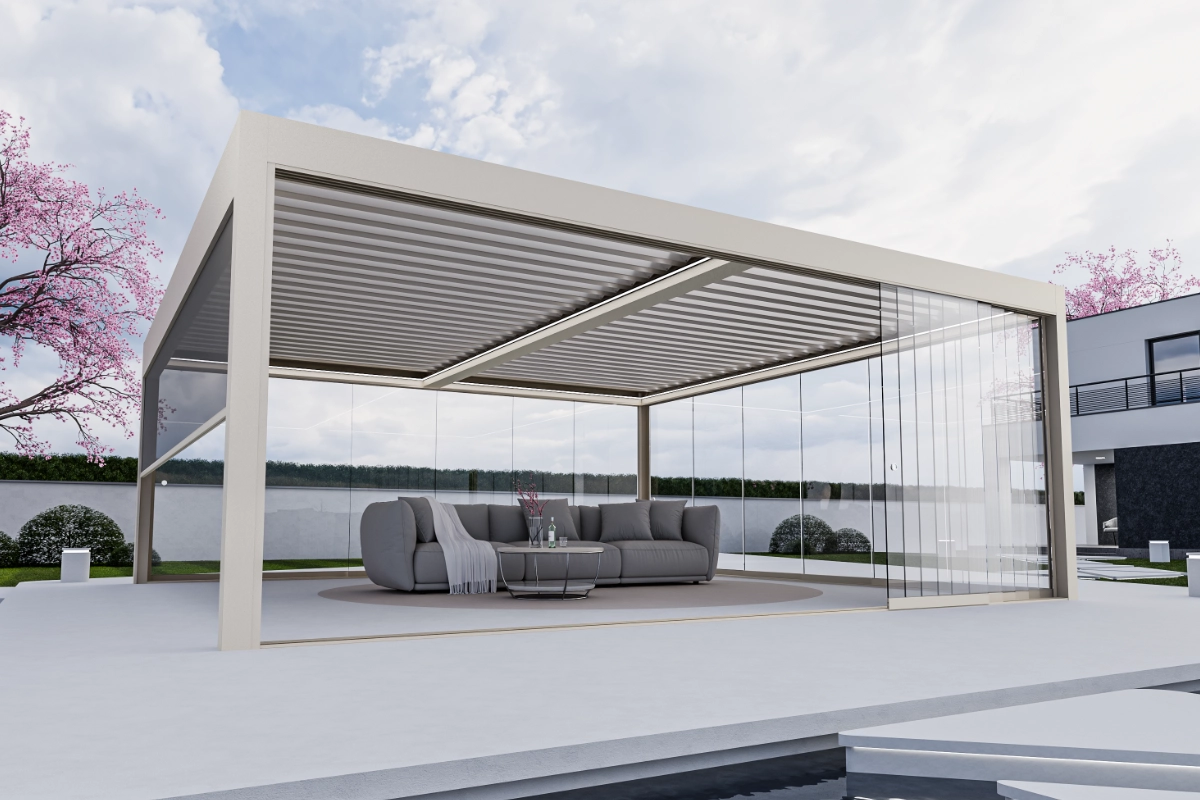

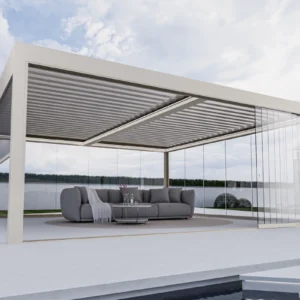

An incredible combination of optimal visual comfort and protection from external conditions. By using certified, tempered glass with a thickness of 10 mm and unique design solutions, the system ensures safe use of any terrace space, whether at home, in a restaurant, or in a hotel.

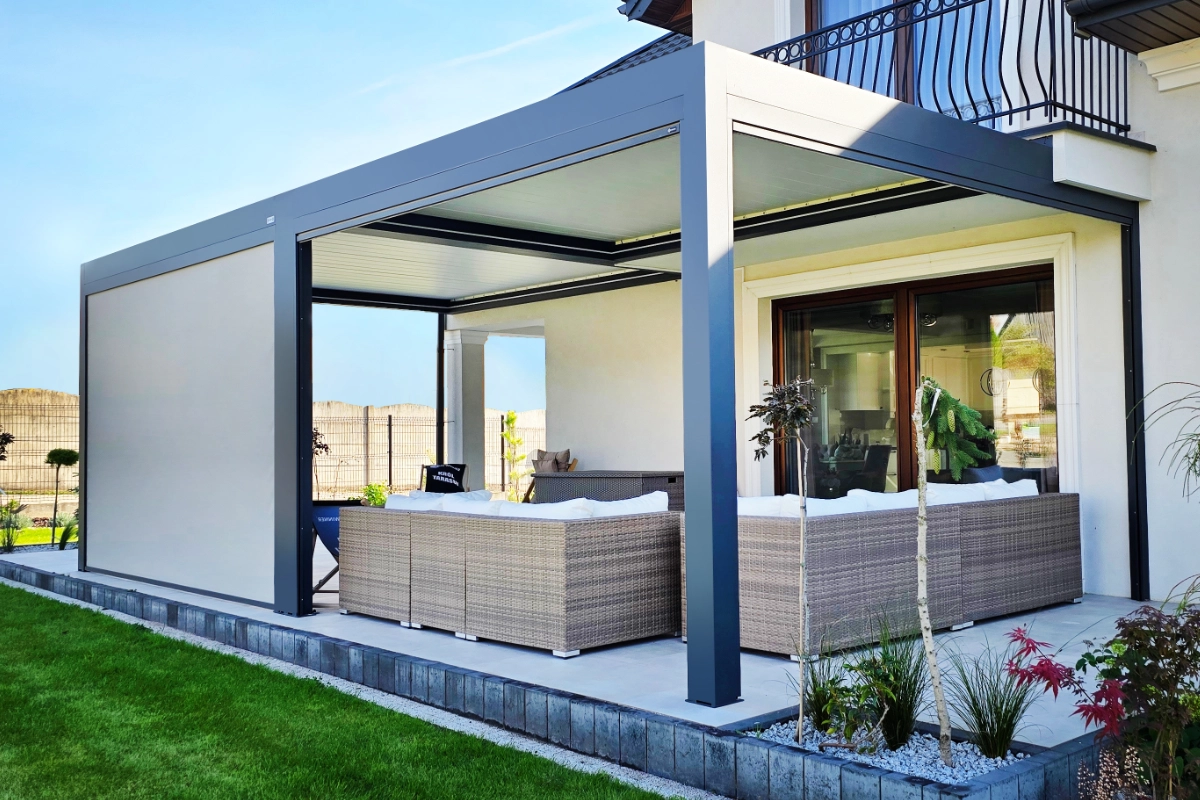

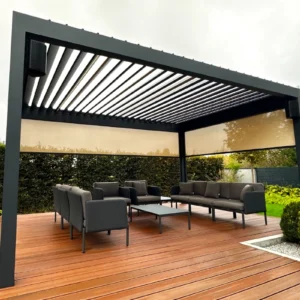

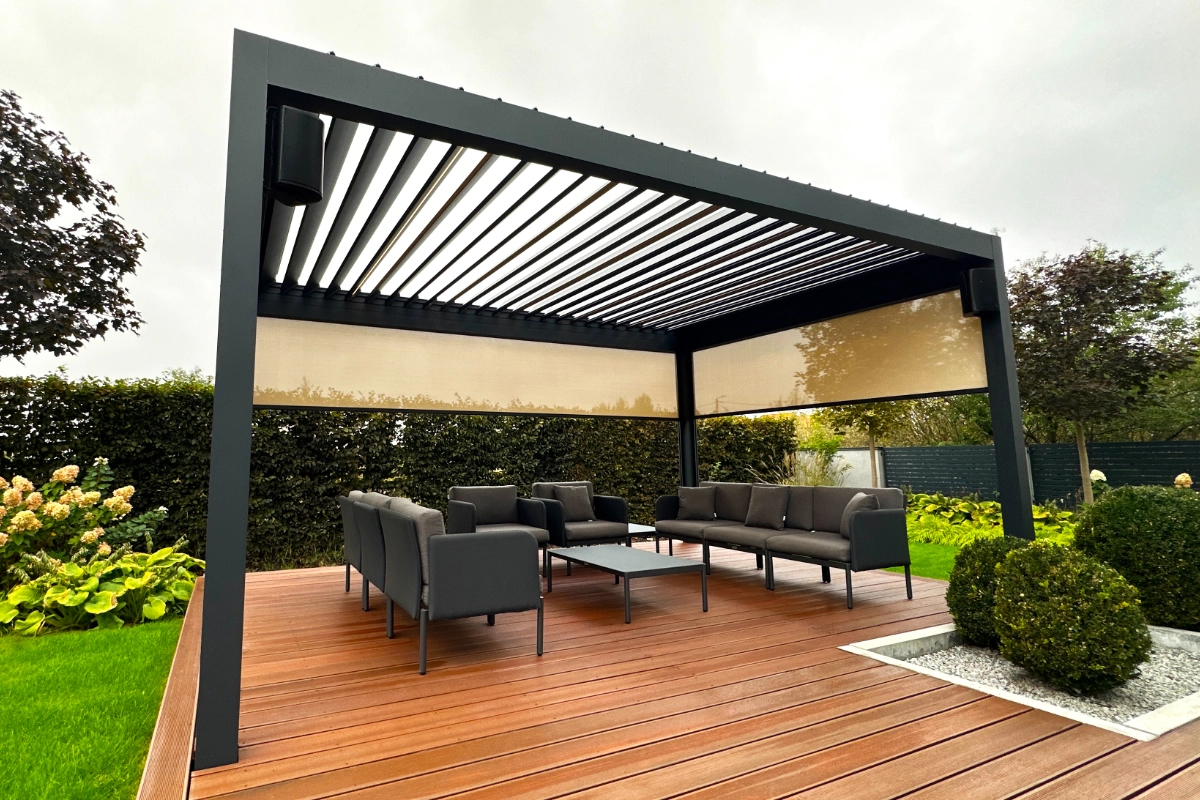

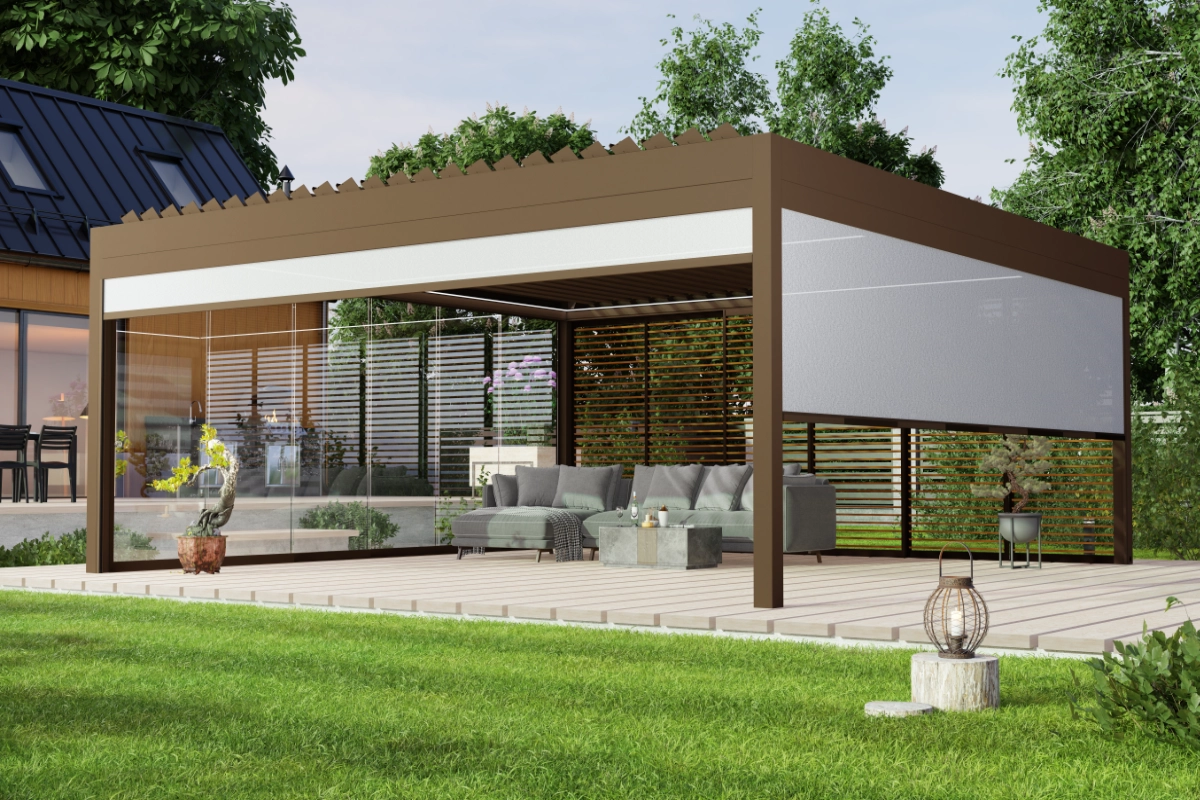

With the addition of modern WIN SCREEN roller blinds, the system gains extra benefits, including full sun protection, insect shielding, enhanced privacy, and thermal properties. The roller blinds are available in a wide range of colors to match the pergola, and they come in impressive sizes, up to 7000 mm.

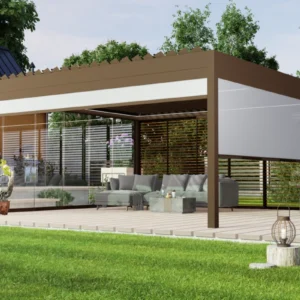

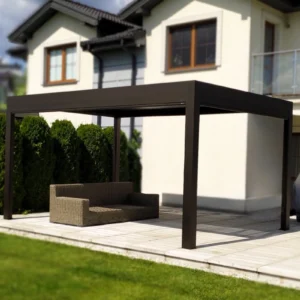

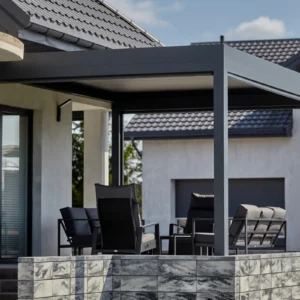

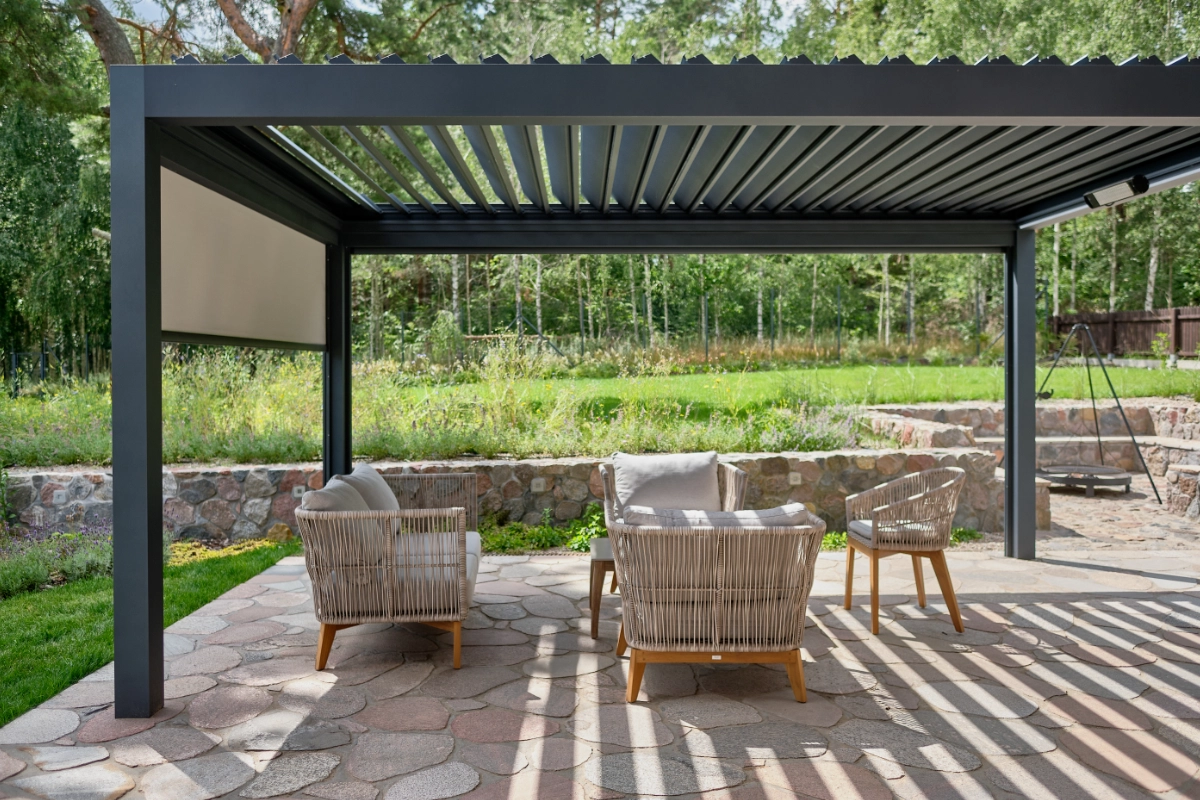

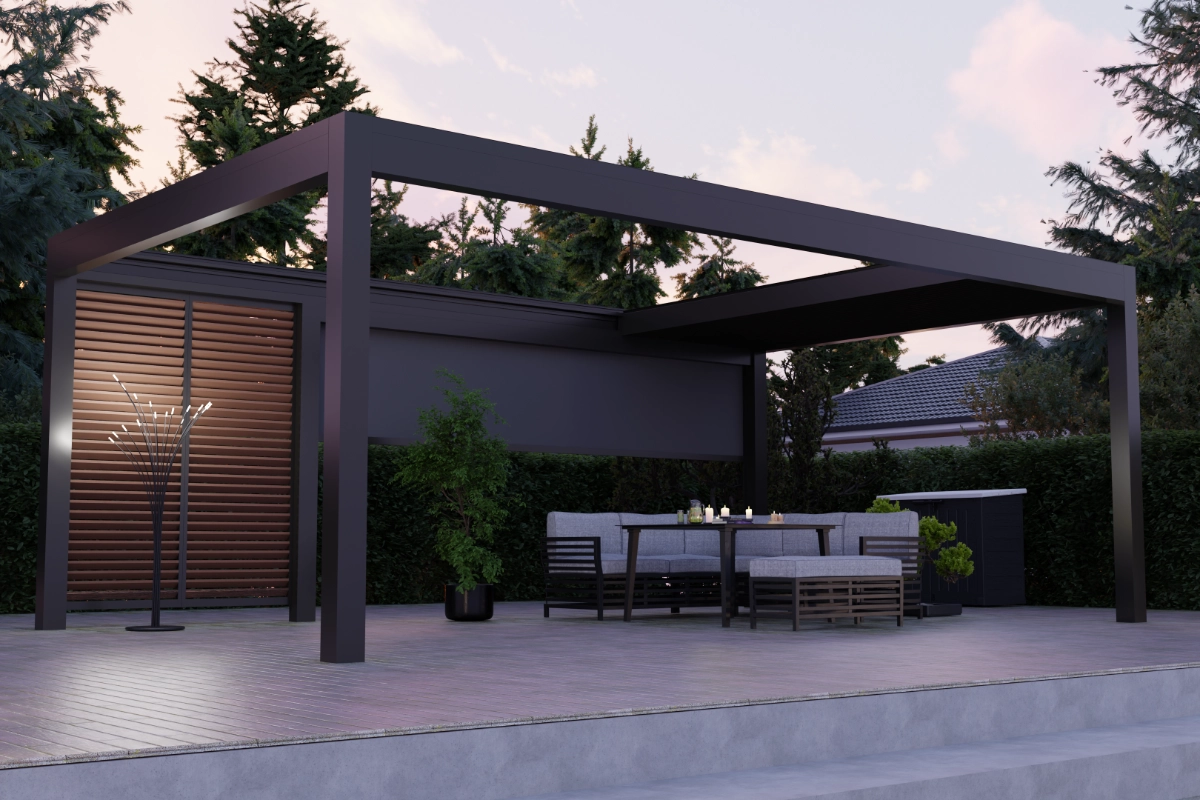

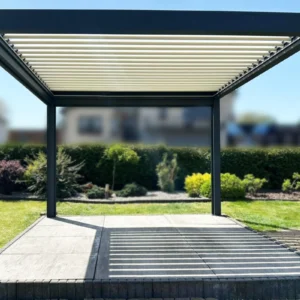

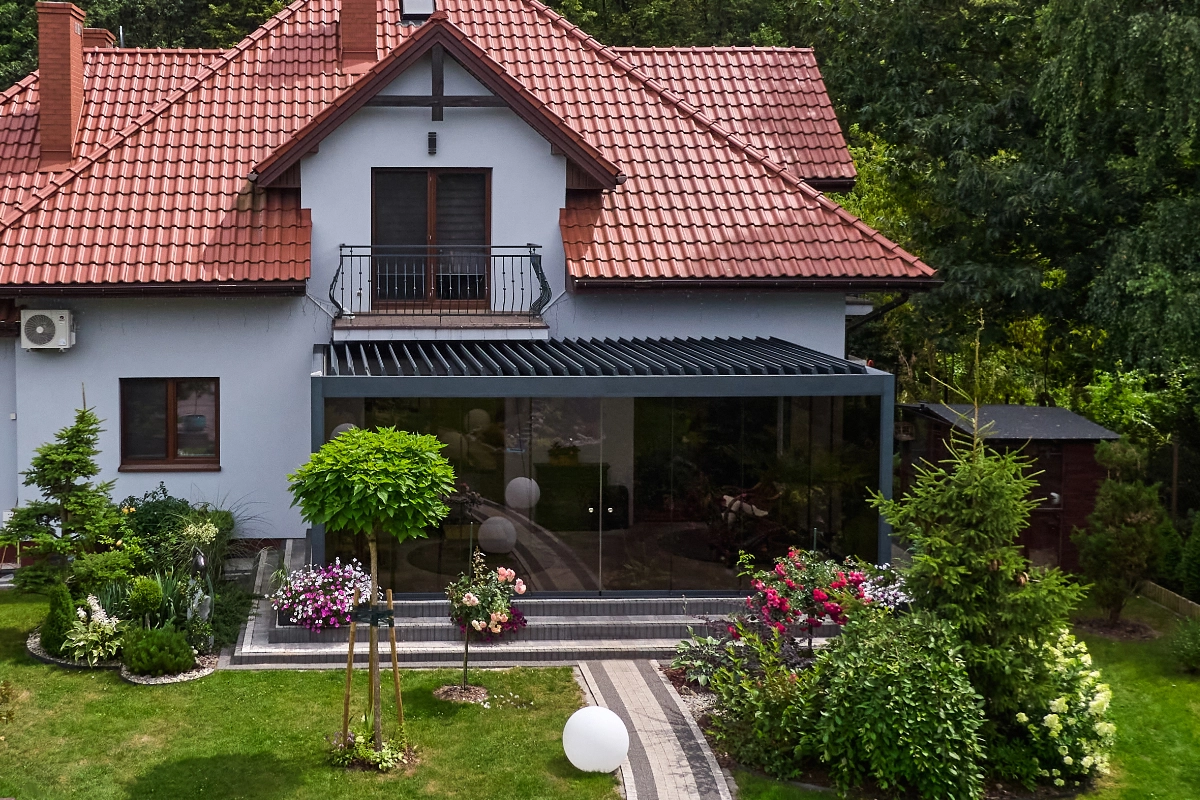

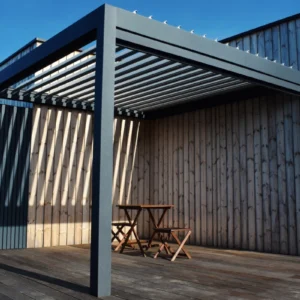

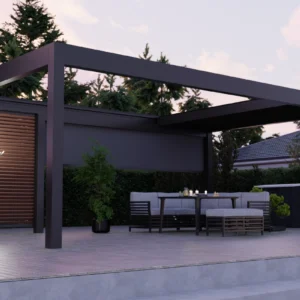

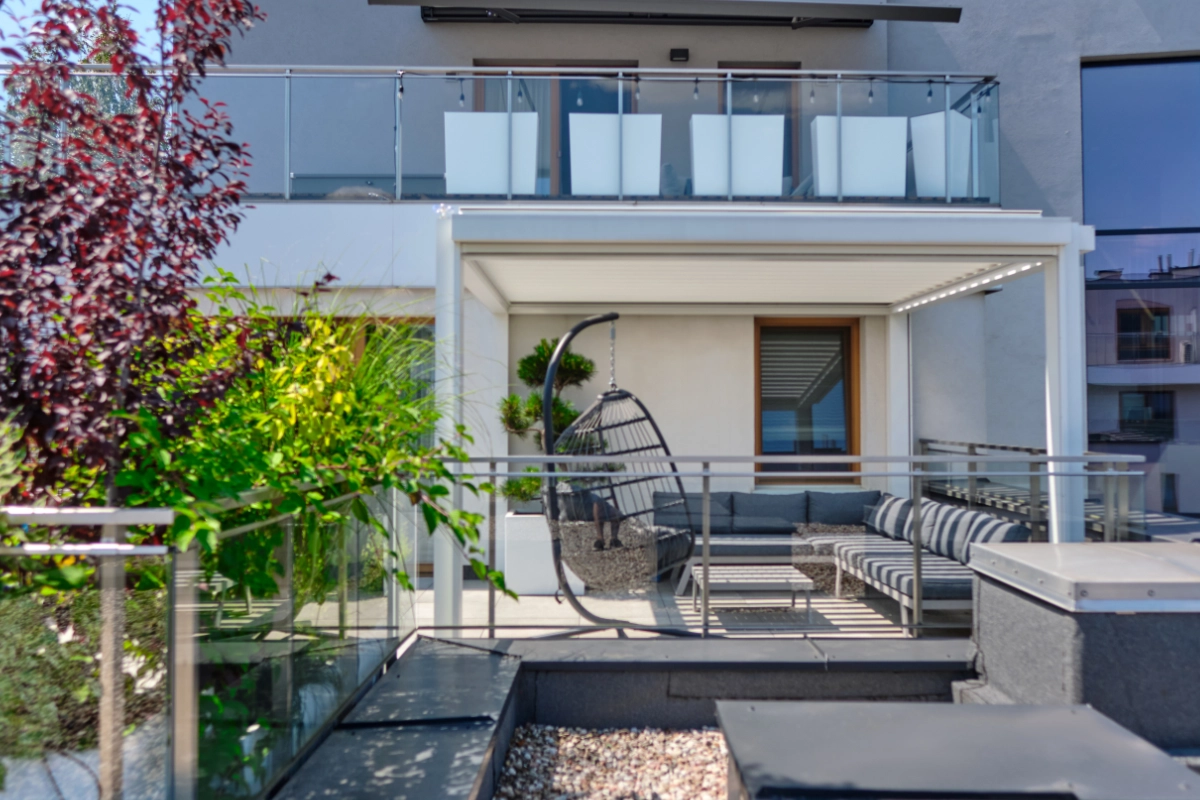

WIN CLIMATIC S200 PERGOLA

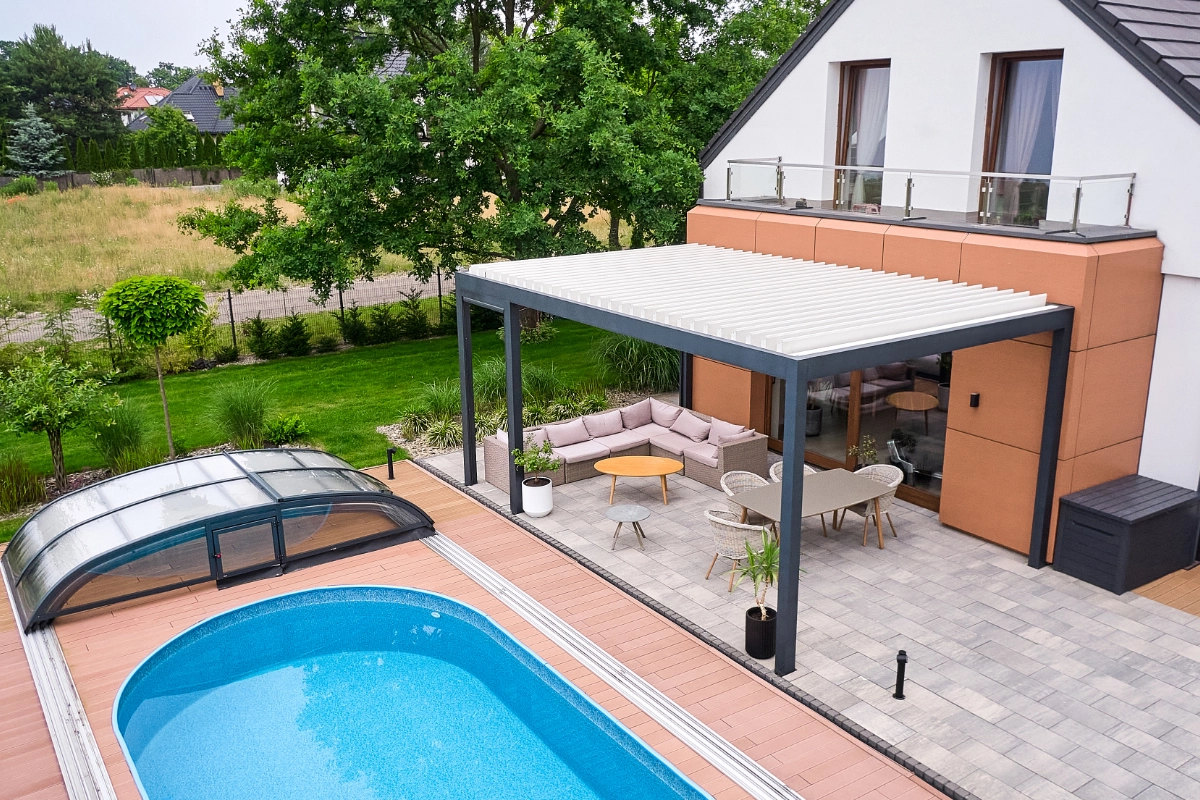

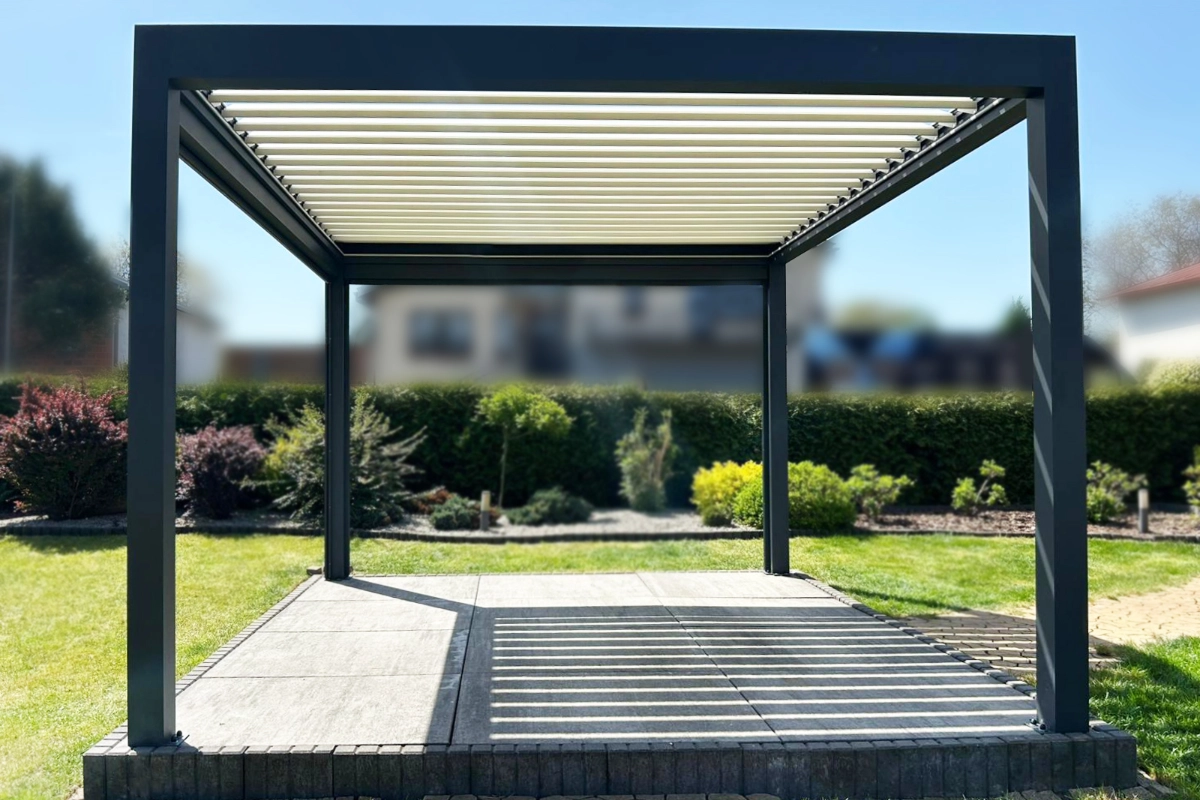

The WIN CLIMATIC S200 is the most revolutionary and innovative, fully automatic terrace roofing system, made from durable powder-coated extruded aluminum and stainless steel. The WIN CLIMATIC S200 is an alternative to the WIN CLIMATIC model, offering fewer configuration options and featuring closed profiles in the support columns. The roof consists of aluminum louvers that can rotate from 0° to 135°, allowing control over the amount of sunlight, and in the closed position, they protect against excessive sun and precipitation.
.
The most advanced and innovative solution for modern and demanding outdoor spaces such as terraces, gardens, as well as commercial spaces like restaurant and hotel patios. The structure’s sides can be enclosed with external blinds WIN SCREEN, sliding glass systems WIN GLASS, or sliding panel systems WIN PANELS.
LINEAR LED LIGHTING IN roof LOUVERsImpressive possibilities for configuring and integrating LED lighting with the pergola structure.
Innovative LED louvers with an integrated diffuser in black or white.
Controlled via the pergola’s remote control, the waterproof LED COB WHITE, RGB, or RGB-W tape (WHITE 320 diodes/m, RGB 840 diodes/m) provides a continuous line of light without visible points.
Light color options: 3000 K – warm, 4000 K – neutral, or 6500 K – cold.
AMBIENT LIGHTING INTEGRATED WITH THE PERGOLA CROWNImpressive possibilities for configuring and integrating LED lighting with the pergola structure.
Innovative aluminum LED profile with integrated diffuser in black or white.
Controlled via the pergola’s remote control, the waterproof LED COB WHITE, RGB, or RGB-W tape (WHITE 320 diodes/m, RGB 840 diodes/m) provides a continuous line of light without visible points.
Light color options: 3000 K – warm, 4000 K – neutral, or 6500 K – cold.
heatersEnsure thermal comfort in your relaxation area!
Equip your pergola with the chosen heater and use it all year round. We offer single heaters with a power of 1500 W or double heaters with a power of 4000 W, in white or black, with the option to choose control: with heating power regulation or with an ON/OFF option. For user convenience, the heater can be controlled via the pergola’s remote control.
Additionally, the LOW GLARE function reduces the amount of light emitted by the heater.
bluetooth hubWelcome to the 21st century!
The smart control unit with a built-in Bluetooth interface is used for local control via a phone or tablet through an app.
It allows the creation of simple scenarios and programming of a weekly timer. Simple and quick installation without the need for online user registration
WI-FI hubWhy is a Wi-Fi control unit worth it?
The smart control unit with a built-in Wi-Fi interface allows control via a phone or tablet through an app and offers remote control via the Internet.
It enables easy scenario creation and weekly timer programming. The Wi-Fi control unit allows connection and control of devices via multiple smartphones or tablets simultaneously and also offers voice control via Google Home or Amazon Assistant.
WHO HAS THE REMOTE, HAS THE POWER!
Additional remotes for controlling the pergola in white or black. The 63 channels, divided into 9 product groups, allow control of: the pergola roof, WIN SCREEN blinds, LED lighting, and heaters.
wind sensorSAFETY FIRST!
With the use of a wind sensor, you can avoid damage to your pergola caused by strong winds.
The sensor detects strong wind and controls the pergola roof louvers to minimize wind resistance and protect the structure.
rain sensorRAIN PROTECTION
The rain sensor automatically closes the roof when precipitation is detected, protecting the interior of the pergola.
By using the rain sensor, you can prevent the pergola’s interior from being flooded by water accumulating on the roof.
The sensor prevents the full opening of the louvers for several hours after detecting precipitation.
Additionally, the sensor has a heating function to prevent false activation in the case of snowfall or icing.
temperature sensorFROST PROTECTION
By using a temperature sensor, you can avoid damage to the pergola caused by freezing or icing.
If the temperature drops to +3°C, the sensor automatically tilts the roof louvers to prevent them from frosting.
snow sensorOCHRONA PRZED ŚNIEGIEM
By using a temperature sensor combined with a rain sensor, you can avoid damage to the pergola due to excessive snow load.
When snow is detected, the sensor automatically tilts the roof louvers.
all in one packageFORT HE MOST DEMANDING CUSTOMERS!
Comprehensive protection for your pergola is guaranteed by the installation of all available weather automation solutions.
Thanks to intelligent control, you don’t have to worry about your pergola being damaged by unexpected weather changes during your absence.
All-In-One Package = Peace of Mind

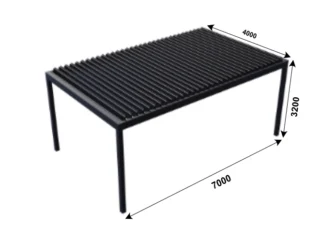

single pergolaTwo to three mounting rails per side, depending on the size of the pergola.
Two closed support pillars with unpainted mounting marks, TYPE B.
WIN CLIMATIC S200 is equipped with an integrated water drainage system.

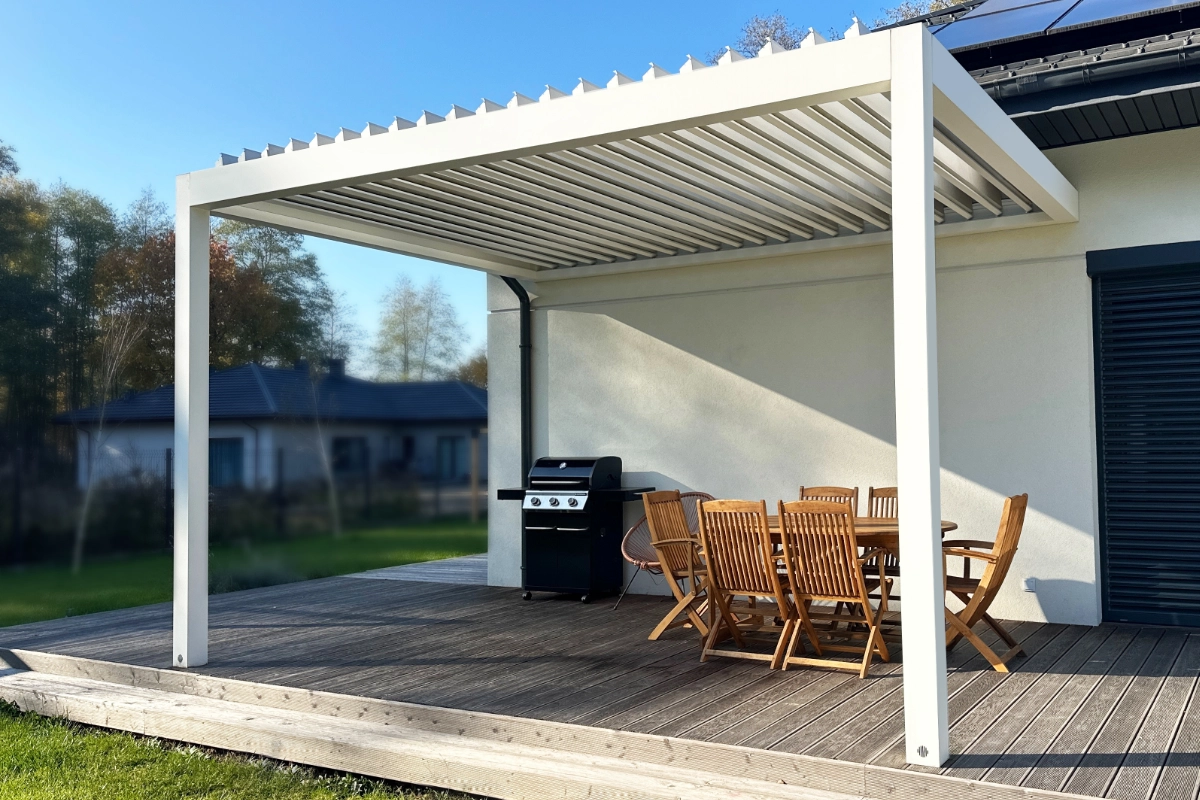

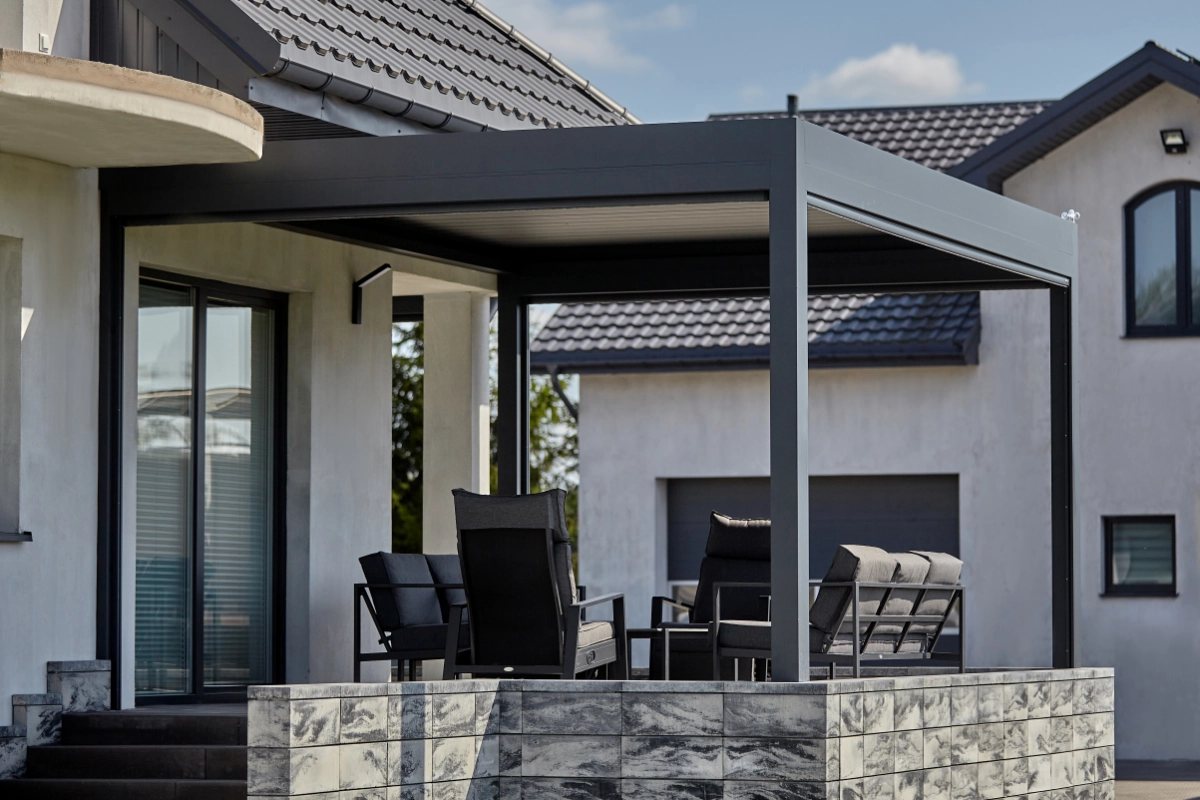

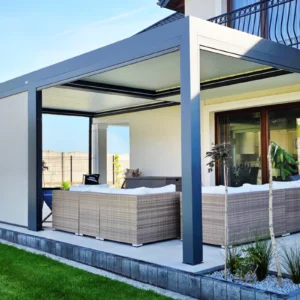

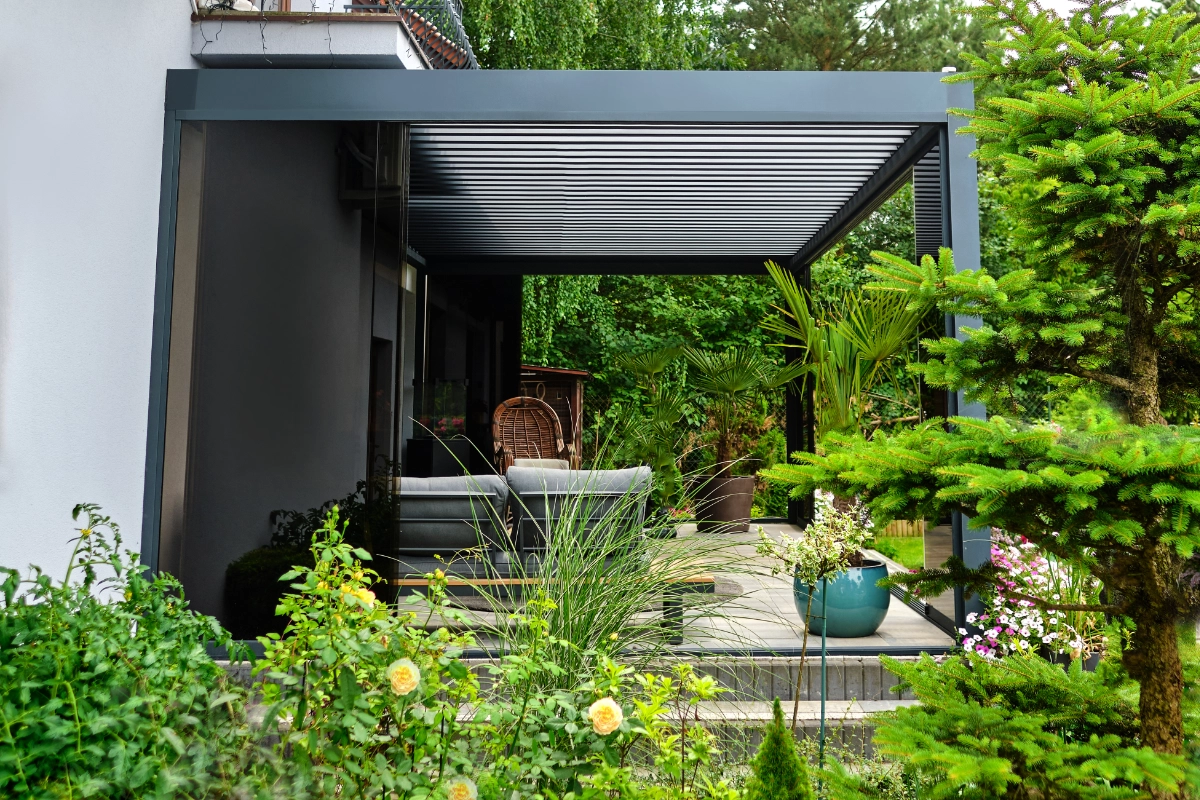

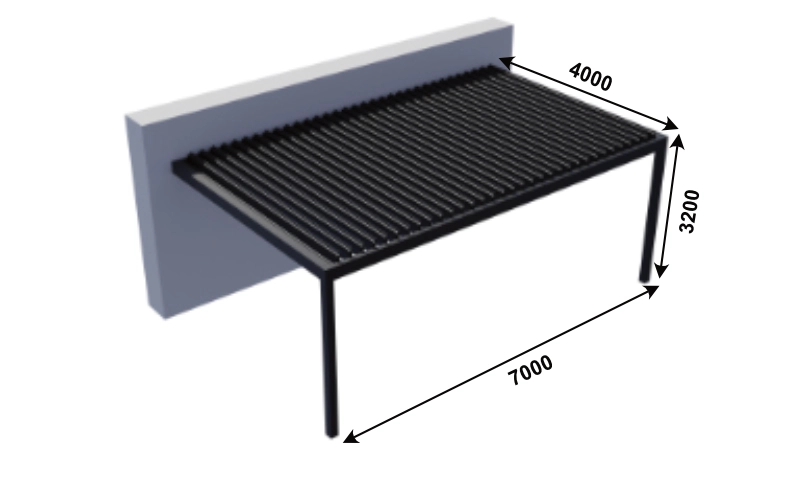

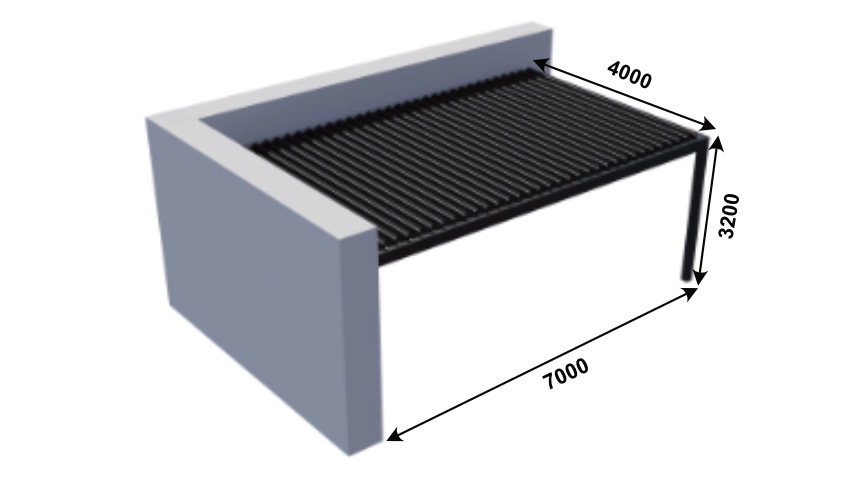

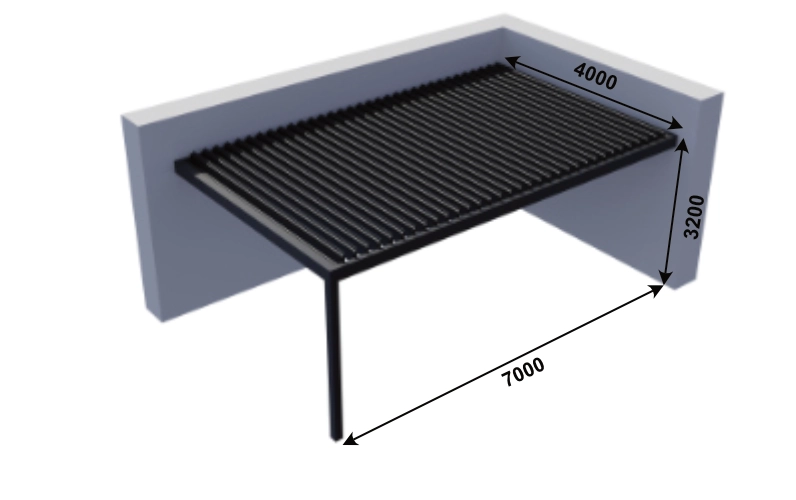

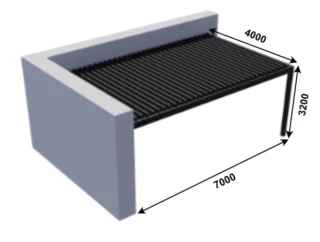

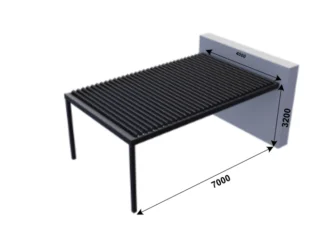

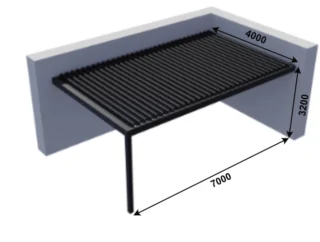

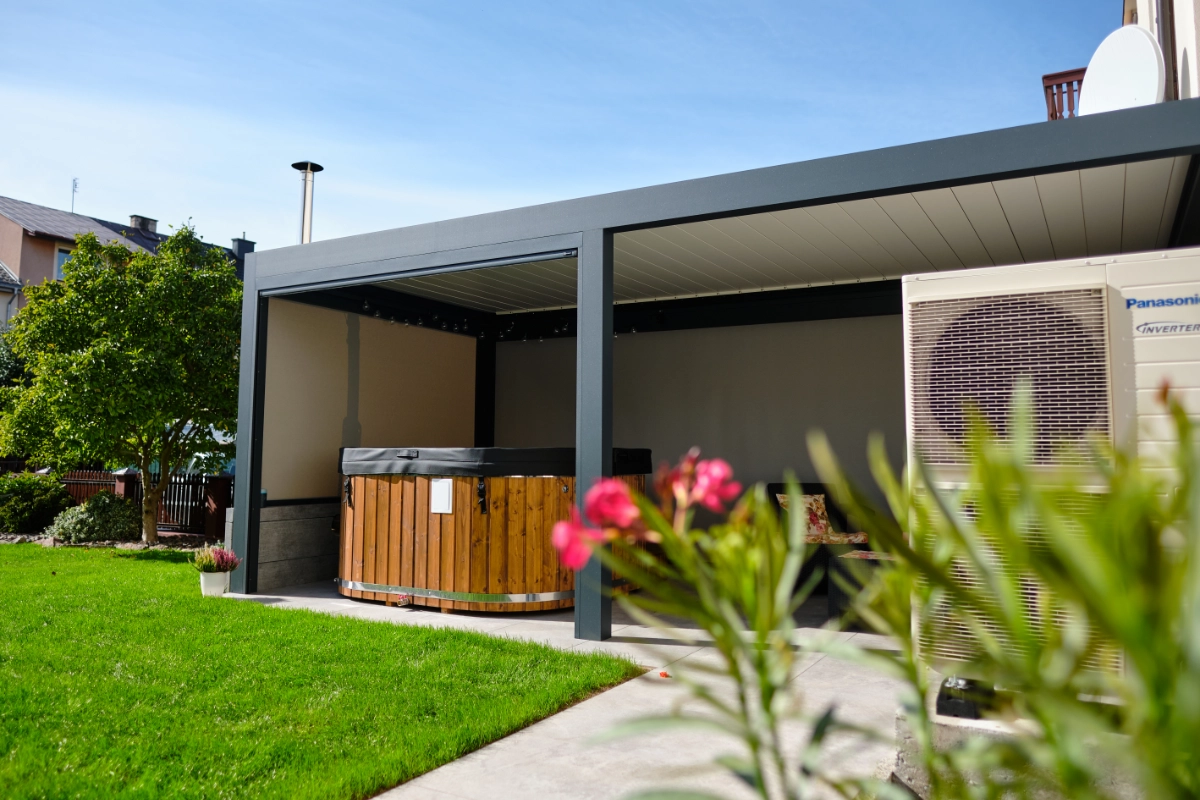

single pergola wall mountedFrom two to three mounting brackets per side, depending on the size of the pergola.
Two closed support posts with unpainted TYPE B mounting brackets.
The WIN CLIMATIC S200 features an integrated water drainage system.

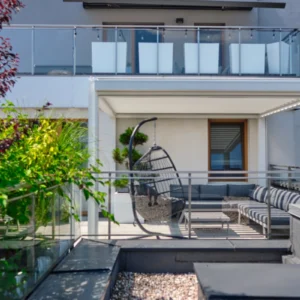

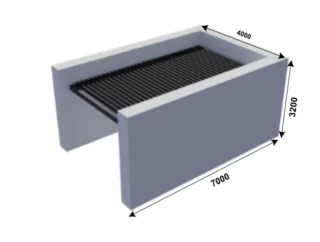

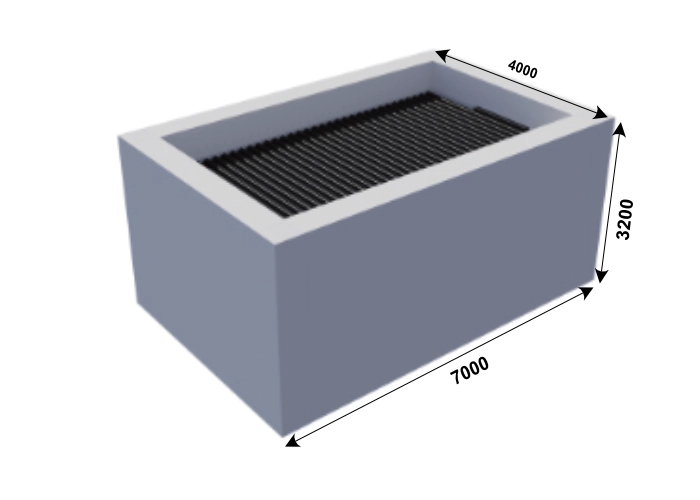

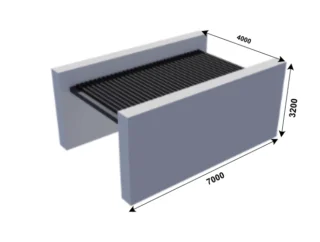

single pergola roof moduleFrom eight to ten mounting brackets, depending on the size of the pergola.
The WIN CLIMATIC S200 pergola features an integrated water drainage system.

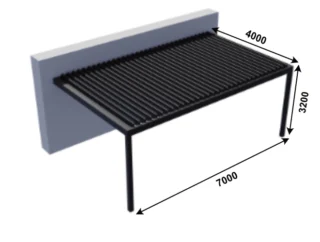

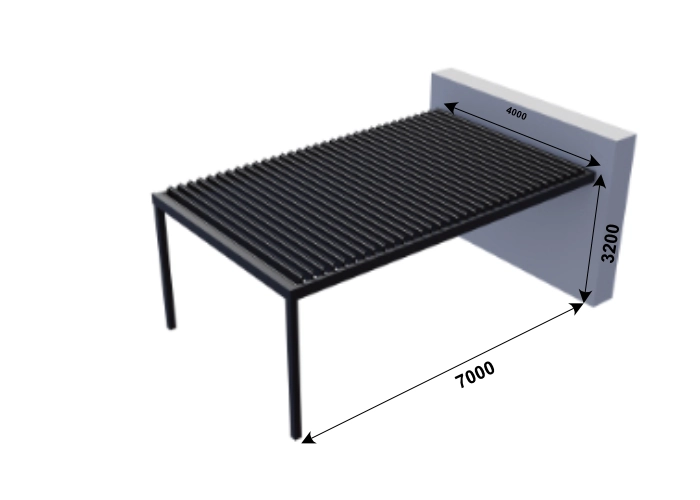

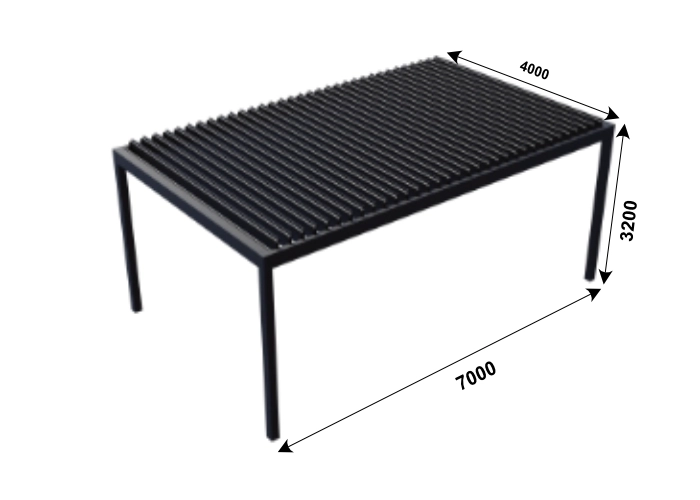

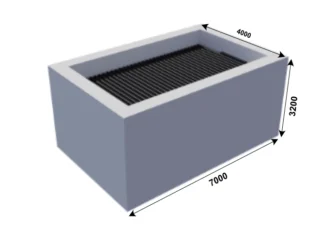

IMPRESSIVE AND UNRIVALED SIZES

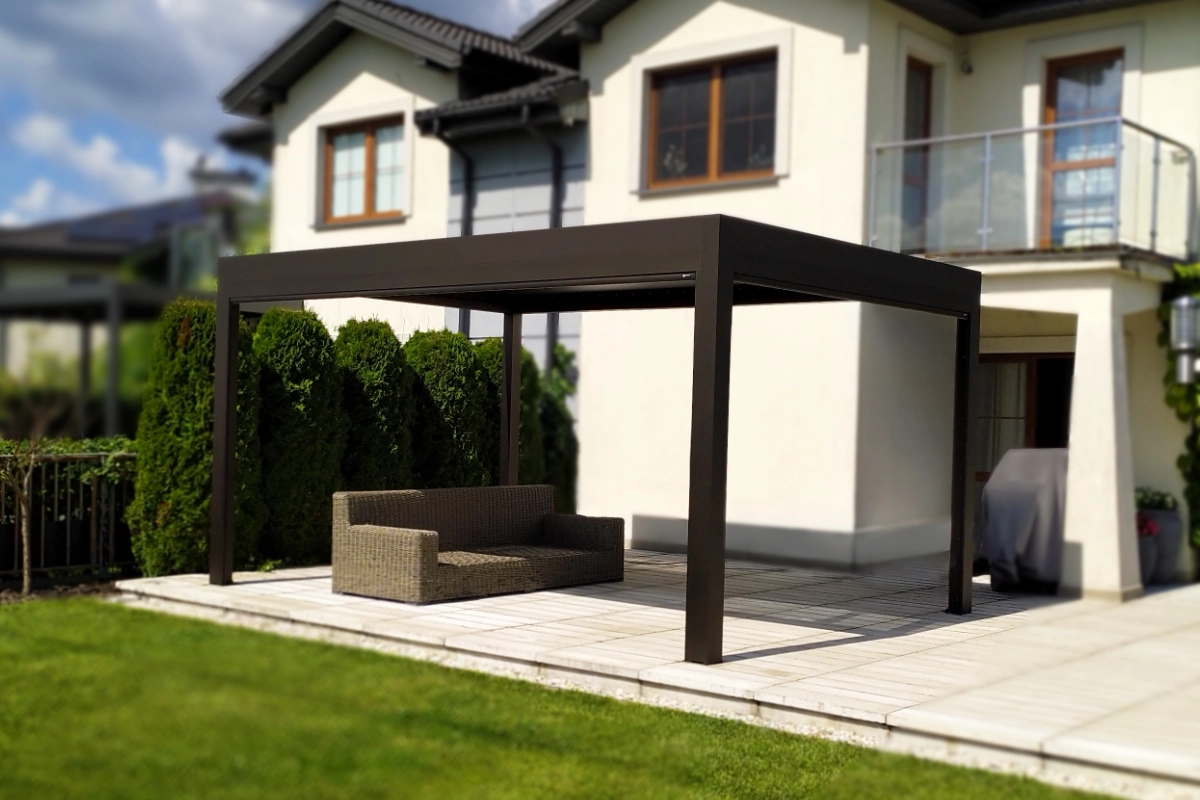

Single pergola
(1 module):
Max. area: 28 m²
Max width: 7000 mm
Max. overhang: 4000 mm
MORE STABLE AND STRONGER PERGOLA STRUCTURE
The solid pergola frame provides high resistance, even up to 300 kg/m² for loads caused by heavy snowfall and strong wind gusts.
INVISIBLE SCREW CONNECTION OF THE CROWN TO THE SUPPORT POST
The innovative pergola design is designed so that all screw connections are hidden inside the support post and the pergola crown.
CERTIFICATION
The WIN CLIMATIC S200 pergola is CE certified.
INVISIBLE SCREW CONNECTION OF THE SUPPORT POSTS WITH MOUNTING PLATES
The design of the support post allows for screwing with the mounting mark inside the post. This makes the screw connections concealed and invisible to the user from the outside.
INVISIBLE CONNECTION OF THE GUTTER TO THE PERGOLA CROWN
The pergola crown with gutter is a single extruded profile, eliminating visible connections from the bottom of the structure, i.e., the gutter to the pergola crown connection. This also eliminated the need to connect the gutter with screws or use sealing mass.
FASTER AND EASIER INSTALLATION OF ROOF
The pergola roofing system allows for quick and easy installation of the slats without the need to insert and adjust them at an angle within the pergola structure. There is no need to secure and align the slats, which speeds up the installation process and ensures perfect precision.
INVISIBLE SCREW CONNECTION OF THE CROWN TO THE SUPPORT POST
The innovative pergola design is designed so that all screw connections are hidden inside the support post and the pergola crown.
2 MODELS OF INNOVATIVE AND MODERN ROOF LOUVERS
Two models of innovative roof louvers are available for the WIN CLIMATIC S200 pergola. The louvers are designed and used depending on the application needs and configuration of the pergola: standard louvers, LED louvers with integrated lighting, louvers for custom pergola overhangs with 1 mm accuracy, and reinforced louvers for large pergola sizes.
CONCEALED CONTROL BARS FOR ROOF SLATS
The slat control bar in the WIN CLIMATIC S200 pergola is concealed within the structure, providing a more aesthetically pleasing appearance.
CONCEALED ROOFING DRIVE
The pergola crown allows for the concealment of the electric drive within the structure. Additionally, all mounting connections are hidden from view, enhancing the overall appearance. This design also positively affects noise reduction from the drive, while further protecting the motor and electrical components from weather conditions.
SNOW, WIND, AND RAIN RESISTANT CONSTRUCTION
The construction is snow-resistant with one of the best snow load capacities in the world, ranging from 120 to 300 kg/m², depending on the size and model of the structure. The pergola is also resistant to other weather conditions such as wind, rain, and sun.
INTELLIGENT CONTROL
With the use of an intelligent control unit, it is possible to operate the pergola and additional equipment using a smartphone or tablet from anywhere in the world.
AESTHETIC SUPPORT POST MOUNTING
Our support post cover is mounted with a single rivet in the color of the construction, making it the only visible element from the outside. Most pergolas on the market have post covers secured with 4 or 6 screws, which are visible to the user.
INTEGRATED SEALING BETWEEN THE CROWN AND LOUVERS
By using an integrated sealing between the crown and louvers, the gap between the profiles has been eliminated. This innovative solution removes all visible gaps when the roof is closed. The seal also protects against the ingress of contaminants and rain into the pergola. This solution also significantly enhances the visual effect compared to other available structures on the market.
PREMIUM MATERIALS
Innovative construction with a roof made of extruded aluminum and stainless steel. The extruded profiles are made of high-quality aluminum with thick, strong walls, reinforced with chambers and ribs. The steel components used in the WIN CLIMATIC S200 construction are made from high-quality stainless steel with a thick cross-section.
LED LIGHTING
Extensive range of integrated lighting configurations on the market allows you to choose the type of lighting, colors, intensity, and light temperature. Regardless of the chosen variant, the lighting can be conveniently controlled using the pergola’s remote control.
INTEGRATED ROUND GUTTERS AS STANDARD
Thanks to the standard integration of round gutters, water in the gutters can circulate continuously around the pergola without the risk of overflow during heavy rainfall. The integrated round gutters in the crown also reinforce the entire structure, enabling it to withstand much greater loads.
2 MODELS OF PERGOLA CROWN COVERS
By using an additional crown cover on the pergola, all fastenings and screw connections, such as the drive and visible louver pins, are completely hidden and not visible from the outside.
HEATERS
A wide range of heaters ensures thermal comfort throughout the year. Heaters with 1500 W or 4000 W, controlled by a remote, integrate seamlessly with the pergola’s construction and, depending on the selected model, allow for smooth temperature adjustment. The LOW GLARE function reduces the amount of light emitted by the heater.
SEALING SHEET METAL WORK
All possible leaks at the junctions between the pergola and the wall have been eliminated thanks to a proprietary sheet metal flashing solution. It is also possible to customize the flashing according to the individual needs of the investor.
TWO INNOVATIVE LOUVER CLOSING PROFILES
The closing profiles in the shape of slats allow for maintaining a uniform appearance of the roof across the entire surface of the pergola.
REPEATED LOUVER OVERHANG DIMENSION
The pergola’s design and all used profiles are crafted to achieve a fully repeatable louver overhang dimension of 200 mm.
INTEGRATED WATER DRAINAGE SYSTEM FOR SLATS
Each available louver is designed so that, with a smooth rotation of up to 135 degrees, water accumulating on the roof drains directly into the water drainage system.
TIGHT INSTALLATION OF SIDE COVERS
Thanks to additional chambers in the pergola profiles, side shields like WIN PANELS, WIN SCREEN, and WIN GLASS can be securely mounted without concerns about the tightness of connections, completely eliminating leaks.
TIGER COATINGS
By using durable powder coatings, we achieve almost unlimited possibilities for surface finishing. We use only coatings from TIGER COATINGS, which guarantee durability and uncompromising quality of workmanship.
DURABLE POWDER COATING
All of our produced structures have an international quality certificate for paint coatings. Products marked with the QUALICOAT symbol are characterized by excellent properties confirmed by accredited testing laboratories.
