Modern ZIP WIN SCREEN External Roller Shutter System
WIN SCREEN external roller shutters from SUN WINNER are an innovation that is revolutionizing the global sun protection product market.
WIN SCREEN is an original, innovative, and the most advanced external roller shutter system in the world, entirely designed and manufactured in Poland.
The solutions it incorporates are unavailable in competing systems, making our product unrivaled in the sun protection industry.
We offer the largest WIN SCREEN roller shutter dimensions in Europe, with maximum sizes of:
7000 mm x 3400 mm (23,8 m²)
5400 mm x 6000 mm (32,4 m²)
WIN SCREEN ROLLER SHUTTER SYSTEM
External roller shutters WIN SCREEN ZIP are advanced window coverings most commonly installed on the exterior of buildings. These shutters are distinguished by the use of specialized fabric instead of a traditional shutter curtain. The shutter fabric is durable, weather-resistant, and excellently serves both protective and decorative functions.
FUNCTIONALITY
WIN SCREEN-type shutters provide effective protection against solar radiation while allowing control over the amount of light entering the room. By using fabrics with varying openness levels, e.g., 1%, 4%, 5%, or 14%, visibility to the outside is maintained, enabling contact with the surroundings while simultaneously limiting visibility into the interior of the building. Fabrics from the blackout series ensure full privacy and 100% interior darkening, and the use of windows with CRISTAL foil works perfectly in rooms with a high demand for daylight.
The WIN SCREEN shutter system also improves energy efficiency by reducing room heating in summer and limiting heat loss in winter. WIN SCREEN shutters protect against wind, rain, and other weather conditions, as well as enhance acoustic comfort by dampening external noise. Our innovative fabric welding system and improved ZIP lock ensure that our shutters withstand even the strongest winds, while optional weather automation guarantees the safety of the entire system.
CONSTRUCTION AND OPERATION
A key element of the WIN SCREEN shutter is the technical fabric made of polyester or fiberglass threads coated with a PVC layer. The fabric is guided within side rails, ensuring stability even in strong winds. In ZIP type systems, a special zipper is additionally used in the fabric to prevent the material from coming out of the guides. The fabric winding mechanism operates by rolling it onto a winding tube located inside the cassette. WIN SCREEN shutters are rolled up using an electric motor, enabling remote control or integration with a smart home system.
APPLICATION
WIN SCREEN shutters work perfectly in both residential and commercial buildings. Thanks to their modern design and a wide range of fabric colors, they are an aesthetic and functional solution. They can be installed on façades, within window recesses, or as free-hanging units, adapting to the user’s needs.
SYSTEM ADVANTAGES
REDUCTION OF BUILDING AIR CONDITIONING AND HEATING COSTS

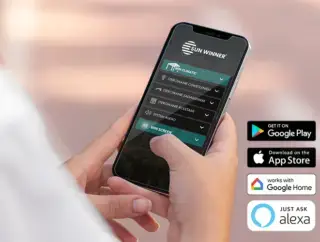

AUTOMATION AND INTEGRATION WITH SMART HOME SYSTEMS
SUN PROTECTION PROPERTIES
PROTECTION AGAINST STRONG WINDS
INSECT PROTECTION
VISUAL PROPERTIES OF THE FABRICS
LARGE DIMENSIONS WITH A COMPACT SYSTEM SIZE
WIDE SELECTION OF SCREEN FABRICS AND ROLLER SHUTTER ACCESSORY COLORS
MODERN AND MINIMALISTIC DESIGN
WS 95 A1 SLIM – WITH HANGER
WS 95 A1 SLIM – WITH HANGER ADAPTIVE SYSTEM WS 95 A1 SLIM, WITH HANGER
Box size: 95 x 95 mm
Maximum system dimensions: 3600 x 3300 mm \[11.88 m²]
Tube diameter: ∅ 63 mm
Bottom bars: LD-1 (does not retract fully into the box), LD-2 (does not retract fully into the box)
NOTE: For shutters up to 1200 mm wide, the weighted bottom bar LD-2 is used, which does not fully retract into the box.

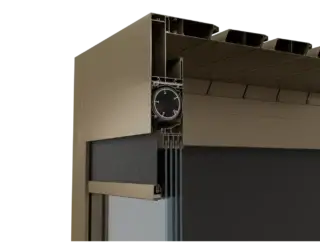

EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS

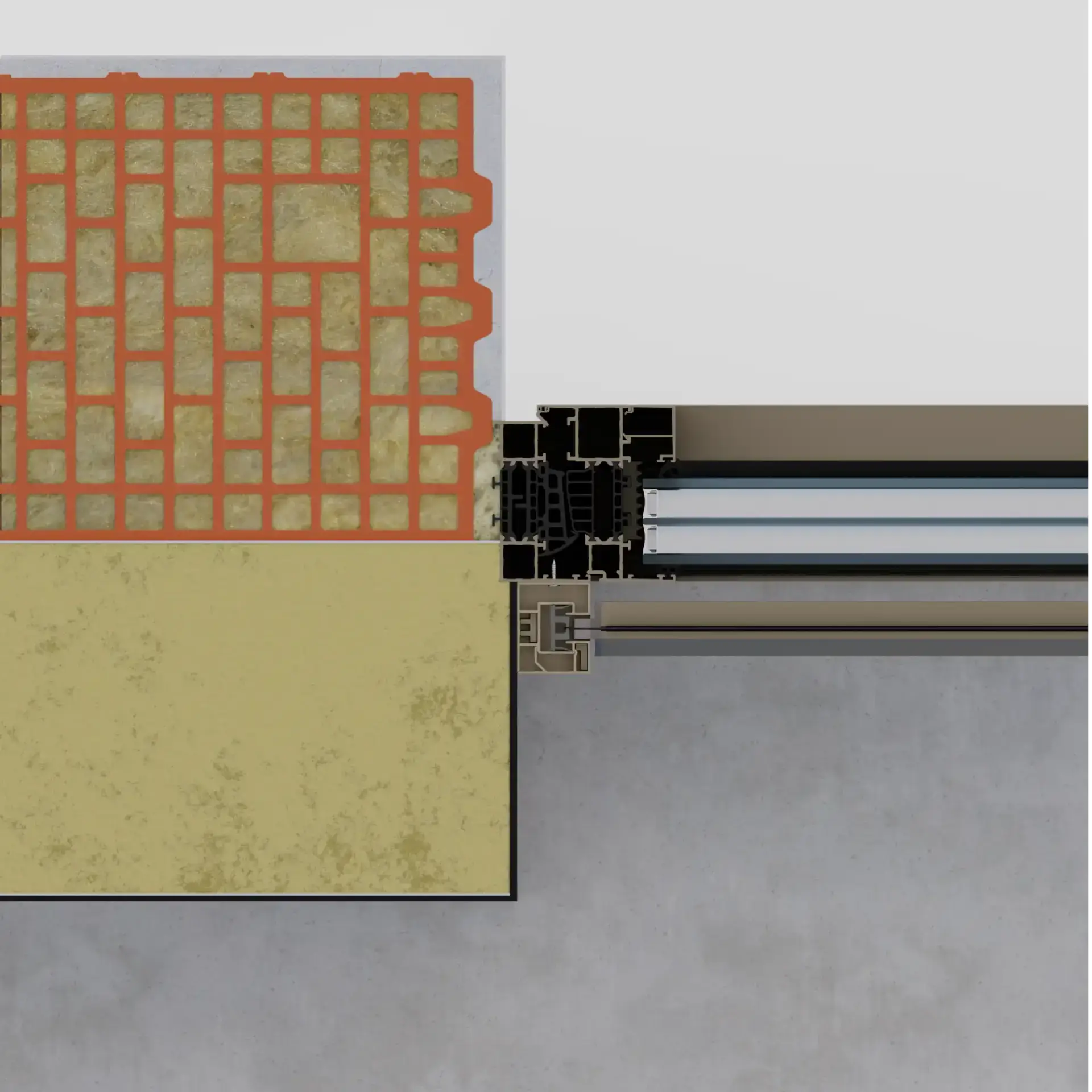

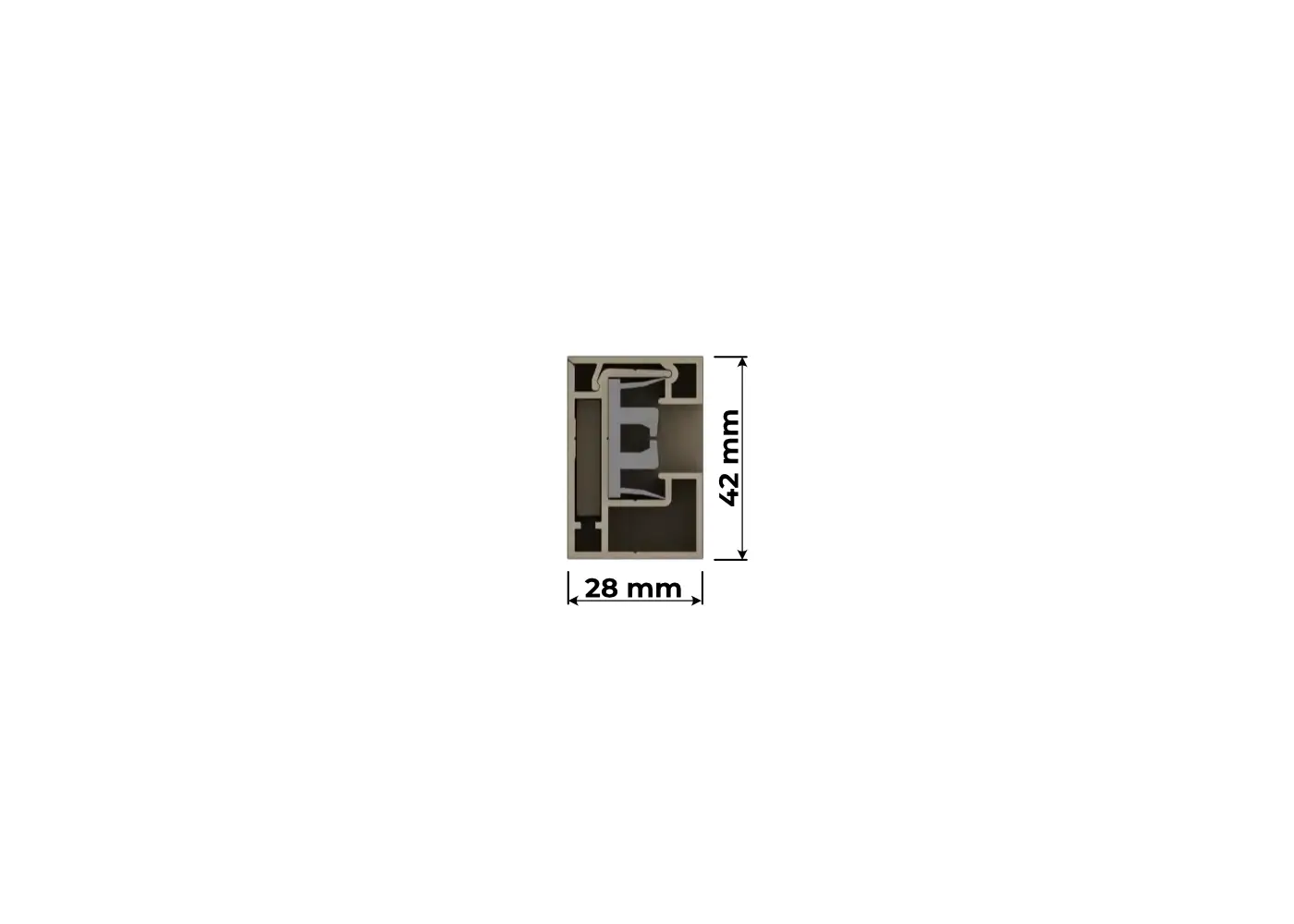

SINGLE ZIP GUIDE: AS-1 SLIM
BOTTOM BARS
BOTTOM BAR LD-1
BOTTOM BAR LD-2
*The LD-2 bottom bar is used for shutters up to 1200 mm wide and does not fully retract into the box.
MOUNTING BRACKETS
WS 95 A2 – WITH HANGER
WS 95 A2 – WITH HANGER ADAPTIVE SYSTEM WS 95 A2, WITH HANGER
Box size: 95 x 95 mm
Maximum system dimensions: 3600 x 3300 mm \[11.88 m²]
Tube diameter: ∅ 63 mm
Bottom bars: LD-1 (does not retract fully into the box), LD-2 (does not retract fully into the box)
NOTE: For shutters up to 1200 mm wide, the weighted bottom bar LD-2 is used, which does not fully retract into the box.
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDES

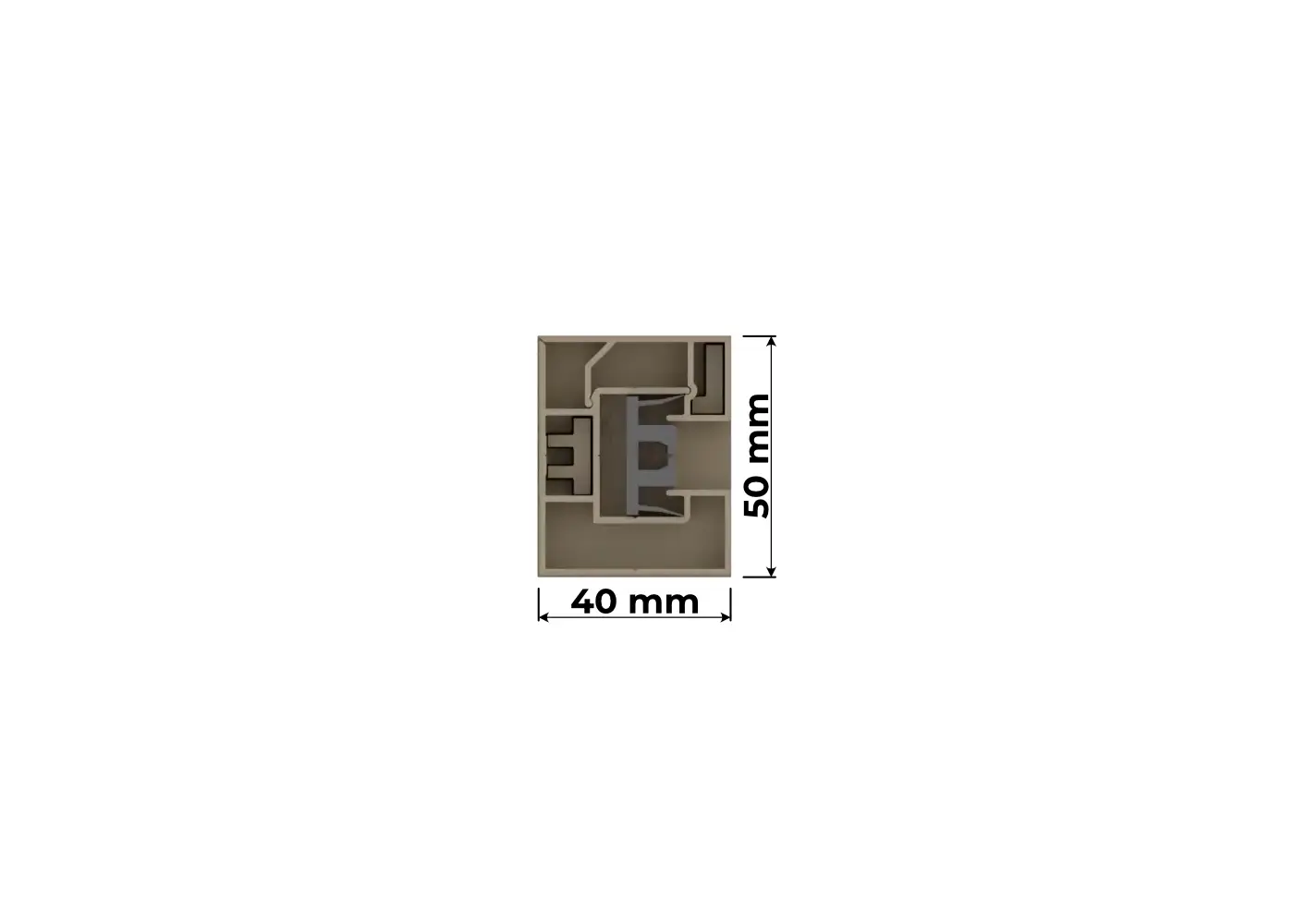

SINGLE ZIP GUIDE: AZ1

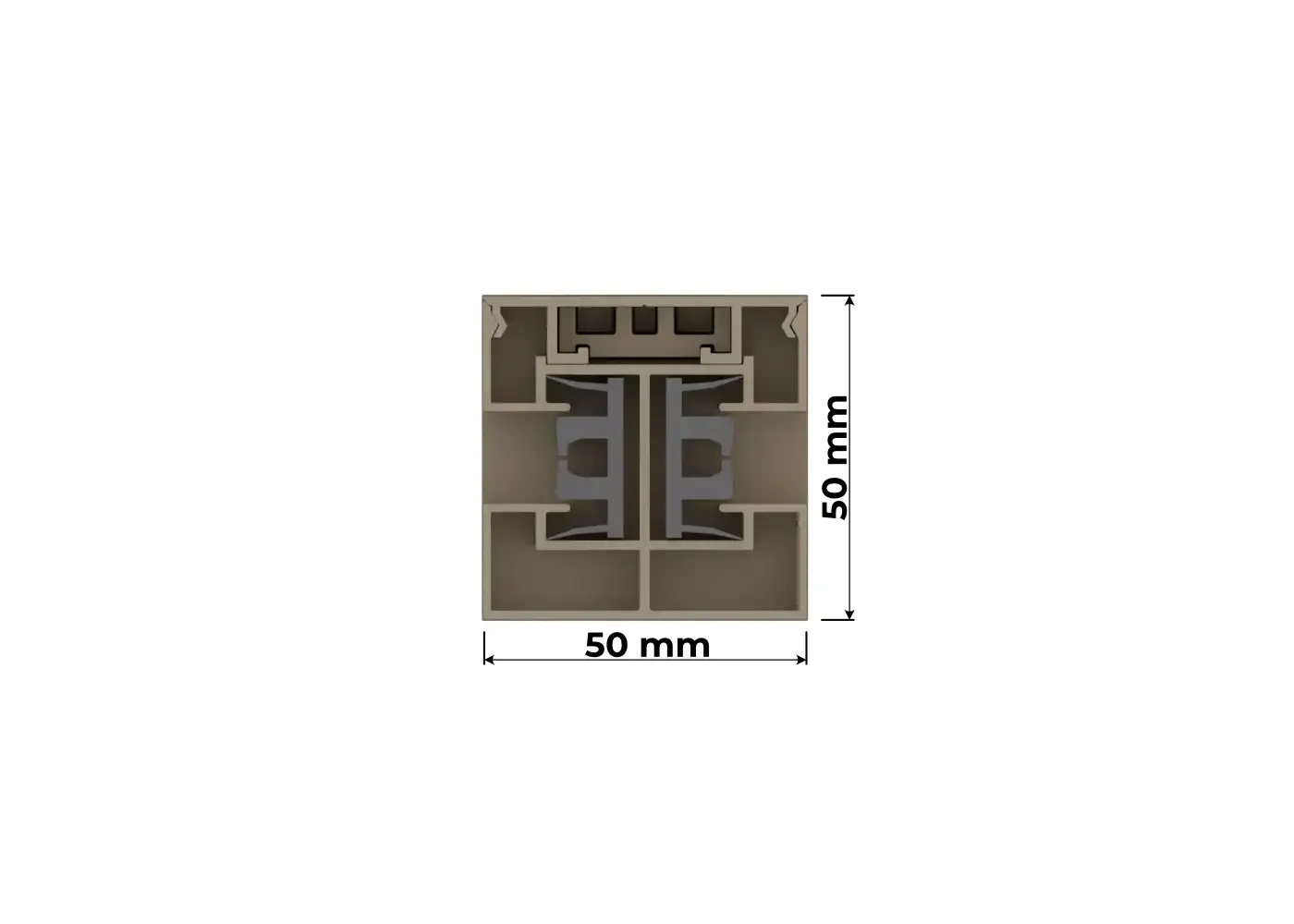

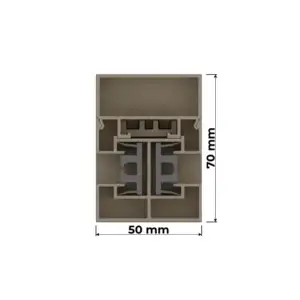

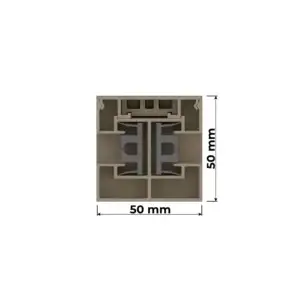

DOUBLE ZIP GUIDE: A2

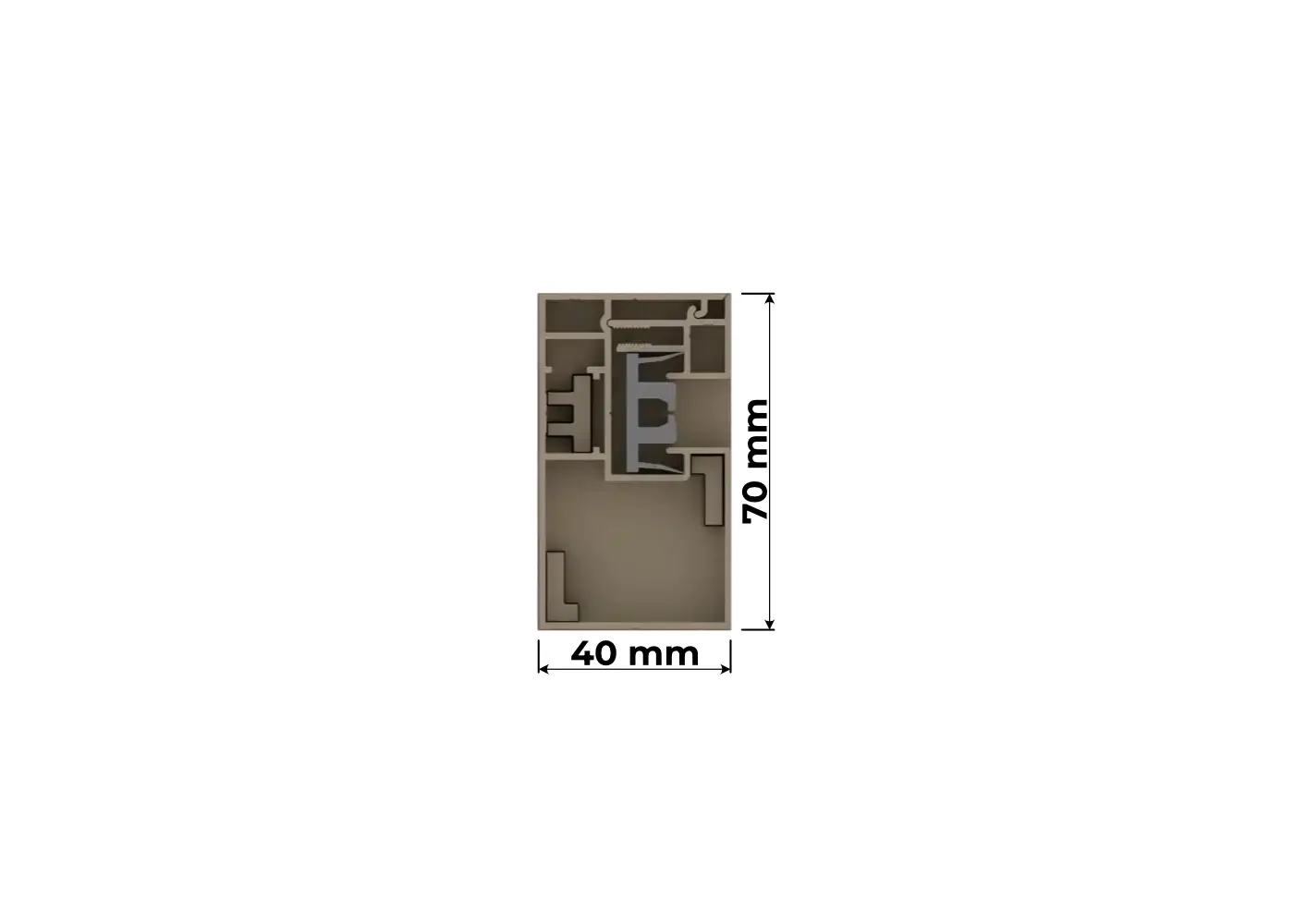

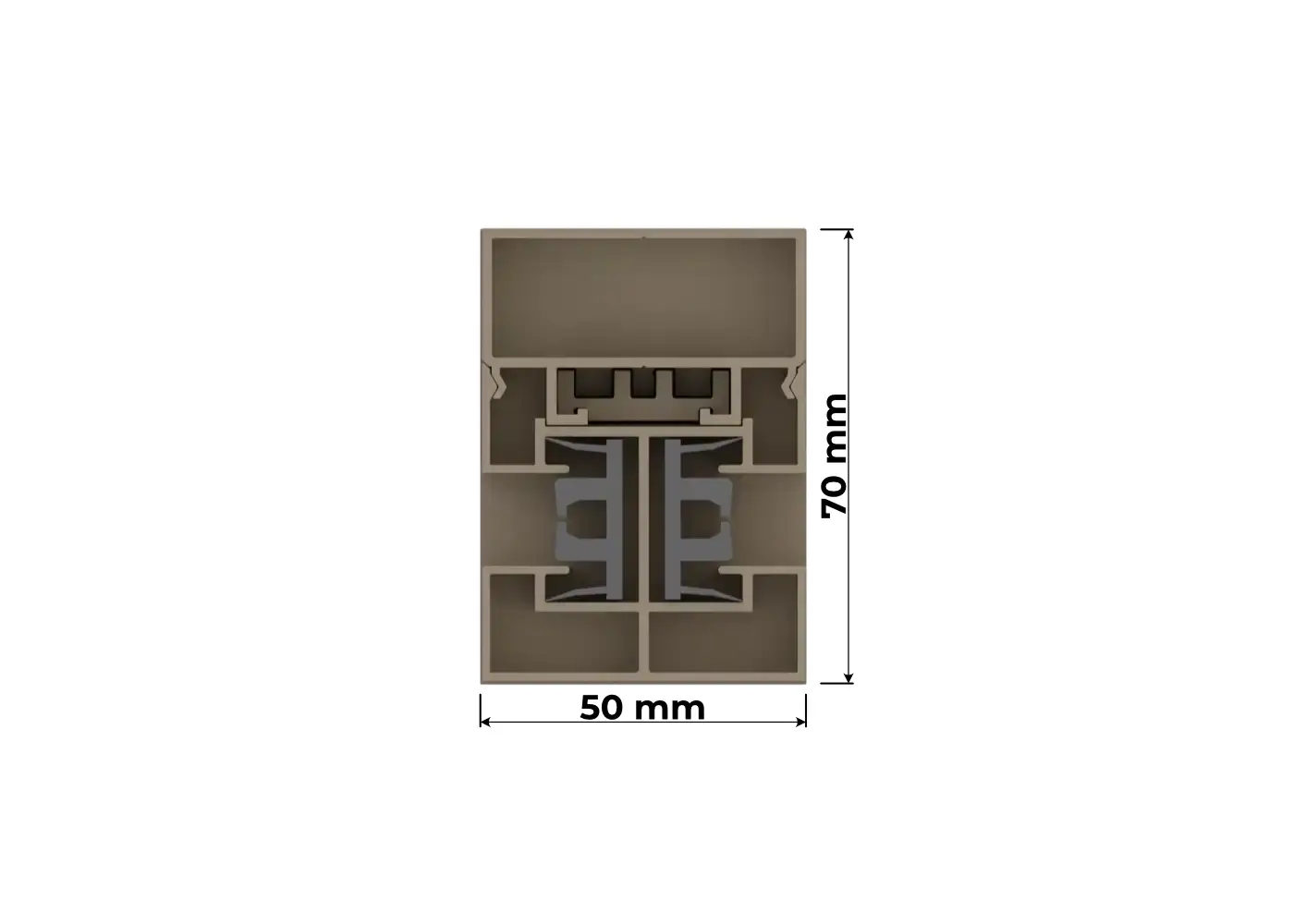

SINGLE ZIP GUIDE: P1
DOUBLE ZIP GUIDE: P2

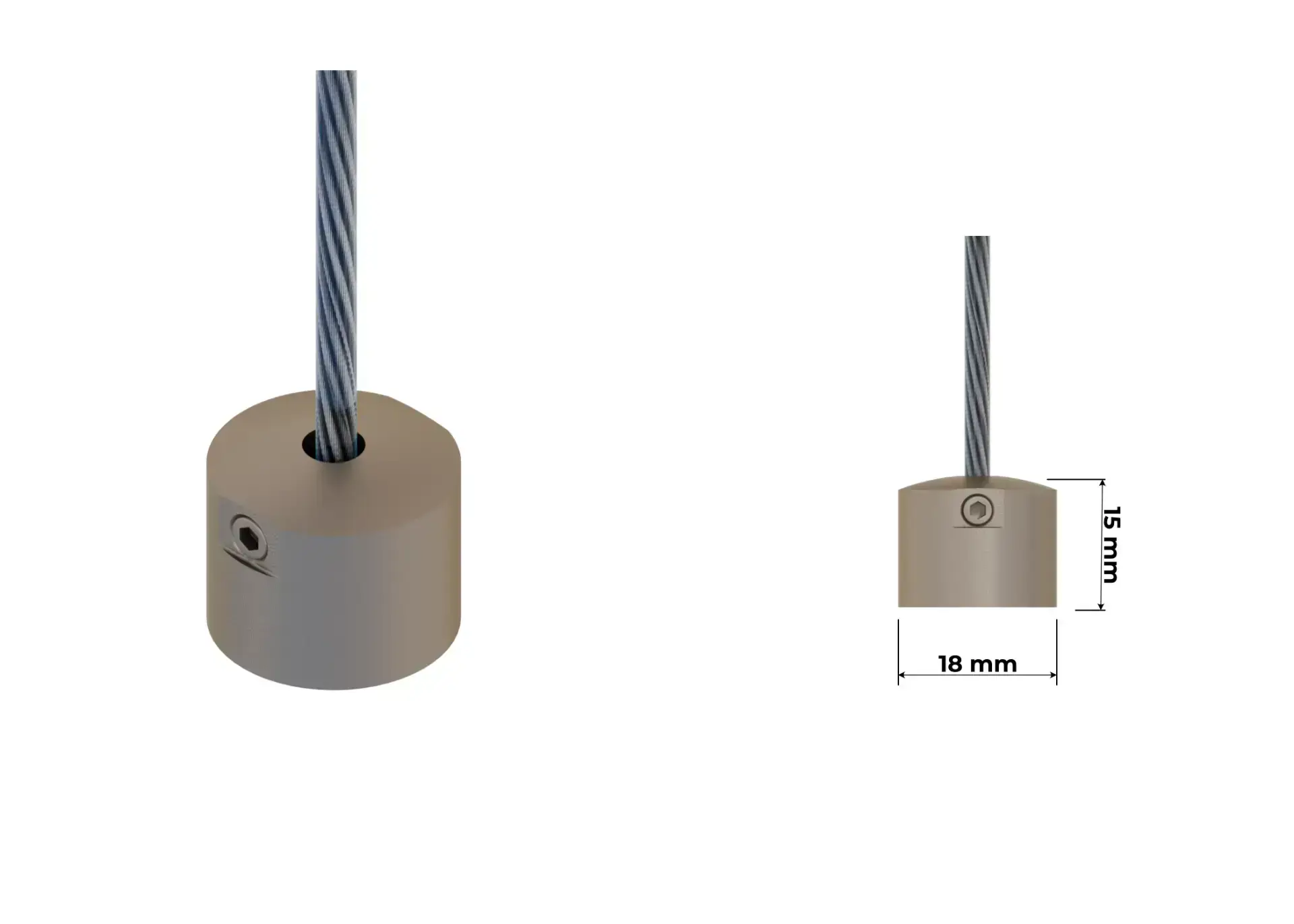

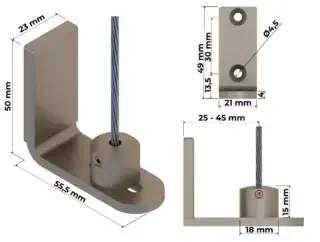

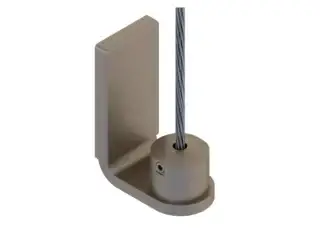

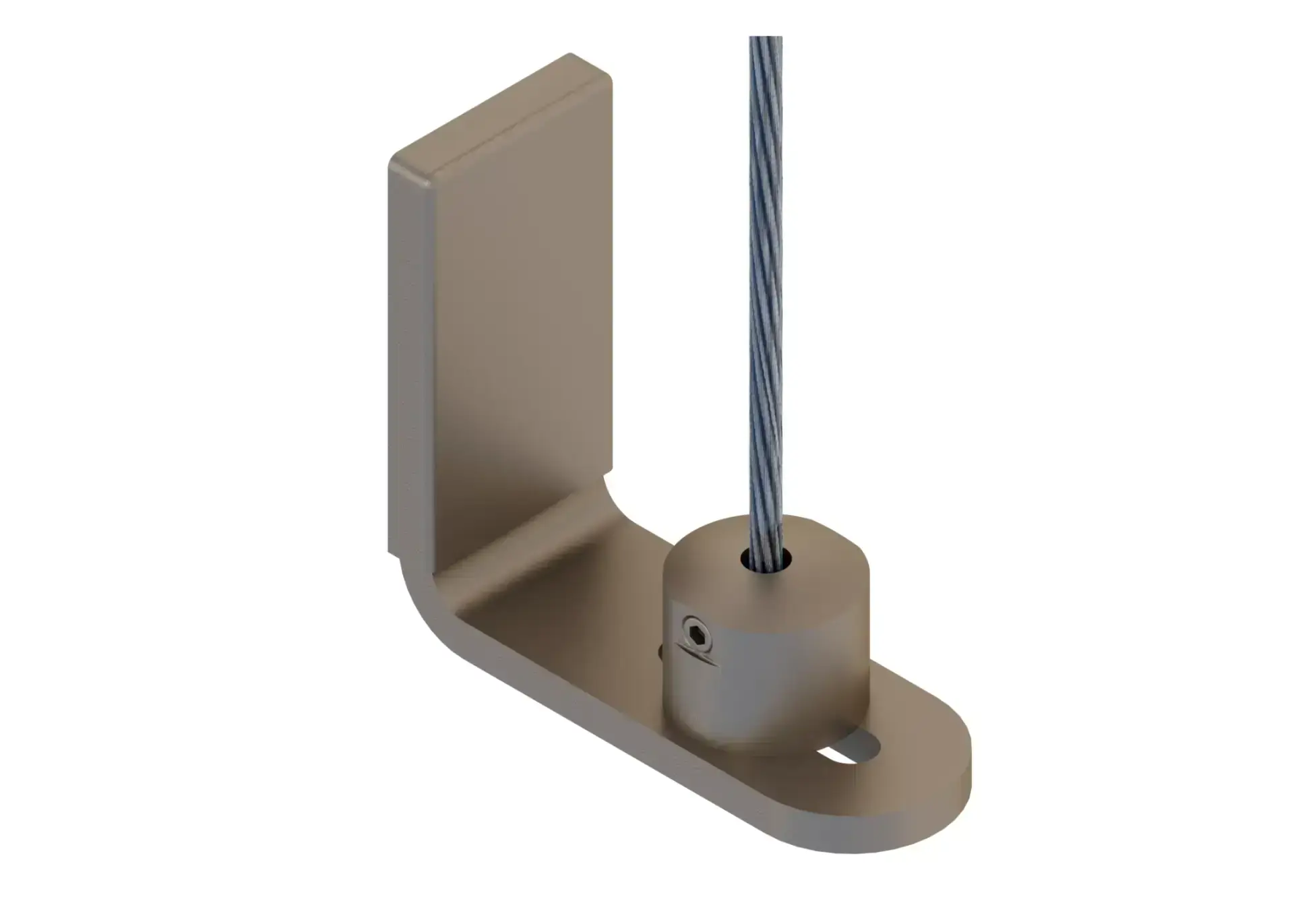

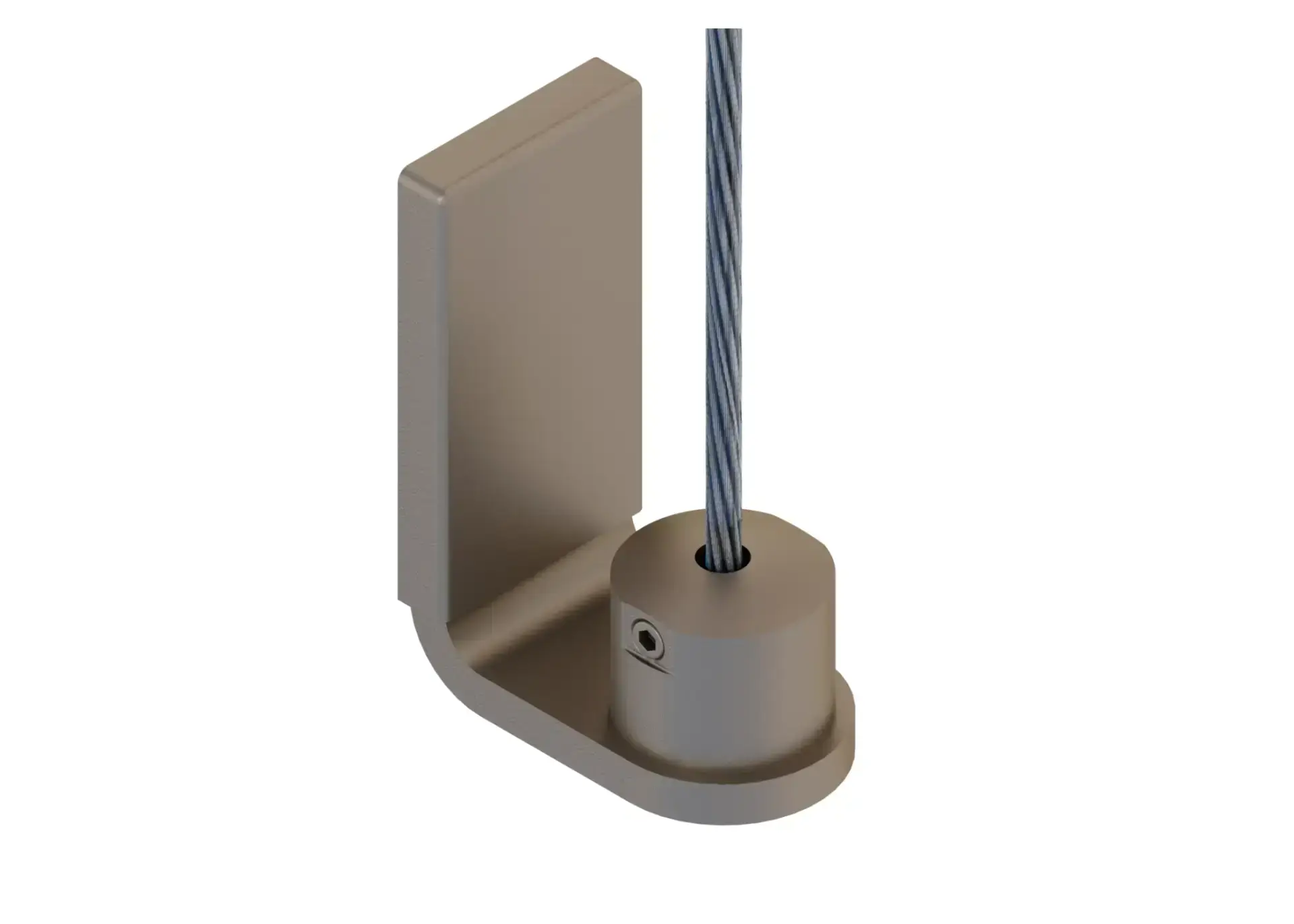

STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-1
*BOTTOM BAR LD-2
* The LD-2 bottom bar is used for shutters up to 1200 mm wide and does not fully retract into the box.
MOUNTING BRACKET
WS 110 A3
WS 110 A3 ADAPTIVE SYSTEM WS 110 A3
Box size: 110 x 120 mm
Maximum system dimensions: 5000 x 3000 mm \[15 m²] or 4000 x 4000 mm \[16 m²]
Tube diameter: ∅ 63 mm, ∅ 78 mm
Bottom bars: LD-1 (fully retracts into the box), LD-2 (does not fully retract into the box)
NOTE: For shutters up to 1200 mm wide, the weighted bottom bar LD-2 is used, which does not fully retract into the box.
EXAMPLE SYSTEM CROSS-SECTIONS
AVAILABLE GUIDES
SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
PROWADNICA PODWÓJNA ZIP: P2
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-1
* BOTTOM BAR LD-2
* The LD-2 bottom bar is used for shutters up to 1200 mm wide and does not fully retract into the box.
WS 110 A4 – WITH HANGER
WS 110 A4 – WITH HANGER ADAPTIVE SYSTEM WS 110 A4, WITH HANGER
Box size: 110 x 120 mm
Maximum system dimensions: 5000 x 3000 mm \[15 m²] or 4000 x 4000 mm \[16 m²]
Tube diameter: ∅ 63 mm, ∅ 78 mm
Bottom bars: LD-1 (fully retracts into the box), LD-2 (does not fully retract into the box)
NOTE: For shutters up to 1200 mm wide, the weighted bottom bar LD-2 is used, which does not fully retract into the box.
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS
SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
SINGLE ZIP GUIDE: P2
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-1
* BOTTOM BAR LD-2
* The LD-2 bottom bar is used for shutters up to 1200 mm wide and does not fully retract into the box.
MOUNTING BRACKETS
WS 130 A5
WS 130 A5 ADAPTIVE SYSTEM WS 130 A5
Box size: 130 x 160 mm
Maximum system dimensions: 7000 x 3400 mm \ [23.80 m²] or 5400 x 6000 mm \ [32.40 m²]
Tube diameter: ∅ 78 mm, ∅ 85 mm, ∅ 100 mm ALU
Bottom bar: LD-2 (fully retracts into the box)
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS

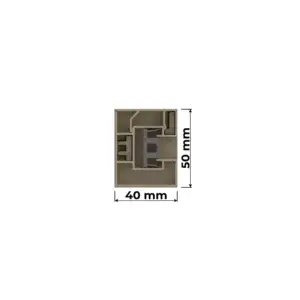

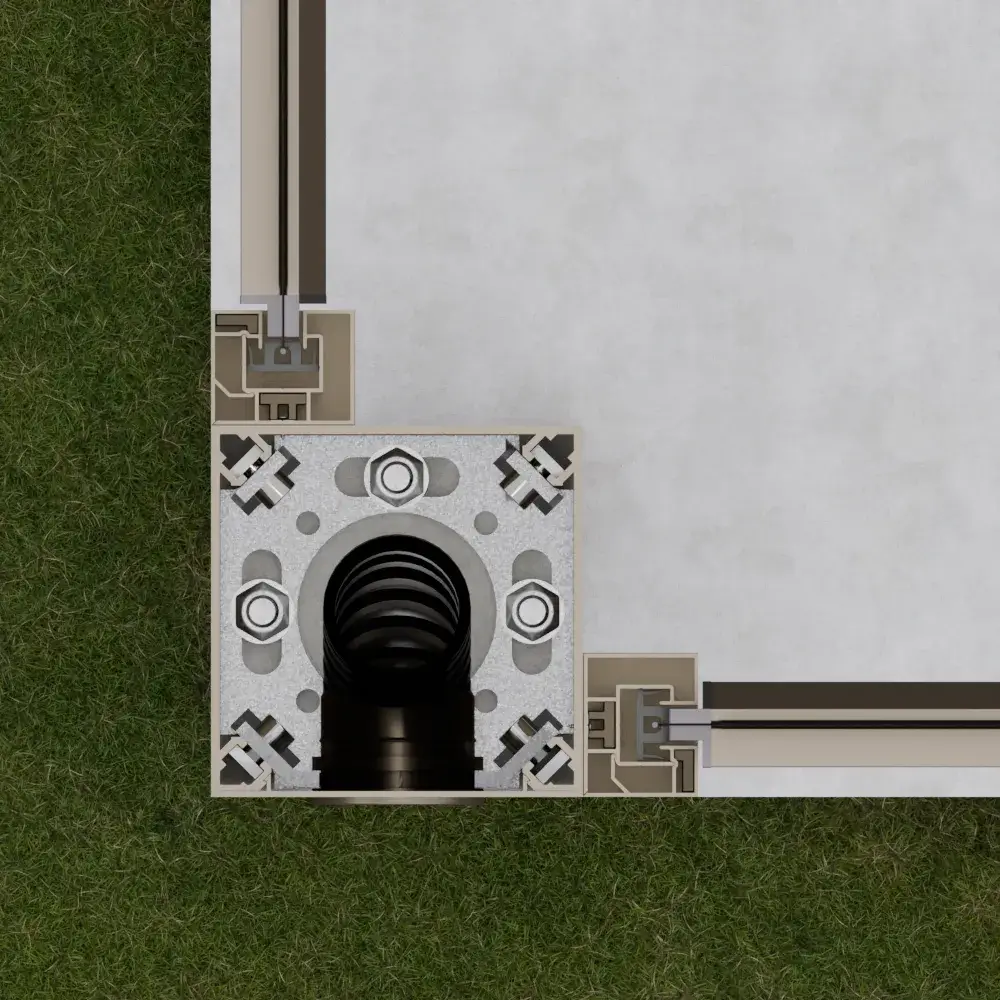

SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
DOUBLE ZIP GUIDE: P2

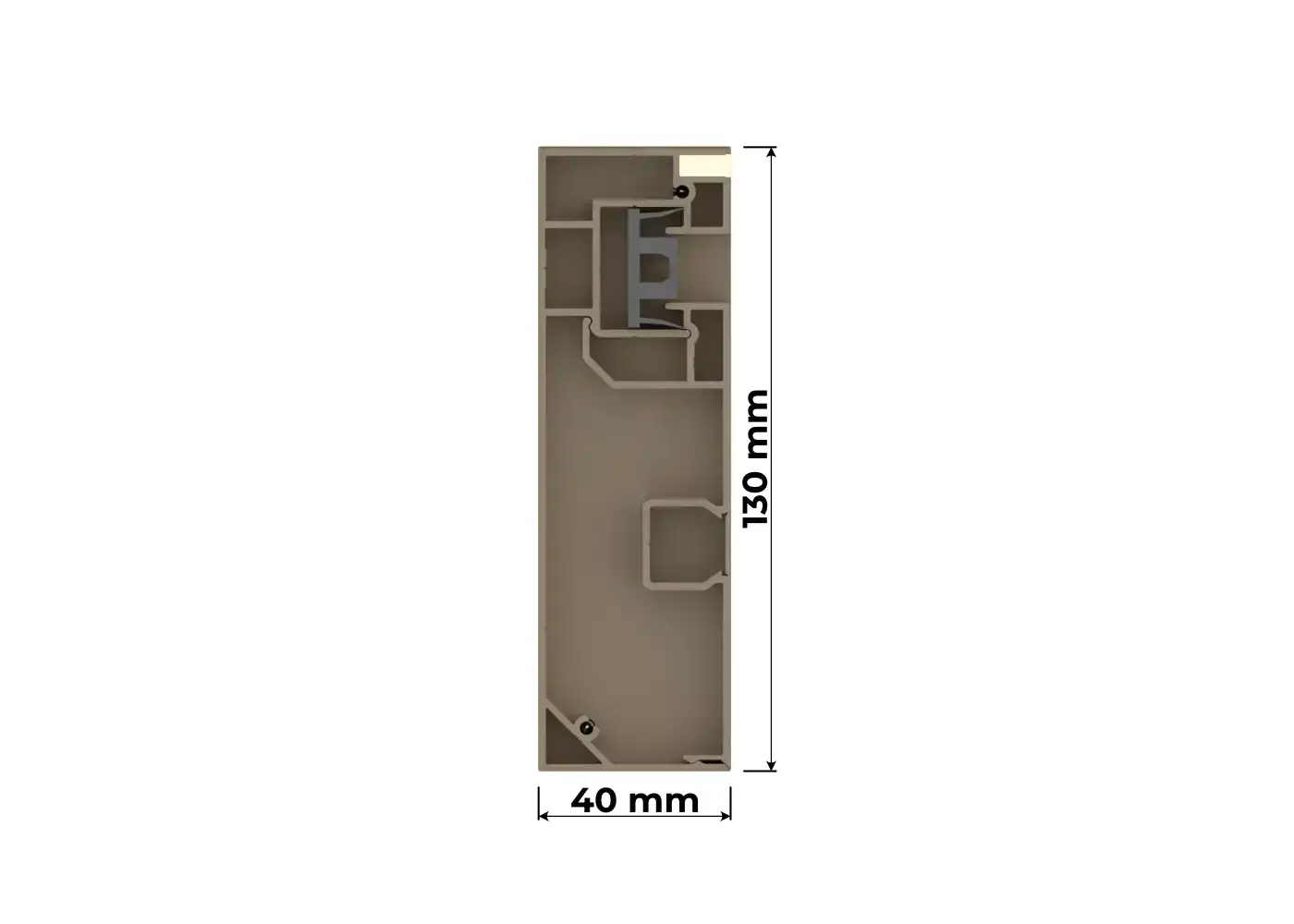

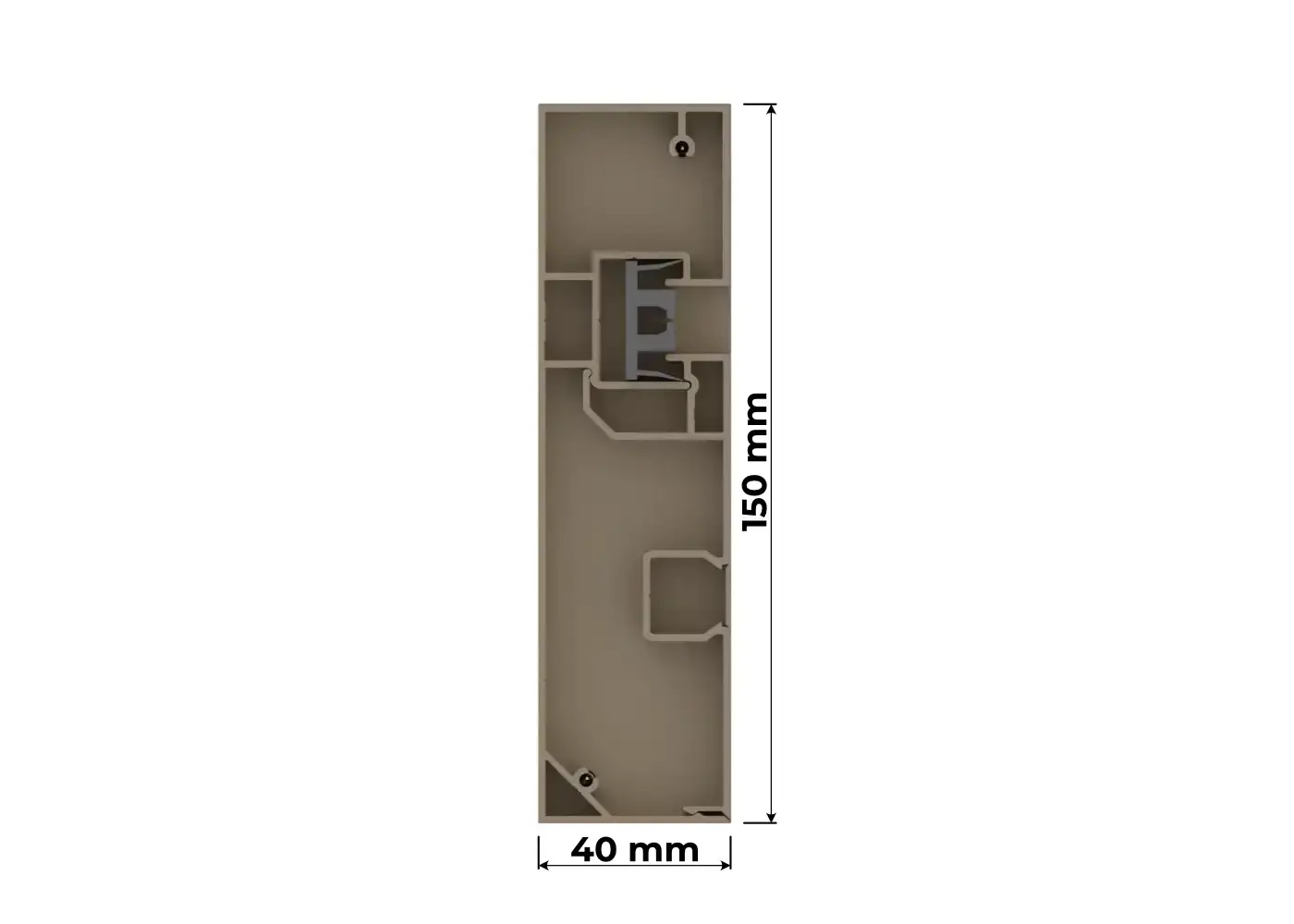

SINGLE ZIP GUIDE: P3

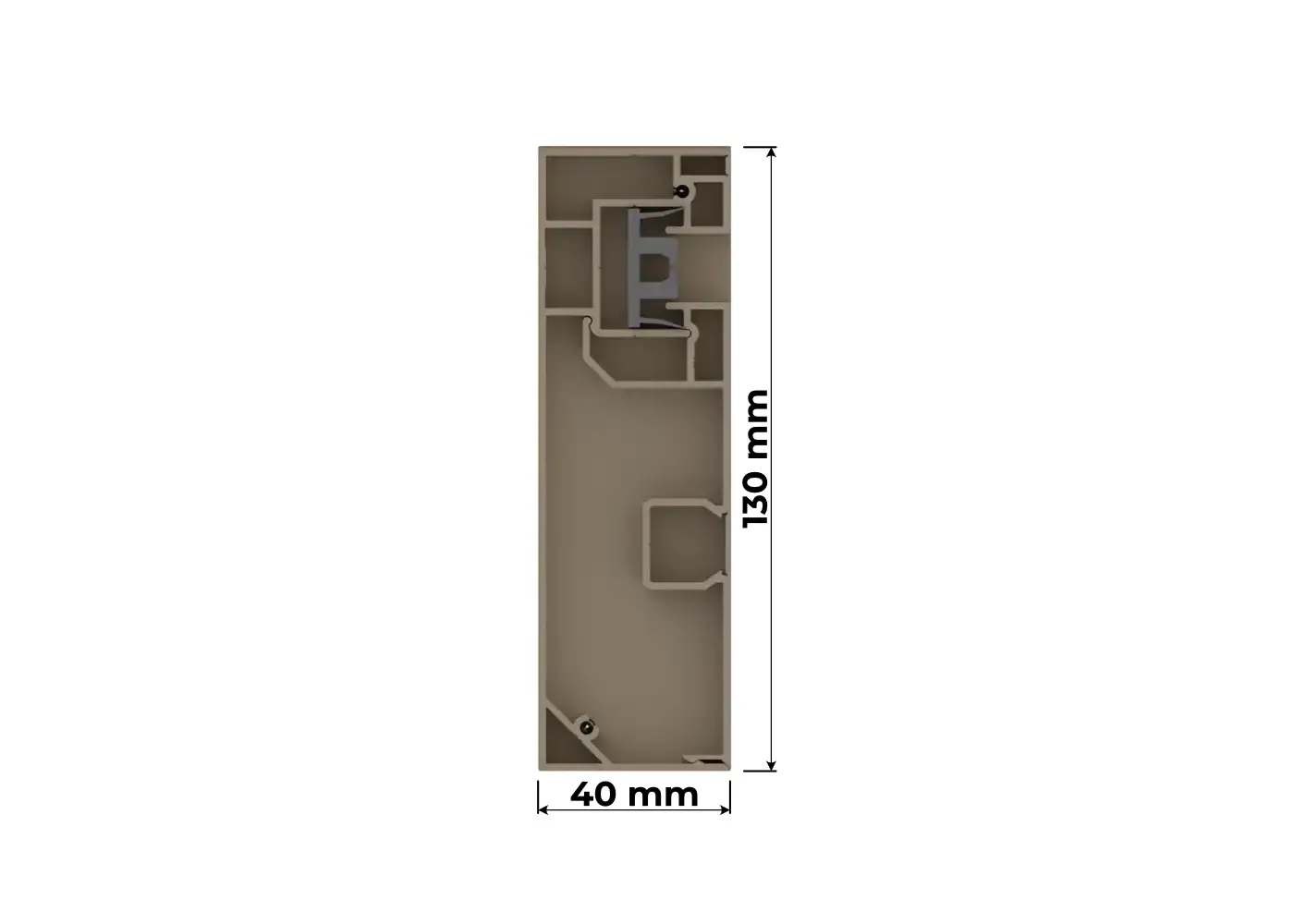

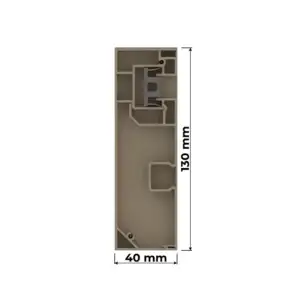

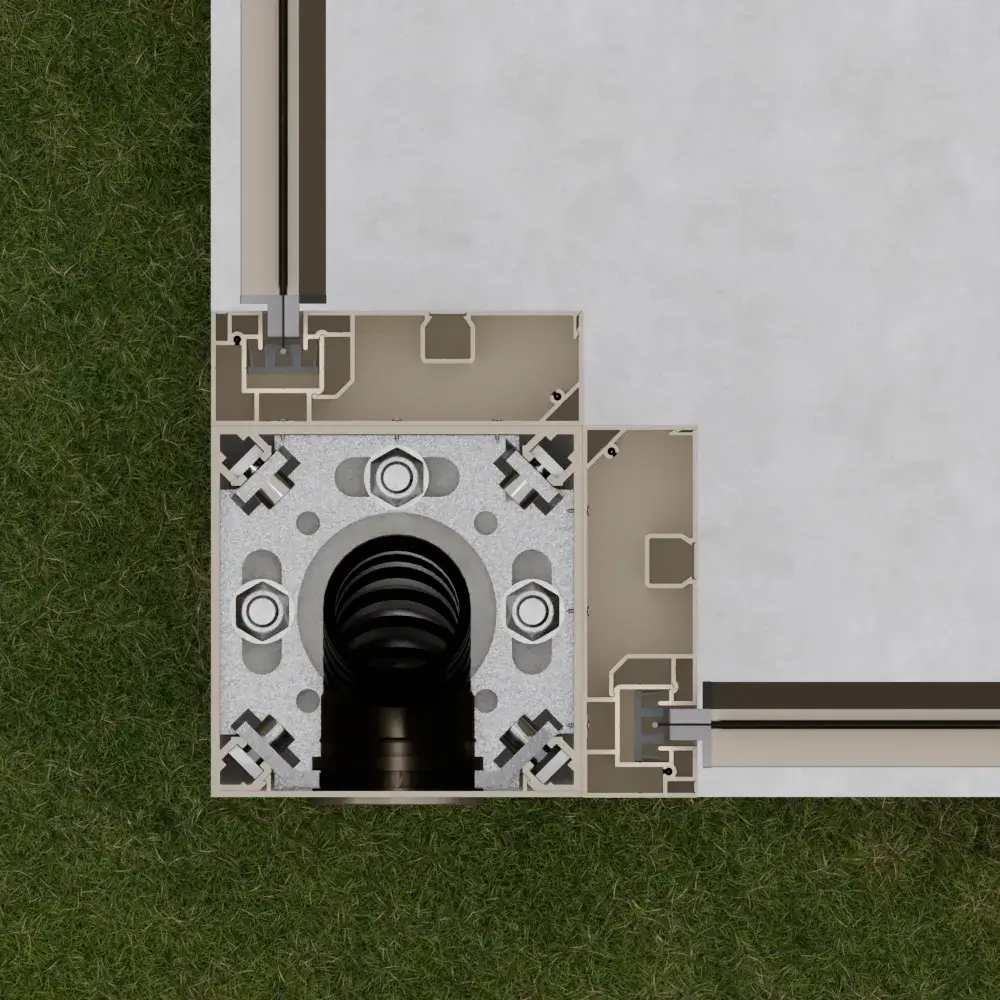

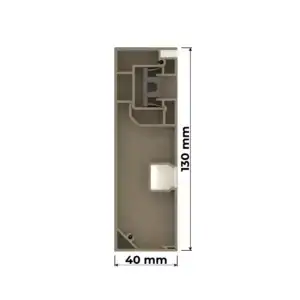

SINGLE ZIP GUIDE: Z2
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-2
WS 130 A6 – WITH HANGER
WS 130 A6 – WITH HANGER ADAPTIVE SYSTEM WS 130 A6, WITH HANGER
Box size: 130 x 160 mm
Maximum system dimensions: 7000 x 3400 mm \[23.80 m²] or 5400 x 6000 mm \[32.40 m²]
Tube diameter: ∅ 78 mm, ∅ 85 mm, ∅ 100 mm ALU
Bottom bar: LD-2 (fully retracts into the box)
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS
SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
DOUBLE ZIP GUIDE: P2
SINGLE ZIP GUIDE: P3
SINGLE ZIP GUIDE: Z2
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-2
MOUNTING BRACKETS
WS 130 A7 LED
WS 130 A7 LED ADAPTIVE SYSTEM WS 130 A7 LED
Box size: 130 x 160 mm
LED lighting: integrated linear LED lighting built into the box
Maximum system dimensions: 7000 x 3400 mm \[23.80 m²] or 5400 x 6000 mm \[32.40 m²]
Tube diameter: ∅ 78 mm, ∅ 85 mm, ∅ 100 mm ALU
Bottom bar: LD-2 (fully retracts into the box)
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS
SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
DOUBLE ZIP GUIDE: P2
SINGLE ZIP GUIDE: P3
SINGLE ZIP GUIDE: P4
SINGLE ZIP GUIDE: Z2

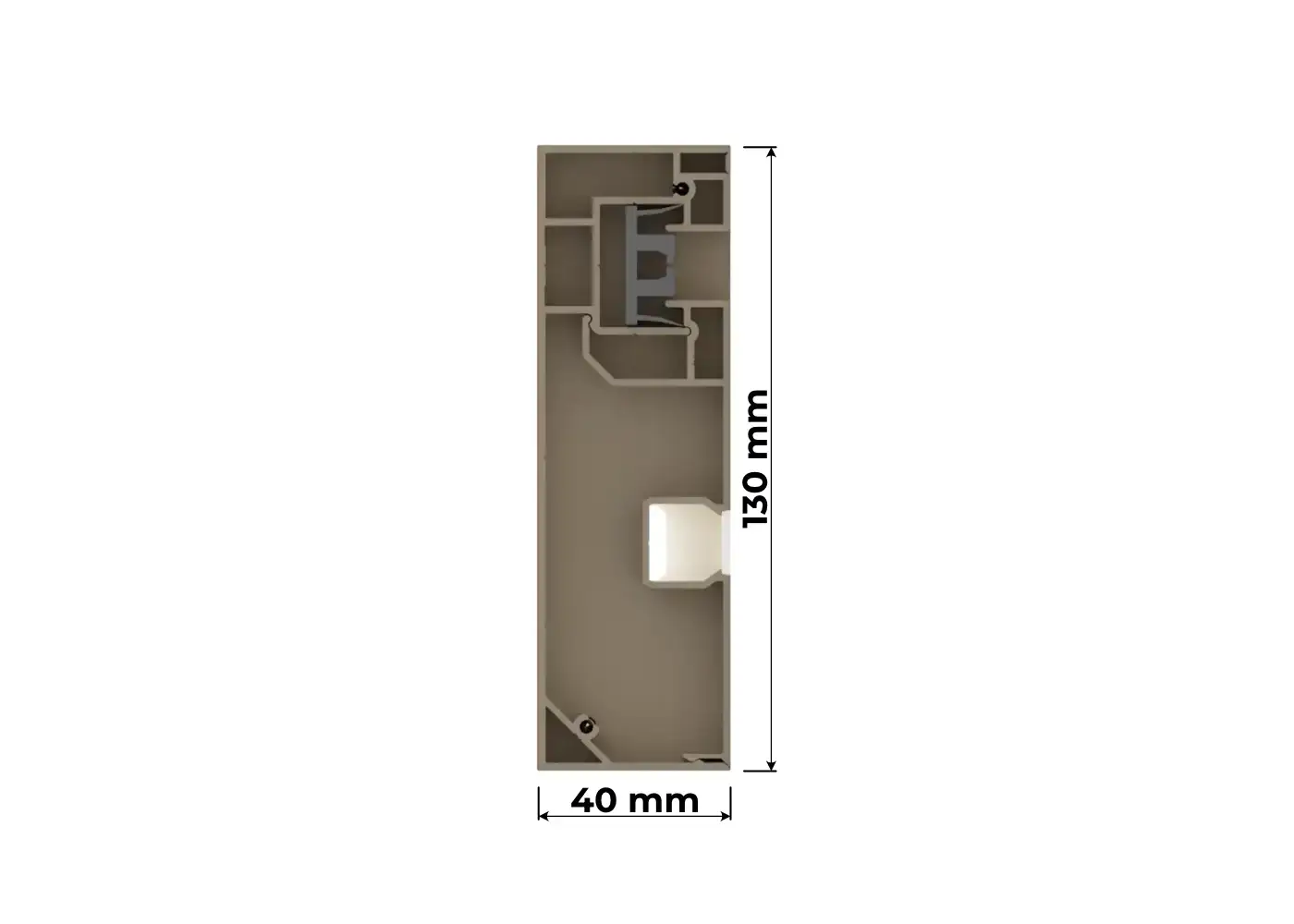

SINGLE ZIP GUIDE: Z5
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-2
WS 130 A8 LED – WITH HANGER
WS 130 A8 LED – WITH HANGER ADAPTIVE SYSTEM WS 130 A8 LED, WITH HANGER
Box size: 130 x 160 mm
LED lighting: integrated linear LED lighting built into the box
Maximum system dimensions: 7000 x 3400 mm \[23.80 m²] or 5400 x 6000 mm \[32.40 m²]
Tube diameter: ∅ 78 mm, ∅ 85 mm, ∅ 100 mm ALU
Bottom bar: LD-2 (fully retracts into the box)
SYSTEM CROSS-SECTIONS
GUIDE RAIL
SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
DOUBLE ZIP GUIDE: P2
SINGLE ZIP GUIDE: P3
SINGLE ZIP GUIDE: P4
SINGLE ZIP GUIDE: Z2
SINGLE ZIP GUIDE: Z5
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-2
MOUNTING BRACKETS
SYSTEM LOCKS FOR “CLICK” BOX
Unlike standard solutions where the box and cover are permanently connected using rivets or screws, this system allows for quick, tool-free assembly and disassembly of components. The integrated CLICK connections are designed to provide high durability and stability. Additionally, the edge of the box-to-access-panel connection has been shifted to the corner of the box’s outline, making the seam virtually invisible and ensuring a seamless, aesthetic appearance of the entire system.
INNOVATIVE “CLICK” INSPECTION COVER DESIGN
The inspection cover is equipped with precisely engineered snap-locks that allow for quick and secure placement within the shutter box. The entire installation process requires no screws or rivets, eliminating the need for additional drilling or mechanical fastening. As a result, the system offers maximum aesthetic appeal — with no visible mounting elements, the assembly appears as a seamless, cohesive unit. An additional advantage is the ease of maintenance — the cover can be easily removed and reattached at any time without the risk of damaging the box or shutter mechanism.

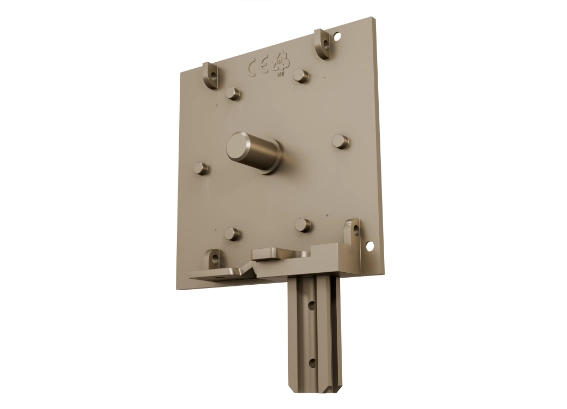

SYSTEM GUIDE SPACERS

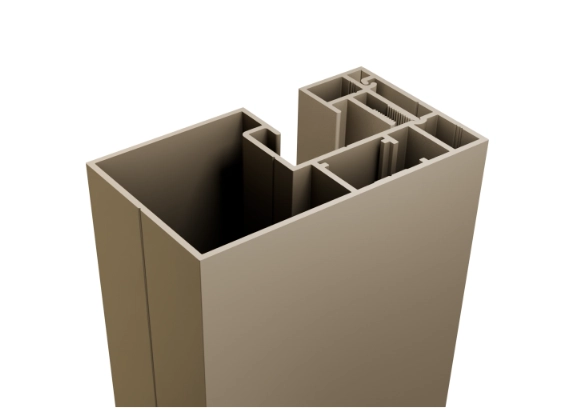

ZIP system guide spacers are precisely engineered mounting components that allow for aesthetic and functional offsetting of the ZIP guides and the roller shutters themselves from the mounting surface. They are an integral part of the entire system, ensuring not only secure installation but also incorporating a range of technological solutions that significantly outperform traditional spacers used in competing systems.
TOP PROFILE WELDED TO THE FABRIC
The use of a specially contoured mounting profile welded to the upper edge of the fabric is a solution that eliminates the need for a standard insert pocket, simplifies installation, and facilitates servicing. Thanks to the ability to clip the fabric in and out without removing the winding tube, this system allows for quicker handling, extended fabric lifespan, and enhanced aesthetics. Additionally, the optimized profile geometry prevents pressure marks on the fabric, making this solution stand out compared to traditional ZIP screen roller systems.

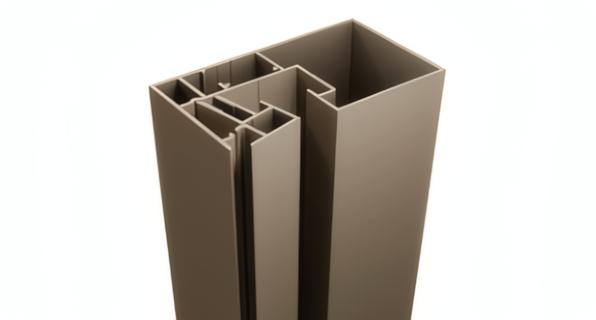

SLIM GUIDE
The ZIP SLIM guide has been specially designed for the smallest adaptive box, ensuring proportional integration with its compact dimensions and creating a cohesive, minimalist form. Made from extruded aluminum, the guide connects to the closing profile using the CLICK snap-in system, which eliminates the need for screws and results in completely invisible joints. This allows for faster installation while maintaining top-tier aesthetics. The SLIM guide is a solution tailored for projects where compactness, clean design, and high functionality are key priorities.
ZIP GUIDE CLICK SYSTEM
The CLICK system in ZIP guides is an innovative solution that enables screw-free joining of the guide profile with the closing profile. Thanks to the snap-fit mechanism, installation is quick, precise, and does not require drilling or screws, eliminating visible fasteners and significantly enhancing the overall aesthetics of the system. This solution also facilitates servicing and disassembly without risking damage to the facade or the guide.
The system consists of two materials with different densities — one ensures stable positioning within the guide, while the other, more flexible material, evenly tensions the fabric in the shutter, preventing waviness and creasing.
LIGHTING IN LARGE ZIP GUIDES
LED lighting in large ZIP guides is integrated inside the profile within a specially designed inspection cavity. This solution allows for even illumination along the entire height of the roller shutter fabric, providing an aesthetically pleasing lighting effect for the recess or usable space, such as under a pergola. The lighting is concealed behind a cover, ensuring an elegant appearance with no visible light sources.

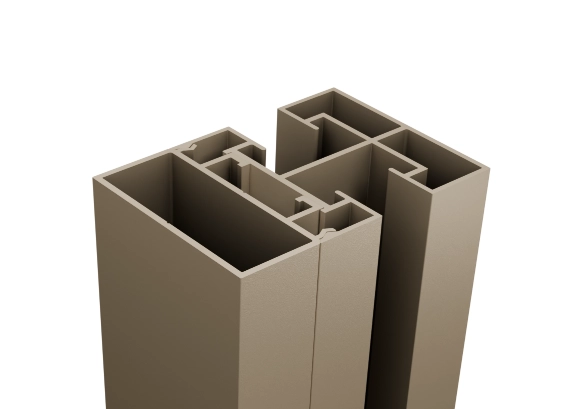

DOUBLE GUIDE
The double guide with spacer is a specially designed ZIP guide used in recessed systems, allowing the installation of two or more shutters in a single opening, for example, in HS windows with a central mullion.
Thanks to its optimal dimensions, the guide fits most mullions in window systems, ensuring an aesthetic appearance and cohesive installation. The incorporated spacer guarantees precise alignment with the recessed system.
This practical and elegant solution enables functional division of sun protection screens while maintaining a minimalist design and high-quality workmanship.
DOUBLE GUIDE WITH SPACER
The double guide with spacer is a specially designed ZIP guide used in adaptive and recessed systems, allowing the installation of two or more roller shutters in a single opening, for example, in HS windows with a central mullion.
Thanks to its optimal dimensions, the guide fits most mullions in window systems, ensuring an aesthetic appearance and cohesive installation. The incorporated spacer enables the roller shutter to be set away from the window or facade.
This practical and elegant solution allows for functional division of sun protection screens while maintaining a minimalist design and high-quality craftsmanship.
INSTALLATION HOLES
Mounting holes for wiring have been designed for quick and convenient routing of power cables for the drive or lighting, minimizing the need for additional processing during installation. Their proper placement ensures safe and neat concealment of wiring, resulting in a tidy appearance of the system after installation.
The holes are prepared in several locations on the aluminum-cast side of the shutter, allowing flexible choice of the drive cable exit point, adapting the installation to individual mounting conditions.
UNIVERSAL DRIVE MOUNTINGS
The drive mounting, thanks to its thoughtful design, allows for quick and hassle-free installation and removal of the drive, regardless of the specifics of the installation.
The mounting system features a solid and stable drive seating, ensuring reliable operation of the shutter. Additionally, the mounting enables axial rotation of the drive in 60-degree increments, which is important for flexible positioning of the drive cable as well as convenient access to the mechanical end positions of the drive.
4 DIAMETERS OF ROLLER TUBES WITH COVER PROFILE
The system uses four diameters of winding tubes:
Ø 63 mm, Ø 78 mm, Ø 85 mm – steel winding tubes that provide high strength and resistance to deformation, ideal for standard and medium-sized shutters.
Ø 100 mm – aluminum system tube made from 6063 T6 alloy, designed for large-sized shutters.
Each tube works with special fabric profiles that allow mounting or replacement without the need to remove the winding tube from the shutter. This makes servicing and adapting the shutter to new usage conditions quick and convenient, without interfering with the entire shutter structure.
STEEL SET DIVISIONS
Steel set dividers are durable and precisely designed components used in double guide rails with spacers. Their primary function is to securely mount and separate two independent blinds within a single system, for example, in recessed divisions for HS windows with a central mullion.
Made from high-strength steel, these dividers provide solid mounting points for both blind motors and winding tube fittings. Thanks to this solution, the entire system maintains stability, operational precision, and durability—even for large-sized shading elements.
This reliable solution enhances the functionality of ZIP systems, ensuring secure installation and long-lasting structural integrity.
MOUNTING BRACKET
The mounting bracket made of extruded aluminum is an innovative solution designed for the installation of adaptive roller shutter boxes. The bracket allows for quick, convenient, and aesthetically pleasing mounting on various surfaces: window frames, building facades, or elevations, without the need to remove the winding tube with the fabric.
GUIDE SPACERS
The spacers are made of high-quality extruded aluminum profile, with a cross-section designed to perfectly match the cross-section of the ZIP guide. This means that the dimensions of the spacer exactly correspond to the dimensions of the guide itself. Such a construction guarantees high mechanical strength, resistance to deformation, and dimensional precision, while the mechanical connection between the spacer and the guide is concealed inside it.
ALUMINUM CAST SIDES
The cast aluminum sides have been precisely designed to allow their use in various system variants, ensuring stability, durability, and full functionality. The sides feature system mounts for drive power cables as well as additional markers to facilitate precise drilling of holes for routing the power cables of the roller shutter drive. Additionally, the sides include a CLICK system for locking the inspection covers without the need for drilling.
BOTTOM BARS
The screen blind system is equipped with weighted bottom bars in several sizes, tailored to different aesthetic and technical requirements. Each of them ensures fabric stability, proper tensioning, and smooth operation of the blind.
HIDDEN WELD OF THE BOTTOM BAR
The bottom bar with a hidden fabric weld is a refined component of the shading system, allowing the complete concealment of the connection point between the fabric and the ZIP zipper. Thanks to the special design of the bar, the zipper together with the fabric and the intermediate PVC profile is housed inside, which enhances the aesthetic of the blind and eliminates visible joints. This solution also facilitates system servicing, especially during fabric replacement.
ALUMINUM ROLLING TUBE 100 mm
The system aluminum winding tube with a diameter of 100 mm is a key component of large-scale systems, ensuring high durability and operational stability. It is made from 6063 T6 aluminum alloy and features low deflection. This crucial element of large-scale systems provides high strength characterized by favorable parameters, including minimal deflection.
Thanks to precise manufacturing, the tube allows for even and smooth winding of the fabric, and a special step on its diameter limits deformation, ensuring an aesthetic appearance and material durability. Additionally, the system uses a fabric-insertion profile that enables fabric replacement without the need to disassemble the tube from the roller shutter, greatly facilitating servicing and maintenance.
ZIP INSERT
The ZIP insert is a modern solution used in the system to ensure maximum stability and smooth guidance of the fabric. Thanks to the use of ZIP lock technology, the material is evenly tensioned and held in the guides along the entire height, which guarantees resistance to wind gusts and eliminates slack on the edges.
The insert consists of two materials with different densities – one provides stable positioning within the guide, while the other, more elastic material, evenly tensions the fabric in the roller shutter, preventing waviness and wrinkling.
HIDDEN BOTTOM BAR
In the adaptive system, a hidden bottom rail is used, providing an aesthetic and cohesive finish to the blind. The bottom rails are available in several sizes, depending on the box size or application. Thanks to a thoughtful design, the rail is completely concealed inside the blind box when raised, giving the system a minimalist and elegant appearance without visible bottom elements.
This solution ensures a consistent look for the entire installation, making the system an excellent choice for modern facades and elevations where aesthetics and high-quality workmanship matter.
SLIDING PROFILE
The fabric sliding profile with an integrated brush seal is a component located inside the box, responsible for stabilizing and properly guiding the fabric. Its function is to keep the material in the correct position, ensuring smooth and trouble-free operation of the blind.
Thanks to the use of the brush seal, the profile minimizes fabric friction, protecting it from damage and extending its lifespan. Additionally, the seal acts as a damper, reducing noise and improving the overall system’s tightness. This solution guarantees precise and quiet operation, enhancing both comfort and the reliability of the shading system.
END CAPS FOR BOTTOM BARS
The bottom rail end caps have been designed with precisely shaped grooves that continue the line of the brush seal pocket located within the rail itself. This allows the seal to run across the entire width of the blind — from end cap to end cap — eliminating gaps at the edges of the bottom rail. This solution ensures better sealing of the blind in the closed position, reducing the ingress of light, insects, and dirt.
TECHNICAL SPACE OF LARGE GUIDES
The large ZIP guide, used in adaptive screen blind systems, has been designed not only to guide the fabric with the ZIP lock but also as a multifunctional element containing a so-called technical space. This space serves as an internal working chamber of the guide, which can be used during production or installation to conceal additional installation components, significantly enhancing the system’s functional and aesthetic qualities.
The bottom rail end caps have been designed with precisely shaped grooves that continue the line of the brush seal pocket located within the rail itself. Thanks to this, the seal can run across the entire width of the blind—from end cap to end cap—eliminating gaps at the edges of the bottom rail. This solution provides better sealing of the blind in the closed position, reducing the ingress of light, insects, and dirt.
DOUBLE GUIDE WITH SPACING
The large ZIP guide, used in adaptive screen blind systems, was designed not only to guide the fabric with the ZIP zipper but also as a multifunctional element containing the so-called technical space. This space constitutes the internal working chamber of the guide, which can be utilized during production or installation to conceal additional installation components, significantly enhancing the functional and aesthetic qualities of the system.

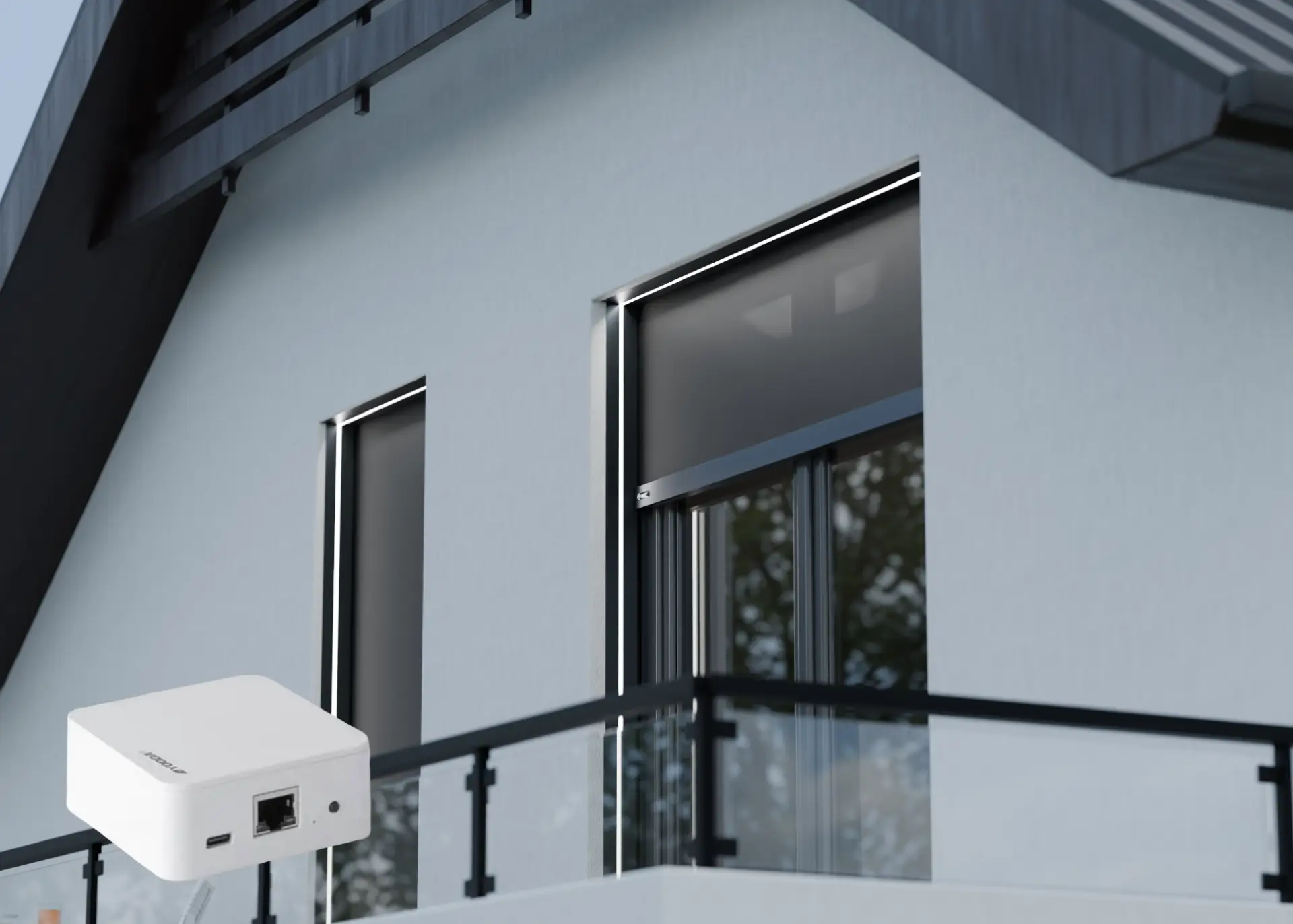

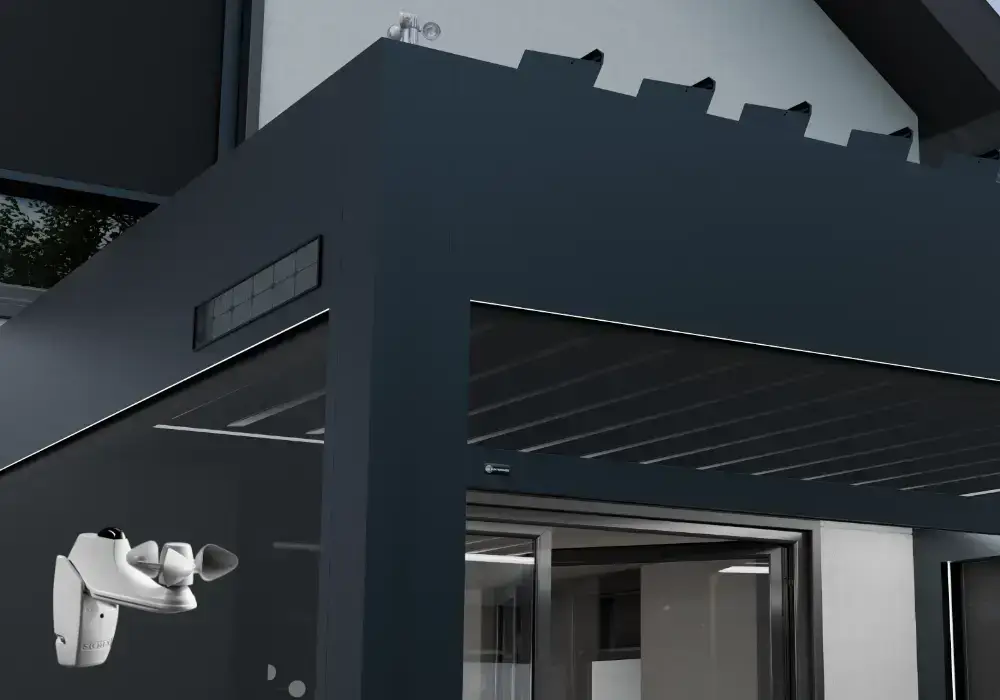

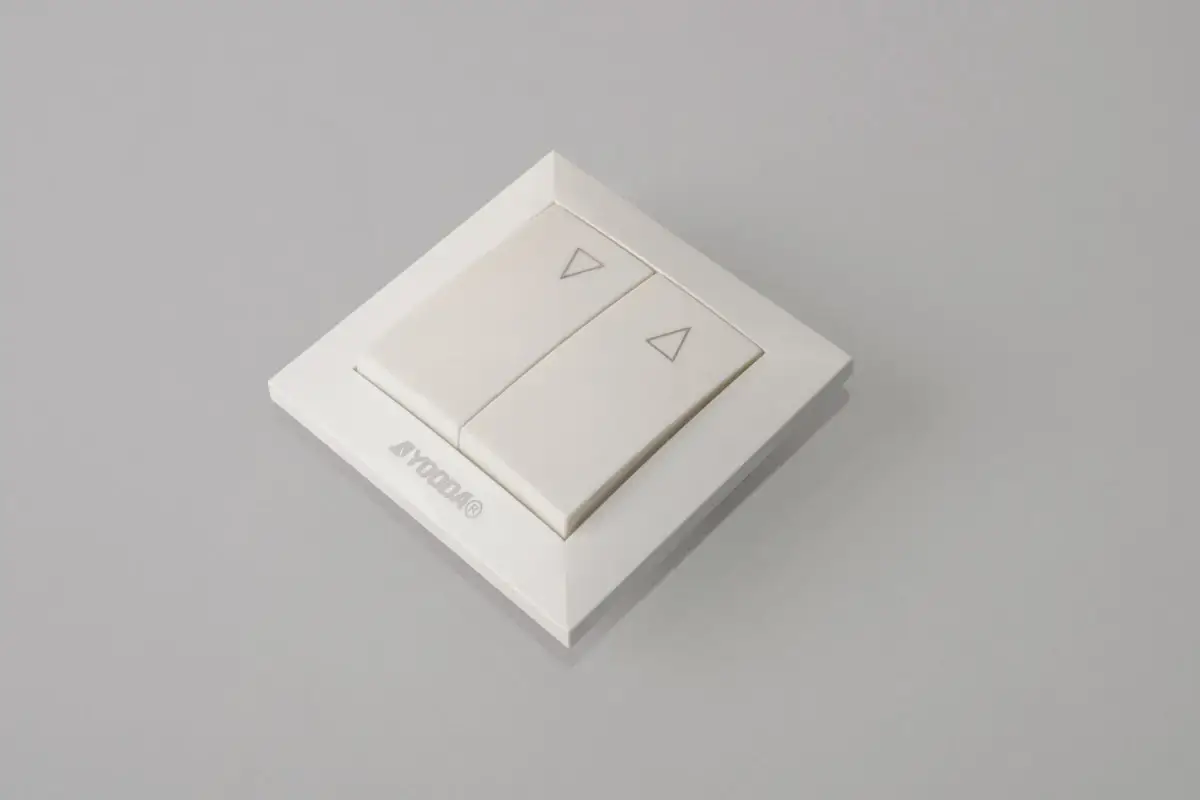

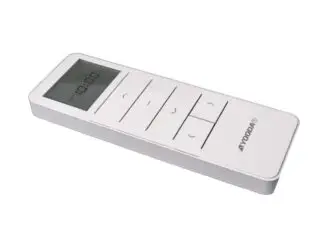

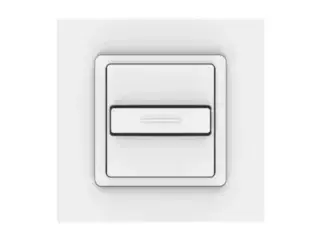

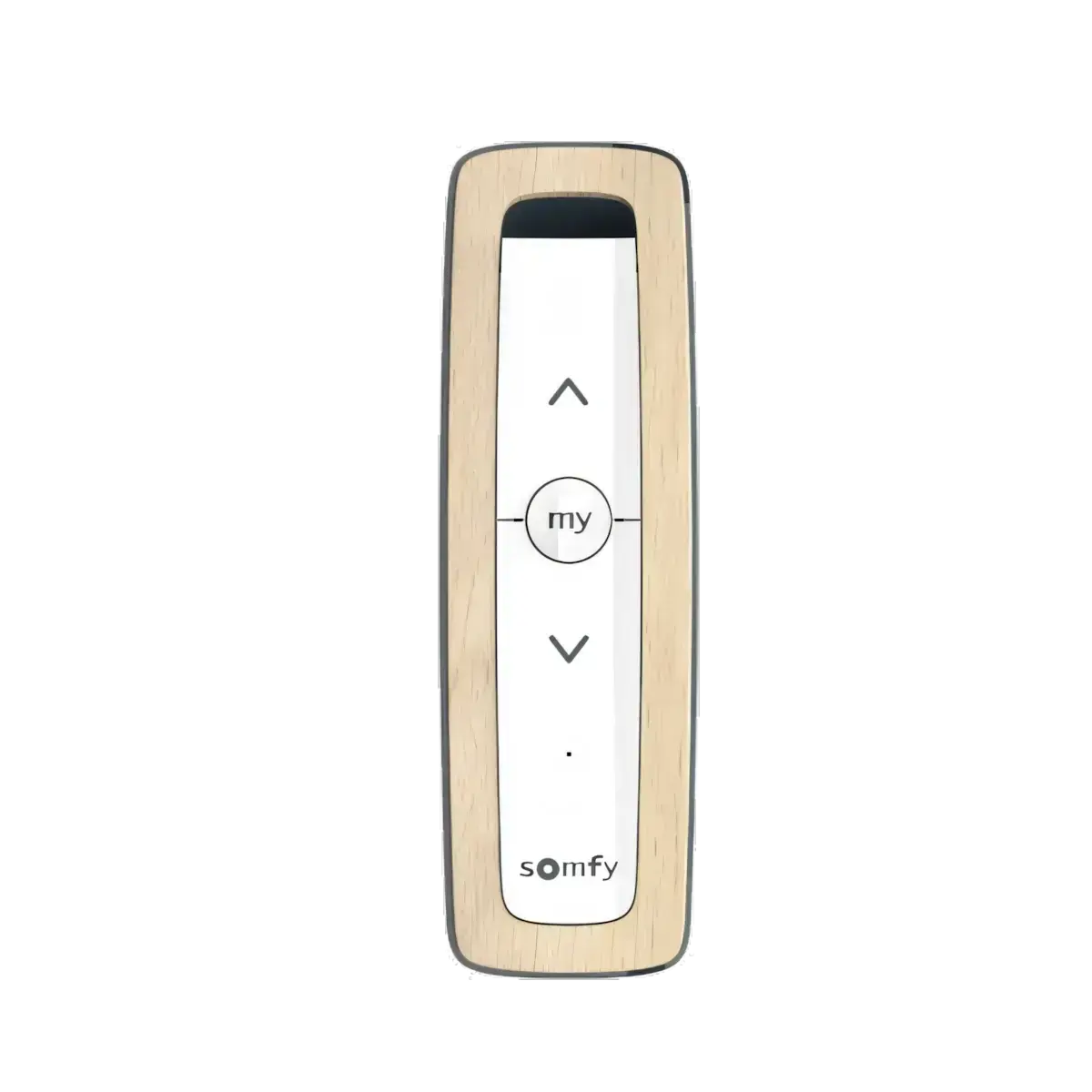

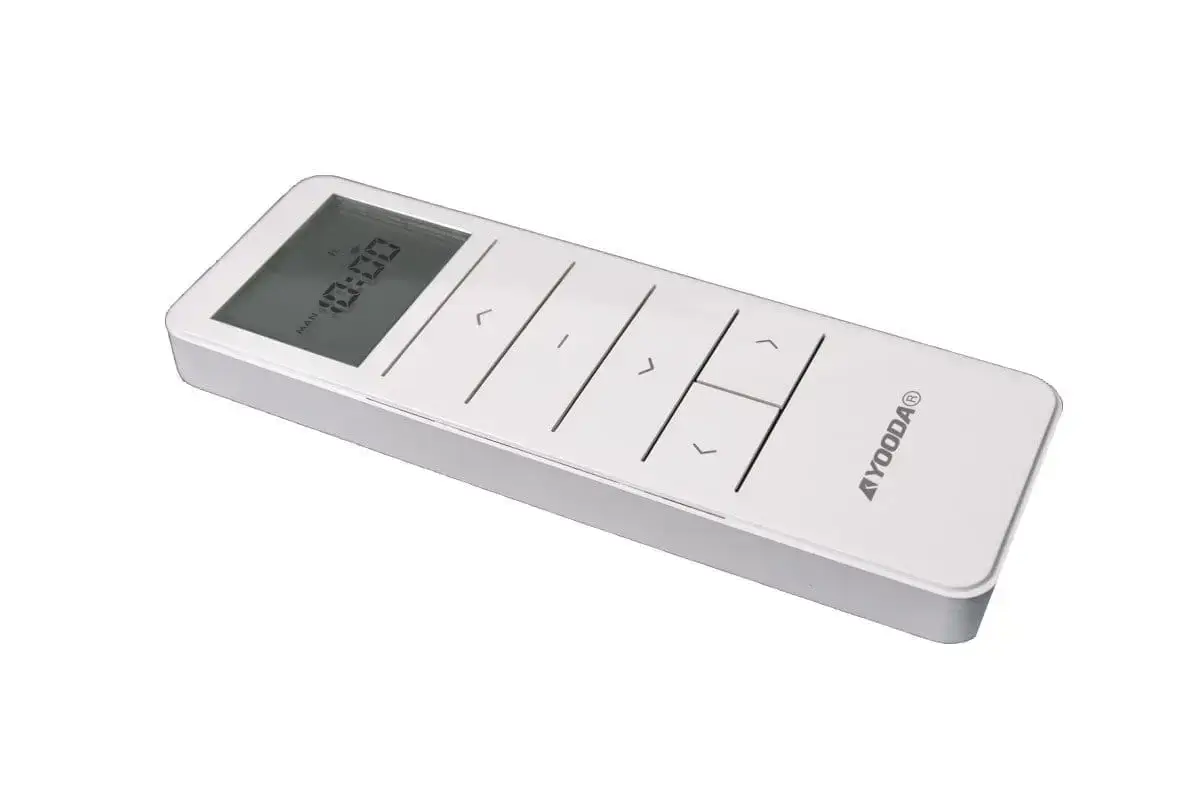

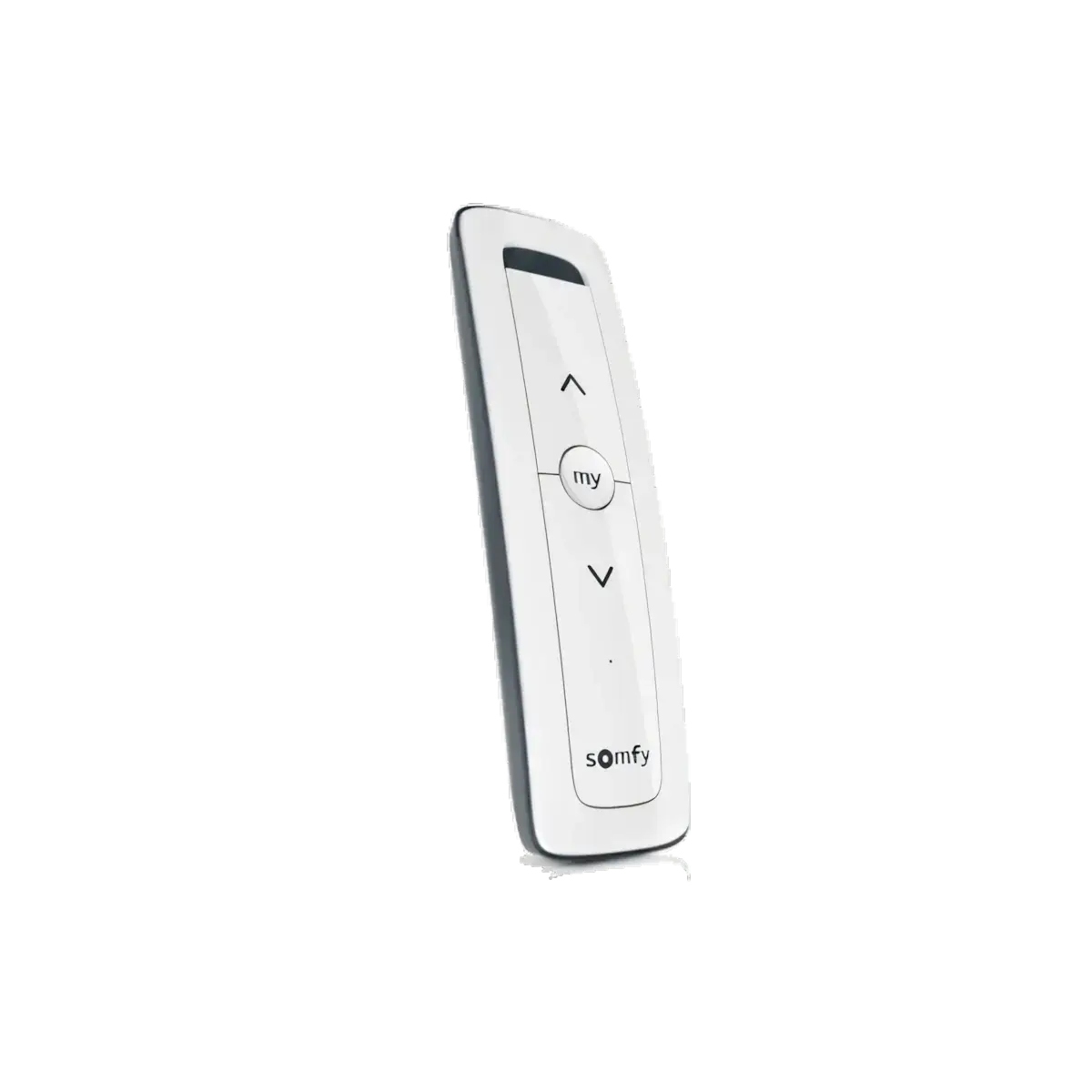

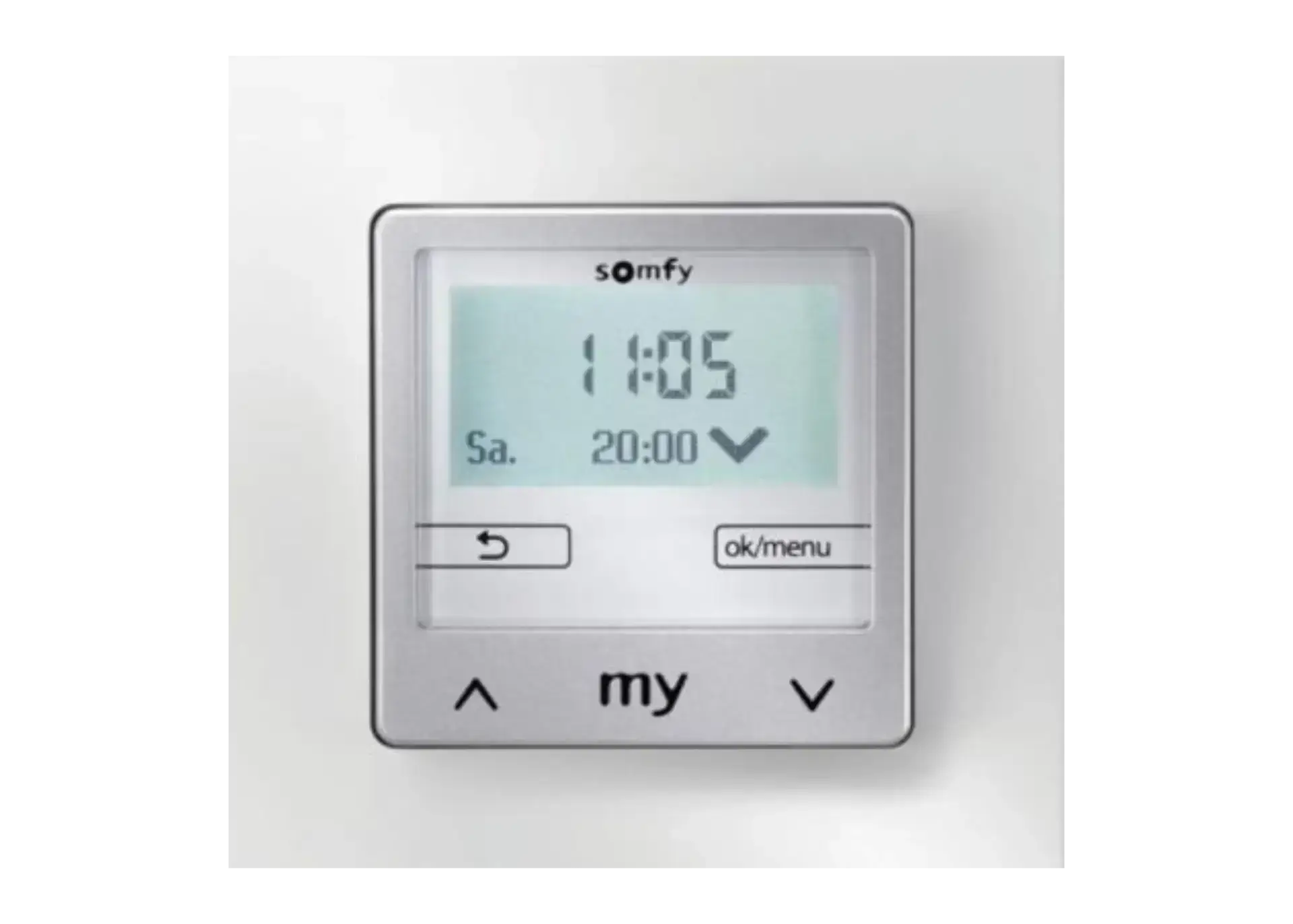

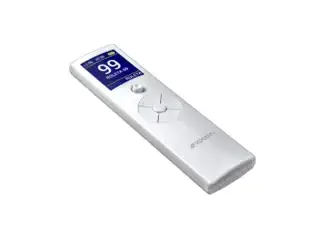

INTELLIGENT CONTROL
Thanks to the use of an intelligent control unit, it is possible to control the pergola and additional equipment via a smartphone or tablet.
PREMIUM MATERIALS
The WIN SCREEN system is crafted from premium-quality materials, ensuring durability, elegance, and long-lasting performance. By using high-grade aluminum profiles, reinforced components, and advanced technical fabrics, WIN SCREEN combines modern design with exceptional functionality.
RICH CONSTRUCTION COLOR RANGE AS STANDARD
We offer a rich range of construction colors as standard! The structure is powder-coated in seven colors from the standard WIN CLIMATIC S500 palette. There is also the possibility of powder coating in any color from the RAL palette as well as in wood-like colors.
CE STANDARD COMPLIANCE
Our products complies with the CE marking standards, meeting the requirements of PN-EN 1090-1 to PN-EN 1090-3 as set by the Polish Committee for Standardization for steel and aluminum structures.
TIGER COATINGS
Thanks to the use of thermoset powder coatings, we gain virtually unlimited possibilities for surface finishing. In our products, we use exclusively coatings from TIGER COATINGS, which ensure durability and uncompromising quality of workmanship.
DURABLE PAINT COATING
All the structures we manufacture hold an international quality certificate for paint coatings. Products marked with the QUALICOAT symbol feature excellent properties, confirmed by accredited testing laboratories.
HIGH QUALITY OF PRODUCT MANUFACTURING AND PACKAGING
A specialized team and the most modern machinery allow us to achieve the highest production quality. Each product is thoroughly inspected by the quality control department before shipment to ensure compliance with the order and workmanship quality. We also place great importance on careful packaging and securing the goods during transport. Thanks to the use of specially fitted styrofoam inserts, air mats, and durable, thick cardboard boxes, we can guarantee that the ordered goods will arrive to you in perfect condition.

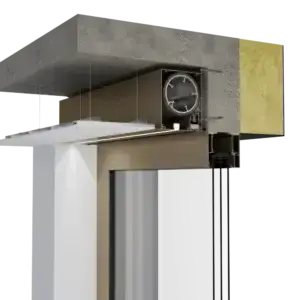

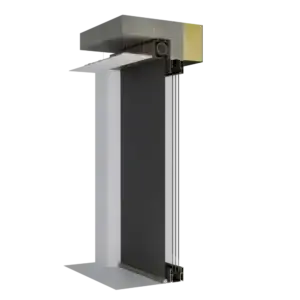

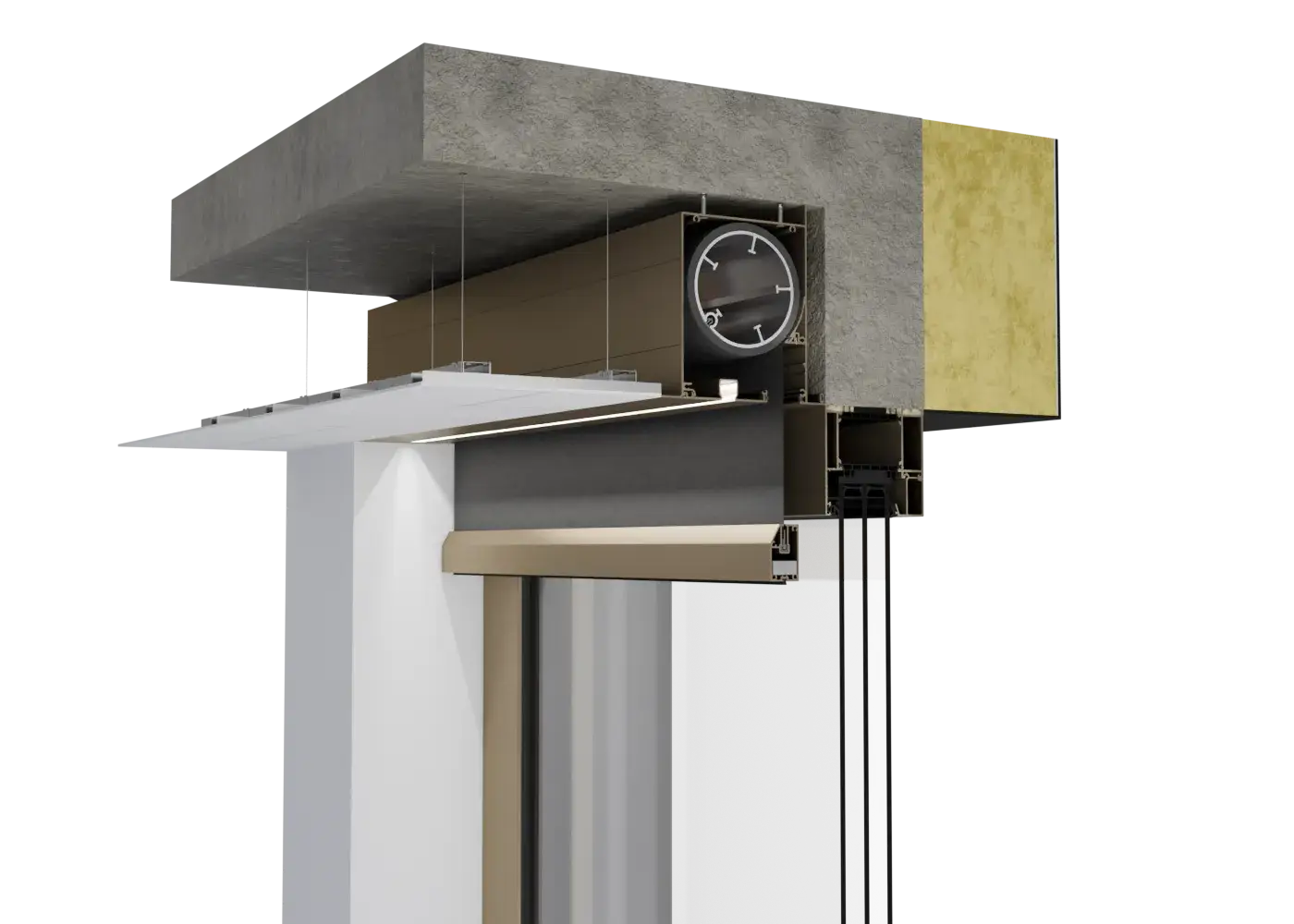

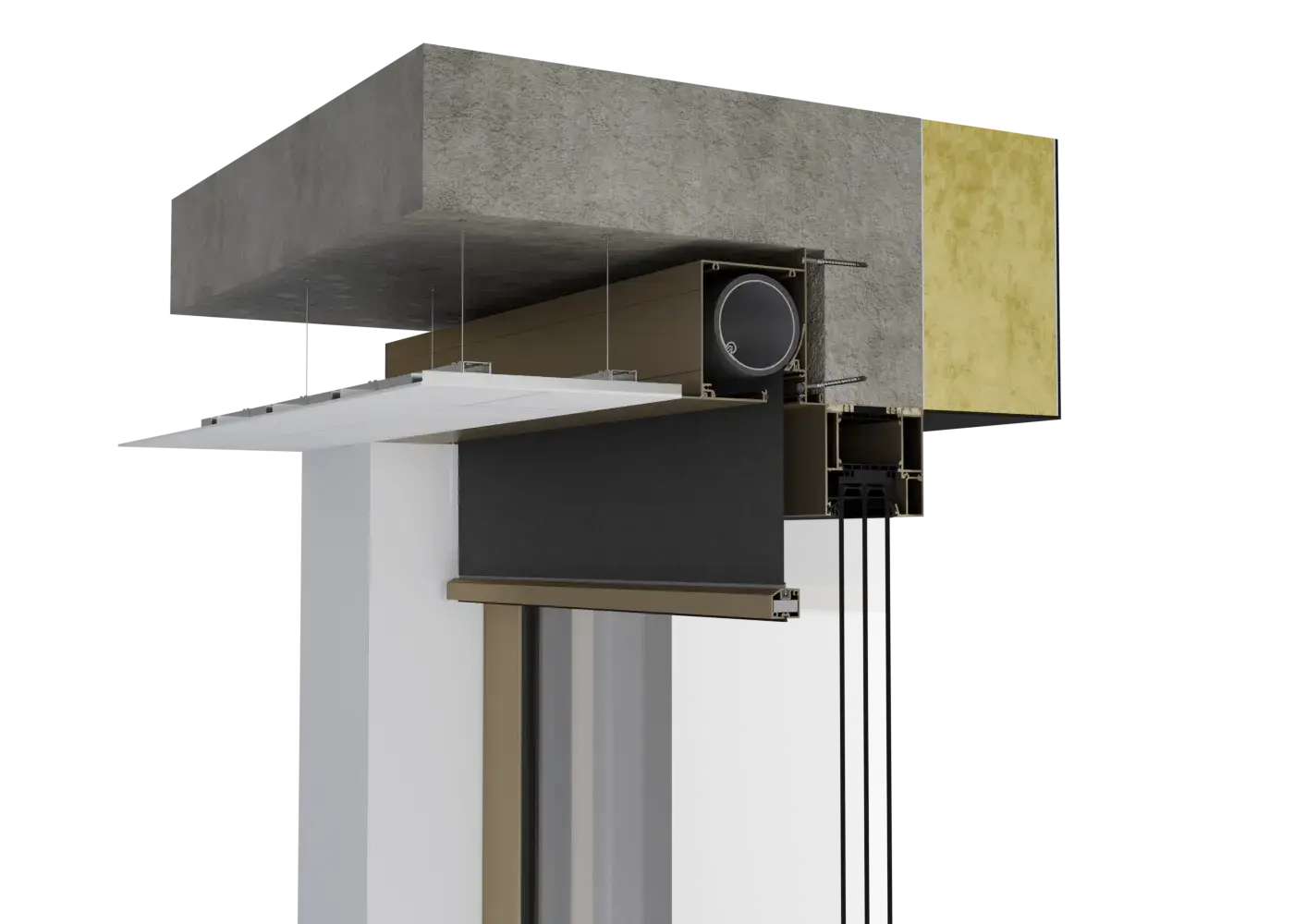

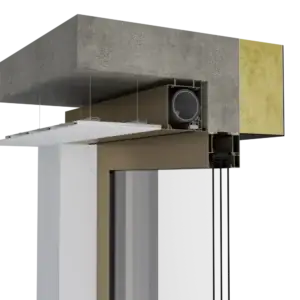

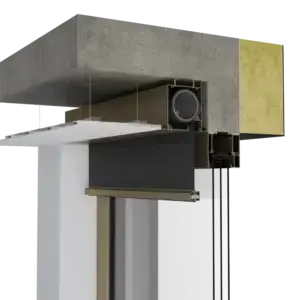

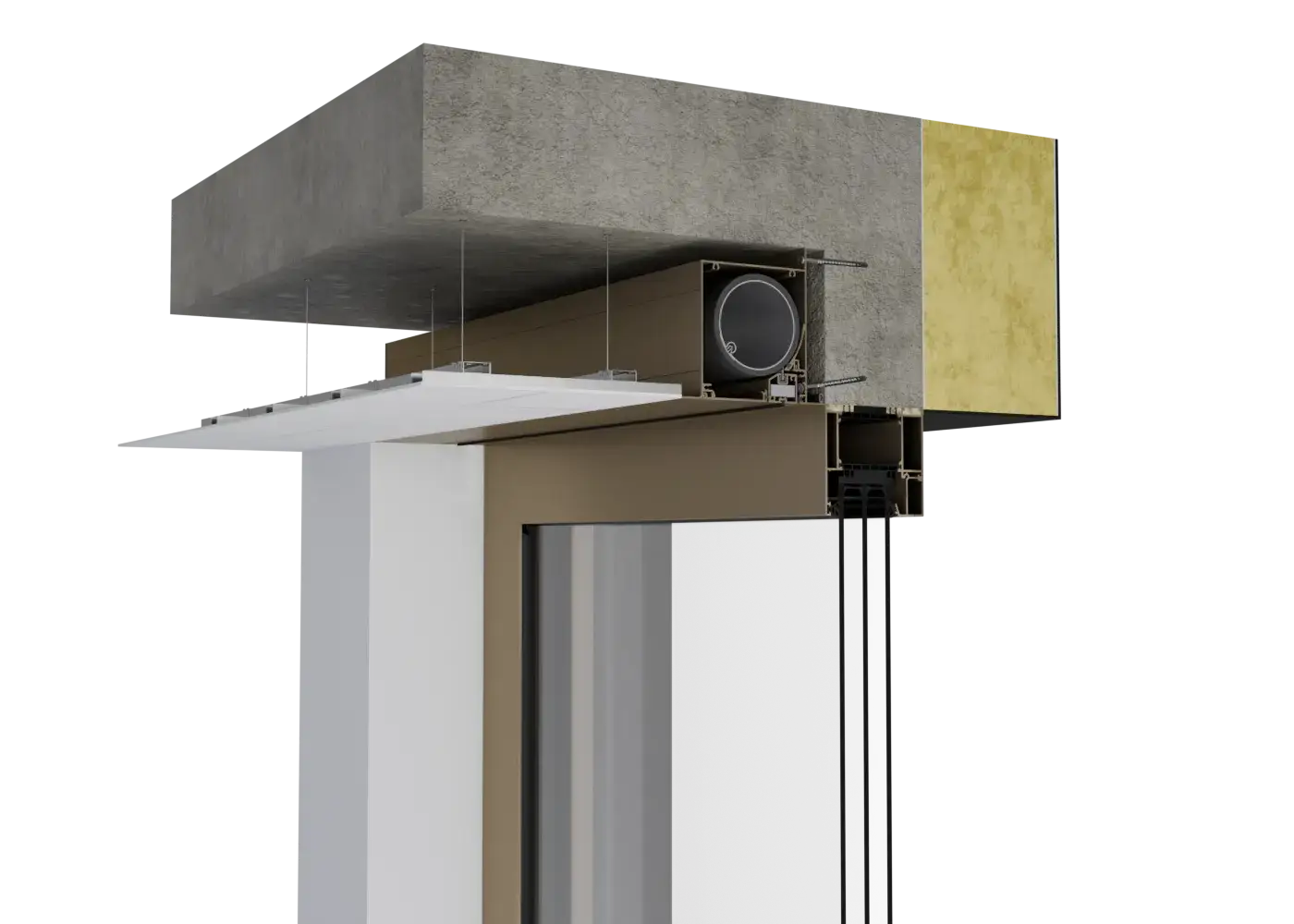

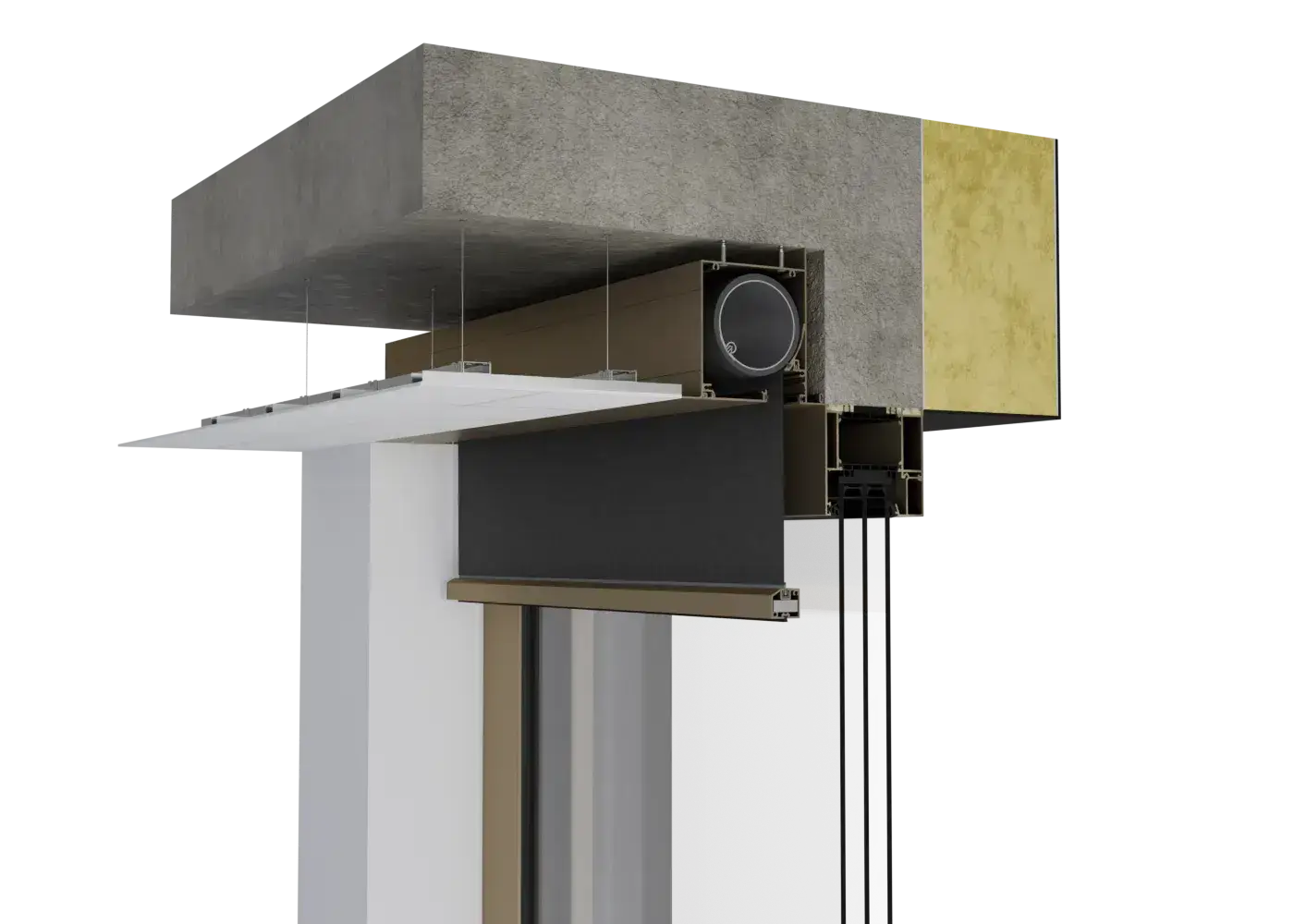

WS 110 PO1

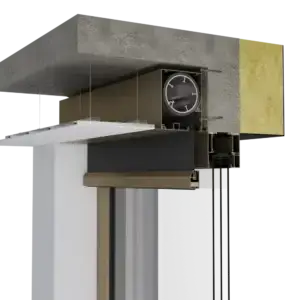

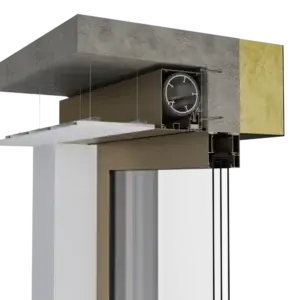

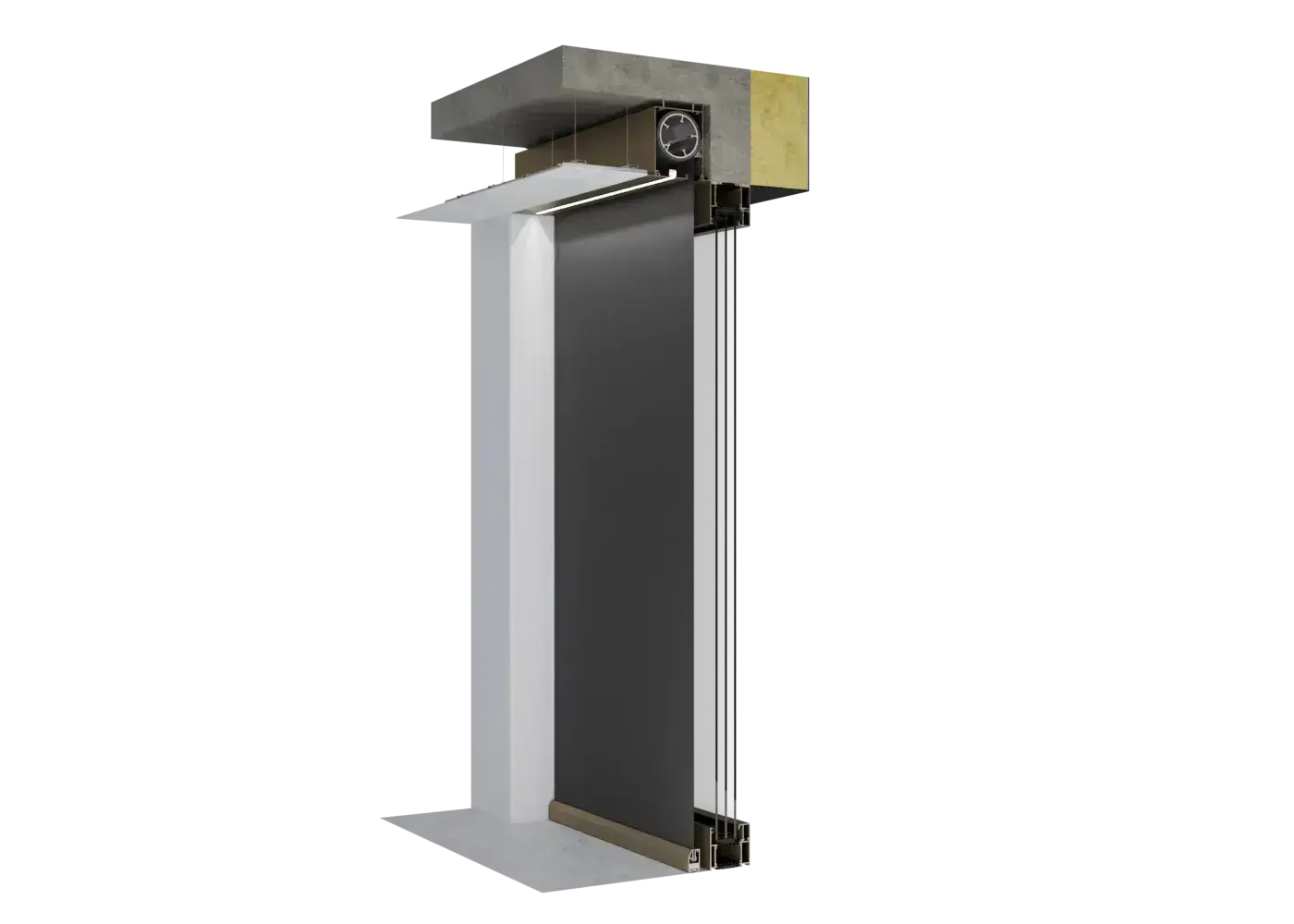

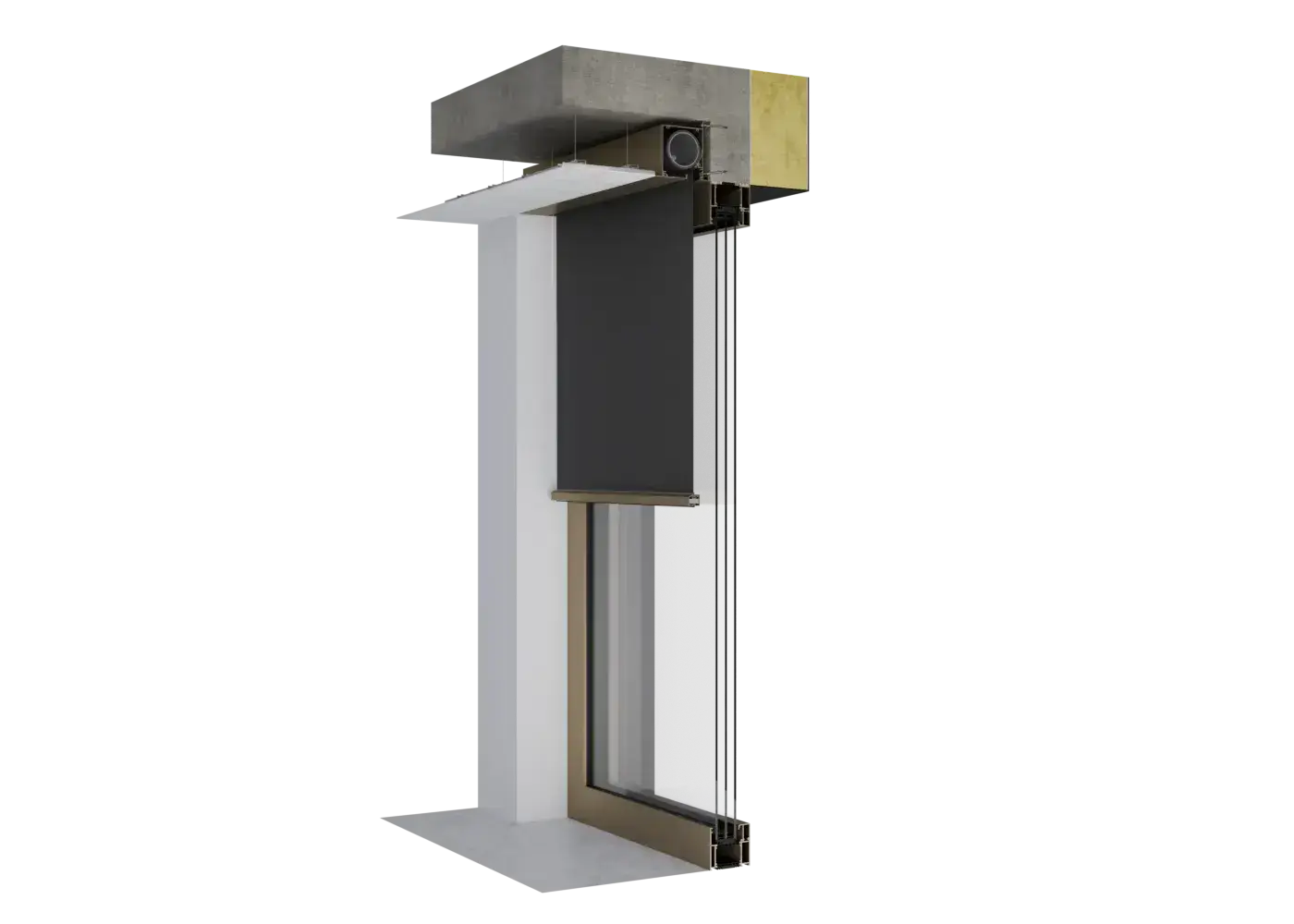

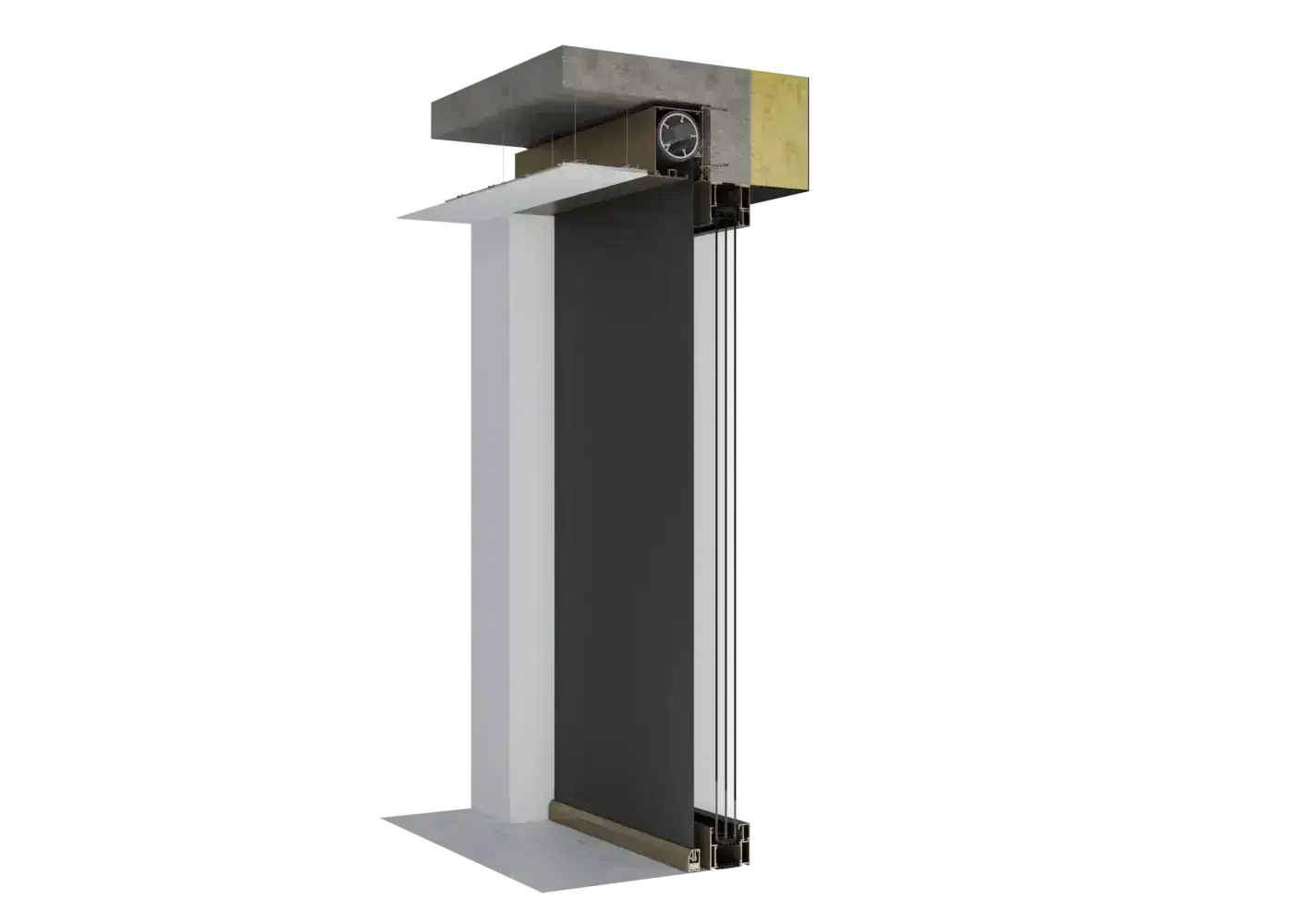

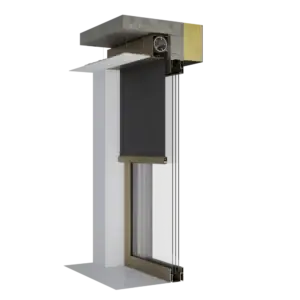

WS 110 PO1 FLUSH-MOUNTED SYSTEM WS 110 PO1
Box size: 110 x 120 mm
Maximum system dimensions: 5000 x 3000 mm \[15.00 m²] or 4000 x 4000 mm \[16.00 m²]
Tube diameter: ∅ 63 mm, ∅ 78 mm
Insulation: back of the box insulated with 20 mm thick PIR board
Bottom bar: LD-1 (fully concealed inside the box), LD-2 (not fully concealed inside the box)
NOTE: For blinds up to 1200 mm wide, the weighted bottom bar LD-2 is used, which is not fully concealed inside the box.

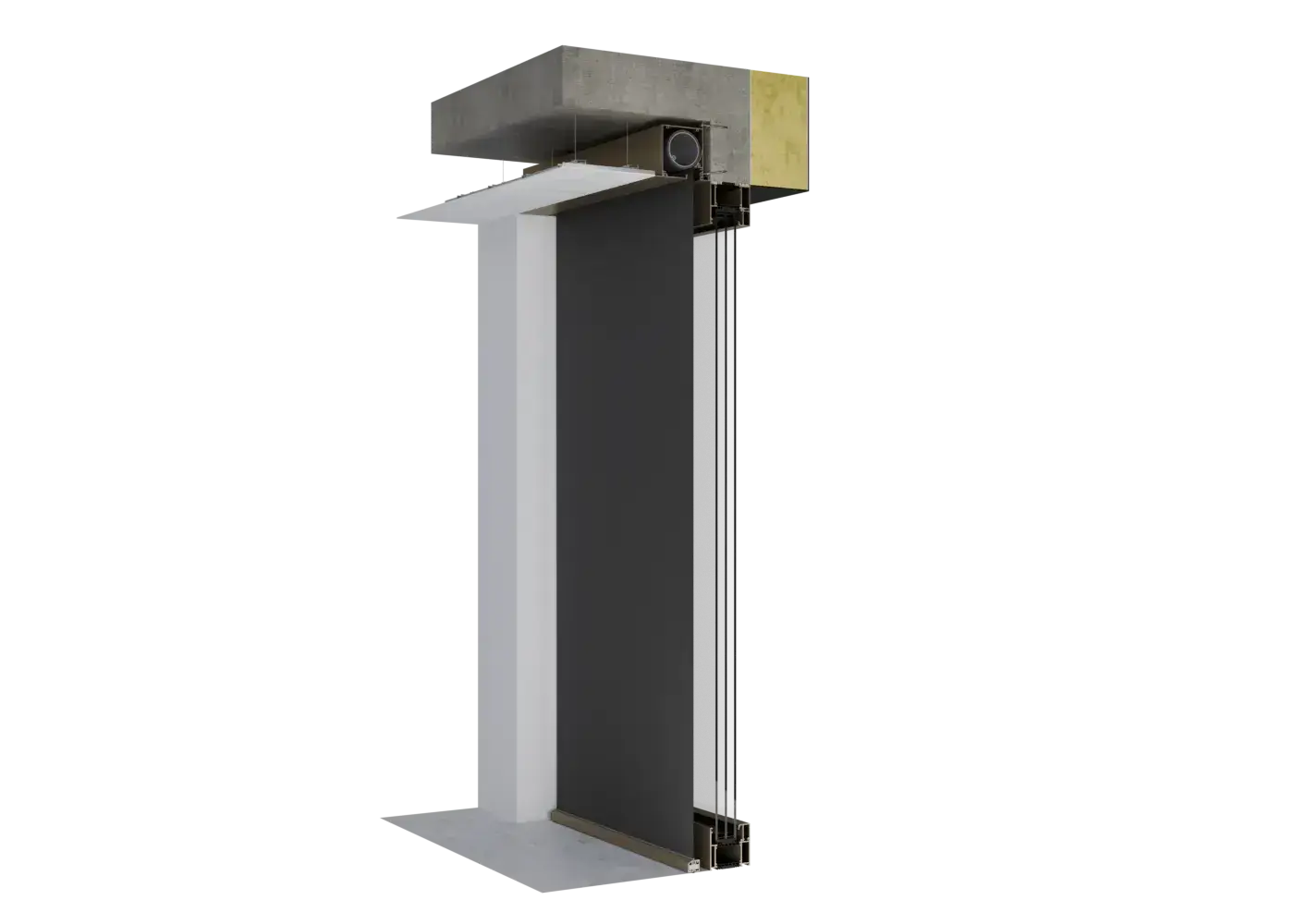

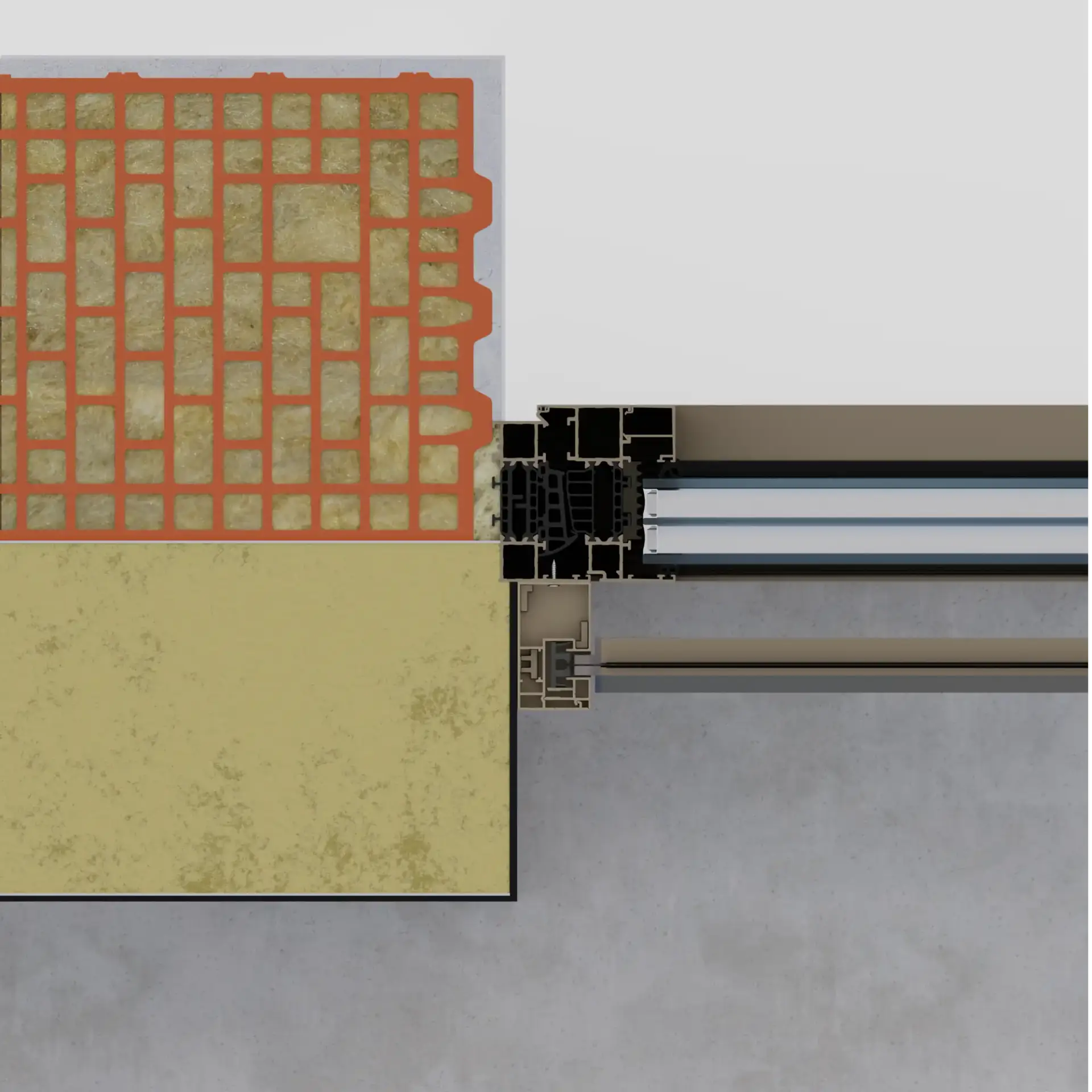

EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS
SINGLE ZIP GUIDE: AZ1
SINGLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
SINGLE ZIP GUIDE: P2
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BARS
BOTTOM BAR LD-1
* BOTTOM BAR LD-2
* The LD-2 bottom bar is used for blinds up to 1200 mm wide and is not fully concealed inside the box

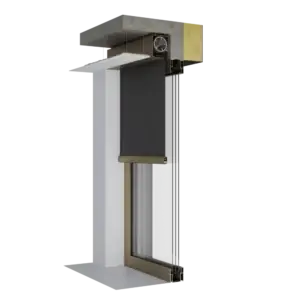

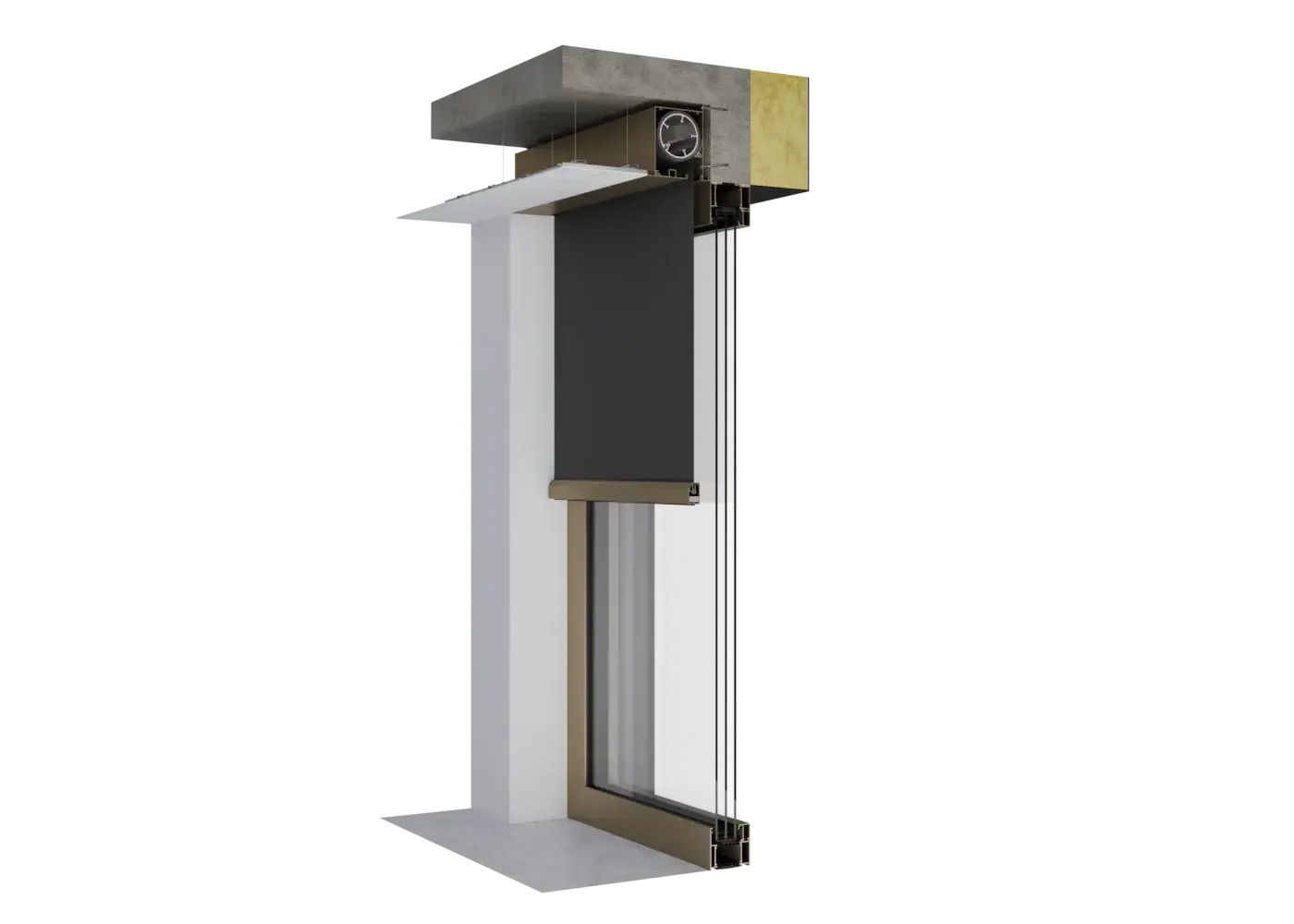

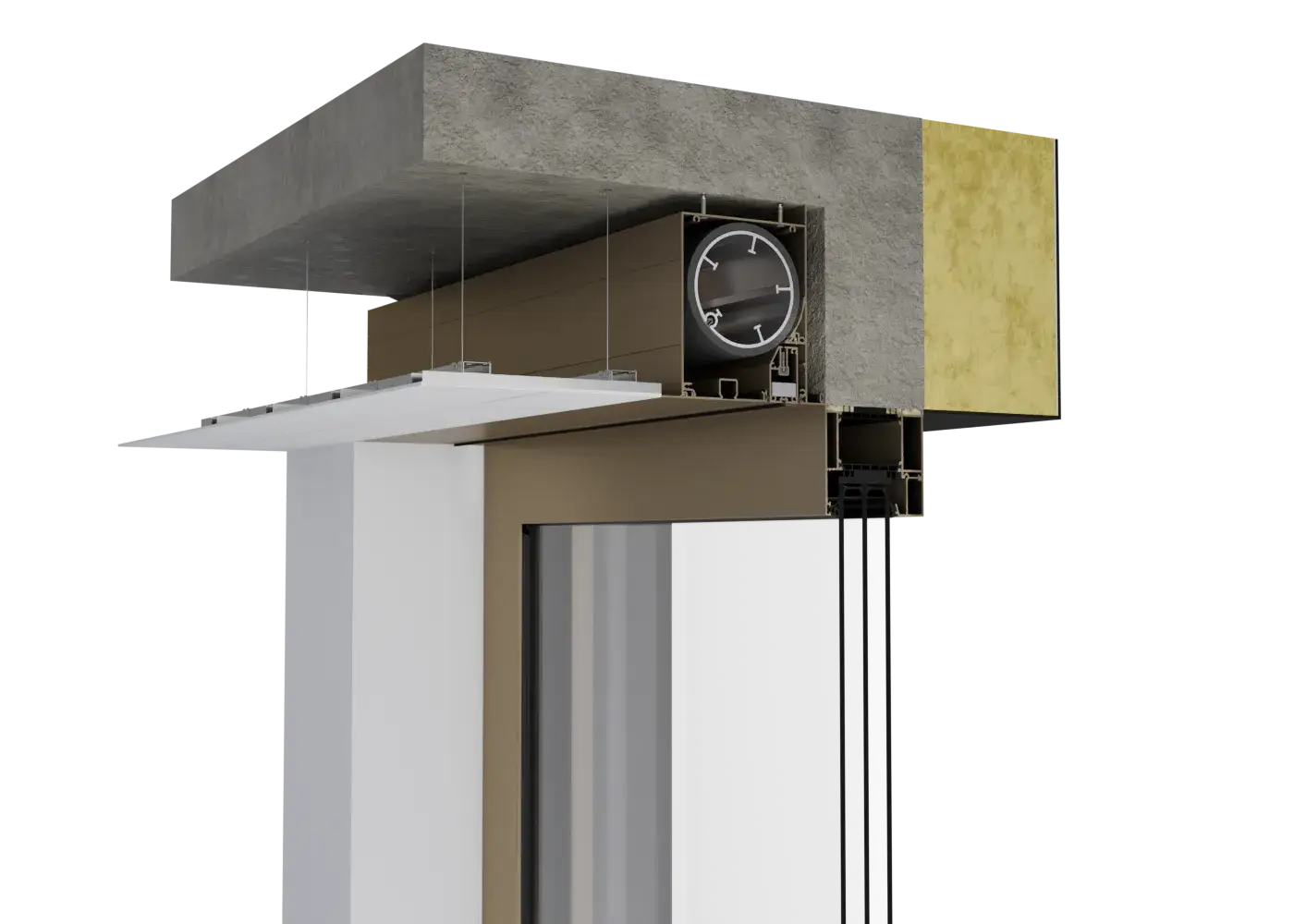

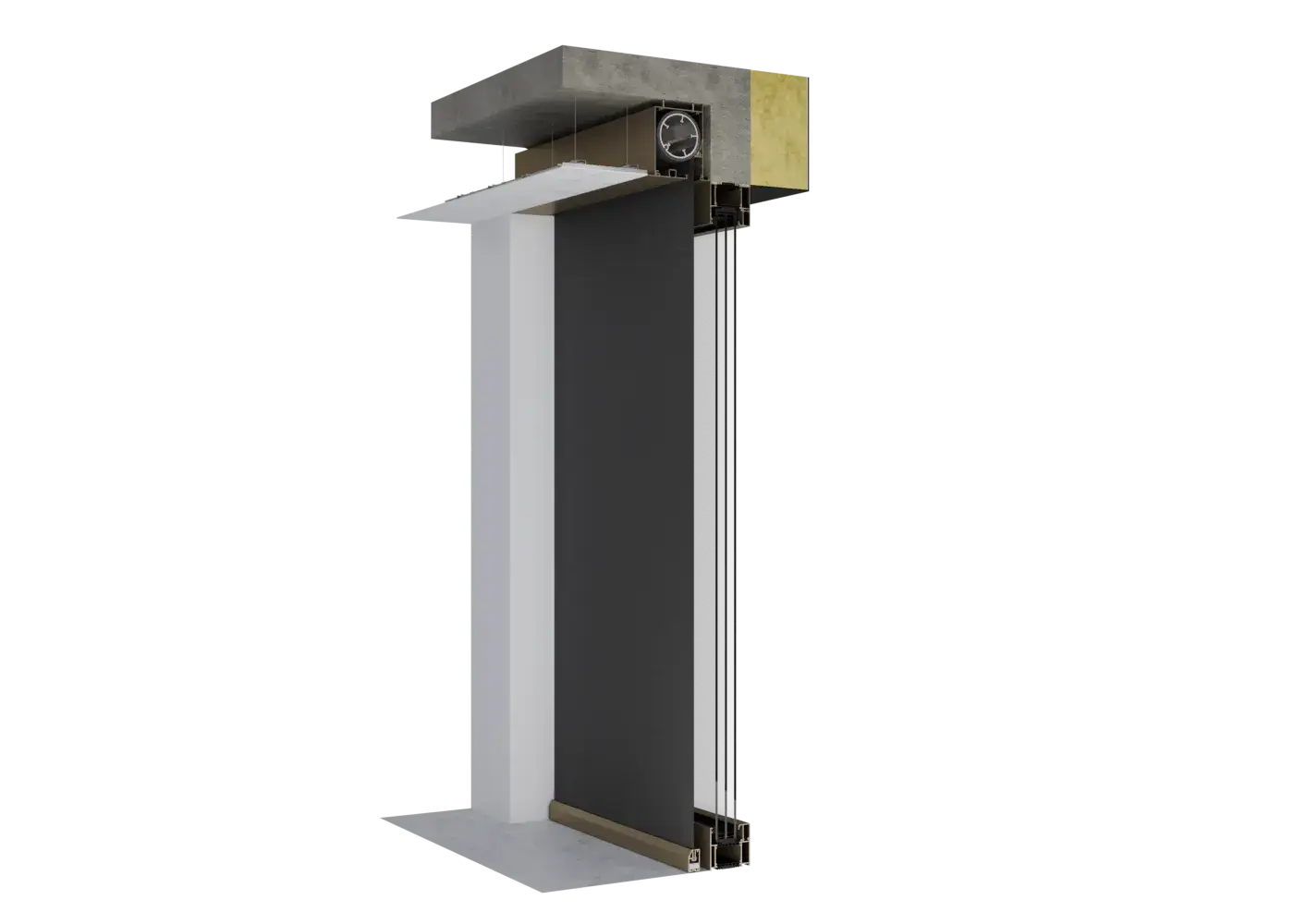

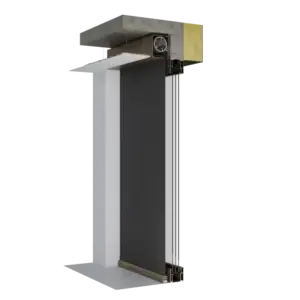

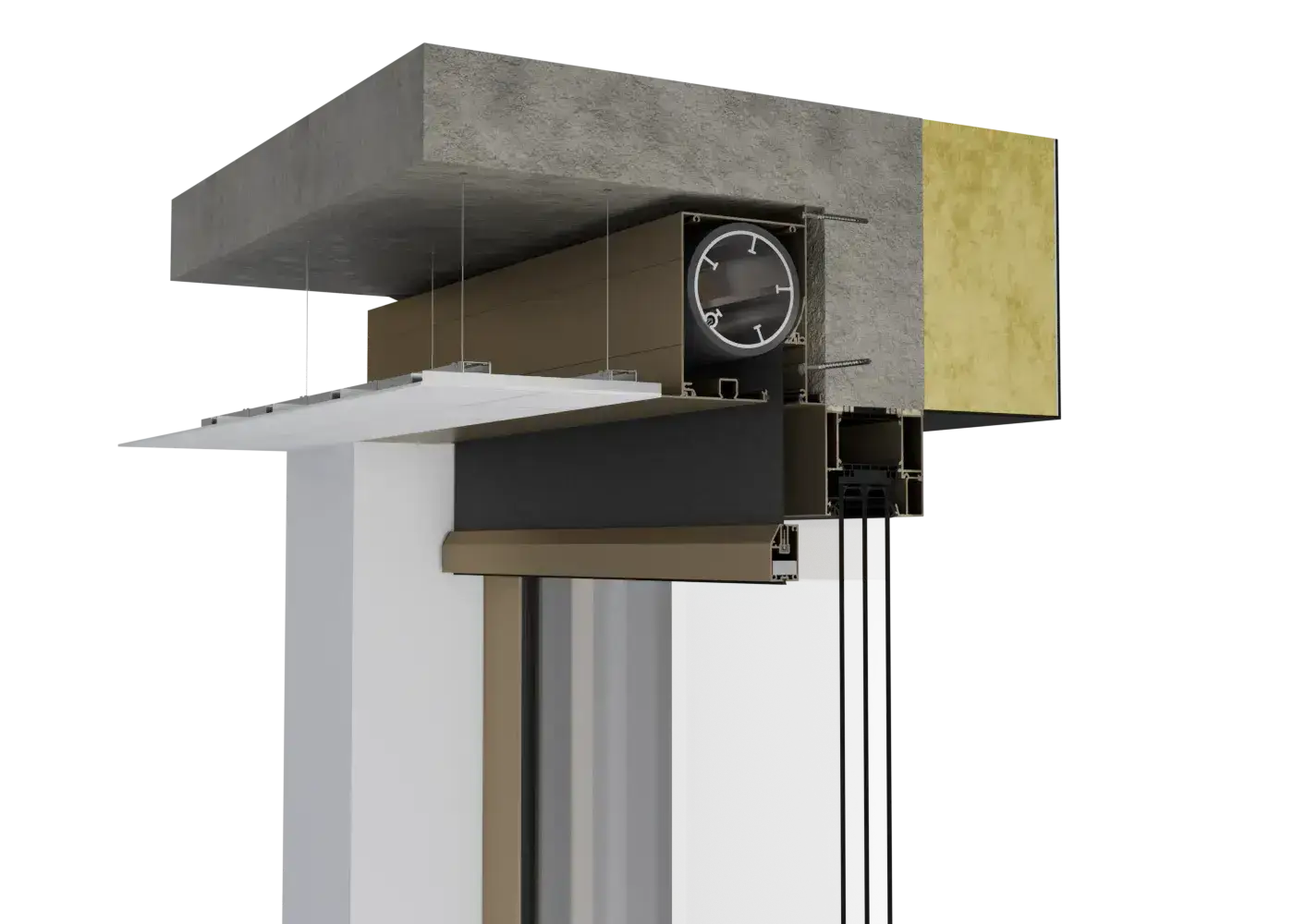

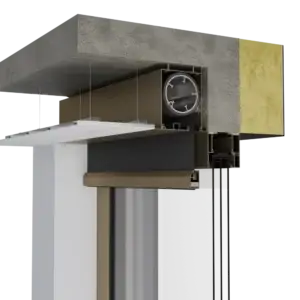

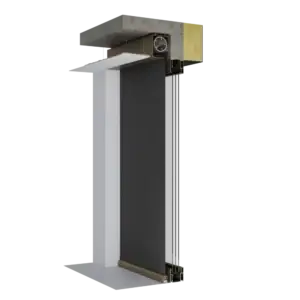

WS 130 PO2
WS 130 PO2 FLUSH-MOUNTED SYSTEM WS 130 PO2
Box size: 130 x 160 mm
Maximum system dimensions: 7000 x 3400 mm \[23.88 m²] or 5400 x 6000 mm \[32.40 m²]
Tube diameter: ∅ 78 mm, ∅ 85 mm, ∅ 100 mm ALU
Insulation: back of the box insulated with 20 mm thick PIR board
Bottom bar: LD-2 (fully concealed inside the box)
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS
SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
DOUBLE ZIP GUIDE: P2
SINGLE ZIP GUIDE: P3
SINGLE ZIP GUIDE: Z2
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BAR LD-2
BOTTOM BARS
BOTTOM BAR LD-2

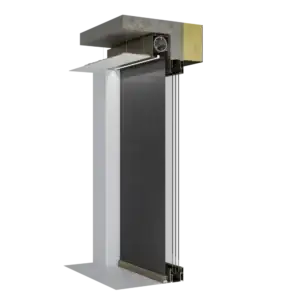

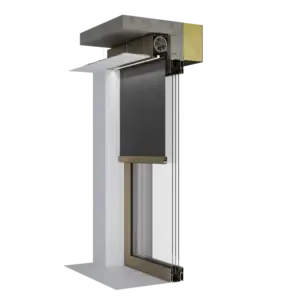

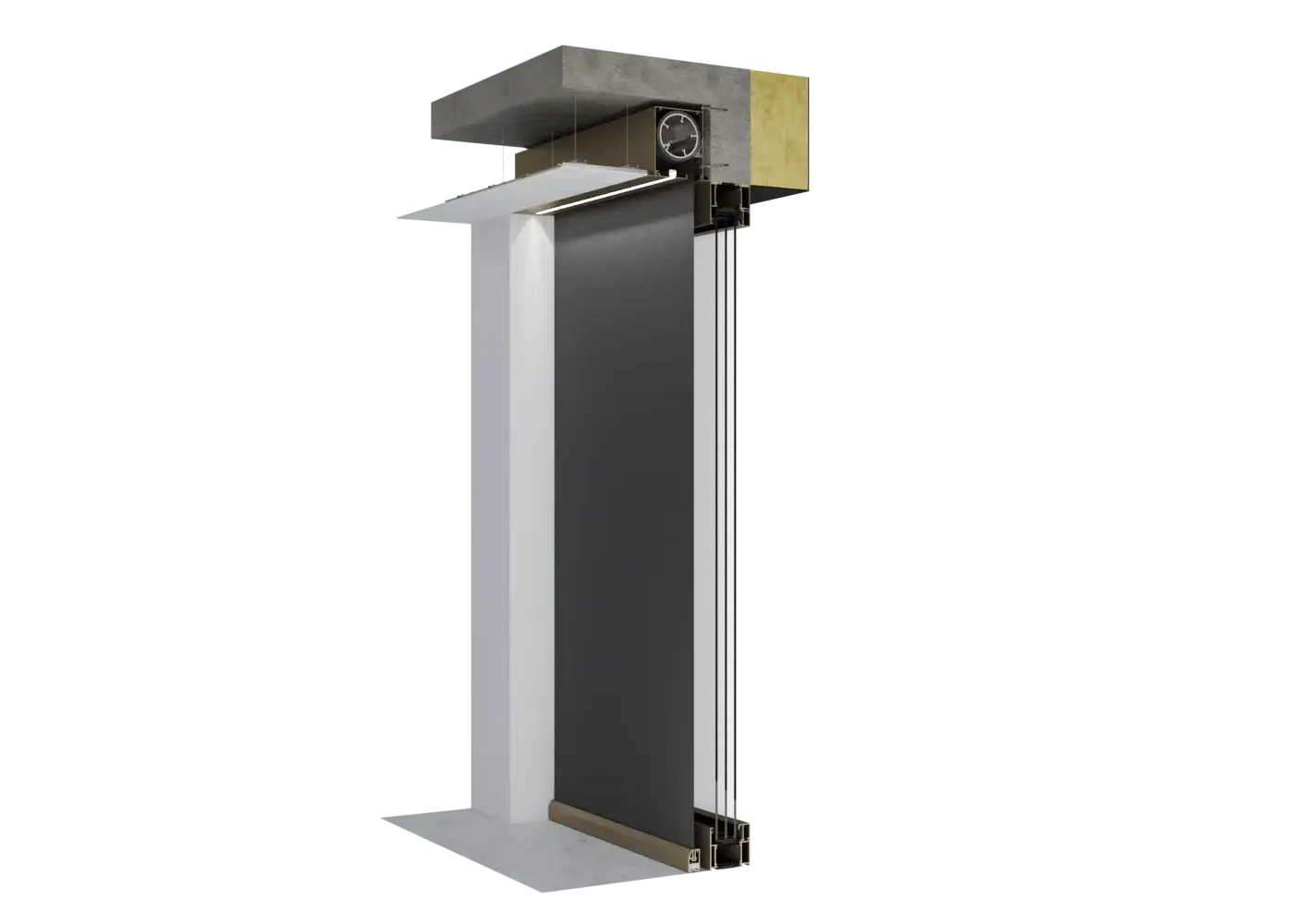

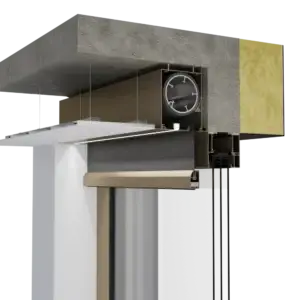

WS 130 PO3 LED

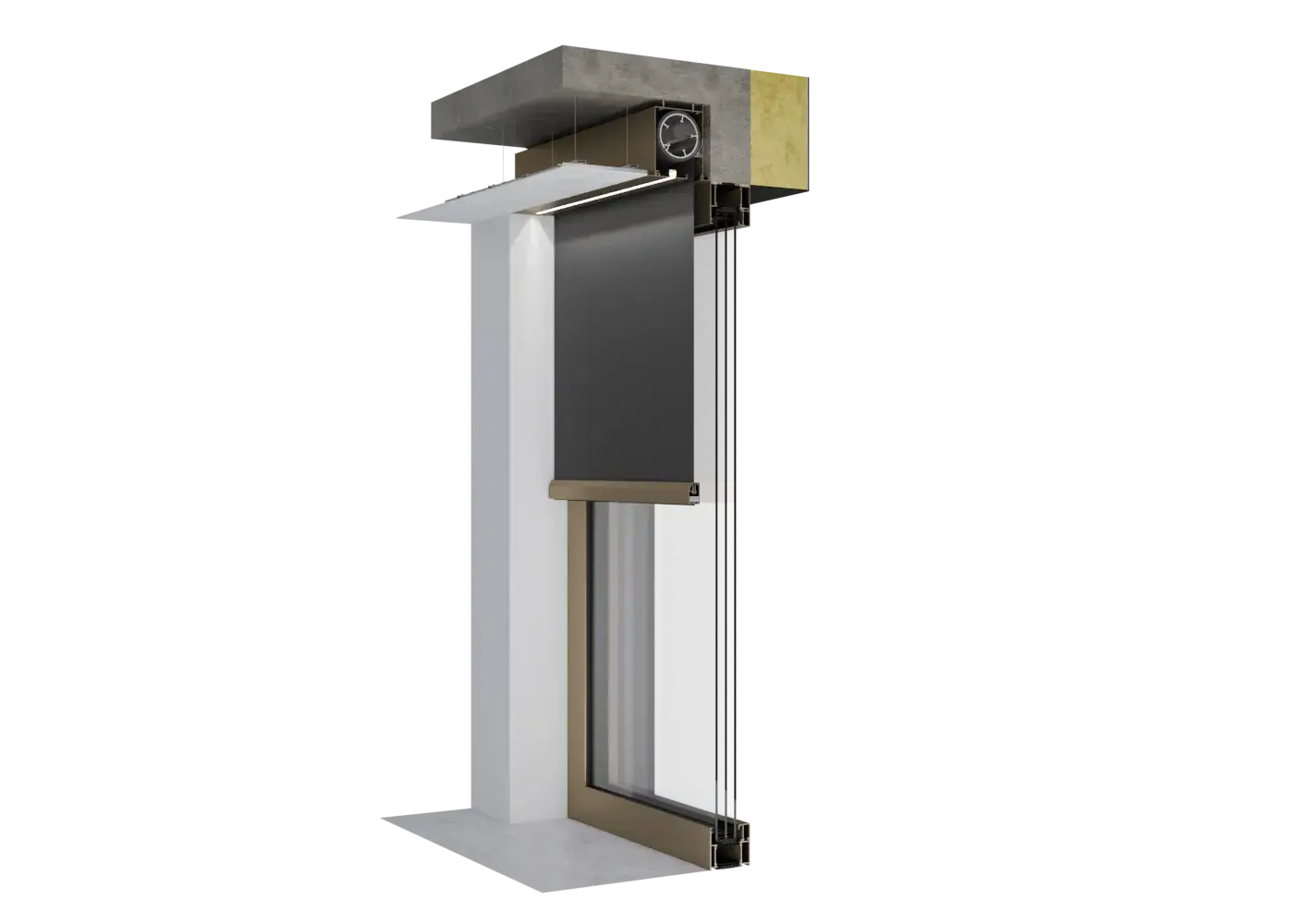

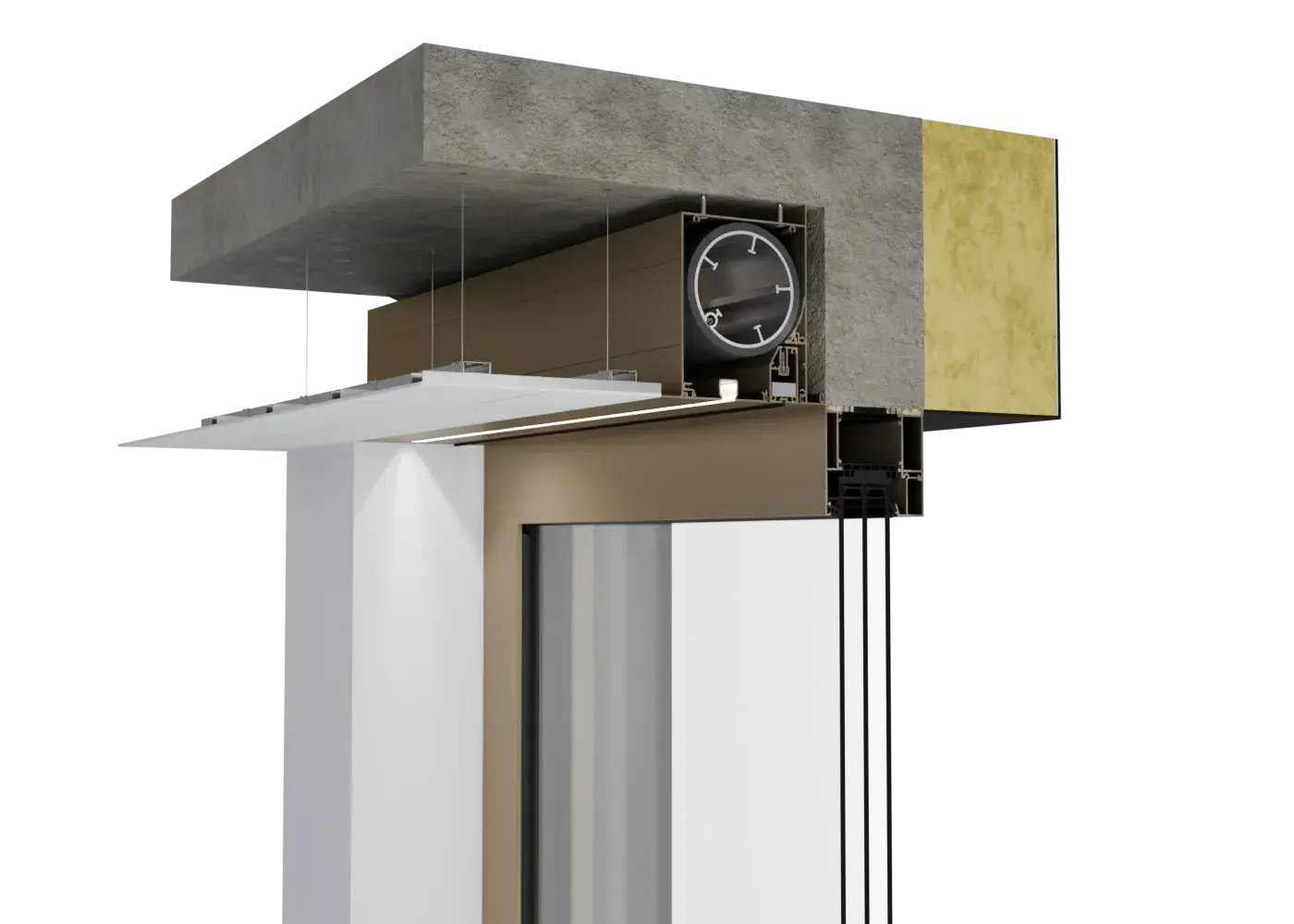

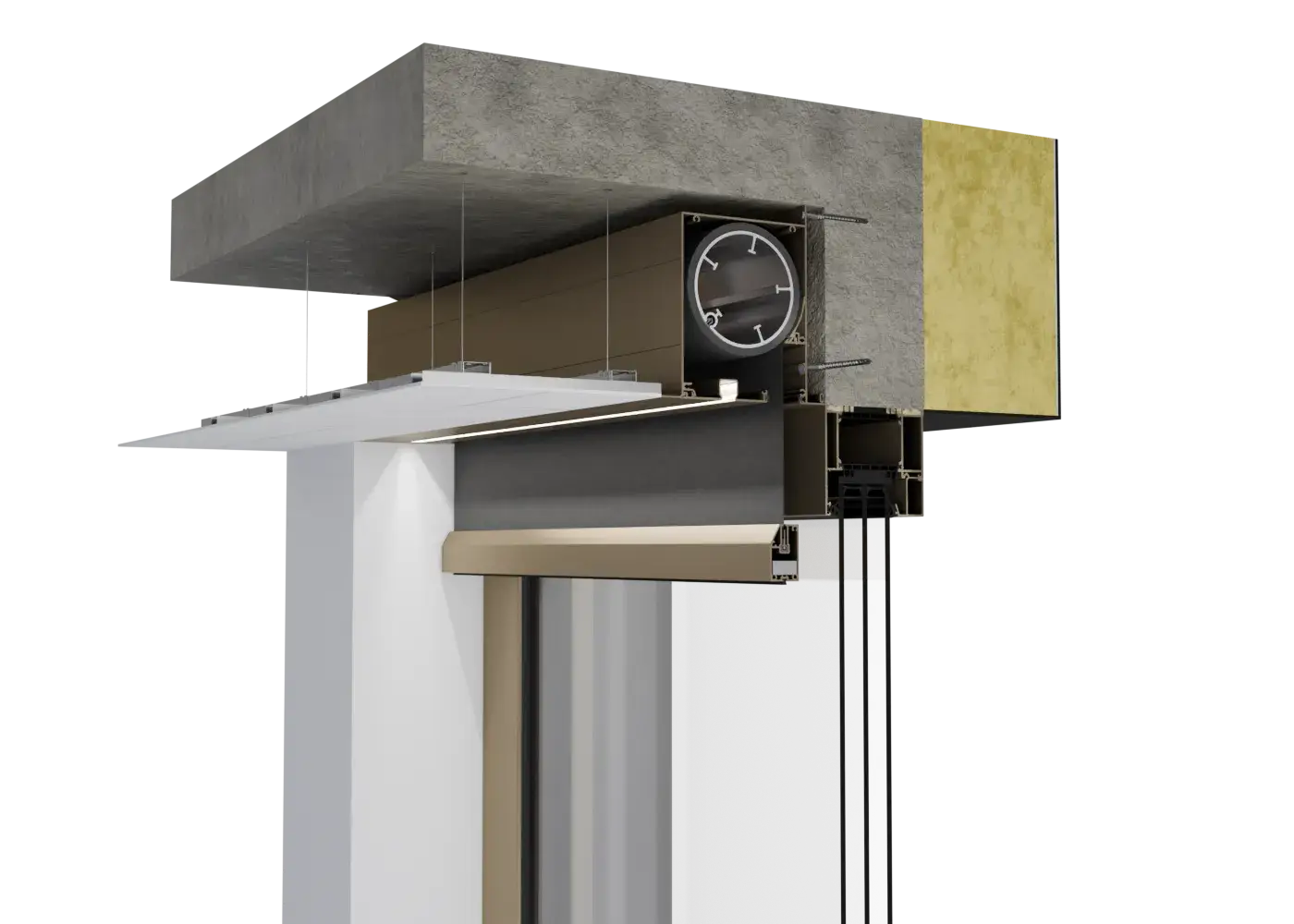

WS 130 PO3 LED FLUSH-MOUNTED SYSTEM WS 130 PO3 LED
Box size: 130 x 160 mm
LED lighting: integrated linear LED lighting inside the box
Maximum system dimensions: 7000 x 3400 mm \[23.88 m²] or 5400 x 6000 mm \[32.40 m²]
Tube diameter: ∅ 78 mm, ∅ 85 mm, ∅ 100 mm ALU
Insulation: back of the box insulated with 20 mm thick PIR board
Bottom bar: LD-2 (fully concealed inside the box)
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS
SINGLE ZIP GUIDE: AZ1
DOUBLE ZIP GUIDE: A2
SINGLE ZIP GUIDE: P1
DOUBLE ZIP GUIDE: P2
SINGLE ZIP GUIDE: P3
SINGLE ZIP GUIDE: P4
SINGLE ZIP GUIDE: Z2
SINGLE ZIP GUIDE: Z5
STEEL CABLE
FREE-HANGING SHUTTER
BOTTOM BAR LD-2
BOTTOM BARS
BOTTOM BAR LD-2
CLICK SYSTEM FOR RECESSED SIDE GUIDES
The CLICK system is a modern solution used in 40 x 70 mm and 40 x 130 mm recessed side guides, providing quick, tool-free installation and a secure connection of components. Thanks to the innovative snap-in mechanism, the guide installation is intuitive, precise, and does not require screws or bolts, significantly speeding up the installation process.
This solution ensures stable positioning of the guide, eliminating the risk of play or misalignment. Additionally, it provides an aesthetic finish that integrates perfectly with the recessed box.
PROFILED MOUNTING POINTS
The recessed box has been designed for solid and precise installation, featuring a profiled mounting wall on the inside, intended for screw fastening.
This solution allows direct access to the mounting area and enables secure and stable fastening of the box at its lower section. It ensures firm pressure of the box against the window frame, eliminating the risk of play and ensuring the durability of the entire structure.
The profiled mounting points make installation easier and guarantee stable positioning of the roller shutter system, which translates into long-term reliability.
LED LIGHTING IN THE BOX
The 130 mm x 160 mm recessed box has been designed with the option to integrate COB LED lighting in the inspection cover, allowing for subtle and visually striking illumination of the space beneath the blind.
COB LED lighting in the inspection cover is not only a modern visual accent but also a practical solution that can serve as decorative facade lighting, highlighting the building’s elegant appearance both during the day and after dark.
TOP PROFILE WELDED TO THE FABRIC
The use of a profiled mounting profile welded to the upper edge of the fabric is a solution that eliminates the need for a standard insert pocket, simplifies installation, and facilitates servicing. Thanks to the ability to clip and unclip the fabric without dismantling the roller tube, this system offers faster handling, extended fabric lifespan, and improved aesthetics. Additionally, the optimized geometry of the profile eliminates the issue of fabric marks, setting this solution apart from traditional ZIP screen roller systems.
THE LARGEST DIMENSIONS ON THE MARKET
The recessed system stands out with the largest available dimensions on the market, making it suitable for projects that require large-scale shading solutions. Thanks to its advanced design and the use of durable components, the system ensures stability and smooth operation even at large sizes.
The ability to create wide-span coverings makes the recessed system ideal for both residential and commercial construction. With precisely engineered components, even the largest shades maintain an aesthetic appearance, reliability, and ease of use. This innovative solution sets new standards in solar shading systems, offering the widest size range on the market and full integration with modern architecture.
ZIP GUIDE CLICK SYSTEM
The CLICK system in ZIP guides is an innovative solution that enables screwless connection of the guide profile with the closing profile. Thanks to the snap-in mechanism, installation is quick and precise, requiring no drilling or screws, which eliminates visible fasteners and significantly enhances the overall aesthetics of the system. This solution also simplifies servicing and disassembly, without the risk of damaging the facade or the guide. The system is made of two materials with different densities – one ensures stable positioning within the guide, while the other, more flexible material, evenly tensions the fabric in the blind, preventing rippling and wrinkling.
LED LIGHTING IN ZIP GUIDES
LED lighting in the large ZIP guides has been integrated inside the profile, within a specially designed inspection space. This solution enables even illumination along the entire height of the blind fabric, providing an aesthetically pleasing lighting effect for niches or usable spaces, such as under a pergola. The lighting is concealed behind a cover, ensuring an elegant appearance with no visible light sources.
DOUBLE GUIDE
The double guide with a spacer is a specially designed ZIP guide used in recessed systems, allowing the installation of two or more blinds within a single opening, for example, in HS windows with a central post.
Thanks to its optimal dimensions, the guide fits most mullions in window systems, ensuring an aesthetic appearance and cohesive integration. The built-in spacer allows for precise alignment with the recessed system. This is a practical and elegant solution that enables functional separation of sun protection systems while maintaining a minimalist design and high-quality finish.
MOUNTING HOLES
The mounting holes for cabling have been designed for quick and convenient routing of power cables for the motor or lighting, minimizing the need for additional processing during installation. Their strategic placement ensures safe and aesthetic concealment of wiring, resulting in a neat appearance of the system once installation is complete. The holes are positioned in several locations on the cast aluminum side of the roller shutter, allowing flexible cable routing and enabling the installation to be adapted to individual mounting conditions.
UNIVERSAL MOTOR MOUNTS
Thanks to its well-thought-out design, the motor mount allows for quick and hassle-free installation and removal of the motor, regardless of the specifics of the setup. The mounting system ensures solid and stable positioning of the motor, guaranteeing reliable operation of the blind. Additionally, the mount allows axial rotation of the motor in 60-degree increments, which is crucial for flexible cable positioning and easy access to the motor’s mechanical limit settings.
4 DIAMETERS OF ROLLER TUBES WITH DECORATIVE PROFILE
The system uses four roller tube diameters:
-
Ø 63 mm, Ø 78 mm, Ø 85 mm – steel roller tubes, offering high strength and resistance to deformation, ideal for standard and medium-sized blinds.
-
Ø 100 mm – an aluminum system tube made of 6063 T6 alloy, designed for large-scale blinds. Each tube is compatible with special fabric profiles that allow for installation or replacement without removing the roller tube from the blind. This makes servicing and adapting the blind to new usage conditions quick and convenient, without interfering with the entire structure.
STEEL SET DIVIDERS
Steel set dividers are durable and precisely engineered components used in double guides with spacers. Their primary function is to securely position and separate two independent blinds within a single system, such as in recessed divisions for HS windows with a central mullion. Made of high-strength steel, these dividers provide solid mounting points for both the blind motors and roller tube brackets. This solution ensures system stability, operational precision, and long-term durability, even in large-scale shading installations. It is a reliable solution that enhances the functionality of ZIP systems, ensuring secure installation and extended structural lifespan.
FRONT PLASTER CARRIER
The integrated plaster carrier is extruded together with the system box. Unlike standard solutions available on the market, this eliminates the need for separate installation, speeding up the process and improving the finish’s aesthetics. The 20 mm deep carrier provides a stable and durable base for the plaster and insulation layer.
MOUNTING BRACKET
The integrated upper mounting bracket is extruded together with the system box. As a result, there is no need for additional fasteners or separate brackets, which significantly simplifies and speeds up the installation process. The bracket includes a drilling guide, ensuring precision during installation. Its design eliminates the risk of damaging the fabric or roller components during mounting, guaranteeing a secure and reliable attachment of the box to the wall.
INTEGRATED REAR BRACKET
The integrated rear bracket of the box is extruded together with the housing, eliminating the need for additional installation or fastening, which minimizes the risk of box damage and significantly speeds up the installation process. The 20 mm deep bracket allows for insulation at the rear of the box, eliminating thermal bridges and improving the system’s energy efficiency. It also features an innovative rubber seal that ensures firm pressure of the box against the window frame. This provides a tight installation, eliminating potential gaps around the window frames and enhancing the overall quality of the finish.
MOUNTING MARKERS
The WIN SCREEN recessed system box is equipped with markers to assist in drilling, enabling quick and precise creation of holes for mounting or routing power cables for tubular motors in non-standard installations.
CAST ALUMINUM SIDE COVERS
The cast aluminum side covers have been precisely designed for use across various system configurations, ensuring stability, durability, and full functionality. The covers feature integrated mounts for motor power cables, along with additional markers to assist in the accurate drilling of cable exit holes. They are also equipped with a CLICK system for locking inspection covers without the need for drilling.

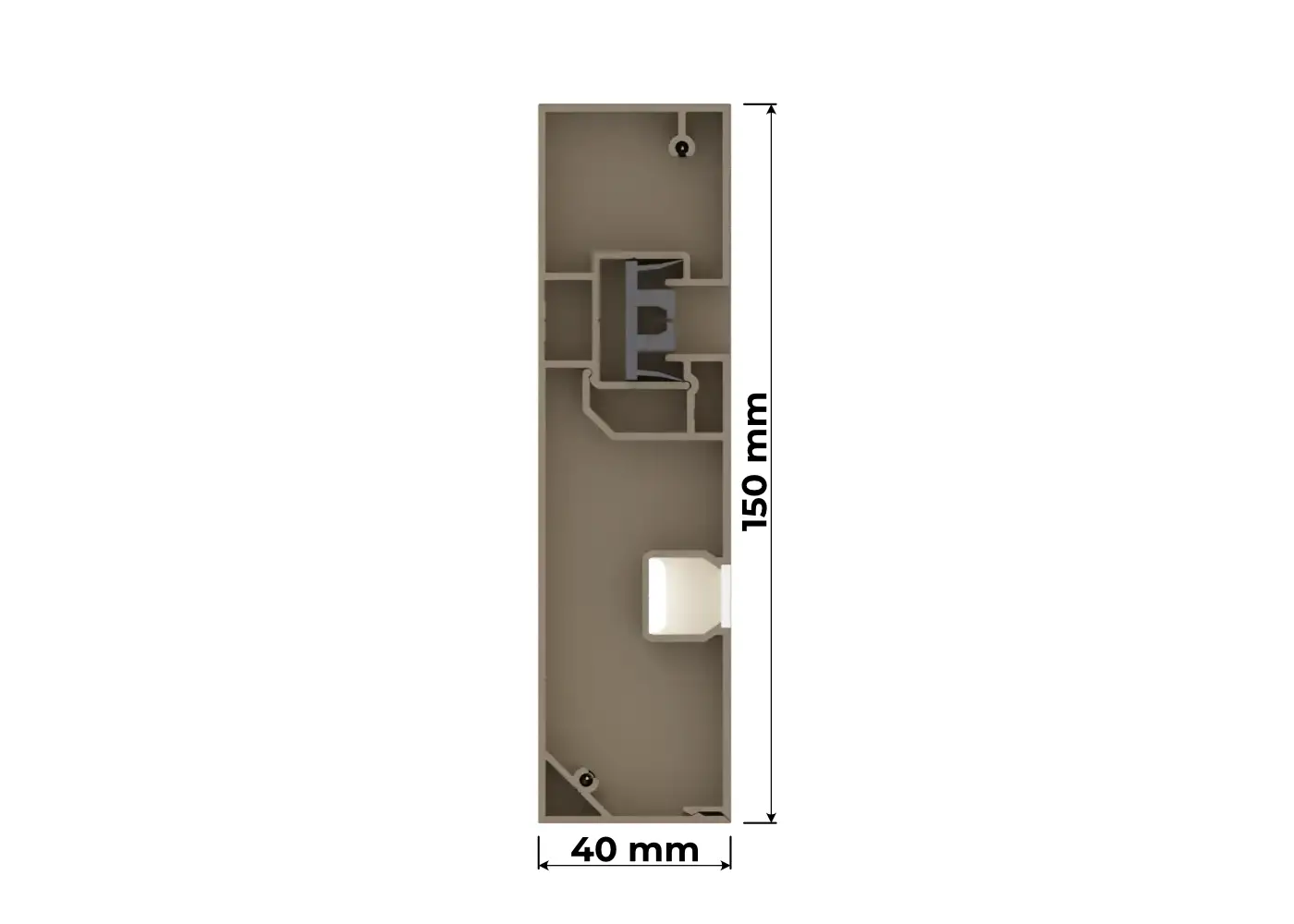

WIDE RECESSED GUIDE FOR FLUSH INSTALLATION

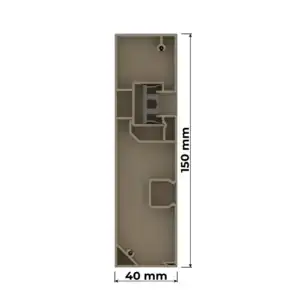

The recessed guide with dimensions of 40 mm x 150 mm and an integrated 20 mm spacer is an ideal solution for outdoor applications. Designed to fit seamlessly with the recessed box featuring a rear plaster carrier and seal, it ensures a clean and durable finish that integrates perfectly with the building façade.
An added advantage is the snap-in connection between the guide and the closing profile, eliminating the need for screws and enabling quick, easy installation with a minimalist appearance.
The interior of the guide allows for the concealment of wiring, power supplies, or lighting control units.
RECESSED GUIDE FOR FLUSH INSTALLATION
The recessed guide with dimensions of 40 mm x 70 mm is a functional solution that ensures durability and a clean façade finish. With a built-in 20 mm spacer, it aligns perfectly with the recessed box equipped with a rear plaster carrier and rubber seal, creating a cohesive structure.
Its key advantage is the snap-in connection with the guide’s closing profile, eliminating the need for screws, simplifying installation, and highlighting the system’s modern design.
BOTTOM BARS
The screen roller system is equipped with bottom bars in various sizes, tailored to different aesthetic and technical requirements. Each bar ensures fabric stability, proper tension, and smooth blind operation, while the larger bar variant allows the fabric weld to be concealed, resulting in a more refined finish.
100 mm ALUMINUM ROLLER TUBE
The system aluminum roller tube with a diameter of 100 mm is a key component of large-scale systems, ensuring high strength and operational stability. Made of 6063 T6 aluminum alloy, it features a low deflection rate, making it ideal for applications requiring structural reliability.
Thanks to its precise manufacturing, the tube allows for even and smooth fabric rolling, while a special offset in its diameter reduces deformation, maintaining the fabric’s durability and aesthetic appearance. Additionally, the system uses a fabric clip-in profile that enables fabric replacement without removing the tube from the blind, significantly simplifying maintenance and servicing.
ZIP INSERT
The ZIP insert is a modern solution used in the system to ensure maximum stability and smooth fabric guidance. Thanks to ZIP technology, the fabric is evenly tensioned and held within the side guides along its entire height, providing resistance to wind gusts and eliminating edge gaps.
The insert is made of two materials with different densities— one ensures stable positioning within the guide, while the other, more flexible, evenly tensions the fabric in the blind, preventing rippling and wrinkling.
CONCEALED BOTTOM BAR
The adaptive system features a concealed bottom bar that ensures a clean and cohesive finish of the blind. Bottom bars are available in various sizes depending on the box dimensions or application. Thanks to its thoughtful design, the bar is fully hidden inside the box when the blind is raised, giving the system a minimalist and elegant appearance with no visible lower components.
This solution provides a consistent look for the entire installation, making the system an ideal choice for modern façades and elevations where aesthetics and high-quality craftsmanship are essential.
SLIDING PROFILE
The fabric sliding profile with an integrated brush seal is a component located inside the box, responsible for stabilizing and properly guiding the fabric. Its main function is to keep the material in the correct position, ensuring smooth and trouble-free operation of the blind.
Thanks to the use of a brush seal, the profile minimizes fabric friction, protecting it from damage and extending its lifespan. Additionally, the seal acts as a damper, reducing noise and improving the overall sealing of the system. This solution guarantees precise and quiet operation, enhancing both comfort and the reliability of the shading system.
BOTTOM BAR END CAPS
The bottom bar end caps have been designed with precisely shaped grooves that continue the line of the brush seal channel within the bar itself. This allows the seal to run across the full width of the blind — from end cap to end cap — eliminating gaps at the edges of the bottom bar. This solution ensures better sealing of the blind in the closed position, reducing the infiltration of light, insects, and debris.
SMART CONTROL
Thanks to the use of a smart control unit, it is possible to operate the pergola and additional equipment using a smartphone or tablet.
PREMIUM MATERIALS
The WIN SCREEN system is crafted from premium-quality materials, ensuring durability, elegance, and long-lasting performance. By using high-grade aluminum profiles, reinforced components, and advanced technical fabrics, WIN SCREEN combines modern design with exceptional functionality.
WIDE RANGE OF FRAME COLOURS INCLUDED AS STANDARD
We offer a wide range of frame colours as standard! The structure is powder-coated in seven colours from the standard WIN CLIMATIC S500 palette. It is also possible to powder-coat the frame in any RAL colour, as well as in wood-like finishes.
CE COMPLIANCE
The product complies with the CE marking standards, meeting the requirements of PN-EN 1090-1 to PN-EN 1090-3 as set by the Polish Committee for Standardization for steel and aluminum structures.
TIGER COATINGS
Thanks to the use of duroplastic powder coatings, we gain virtually unlimited surface finishing possibilities. In our products, we use only coatings from TIGER COATINGS, which ensure durability and uncompromising quality of workmanship.
DURABLE COATING FINISH
All structures we manufacture are certified with an international quality certificate for coating finishes. Products marked with the QUALICOAT symbol are distinguished by excellent properties, confirmed by accredited testing laboratories.
HIGH-QUALITY PRODUCT MANUFACTURING AND PACKAGING
A specialized team and the most advanced machinery enable us to achieve the highest production quality. Each product is thoroughly inspected by the quality control department before shipping to ensure it meets order specifications and workmanship standards. We also place great emphasis on careful packaging and securing the goods for transport. Thanks to the use of custom-fitted styrofoam inserts, air mats, and durable, thick cardboard boxes, we can ensure that your order arrives in perfect condition.
WS 130 Z1
WS 130 Z1 INTEGRATED SYSTEM WS 130 Z1
Box size: 130 x 175 mm
Maximum system dimensions: 7000 x 3400 mm \[23.80 m²]
Tube diameter: ∅ 100 mm ALU
Bottom bar: LD-2 (fully concealed inside the box)
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS

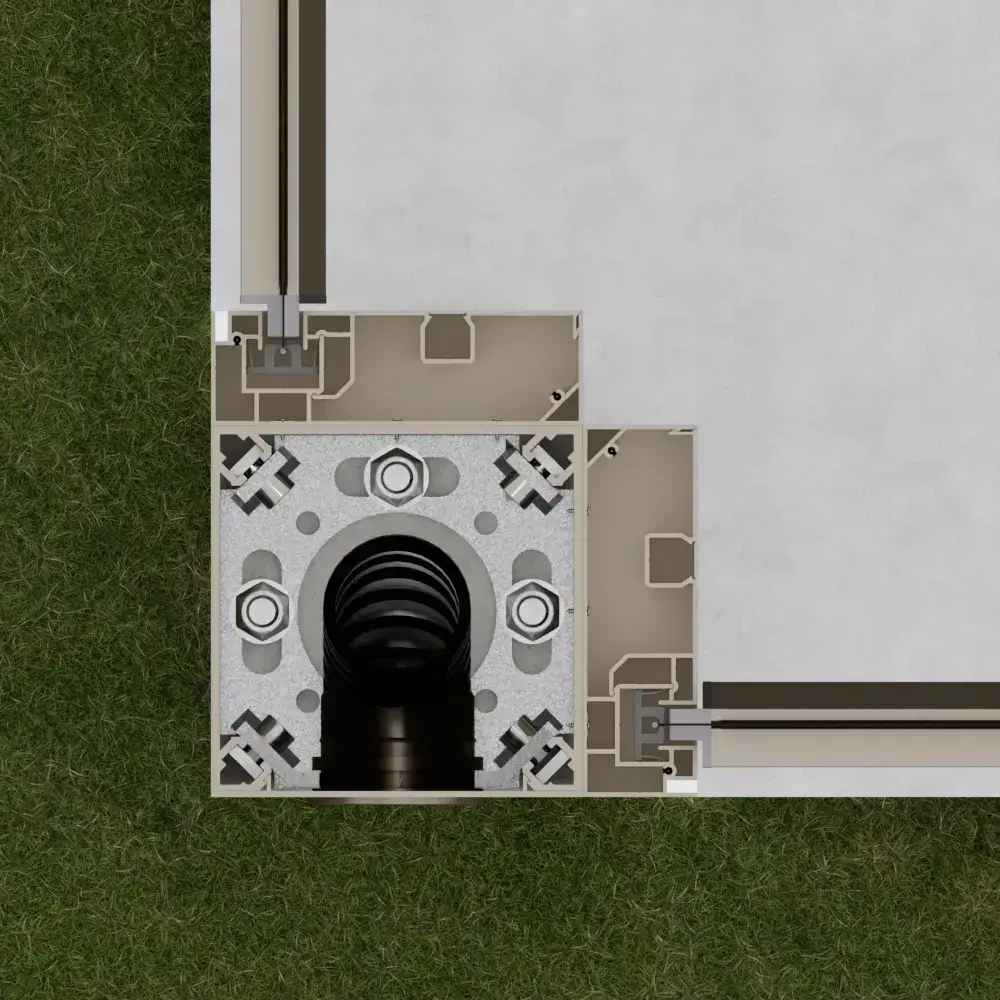

SINGLE ZIP GUIDE: AZ1
SINGLE ZIP GUIDE: Z2
BOTTOM BARS
MOUNTING BRACKETS
WS 130 Z2 LED
WS 130 Z2 LED INTEGRATED SYSTEM WS 130 Z2 LED
Box size: 130 x 175 mm
Maximum system dimensions: 7000 x 3400 mm \[23.80 m²]
Tube diameter: ∅ 100 mm ALU
Bottom bar: LD-2 (fully concealed inside the box)
EXAMPLE SYSTEM CROSS-SECTIONS
GUIDE RAILS
SINGLE ZIP GUIDE: AZ1
SINGLE ZIP GUIDE: Z2

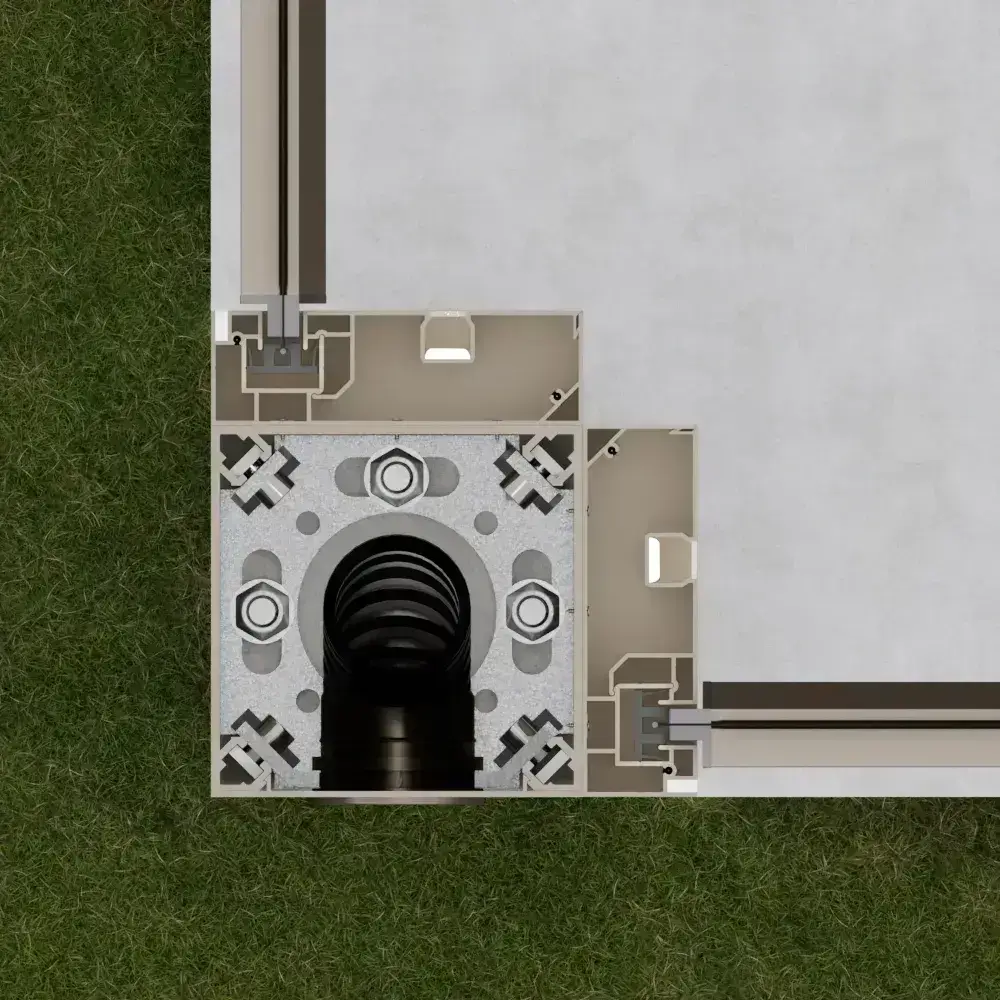

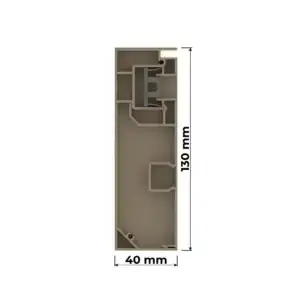

SINGLE ZIP GUIDE: Z3

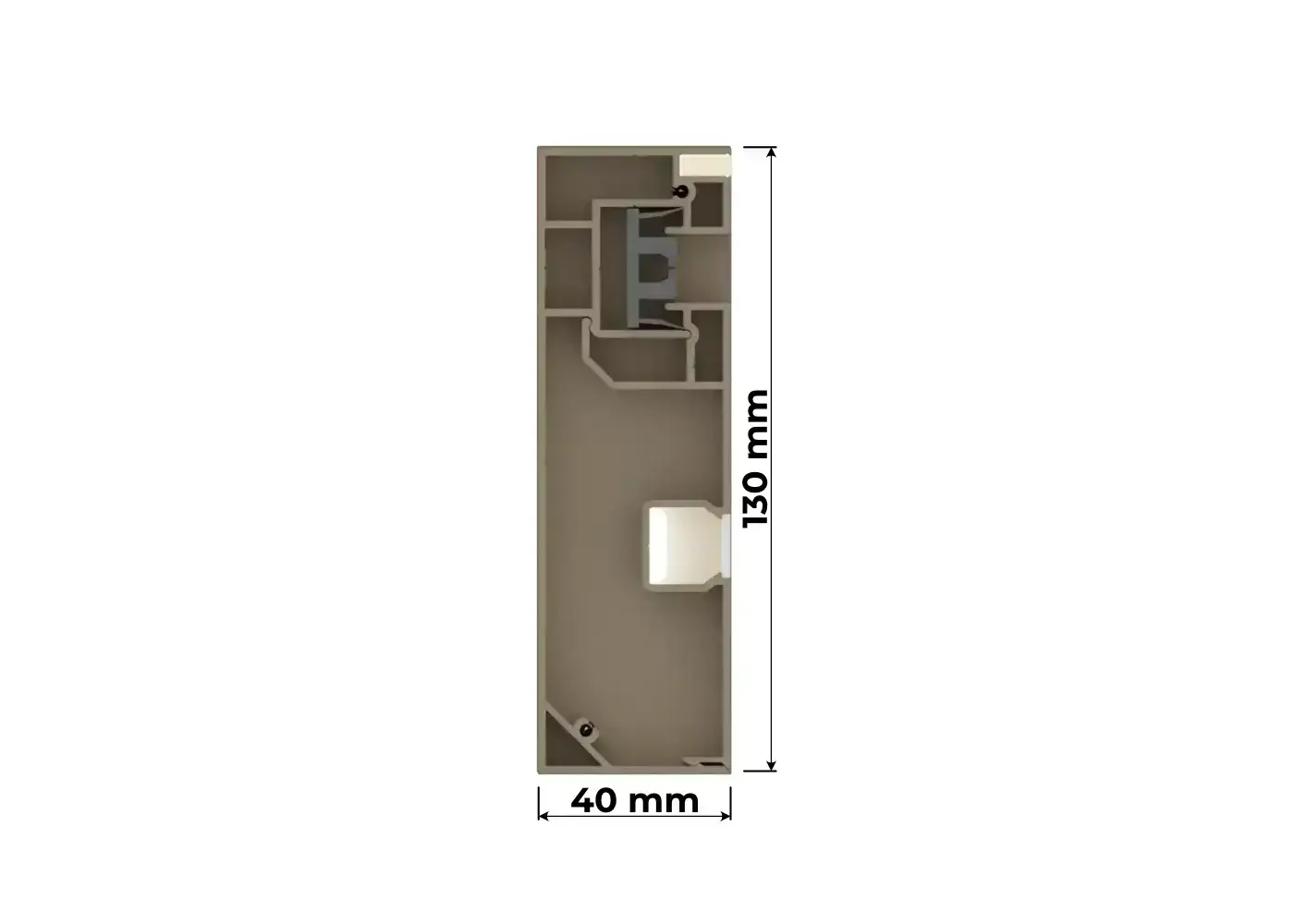

SINGLE ZIP GUIDE: Z4
SINGLE ZIP GUIDE: Z5
BOTTOM BARS
BOTTOM BAR LD-2
* The LD-2 bottom bar is used for blinds up to 1200 mm wide and is not fully concealed inside the box
MOUNTING BRACKETS
MOUNTING BRACKET
The hanger remains hidden, ensuring an aesthetic appearance, and the installation is quick and precise without the need for a measuring tool thanks to the built-in gauge that can be removed after fastening it to the pergola frame structure.
INNER STEEL SIDE PANELS
Hidden internal steel sides are an innovative solution that provides a minimalist appearance and high durability. The sides are completely concealed within the box, not protruding beyond its edges or the revision cover, allowing full integration with the structure. Thanks to their self-supporting design, the roller blind remains stable without the need for additional brackets and enables the construction of large-sized units. Unlike standard solutions where the box sides are visible, this system ensures a consistent, aesthetic look for the pergola and simplifies installation.
MOUNTING CHAMBERS
Mounting chambers at the lower part of the integrated roller shutter box are an innovative solution that reinforces the structure and enhances its functionality. With two chambers, the box gains additional rigidity and allows for the installation of sliding glass guides, shutters, or other coverings. This system enables the integration of the screen ZIP blind with other elements within a single recess—something not possible with standard solutions where installations are done separately. Additionally, the chambers eliminate the risk of leaks and fabric damage caused by screws, ensuring an aesthetic and secure installation.
REVISION COVER WITH LED LIGHTING
The revision cover of the integrated roller blind can be equipped with innovative LED FLEX strip lighting, enabling attractive backlighting of the screen fabric. The LED light enhances aesthetics, improves visual comfort, and strengthens privacy protection by reducing fabric transparency in low light conditions. Thanks to the integrated design, LED installation requires no additional profiles, and even light diffusion ensures a consistent effect. The pocket protects the strip from damage and external factors, guaranteeing the system’s durability and reliability.
TOP PROFILE WELDED TO THE FABRIC
The use of a specially shaped mounting profile welded to the upper edge of the fabric eliminates the need for a standard fabric pocket, simplifies installation, and facilitates servicing. Thanks to the ability to clip the fabric in and out without removing the roller tube, this system ensures faster handling, longer fabric lifespan, and improved aesthetics. Additionally, the optimized profile geometry prevents fabric impressions, setting this solution apart from classic ZIP screen roller systems.
TWO TYPES OF LED LIGHTING IN THE GUIDE
The integrated ZIP screen roller blind system can be equipped with a continuous LED FLEX lighting strip placed both in the revision cover and the large ZIP guide. This solution provides a consistent lighting effect across the entire height and width of the blind, eliminating uneven fabric illumination. The specially designed ZIP guide allows for an aesthetic LED integration without additional covers. The lighting enhances privacy by reducing fabric transparency, and the LED strip, housed in a dedicated compartment, is protected from damage. Unlike standard solutions where LEDs are only in the roller box, this system guarantees even lighting of the entire fabric and greater functionality.
LARGE ZIP GUIDE
The modern large ZIP guide measuring 130 mm x 40 mm offers a perfect fit for the screen roller box, creating a cohesive and aesthetic system appearance. Available in two variants—with or without LED lighting—it allows flexible adaptation to user needs. The CLICK system eliminates visible screws, speeding up installation and servicing. A special technical chamber enables cable concealment, installation of battery-powered drives, and control units. The hidden ZIP zipper and uniform cover provide a modern design, while precise profile connections eliminate visible joints, highlighting the system’s high-quality craftsmanship.
SMALL ZIP GUIDE
The small ZIP guide is a compact and cost-effective solution designed with both aesthetics and functionality in mind. It allows for wider recess installations, enabling integration with sliding glass systems, shutters, or curtains. Thanks to the CLICK system, installation is screw-free and seamless, ensuring a modern and cohesive look. The hidden ZIP zipper and precise 45° angled joints eliminate visible gaps, while internally screwed end caps guarantee durability and stability. This is an ideal solution for users seeking minimalist design and flexible installation options.
100 mm ALUMINUM ROLLER TUBE
The system aluminum roller tube with a diameter of 100 mm is a key component of large-format systems, providing high strength and operational stability. It is made from 6063 T6 aluminum alloy and features low deflection. This element is essential for large systems, offering excellent durability and favorable mechanical properties, including minimal bending.
Thanks to precise manufacturing, the tube enables even and smooth fabric winding. A special groove on its diameter limits deformation, ensuring an aesthetic appearance and long-lasting material durability. Additionally, the system uses a fabric-inserting profile that allows fabric replacement without removing the roller tube from the blind, greatly facilitating servicing and maintenance.
BOTTOM BAR
The weighted bottom bar in the ZIP screen roller blind system is an innovative solution that ensures maximum aesthetics, durability, and ease of installation. Thanks to its integration with the ZIP zipper and the use of a PVC profile, the fabric is evenly tensioned, and any replacement is much simpler. The bottom bar is completely hidden inside the box when the fabric is rolled up, enhancing functionality and improving the overall appearance of the system.
ZIP INSERT
The ZIP insert is a modern solution used in the system to ensure maximum fabric stability and smooth guidance. Thanks to the ZIP zipper technology, the material is evenly tensioned and held within the guides along the entire height, guaranteeing resistance to wind gusts and eliminating slack along the edges. The insert consists of two materials with different densities— one provides stable positioning within the guide, while the other, more flexible material evenly tensions the fabric in the roller blind, preventing waving and wrinkling.
THE LARGEST DIMENSIONS ON THE MARKET
The integrated ZIP screen roller system has been designed specifically for full integration with WIN CLIMATIC pergolas, providing an aesthetic, functional, and fully enclosed solution with no visible fixings or geometric interruptions. The system’s structure enables the creation of shading solutions with impressive dimensions — a maximum width of 7000 mm and a maximum height of 3400 mm — making it one of the largest available solutions in its class.
The box, ZIP side guides, and bottom bar form a compact and uniform unit, with all connections made using CLICK technology, eliminating the need for screws. This enhances the system’s aesthetics and sealing, while also simplifying installation and maintenance. The system allows for the integration of vertical and horizontal LED lighting within the side guides and inspection cover, enabling even fabric illumination and creating a striking visual effect when combined with the pergola.
SLIDING PROFILE
The fabric sliding profile with an integrated brush seal is a component located inside the box, responsible for stabilizing and properly guiding the fabric. Its function is to keep the material in the correct position, ensuring smooth and trouble-free operation of the blind. Thanks to the use of a brush seal, the profile minimizes fabric friction, which protects it from damage and extends its lifespan. Additionally, the seal acts as a damper, reducing noise and improving the overall sealing of the system. This solution guarantees precise and quiet operation, enhancing both comfort and reliability of the shading system.
TECHNICAL SPACE OF LARGE SIDE GUIDES
The large ZIP side guide, used in adaptive screen roller systems, has been designed not only to guide the ZIP-fastened fabric but also as a multifunctional element containing a so-called technical space. This space serves as an internal working chamber within the guide, which can be used during production or installation to conceal additional installation components, significantly enhancing the functional and aesthetic value of the system.

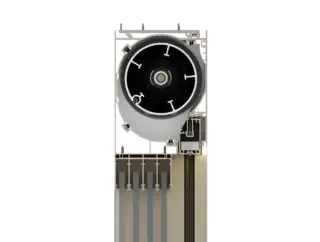

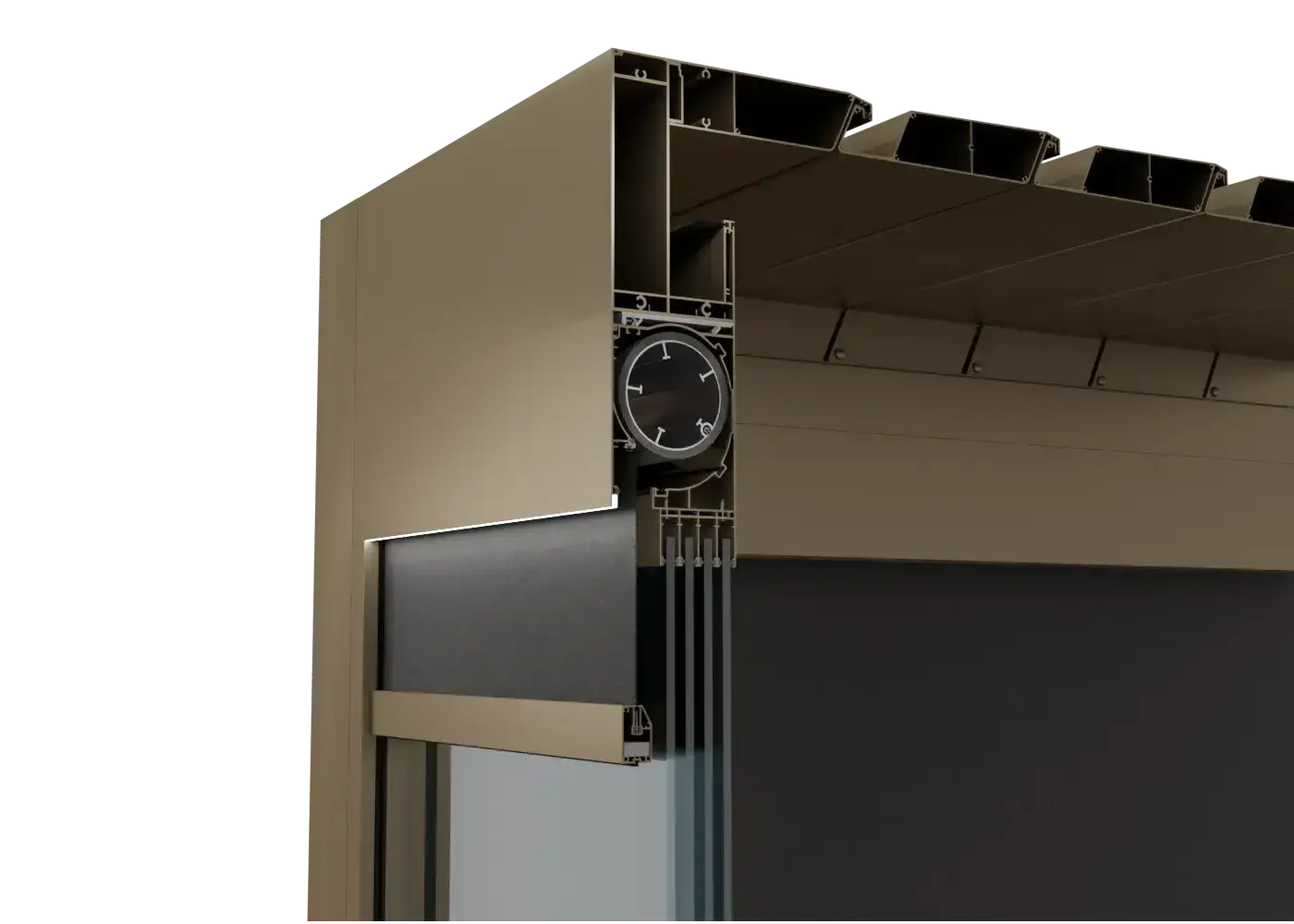

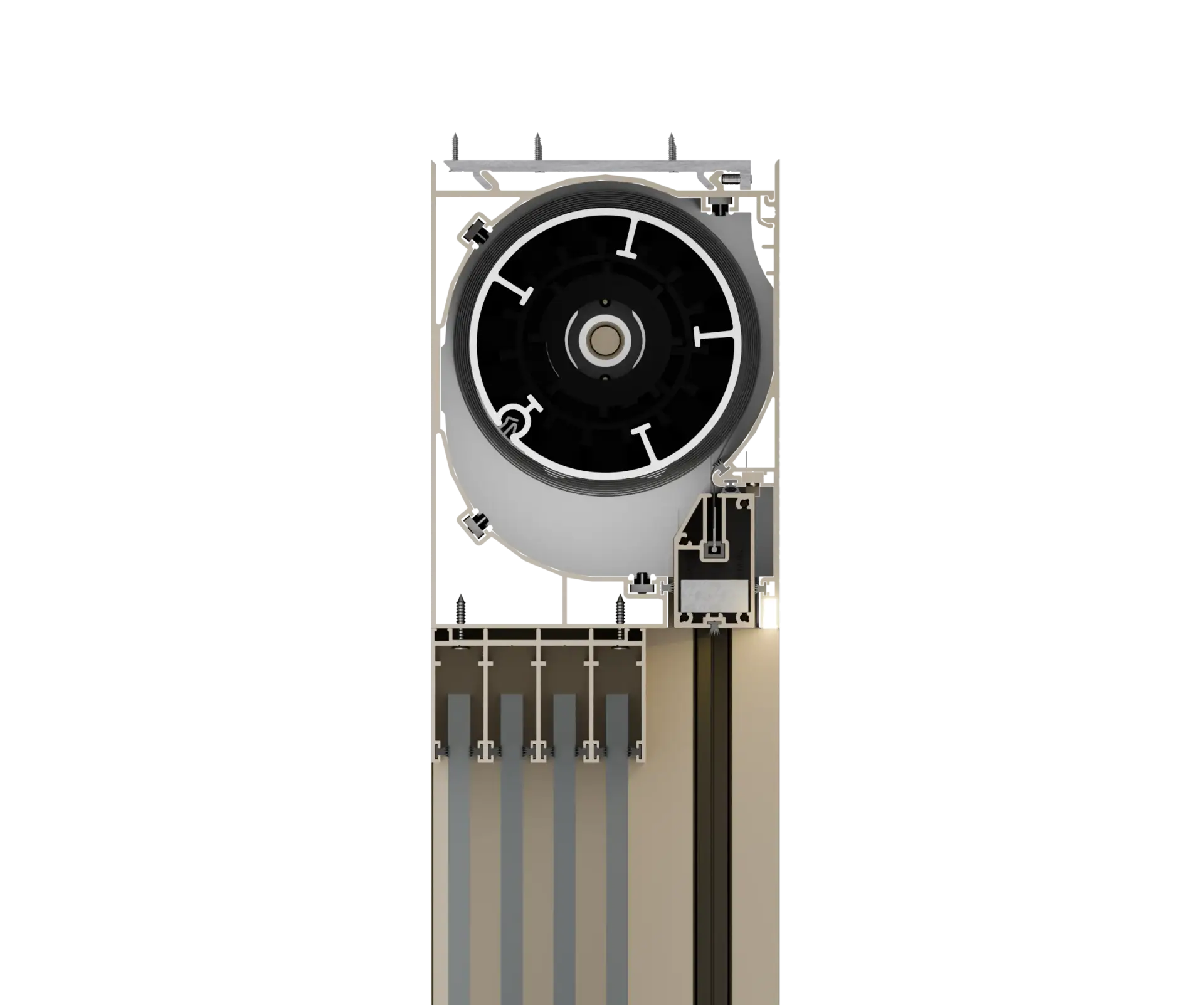

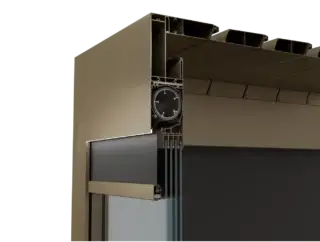

INTEGRATION WITH THE WIN GLASS SLIDING GLASS SYSTEM
The integrated system box has been designed to allow safe and stable installation of the WIN GLASS sliding glass system guide directly onto its upper surface. The special construction of the box eliminates the risk of damage to the blind fabric or the roller tube during installation, while ensuring a solid and aesthetic connection between the two systems.

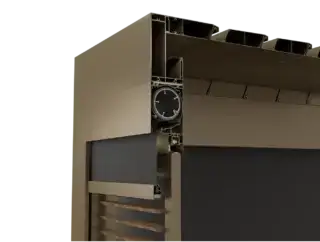

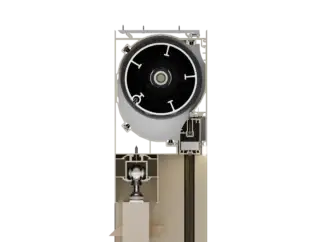

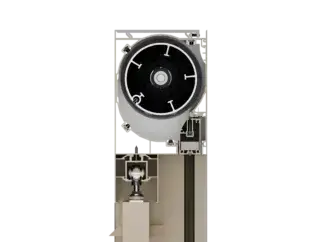

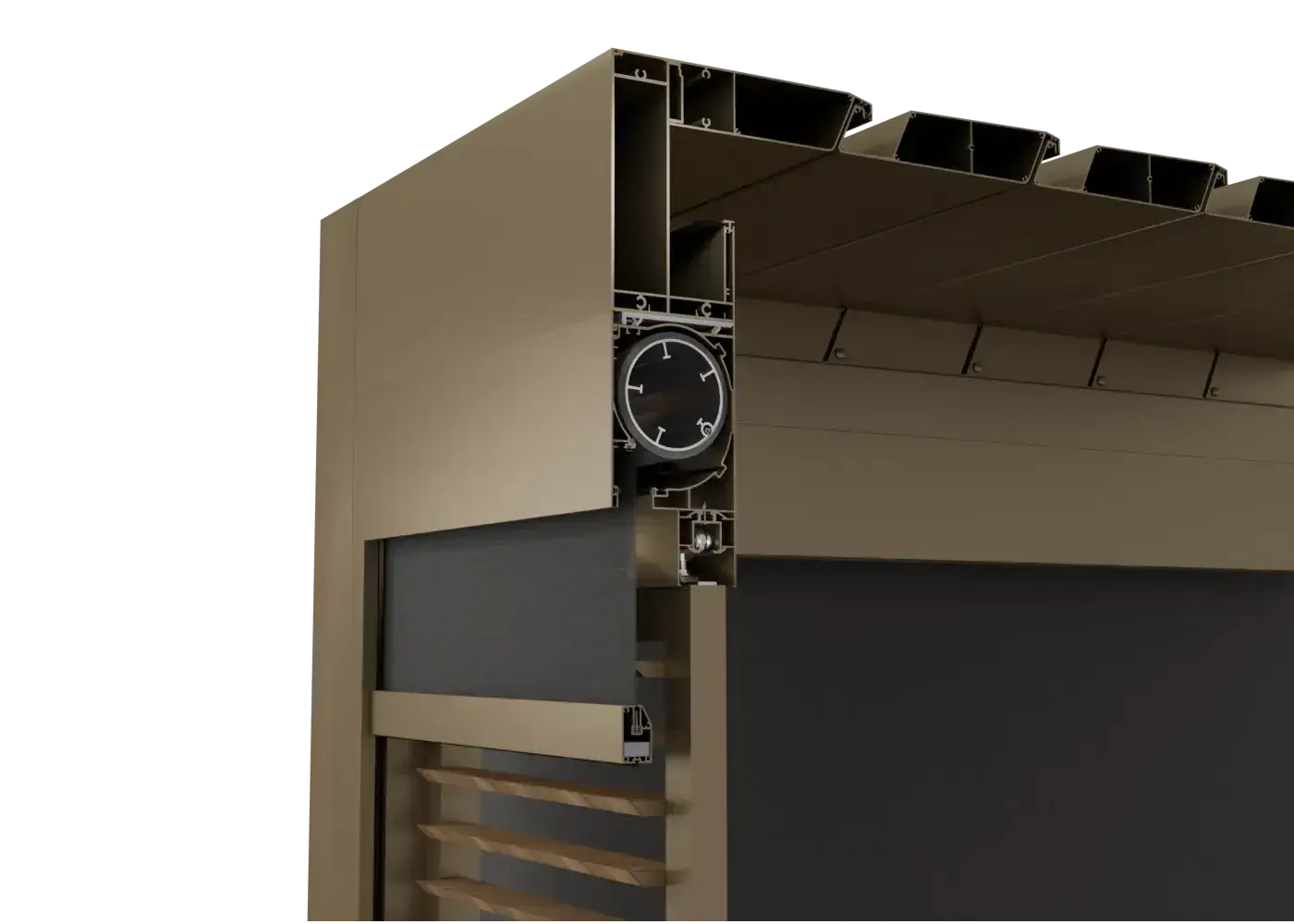

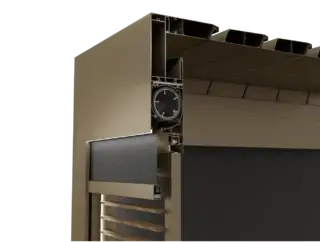

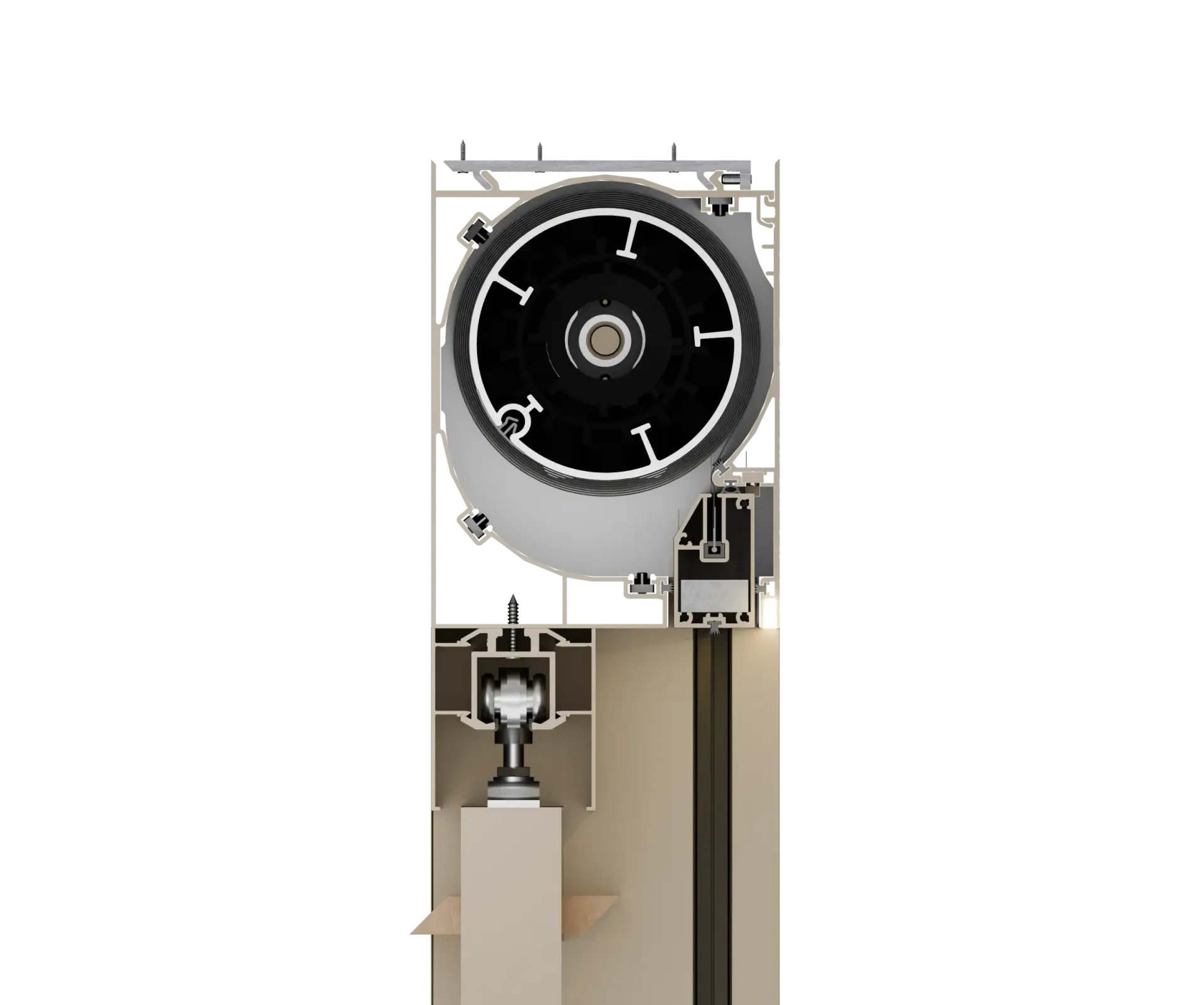

NTEGRATION WITH THE WIN PANELS SLIDING SHUTTER SYSTEM
The integrated system box has been adapted for the installation of the upper guide rail of the WIN PANELS aluminum sliding shutters directly onto its top section. Thanks to its reinforced construction, the guide rail can be securely and safely screwed on without the risk of damaging the blind fabric or the internal mechanical components of the box. This solution enables an aesthetic and functional integration of the roller system with the sliding shutter system, maintaining structural and visual consistency of the entire assembly.
BOTTOM BAR END CAPS
The bottom bar end caps have been designed with precisely shaped grooves that extend the line of the brush seal channel located within the bar itself. This allows the seal to run across the entire width of the blind — from end cap to end cap — eliminating gaps at the edges of the bottom bar. This solution provides better sealing of the blind in the closed position, reducing the penetration of light, insects, and debris.

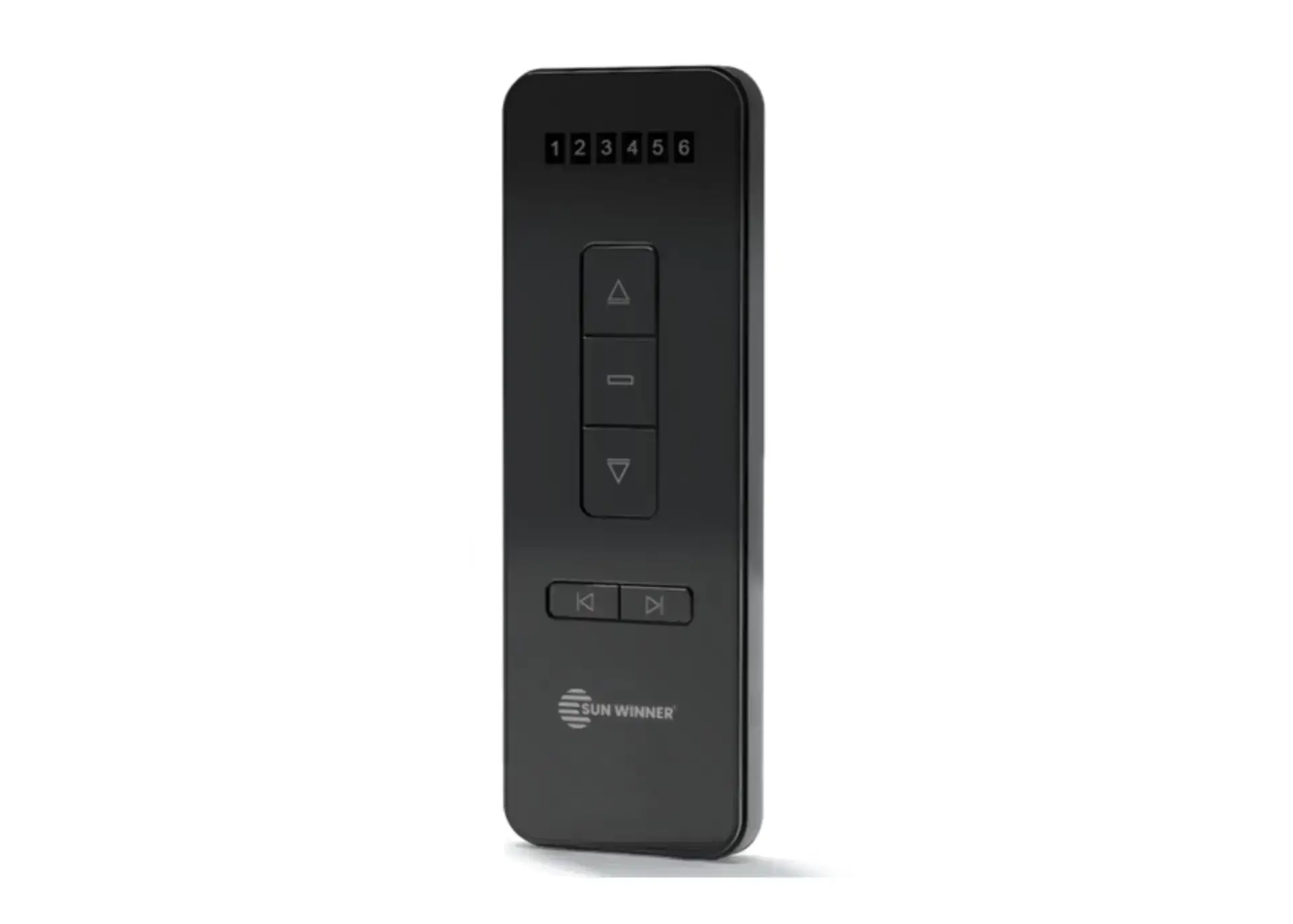

SMART CONTROL
Thanks to the use of a smart control unit, it is possible to operate the pergola and additional equipment via a smartphone or tablet.
PREMIUM MATERIALS
The WIN SCREEN system is crafted from premium-quality materials, ensuring durability, elegance, and long-lasting performance. By using high-grade aluminum profiles, reinforced components, and advanced technical fabrics, WIN SCREEN combines modern design with exceptional functionality.
RICH COLOR PALETTE OF THE STRUCTURE AS STANDARD
We offer a wide selection of standard colors for the structure! The construction is powder-coated in seven colors from the standard WIN CLIMATIC S500 palette. Additionally, there is the possibility of custom powder coating in any color from the RAL palette or in wood-like finishes.
COMPLIANCE WITH CE STANDARDS
The product complies with the CE marking standards, meeting the requirements of PN-EN 1090-1 to PN-EN 1090-3 as set by the Polish Committee for Standardization for steel and aluminum structures.
TIGER COATINGS
We use high-quality powder coatings from the renowned manufacturer Tiger Coatings to paint the pergola elements. These coatings ensure excellent finish quality, high resistance to weather conditions, and an aesthetically pleasing appearance for many years.
QUALICOAT PAINTING QUALITY STANDARD
All profiles used in the production of the pergola are coated exclusively in a powder coating facility with a QUALICOAT quality certification, ensuring high quality and durability of the paint finish.
HIGH-QUALITY PRODUCT WORKMANSHIP AND PACKAGING
Our specialized team and state-of-the-art machinery allow us to achieve the highest production quality. Each product is thoroughly inspected by the quality control department before shipping to ensure it meets the order specifications and quality standards. We also place great emphasis on careful packaging and securing the goods for transport. By using specially tailored foam shapes, air mats, and durable, thick cartons we ensure that the ordered merchandise will reach you in perfect condition.
SPACERS
SPACERS Spacers are used for mounting blinds on aluminum façades and can also be used to offset the blind from the window surface or building wall.
GUIDE DISTANCE WS-DP-1
GUIDE DISTANCE WS-DP-2
GUIDE DISTANCE WS-DP-3

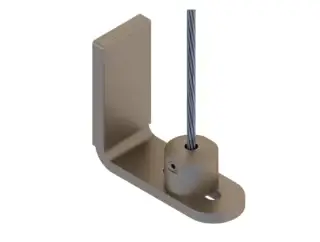

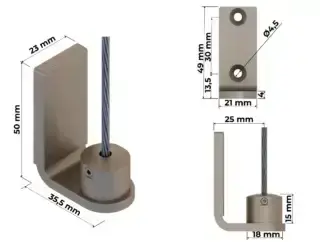

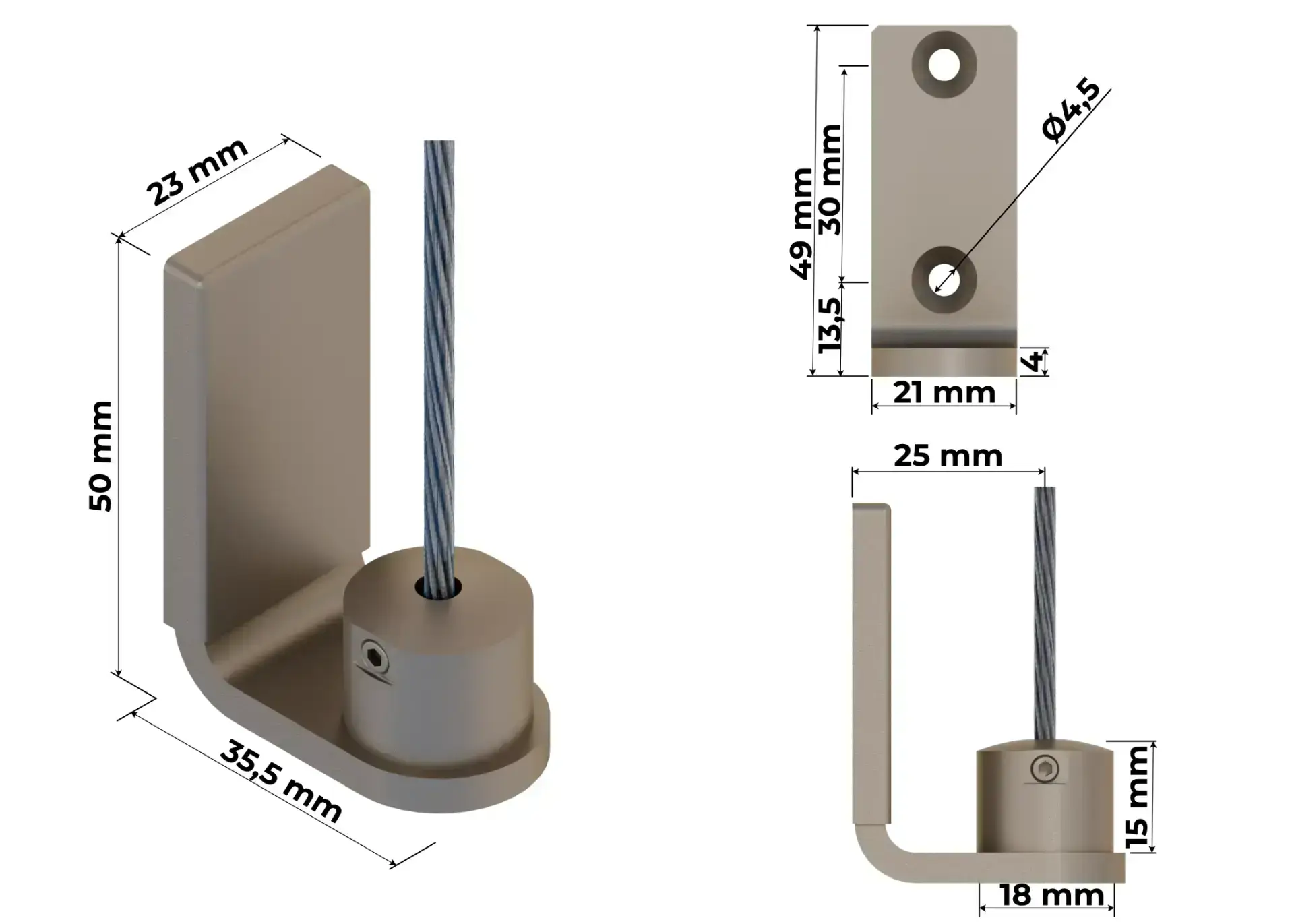

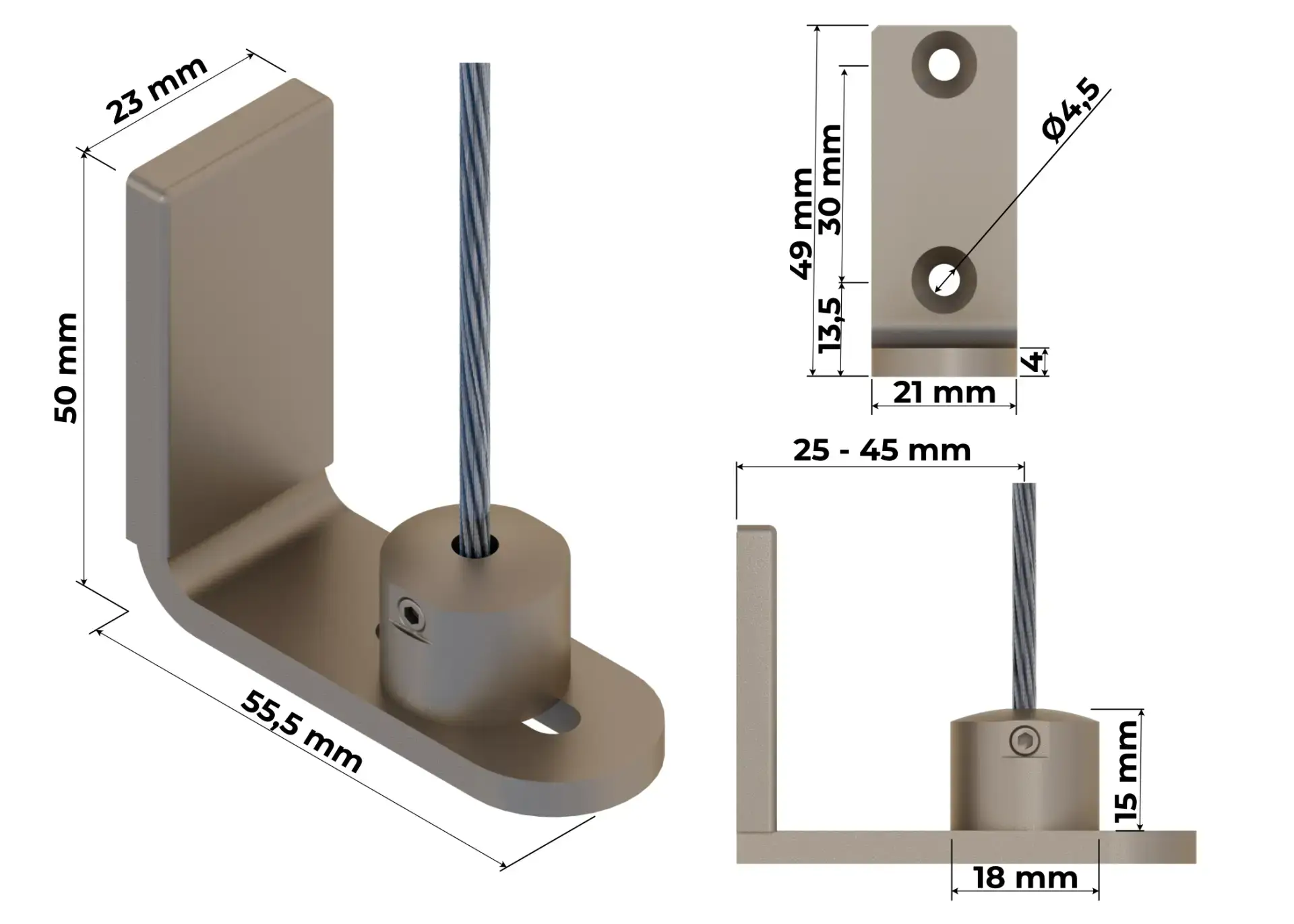

STEEL CABLE BRACKETS
STEEL CABLE BRACKETS STEEL CABLE BRACKET – FLOOR-MOUNTED – FIXED
STEEL CABLE BRACKET – ANGLED – FIXED
STEEL CABLE BRACKET – ANGLED – ADJUSTABLE
FILLER PROFILES
FILLER PROFILES Additional filler profiles, useful for non-standard installations that require, for example, extra spacing or leveling of the mounting surface.
PROFILE SW-ALU 30x10x2
PROFILE SW-ALU 30x30x2
PROFILE SW-ALU 40x10x2
PROFILE SW-ALU-40x40x2
PROFILE SW-ALU 100x50x3
PROFILE SW-ALU 132x52x3,5
ANGLE BRACKETS
ANGLE BRACKETS Angle brackets are perfect for use as covers, for example.
ANGLE BRACKET SW-KAT 20x20x2
ANGLE BRACKET SW-KAT 20x30x2
ANGLE BRACKET SW-KAT 20x40x2
ANGLE BRACKET SW-KAT 20x60x2
ANGLE BRACKET SW-KAT 40x60x2
WIN FABRIC COLLECTIONWIN FABRIC fabric collection with an openness factor of 5%.
Fabric composition: 42% FG (fiberglass), 58% PVC
Fabric thickness: 0.78 mm
Fire classification: EN 13773:2003 – CLASS 1 NFPA701 – FR
Antibacterial coating: ASTM E 2149
Application: EXTERIOR / INTERIOR
serge ferrari collection
SERGE FERRARI SOLTIS 86 4% FABRIC COLLECTIONSERGE FERRARI fabric collection with an openness factor of 4%.
Fabric composition: 30% PES, 70% PVC
Fabric thickness: 0.45 mm
Fire classification: DIN 4102, Class B1, M1, B-s2, d0
Antibacterial coating: ISO 2286-2, ISO 9001
Application: EXTERIOR / INTERIOR
SERGE FERRARI SOLTIS 7635 5% FABRIC COLLECTIONSERGE FERRARI fabric collection with an openness factor of 5%.
Fabric composition: 42% FG (fiberglass), 58% PVC
Fabric thickness: 0.73 mm
Fire classification: B1/DIN 4102-1, M1/NF P 92-507, C-s3, d0
Antibacterial coating: NONE
Application: EXTERIOR / INTERIOR
SERGE FERRARI SOLTIS 86 14% FABRIC COLLECTIONSERGE FERRARI fabric collection with an openness factor of 14%.
Fabric composition: 30% PES, 70% PVC
Fabric thickness: 0.45 mm
Fire classification: DIN 4102, Class B1, M1, B-s2, d0
Antibacterial coating: ISO 2286-2, ISO 9001
Application: EXTERIOR / INTERIOR
copaco collection
COPACO SERGE 600 fabric collection with an openness factor of 1%.
Fabric composition: 42% FG (fiberglass), 58% PVC
Fabric thickness: 0.78 mm
Fire classification: B1/DIN 4102-1, M1/NF P 92-507, C-s3, d0
Antibacterial coating: NONE
Application: EXTERIOR / INTERIOR
COPACO SERGE 600 fabric collection with an openness factor of 5%.
Fabric composition: 42% FG (fiberglass), 58% PVC
Fabric thickness: 0.74 mm
Fire classification: UNE-EN 13501-1:2007 C-s3, d0 / NF P92-503 M1 / DIN 4102 B1
Antibacterial coating: NONE
Application: EXTERIOR / INTERIOR
COPACO SERGE BLACKOUT fabric collection with an openness factor of 0%.
Fabric composition: 33% FG (fiberglass), 47% PVC, 20% PVC laminate
Fabric thickness: 0.73 mm
Fire classification: NF P92-503 M2, UNI 9177 Classe 1
Antibacterial coating: NONE
Application: EXTERIOR / INTERIOR
WIRED DRIVEWIN CONTROL series drives are the most technologically advanced drives available on the market.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, UNDERPLASTER SYSTEM
Limit positions: electronic
Advanced obstacle detection functioning correctly in SCREEN blinds: YES
Standard obstacle detection: YES
PLUG&PLAY cable: YES (white, 2.5 m length)
Additional optional PLUG\&PLAY cable: YES (black, 5 m or 10 m length)
Warranty period: 5 years
WIRED DRIVESOMFY series drives
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, UNDERPLASTER SYSTEM
Limit positions: mechanical/electronic
Advanced obstacle detection with adjustment, functioning correctly in SCREEN blinds: NO
Standard obstacle detection functioning correctly in SCREEN blinds: YES (Maestria only) / NO (all other drives)
PLUG&PLAY cable: YES (white, 2.5 m or 3 m length)
Additional optional PLUG&PLAY cable: YES (black, 5 m or 10 m length)
Additional optional PLUG&PLAY cable: YES (white or black, 5 m or 10 m length)
Warranty period: 5 years
WIRED DRIVEYOODA series drives
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, RECESSED SYSTEM
Limit positions: mechanical
Advanced obstacle detection functioning correctly in SCREEN blinds: NO
Standard obstacle detection: NO
PLUG&PLAY cable: NO
Warranty period: 5 years
2-way radio drives from the WIN CONTROL series. Radio-controlled motors with feedback signal from the roller shutter.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, FLUSH-MOUNTED SYSTEM
ZIGBEE 3.0: YES
Frequency: 868 MHz
Control: wall switch, remote control, smartphone / with feedback signal
Smart control capability: YES / with feedback signal
Limit positions: electronic
Advanced obstacle detection functioning correctly in SCREEN blinds: YES
Standard obstacle detection: YES
Weather automation support: YES
PLUG&PLAY cable: YES (white, 3 m long)
Additional PLUG&PLAY cable: YES (black, 5 m or 10 m long)
Warranty period: 5 years
2-WAY RADIO DRIVE IO2-way radio drives from the SOMFY series. Radio-controlled motors with feedback signal from the roller shutter.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, FLUSH-MOUNTED SYSTEM
ZIGBEE 3.0: NO
Frequency: 868 MHz
Control: wall switch, remote control, smartphone / with feedback signal
Smart control capability: YES / with feedback signal
Limit positions: electronic
Advanced obstacle detection functioning correctly in SCREEN blinds: NO
Standard obstacle detection: YES / NO
Weather automation support: YES / NO
PLUG&PLAY cable: YES (white, 3 m long)
Additional PLUG&PLAY cable: YES (white or black, 5 m or 10 m long)
Warranty period: 5 years
RADIO – 1-WAY
1-way radio drives from the SOMFY series. Radio-controlled motors without feedback signal from the roller shutter.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, FLUSH-MOUNTED SYSTEM
ZIGBEE 3.0: NO
Frequency: 433 MHz
Control: wall switch, remote control, smartphone / without feedback signal
Smart control capability: YES / without feedback signal
Limit positions: electronic
Advanced obstacle detection functioning correctly in SCREEN blinds: NO
Standard obstacle detection: NO
Weather automation support: YES
PLUG&PLAY cable: YES (white, 3 m or 5 m long)
PLUG&PLAY cable: YES (white or black, 5 m or 10 m long)
Warranty period: 5 years
1-WAY RADIO DRIVE1-way radio drives from the YOODA series. Radio-controlled motors without feedback signal from the roller shutter.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, FLUSH-MOUNTED SYSTEM
ZIGBEE 3.0: NO
Frequency: 433 MHz
Control: wall switch, remote control, smartphone / without feedback signal
Smart control capability: YES / without feedback signal
Limit positions: mechanical
Advanced obstacle detection functioning correctly in SCREEN blinds: NO
Standard obstacle detection: NO
Weather automation support: YES
PLUG&PLAY cable: NO
Warranty period: 5 years
2-WAY SOLAR RADIO DRIVESolar kit with built-in battery and solar panel. Drives controlled via radio with feedback signal from the roller shutter.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, FLUSH-MOUNTED SYSTEM
ZIGBEE 3.0: YES
Frequency: 868 MHz
Control: wall switch, remote control, smartphone / with feedback signal
Smart control capability: YES / with feedback signal
Limit positions: electronic
Advanced obstacle detection functioning correctly in SCREEN blinds: YES
Standard obstacle detection: NO
Weather automation support: YES
PLUG&PLAY cable: YES (black, 0.3 m long)
Additional PLUG&PLAY cable: YES (black, 5 m or 10 m long)
Soft START / Soft STOP: YES
Built-in battery in the drive: YES
Solar panel mounted with rivets or wall plugs: YES
Solar panel mounted with 3M tape: YES
Warranty period: 5 years
Solar kit with built-in battery and solar panel. Drives controlled via radio with feedback signal from the roller shutter.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, FLUSH-MOUNTED SYSTEM
ZIGBEE 3.0: NO
Frequency: 868 MHz
Control: wall switch, remote control, smartphone / with feedback signal
Smart control capability: YES / with feedback signal
Limit positions: electronic
Advanced obstacle detection functioning correctly in SCREEN blinds: NO
Standard obstacle detection: YES
Weather automation support: YES
PLUG&PLAY cable: YES (black, 0.25 m long)
Additional PLUG&PLAY cable: YES (black, 5 m or 10 m long)
Built-in battery in the drive: NO (battery separate from the drive)
Warranty period: 5 years
SOLAR – RADIO – 1-WAY
1-WAY SOLAR RADIO DRIVE RTSSOMFY solar kit with battery (without housing) and solar panel. Drives controlled via radio with feedback signal from the roller shutter.
Application: ADAPTIVE SYSTEM, INTEGRATED SYSTEM, FLUSH-MOUNTED SYSTEM
ZIGBEE 3.0: NO
Frequency: 433 MHz
Control: wall switch, remote control, smartphone / with feedback signal
Smart control capability: YES / with feedback signal
Limit positions: electronic
Advanced obstacle detection functioning correctly in SCREEN blinds: NO
Standard obstacle detection: YES / NO
Weather automation support: YES / NO
PLUG&PLAY cable: NO
Standard cable: YES (1 m long)
Built-in battery: NO (battery separate from the drive)
Warranty period: 5 years
WIRELESS CONTROL
WIRELESS CONTROL CHOOSE THE PERFECT CONTROL SYSTEM FOR WIN SCREEN BLINDS
A wide range of wireless control options for WIN SCREEN blinds.

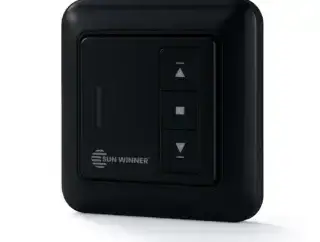

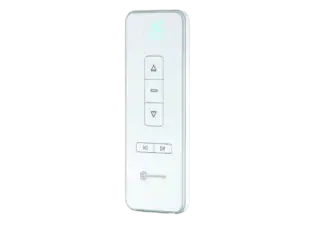

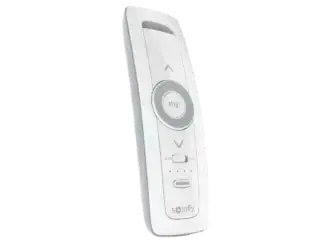

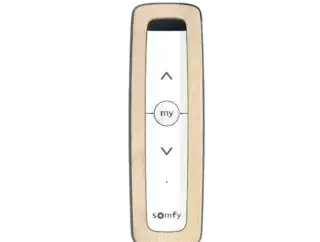

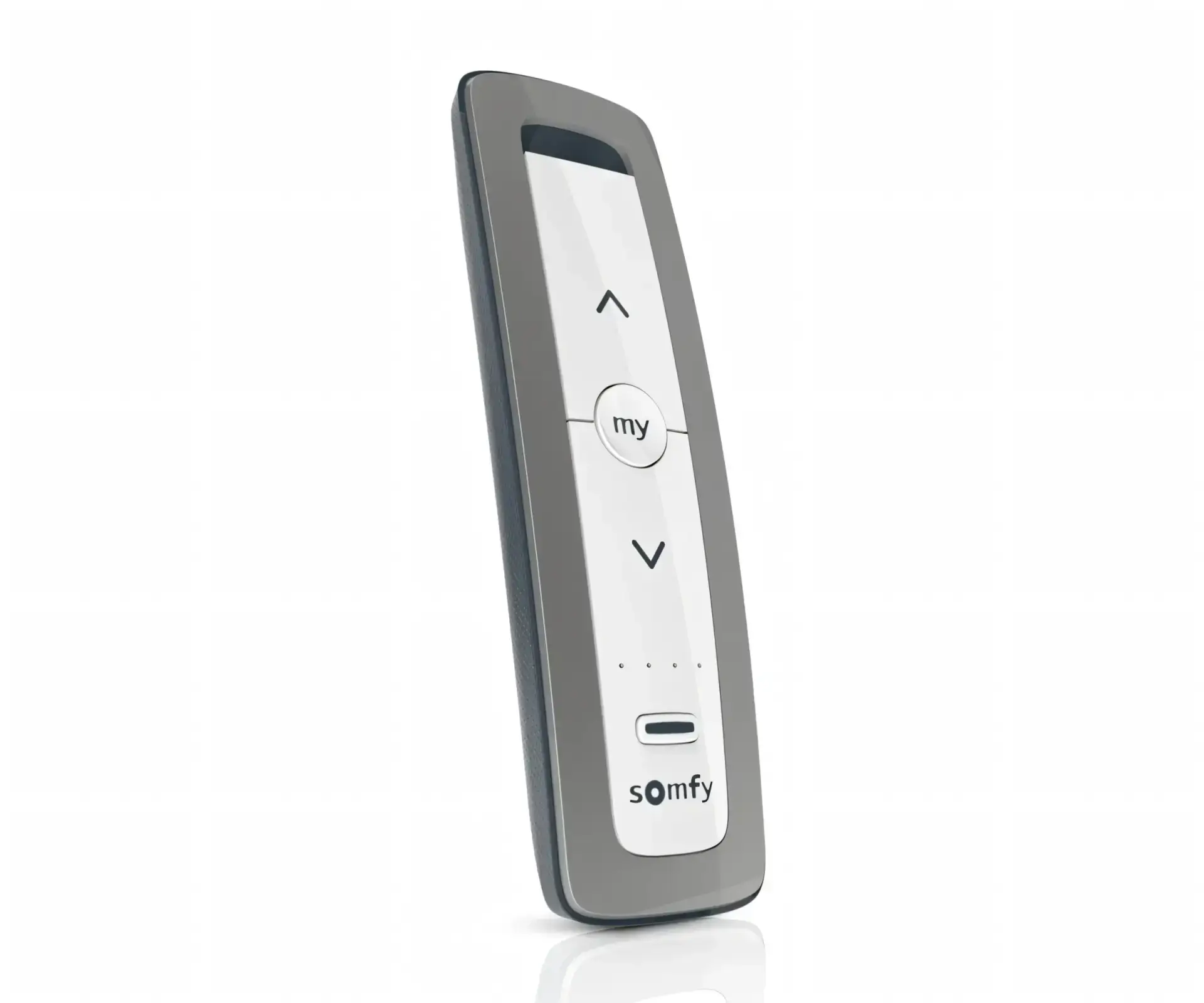

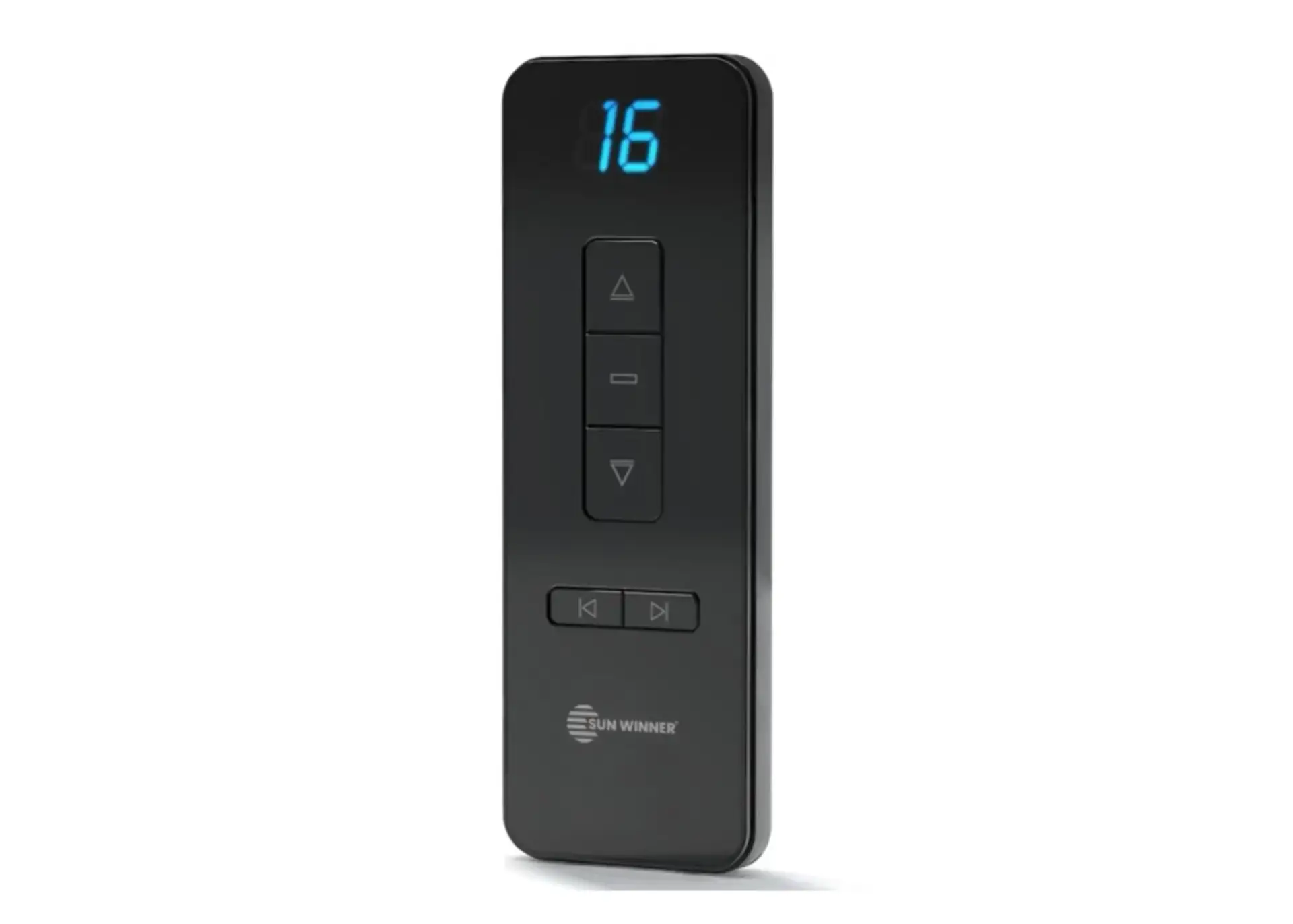

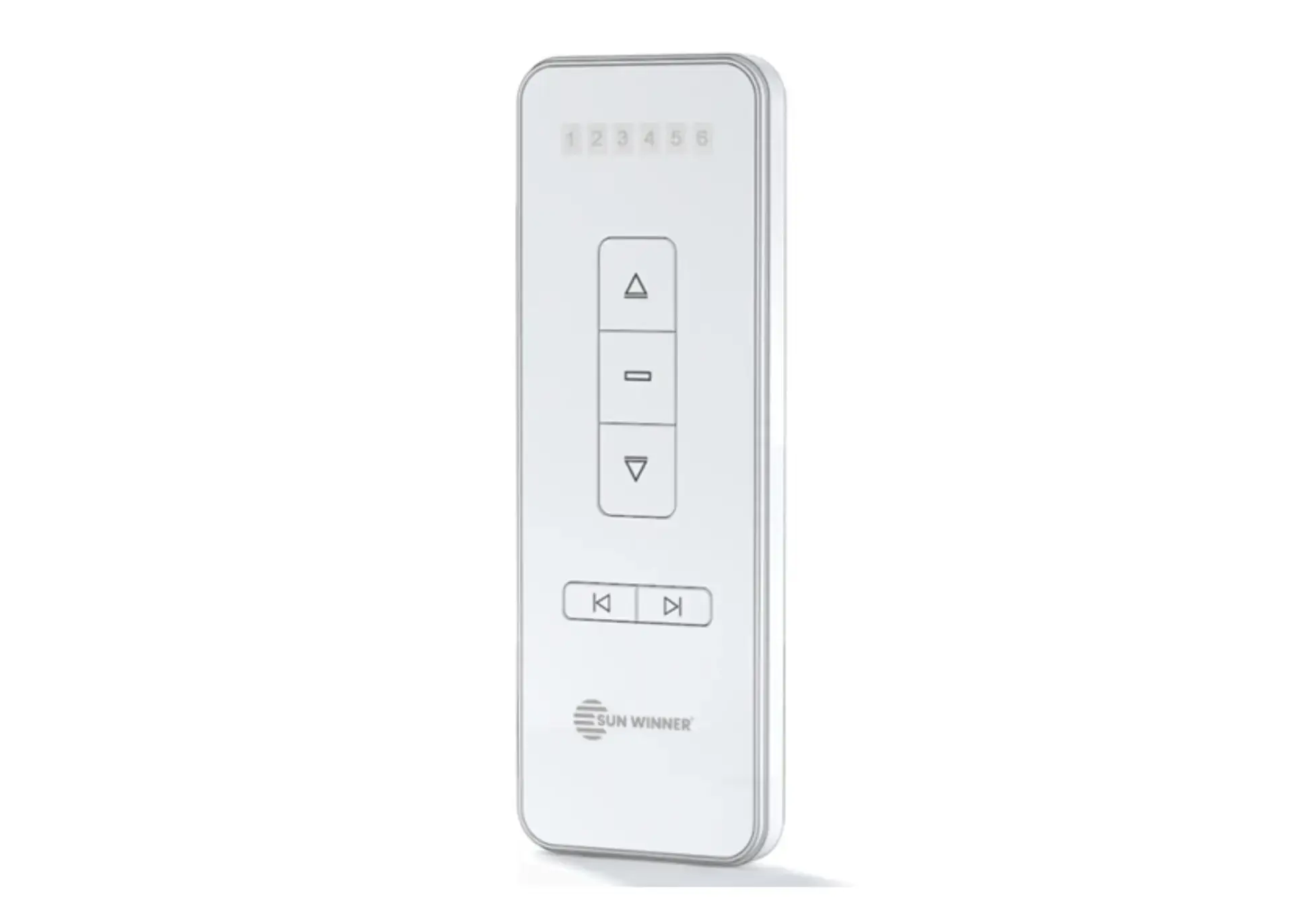

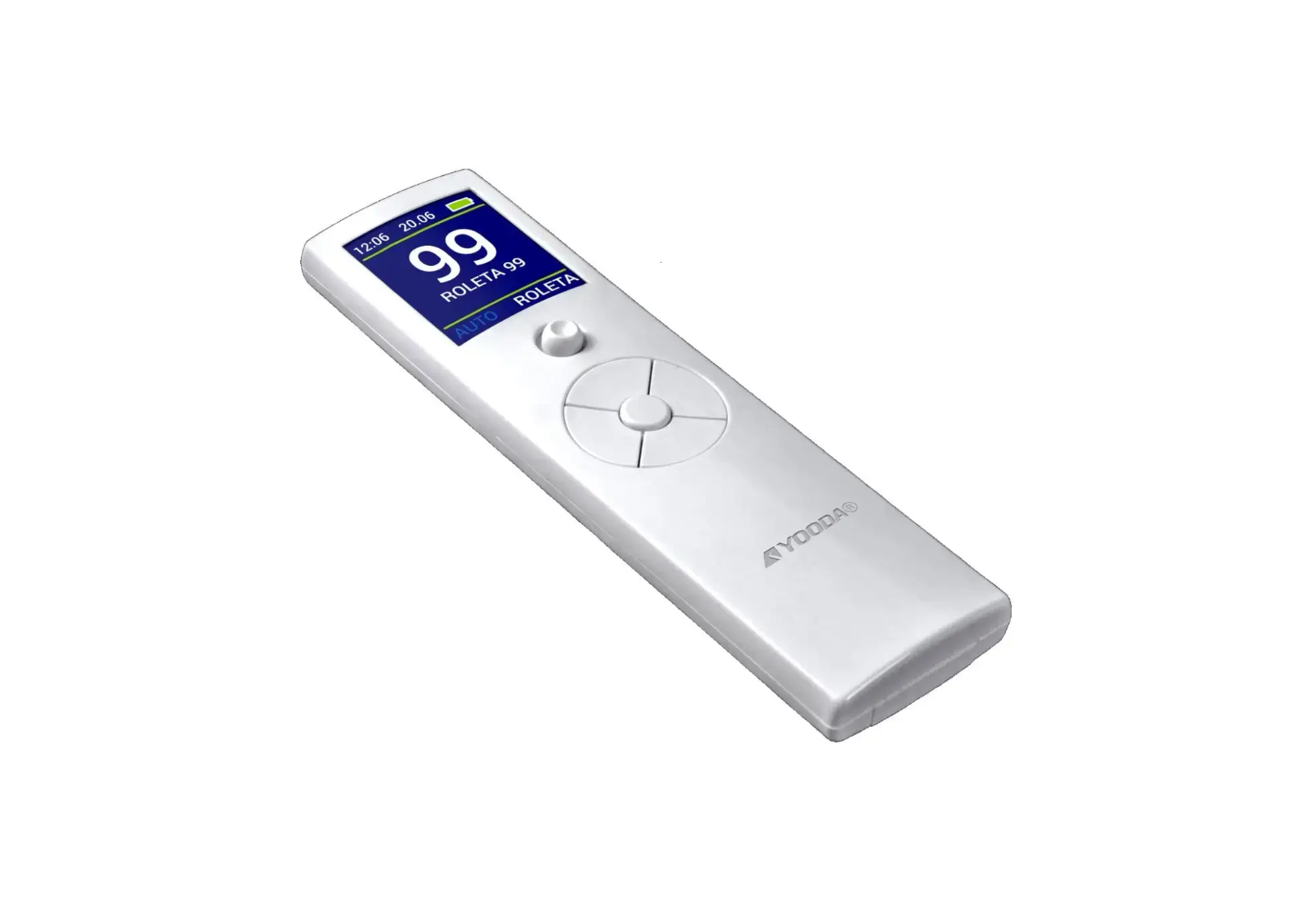

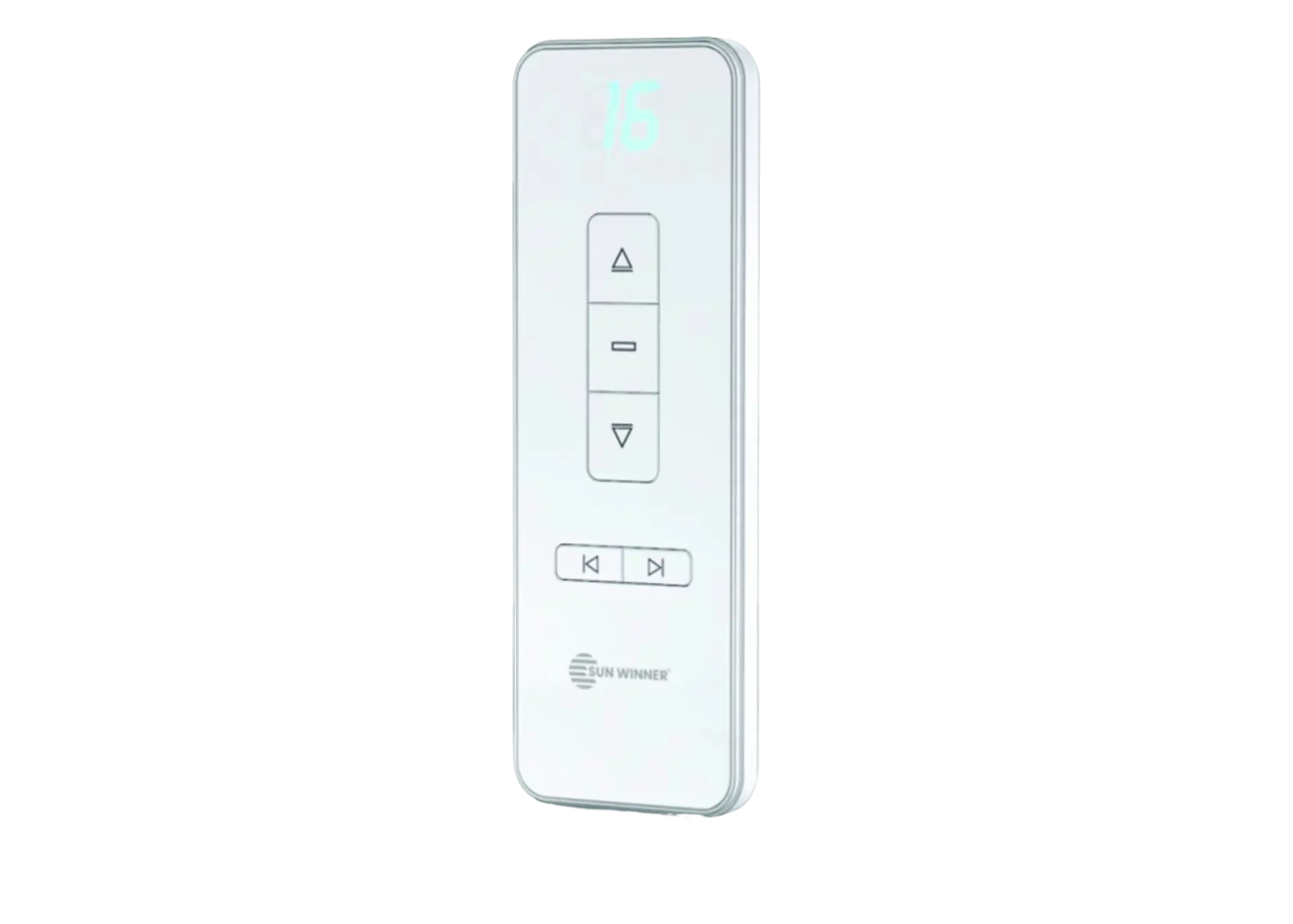

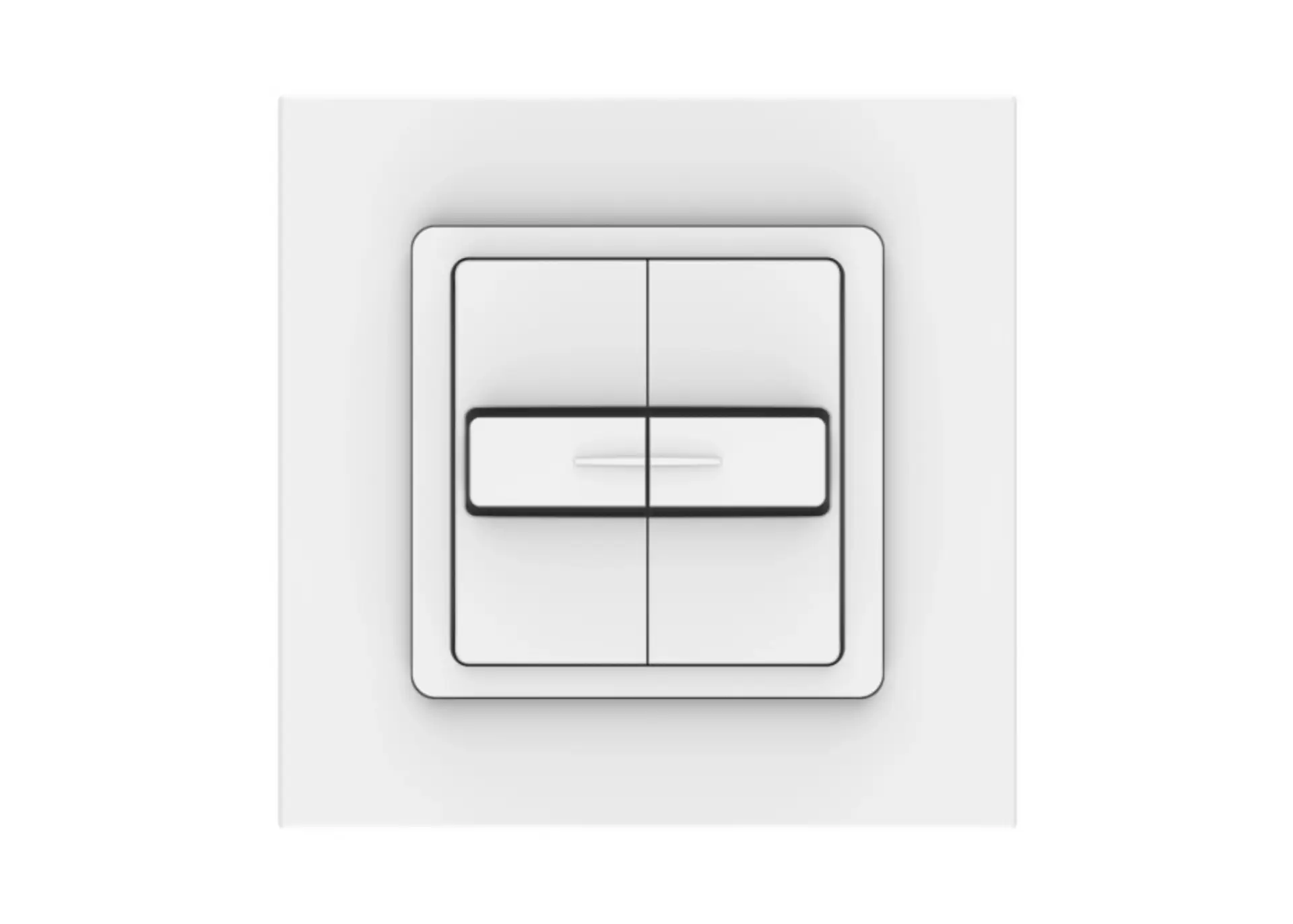

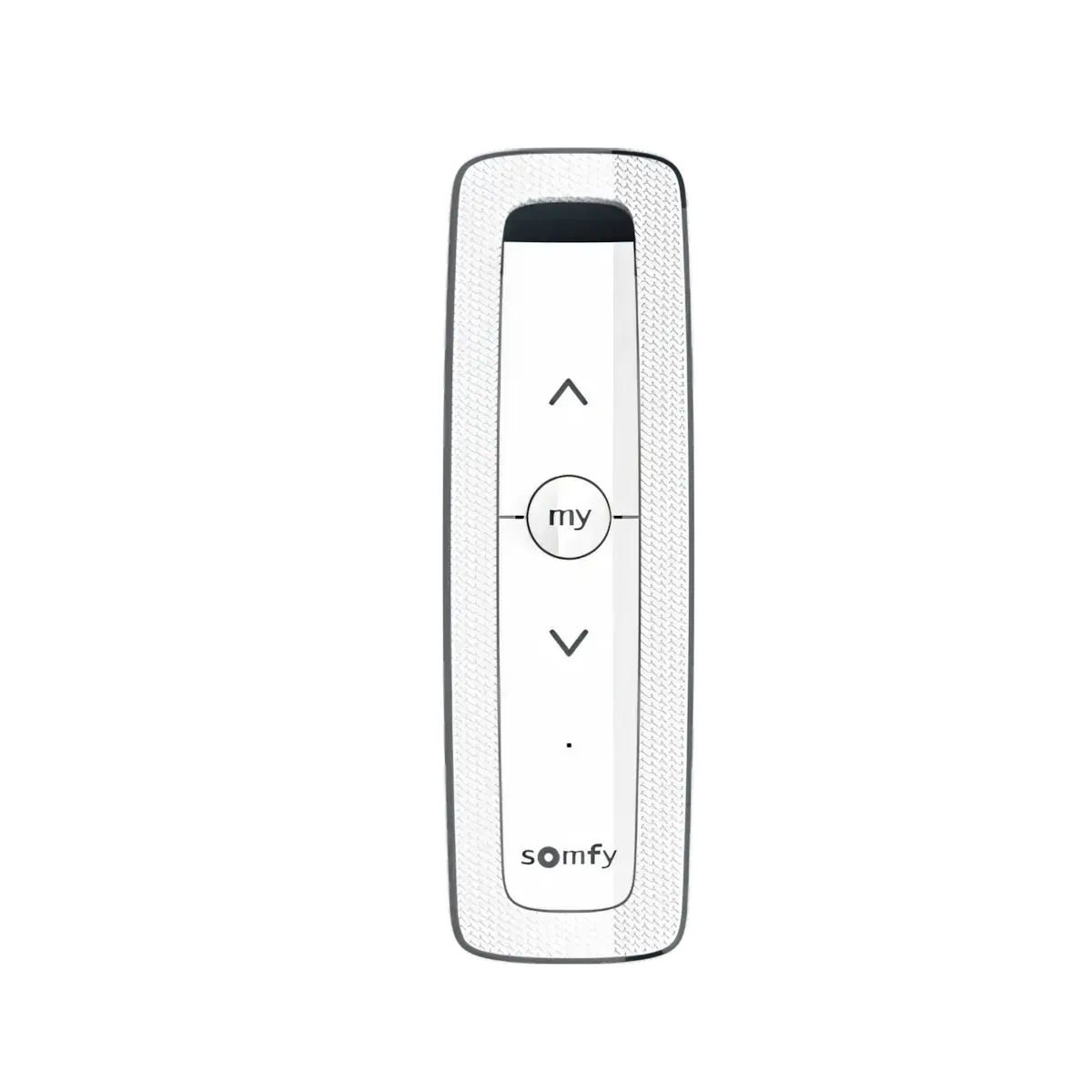

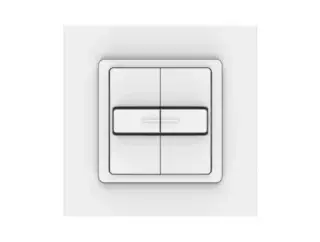

Choose from wall switches and remote controls in various colors and designs.

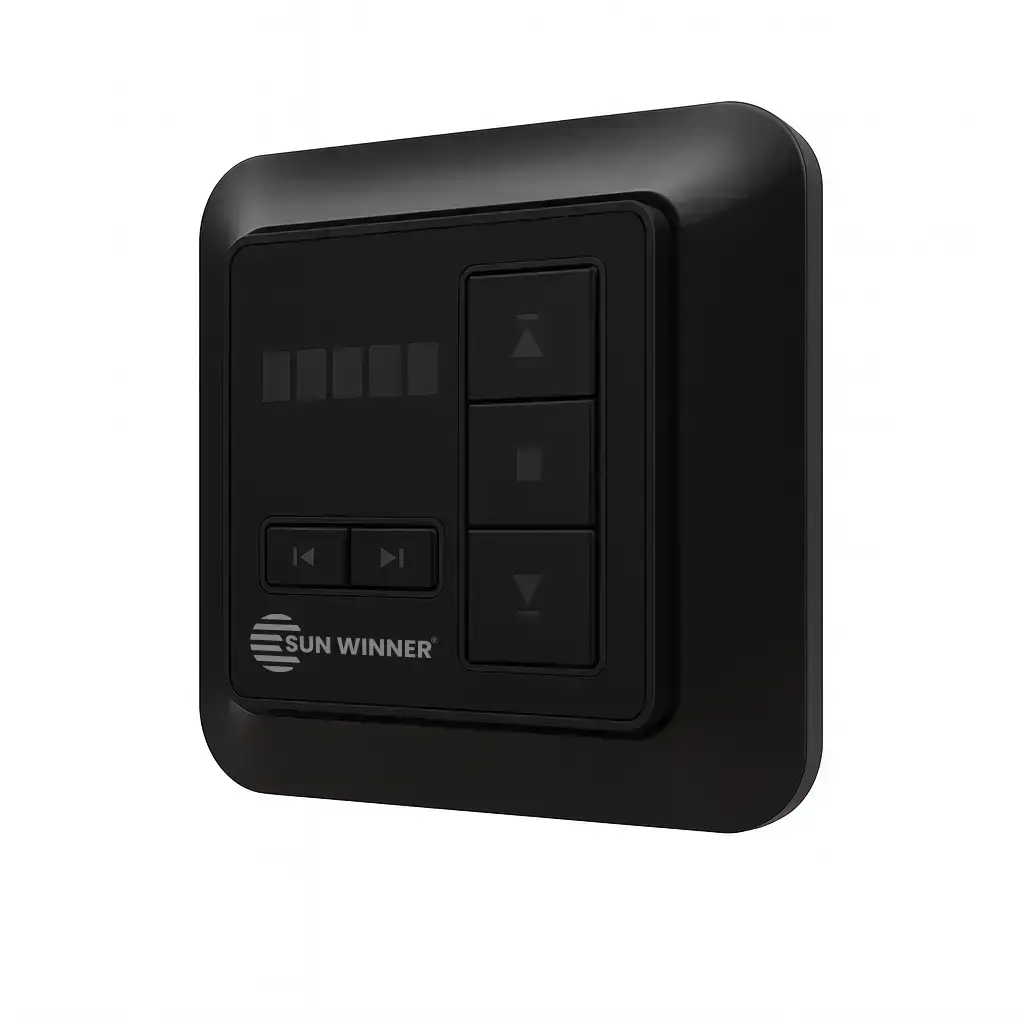

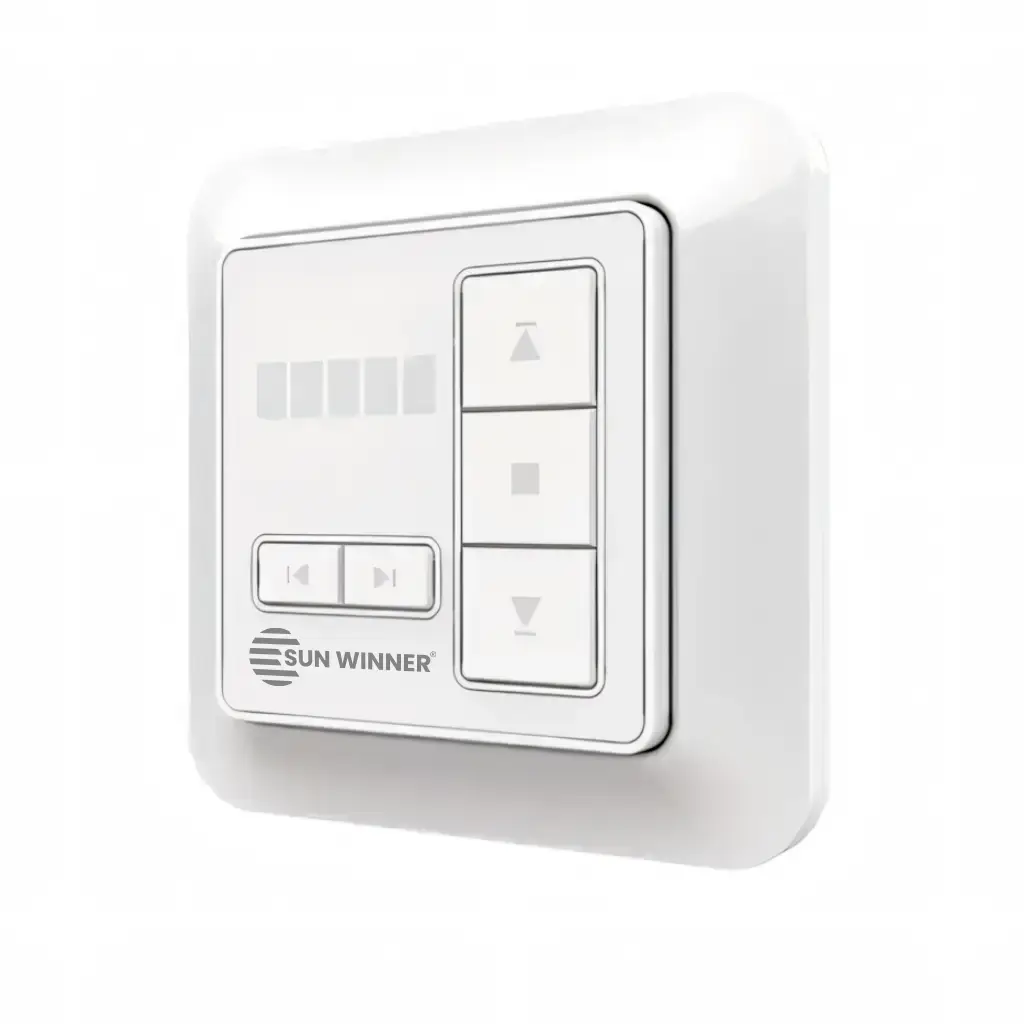

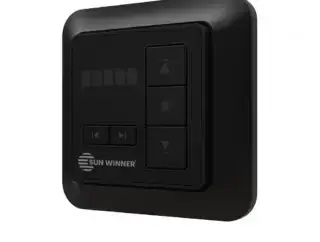

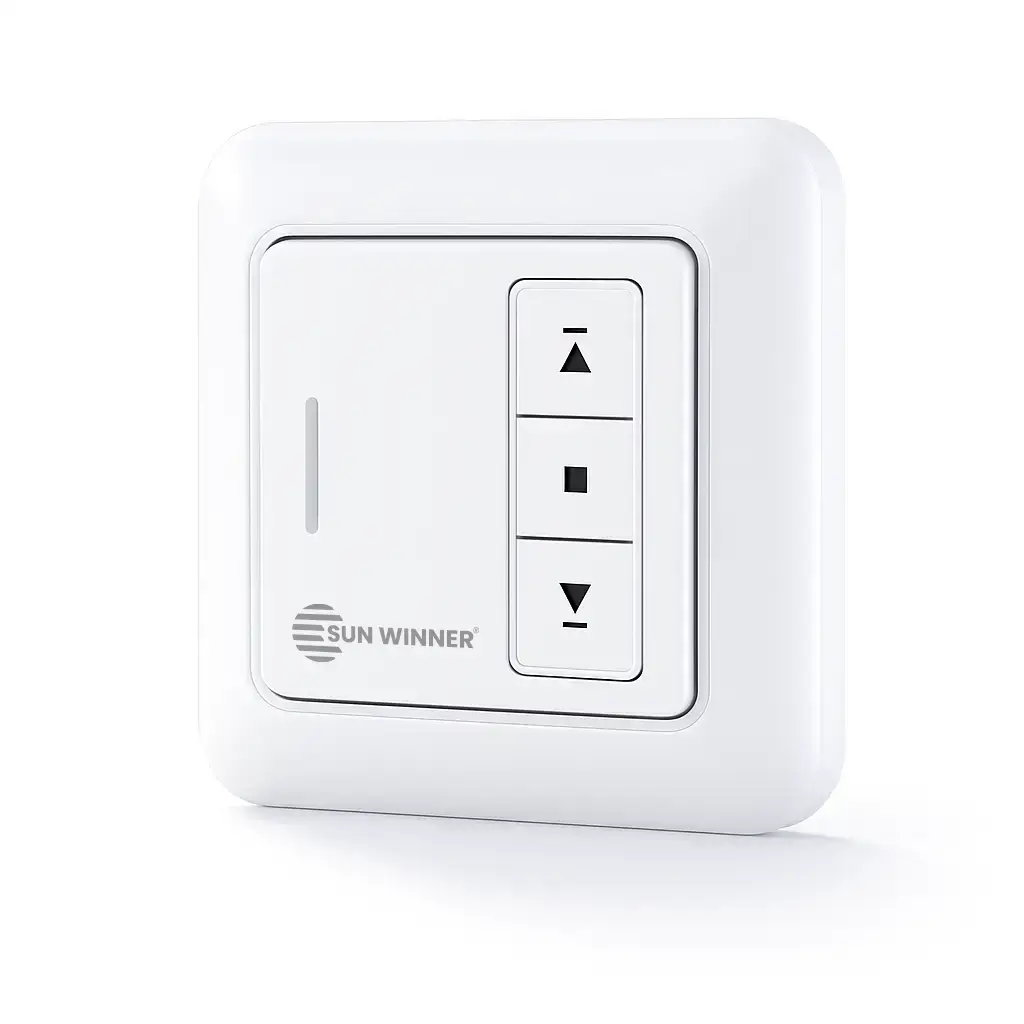

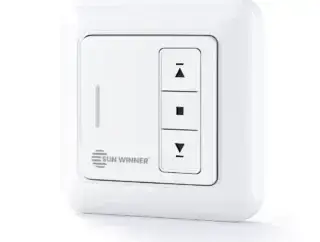

WIN CONTROL CONTROL SYSTEM

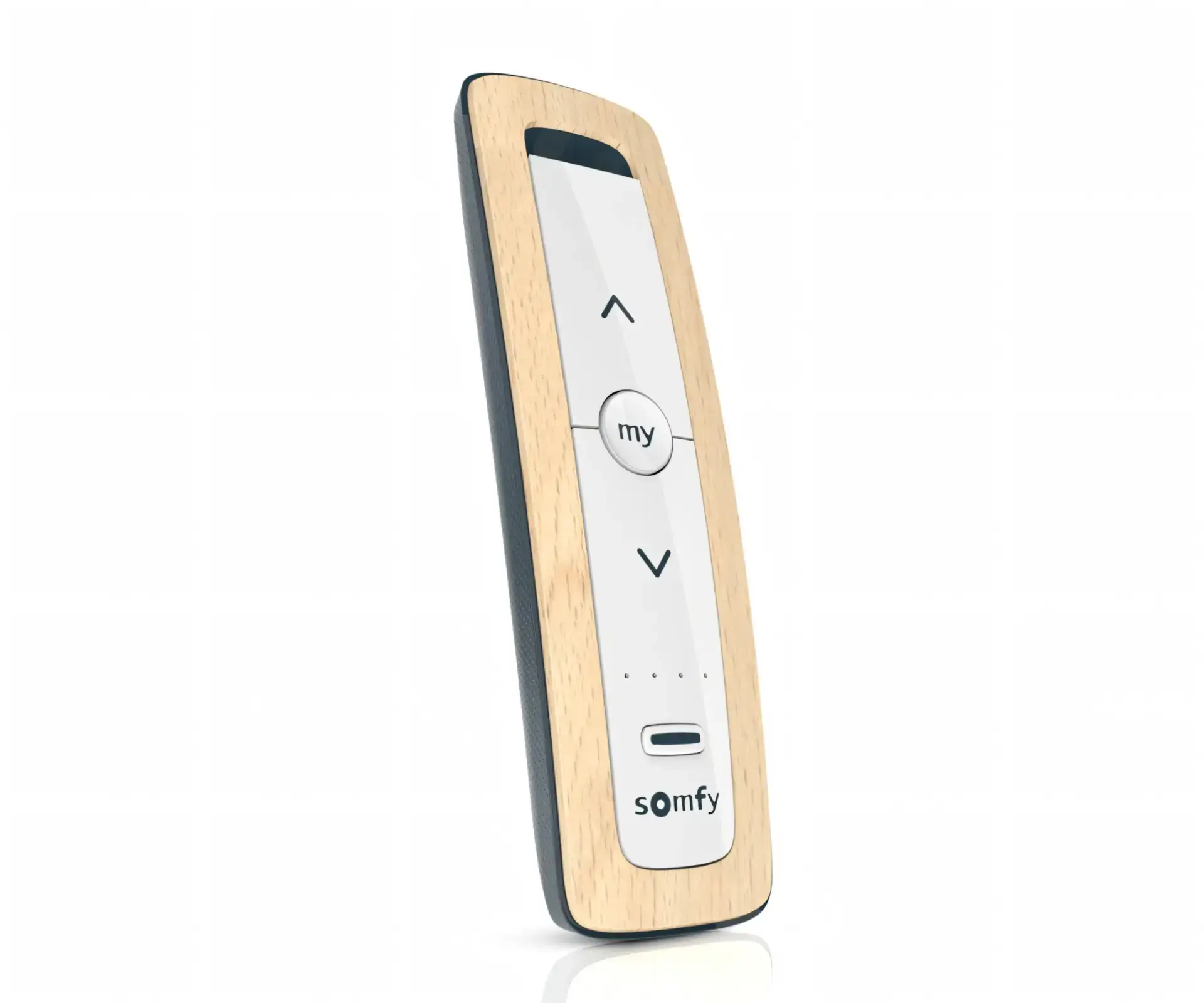

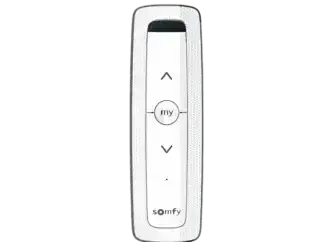

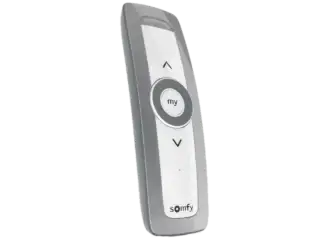

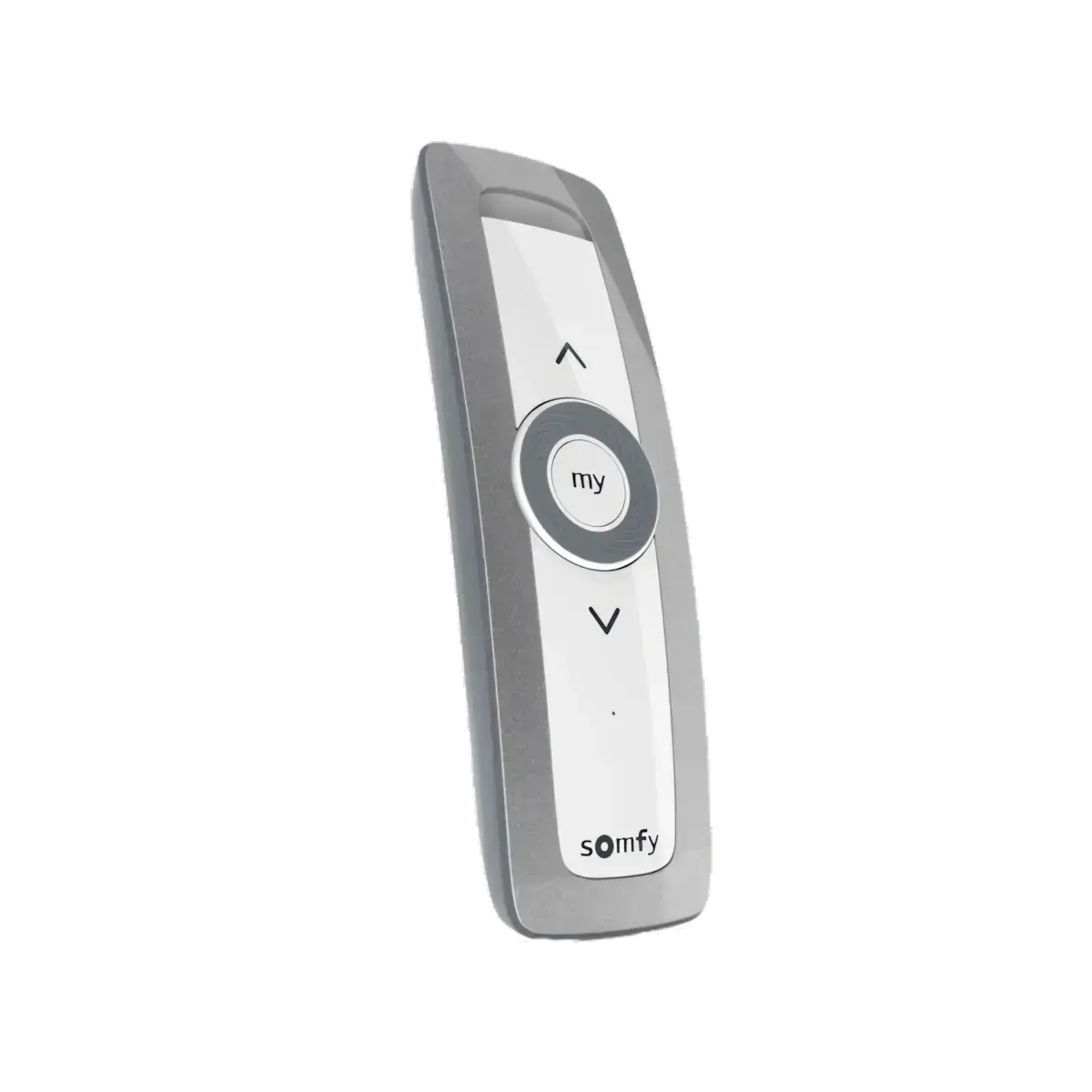

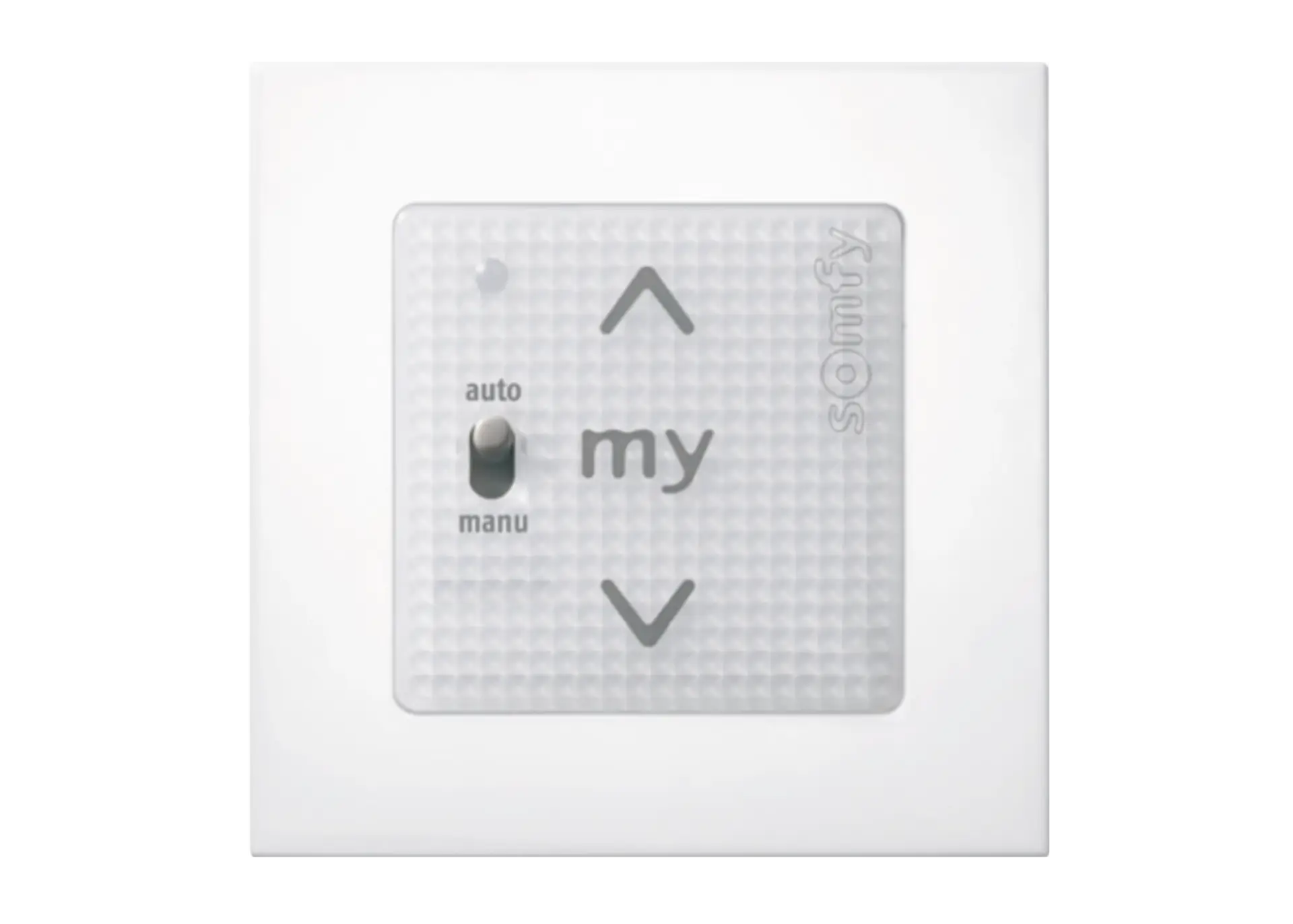

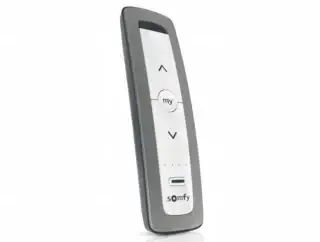

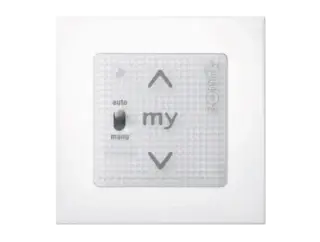

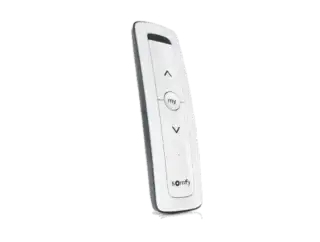

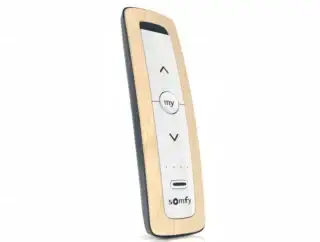

SOMFY CONTROL SYSTEM

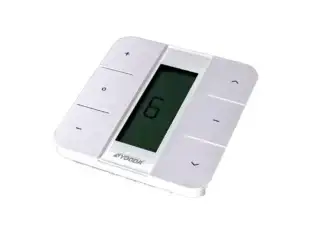

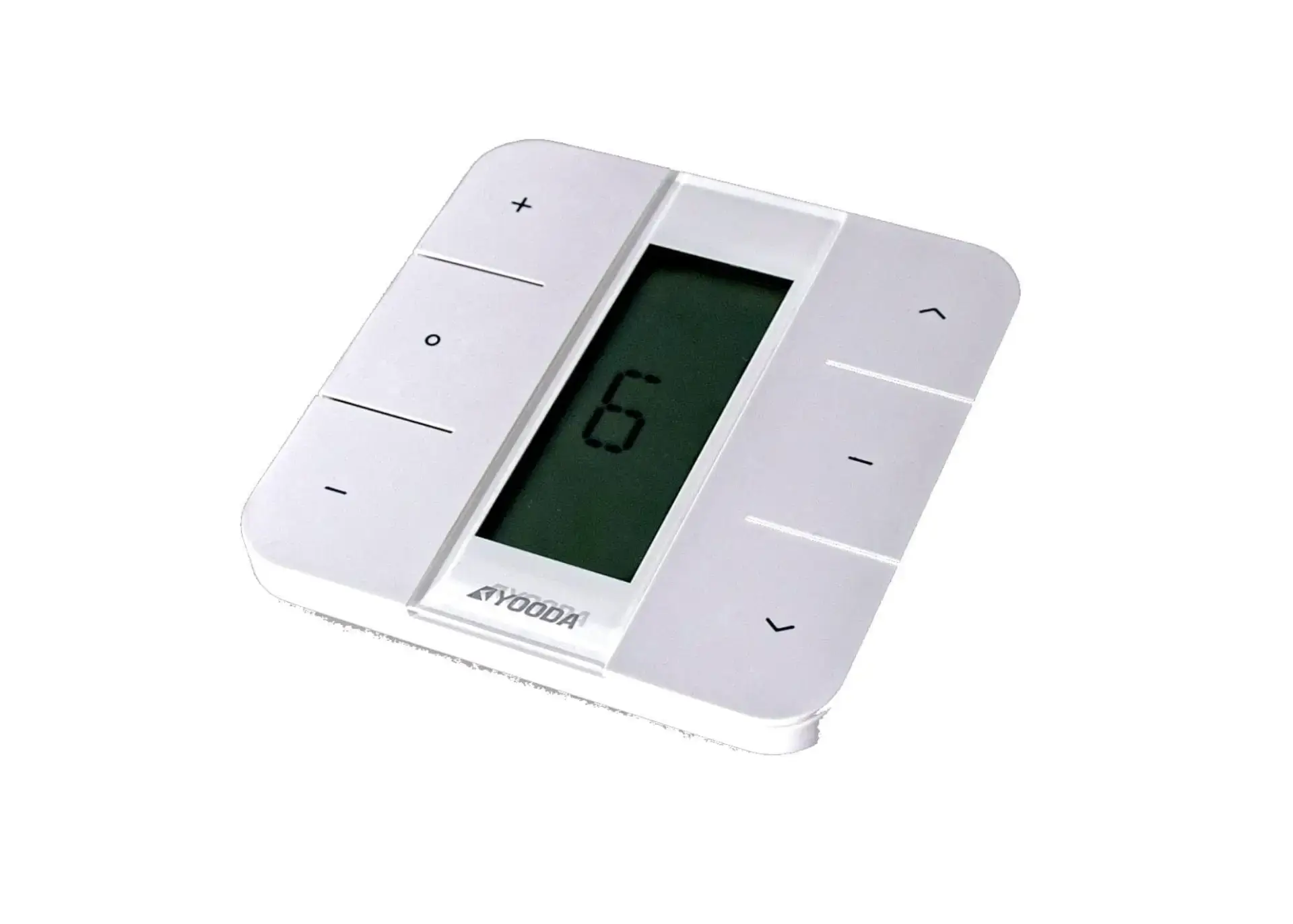

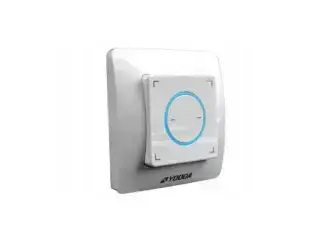

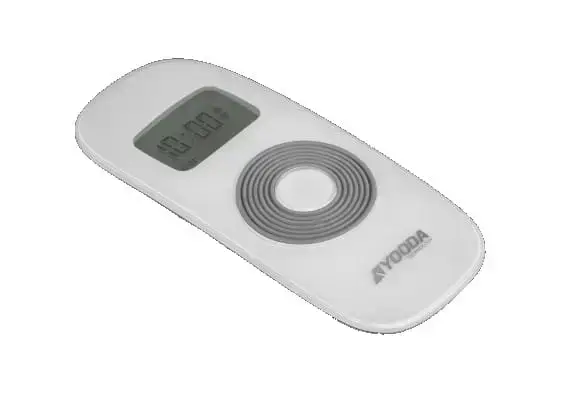

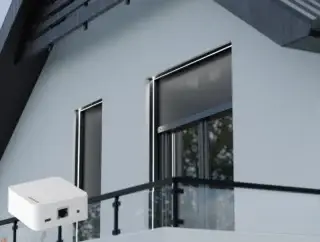

YOODA CONTROL SYSTEM
SMART CONTROL
SMART CONTROL Wi-Fi Hub – Why Is It Worth It?
A smart control unit with a built-in Wi-Fi interface for controlling hubs via smartphone or tablet using an app, offering the ability to control devices remotely over the Internet.
It allows for easy creation of scenarios and programming of a weekly timer. The Wi-Fi hub enables connection and control of devices using multiple smartphones or tablets simultaneously, and also gives the user the option of voice control via Google Home or Amazon Assistant.

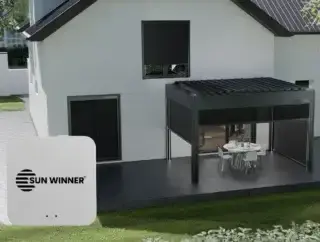

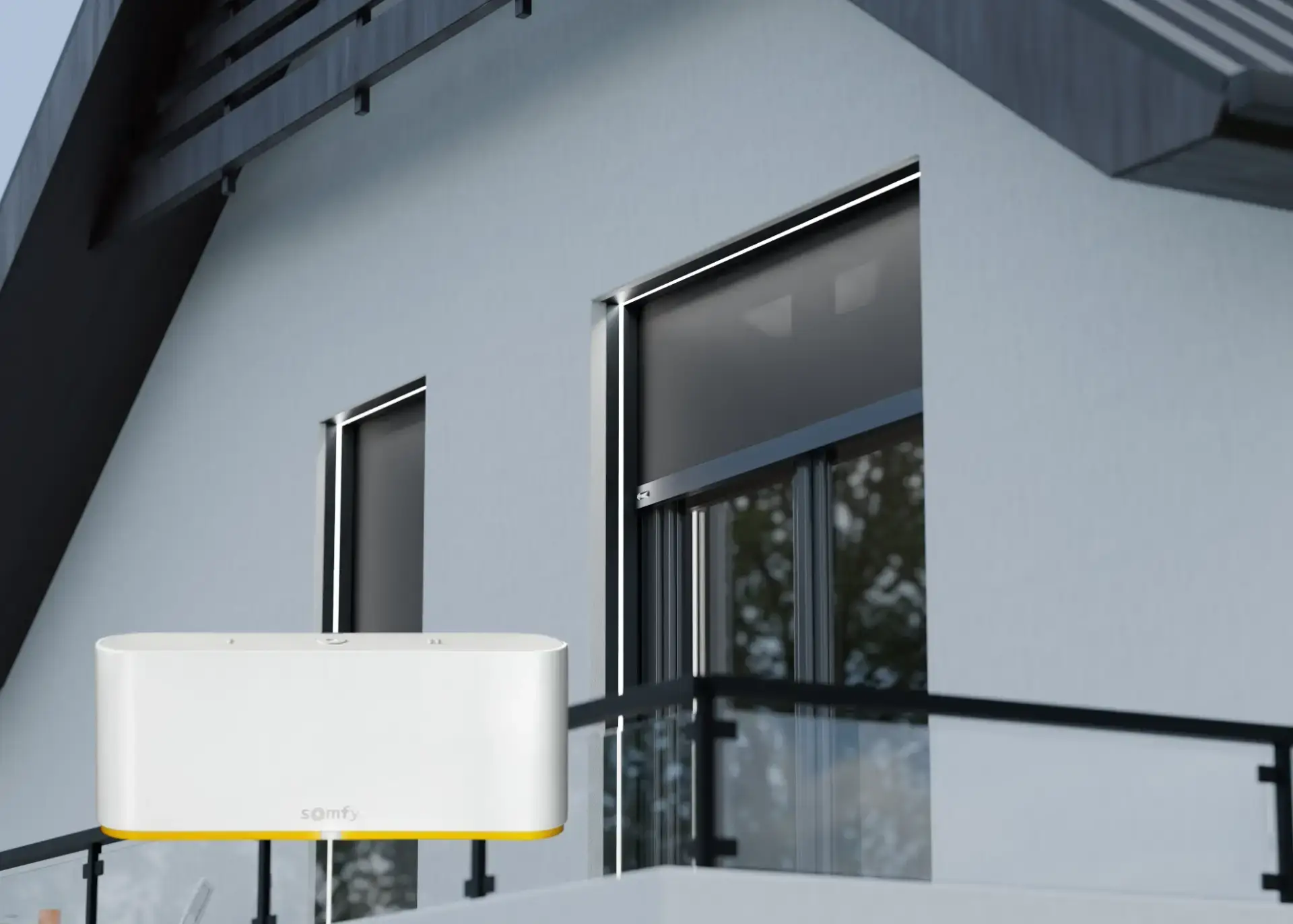

WIN CONTROL Smart Hub with ZIGBEE 3.0
The latest wireless communication standard designed for smart home, building automation, and industrial automation devices. It ensures reliable and secure communication between various devices.
WIRED CONTROL
WIRED CONTROL CHOOSE THE PERFECT CONTROL SYSTEM FOR WIN SCREEN BLINDS
A wide range of wired control options for WIN SCREEN blinds.

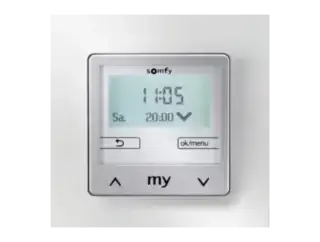

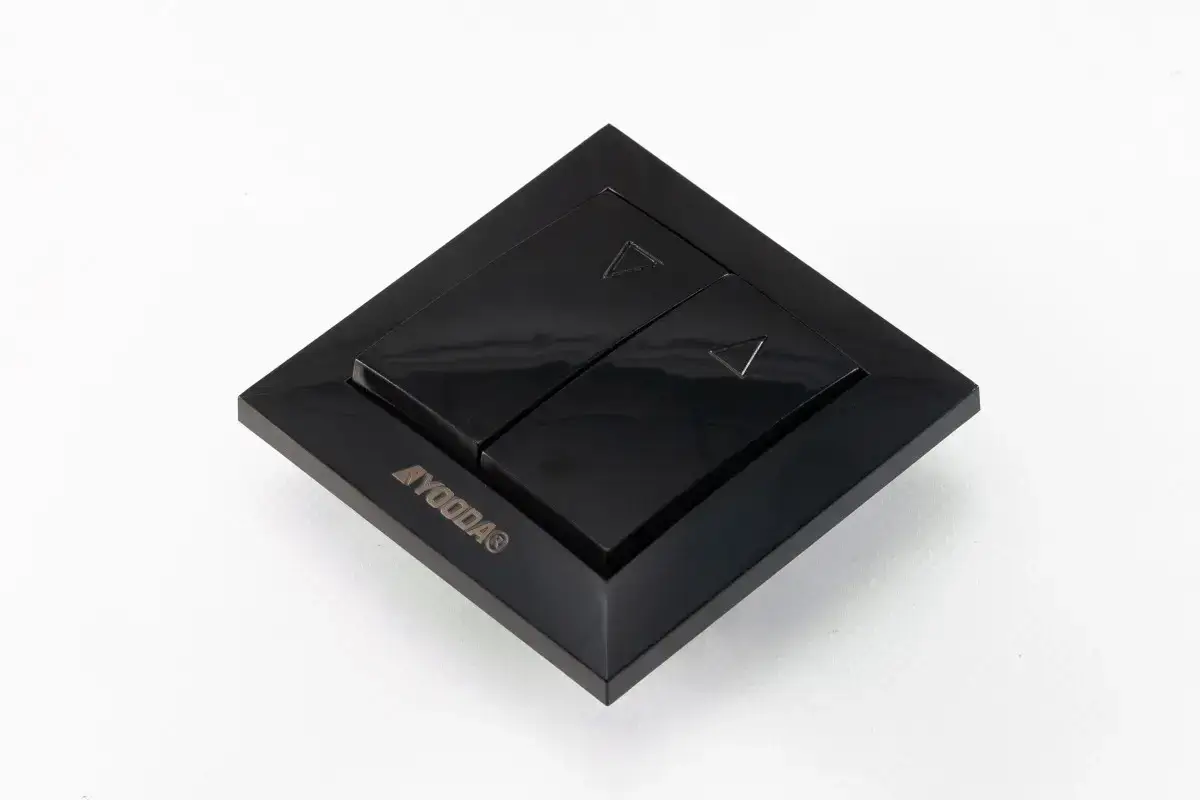

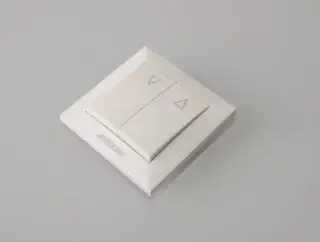

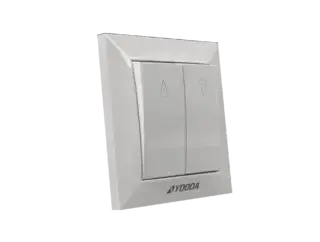

Choose from wall switches, control units, and timers in various colors and configurations.

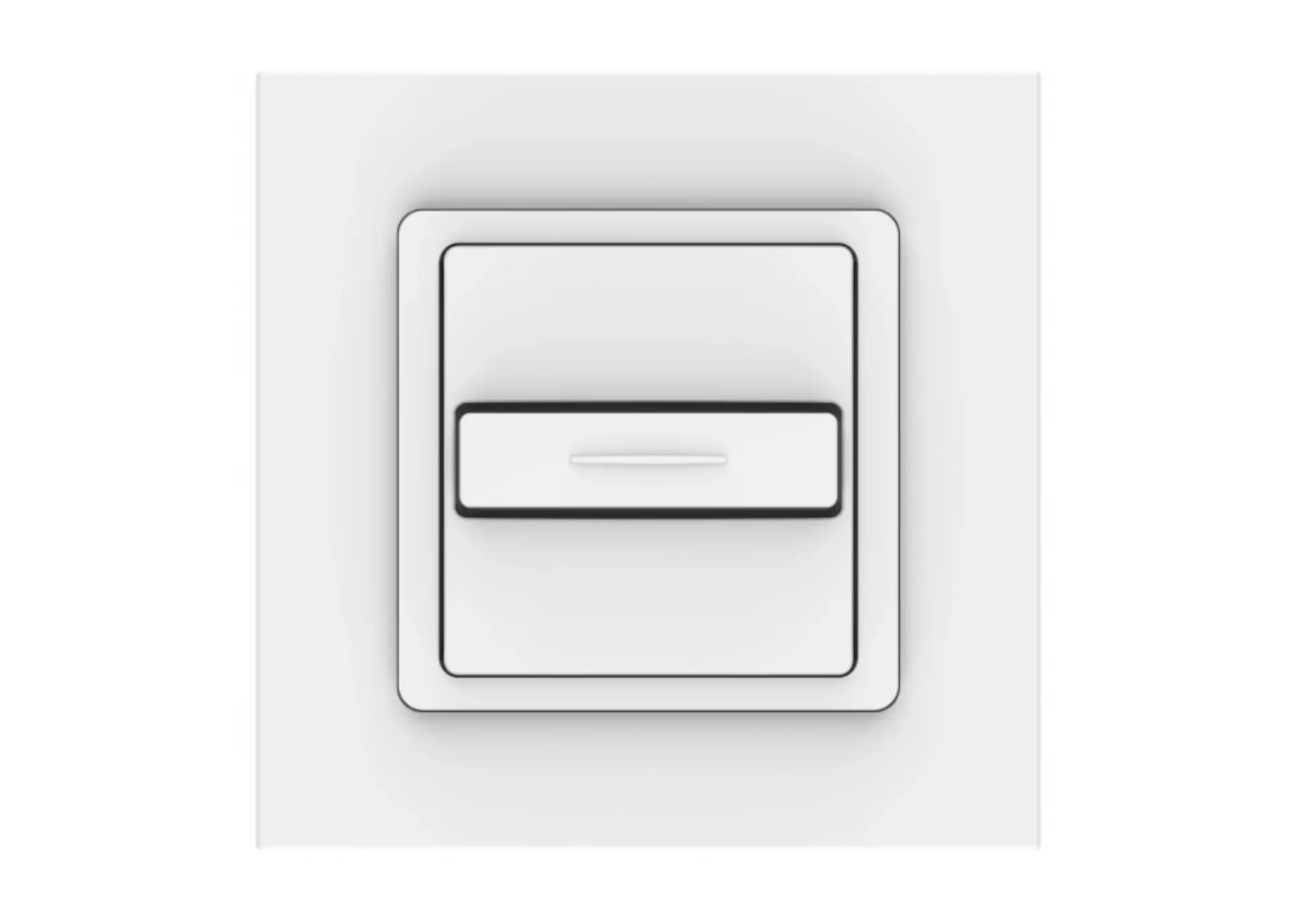

SOMFY CONTROL SYSTEM

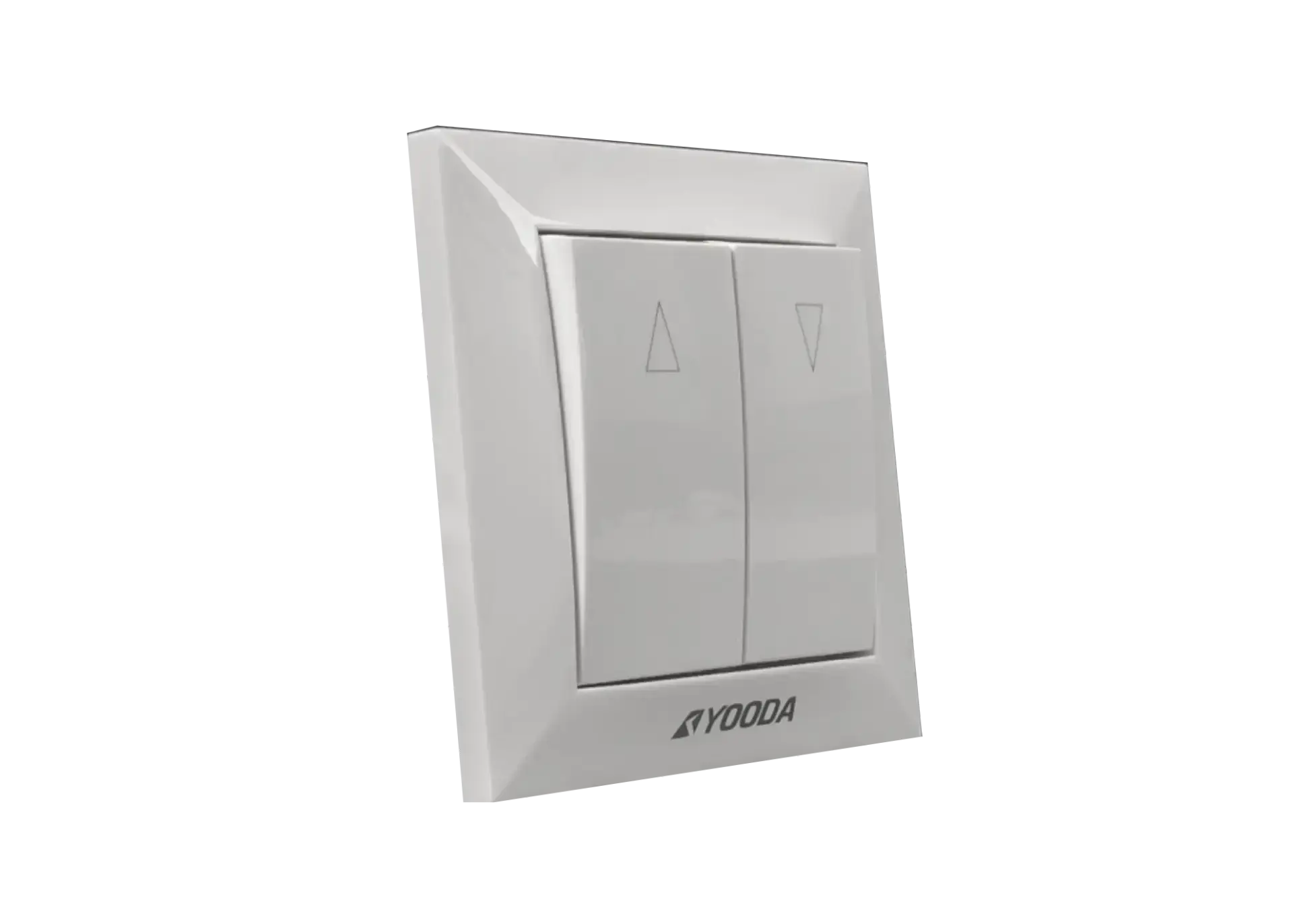

YOODA CONTROL SYSTEM

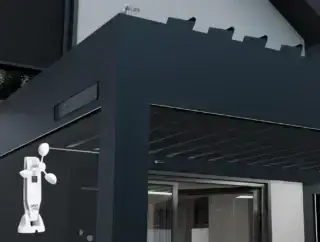

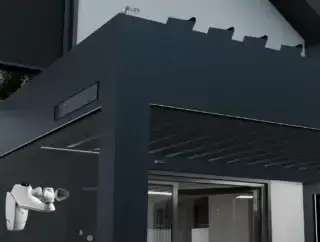

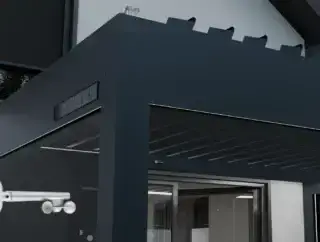

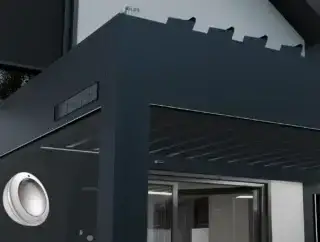

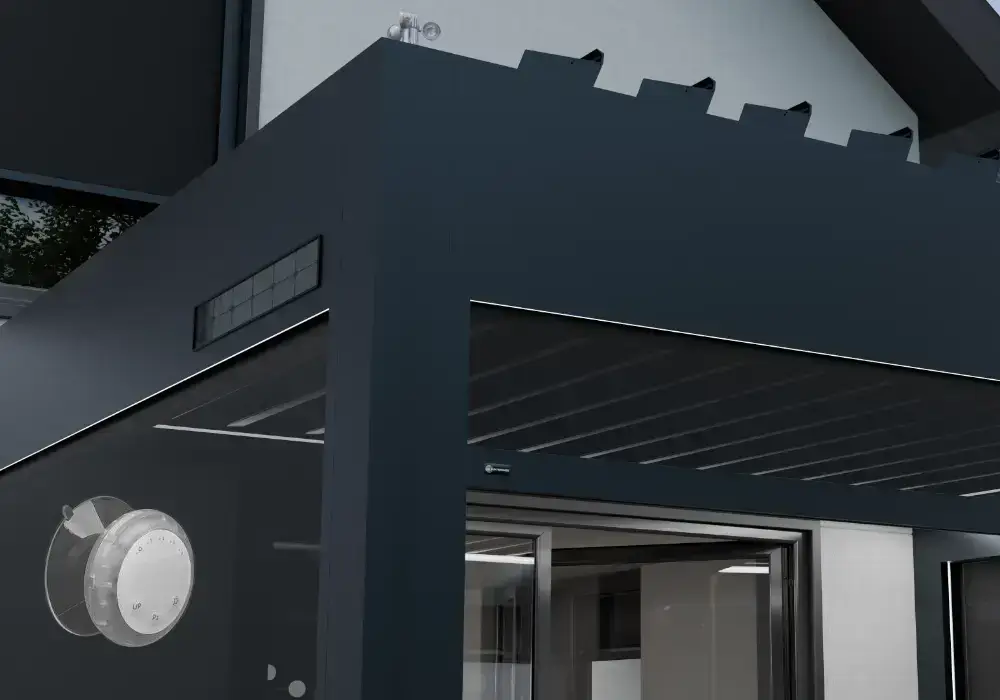

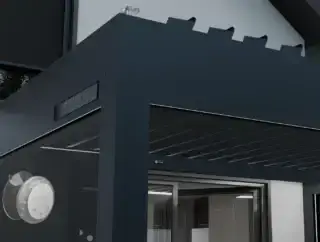

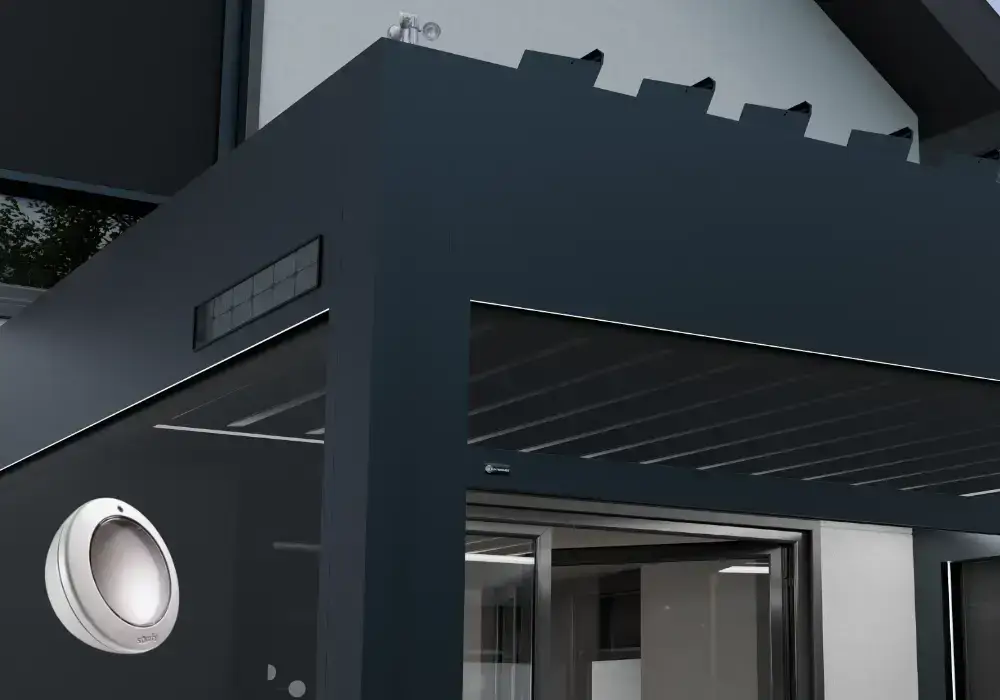

WIRELESS AUTOMATION – SOLARSun and wind-sun sensors play a key role in the automation and protection of WIN SCREEN ZIP external blinds and pergolas. Their primary function is to monitor weather conditions and automatically control the coverings to protect the building and its furnishings, enhance user comfort, and improve energy efficiency.
The sensors can be mounted in various locations, such as the façade, building roof, or directly on pergolas or other patio coverings, depending on the needs and spatial layout.
A sun sensor automatically lowers the blinds when sunlight is intense and raises them when sunlight levels are low.
The wind-sun sensor operates in a similar way but also reacts to wind gusts. In the event of strong wind, it automatically raises the blinds to protect them from damage. This solution significantly extends the lifespan of the motor and fabric.
For safety reasons, the wind sensor always takes priority over the sun sensor. This means that during strong winds, the blind will be raised regardless of sunlight levels.
Wireless sensors do not require wiring between the sensor and the blind, as communication occurs via radio signal. This makes installation much easier and allows for greater flexibility.
In the case of solar-powered sensors, there is no need to connect them to a permanent power source. They are equipped with a solar panel that continuously charges the battery. As a result, the sensor operates energy-independently and is virtually maintenance-free.

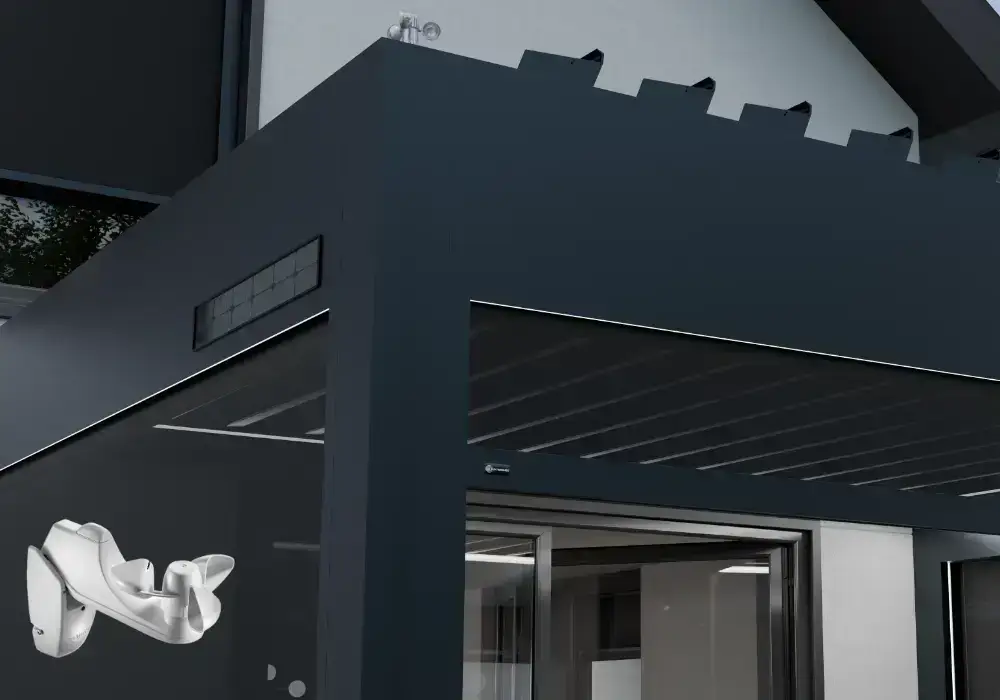

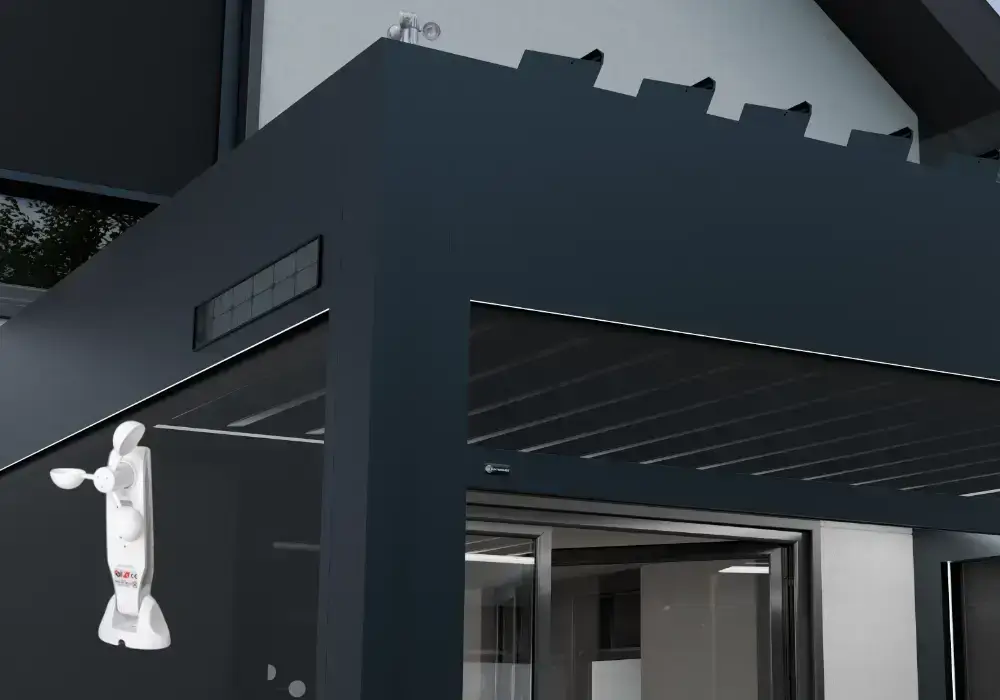

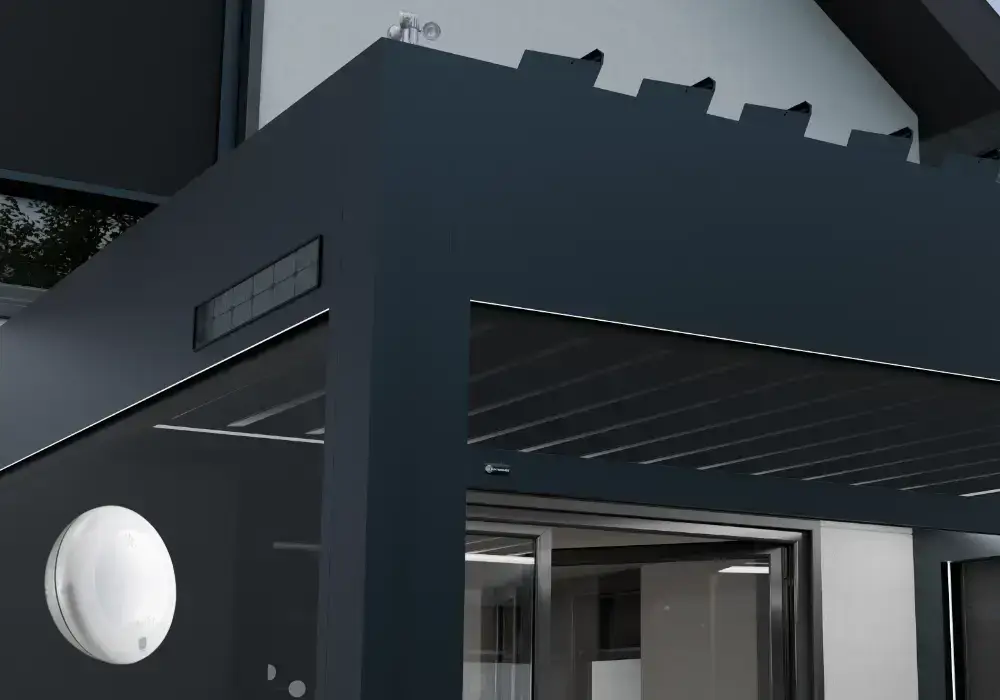

WIRELESS AUTOMATIONPROTECTION AGAINST SUN AND WIND

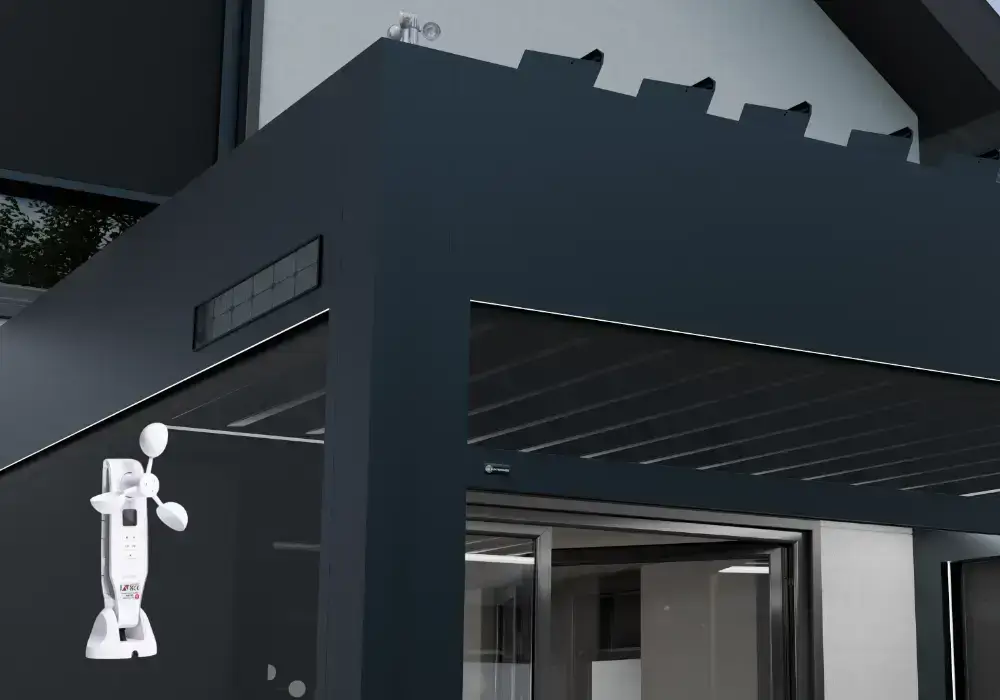

Sun-wind and sun sensors play a crucial role in the automation and protection of external blinds (as well as awnings and pergolas). Their task is to monitor weather conditions and automatically control the blinds to protect the building and equipment, enhance user comfort, and improve energy efficiency.
The sun sensor automatically lowers the blinds during strong sunlight or raises them when sunlight is low.
The sun-wind sensor, like the sun sensor, automatically lowers or raises the blinds depending on sunlight levels, and additionally protects the blinds from strong wind gusts. When strong wind is detected, it raises the blinds to protect them from damage. This solution significantly extends the lifespan of both the motor and the fabric.
For safety reasons, the wind sensor always takes priority over the sun sensor.
Sensors can be mounted on the façade or the roof of the building.

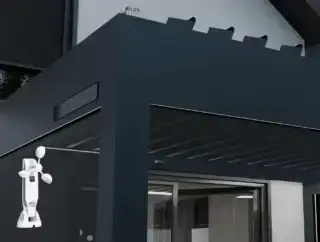

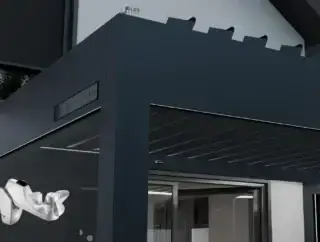

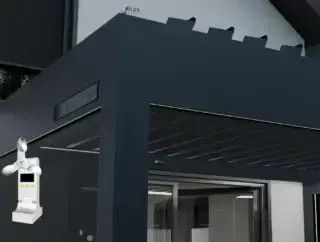

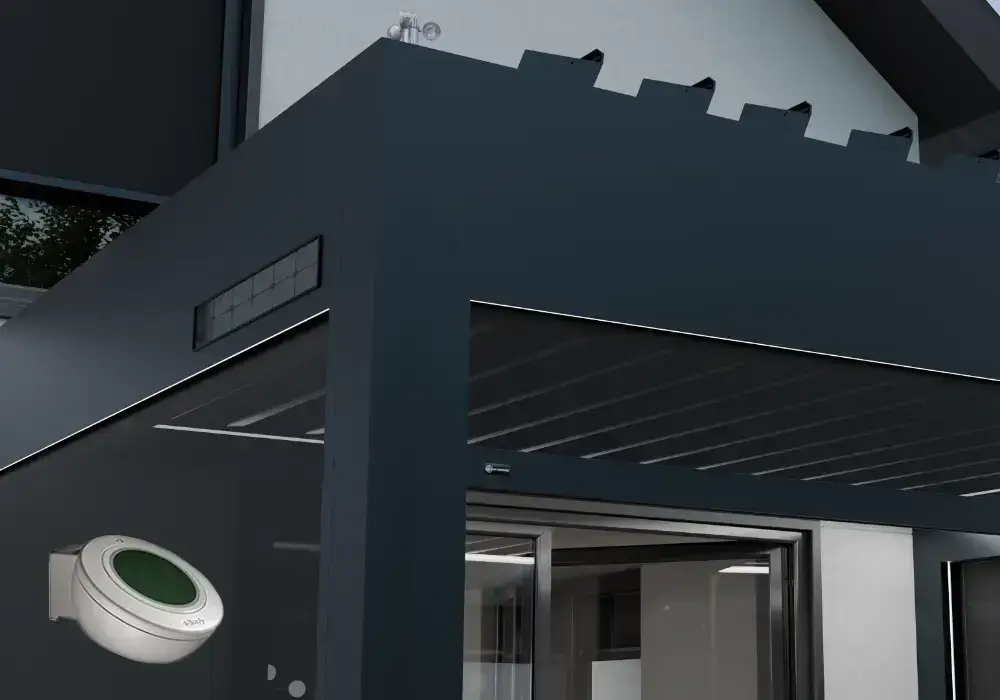

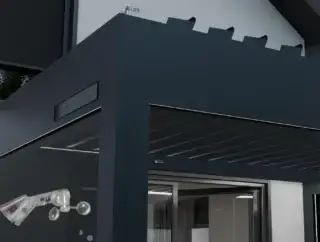

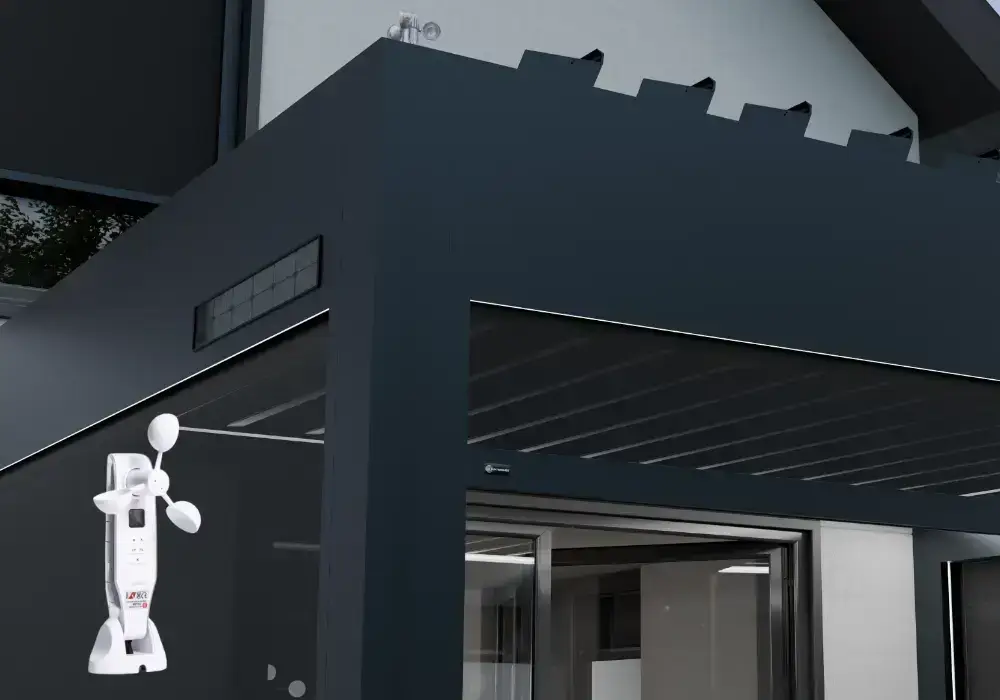

WIRED AUTOMATIONPROTECTION AGAINST SUN AND WIND
Sun-wind and sun sensors play a crucial role in the automation and protection of external blinds (as well as awnings and pergolas). Their task is to monitor weather conditions and automatically control the blinds to protect the building and equipment, enhance user comfort, and improve energy efficiency.
The sun sensor automatically lowers the blinds during strong sunlight and raises them when the sunlight is weak.
The sun-wind sensor, similar to the sun sensor, automatically lowers and raises the blinds depending on sunlight levels, and additionally protects the blind from strong wind gusts. When strong wind is detected, it raises the blind to prevent damage. This solution significantly extends the lifespan of both the motor and the fabric.
For safety reasons, the wind sensor always takes priority over the sun sensor.
Sensors can be mounted on the building façade or roof.
