Innovative water drainage system, integrated and concealed within the pergola’s structure.
Ambient LED lighting integrated with pergola crown. Several lighting and light adjustment options are available.
Heaters with adjustable power and control via remote, smartphone, and tablet. Two power ranges from 1500 W to 4000 W, with adjustable settings. The heater housing is made of powder-coated aluminum, available in white or black. The LOW GLARE function reduces the amount of light emitted by the heaters.

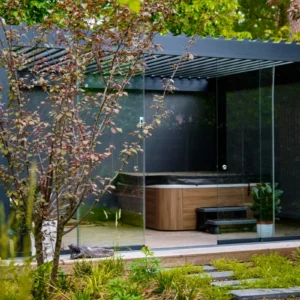

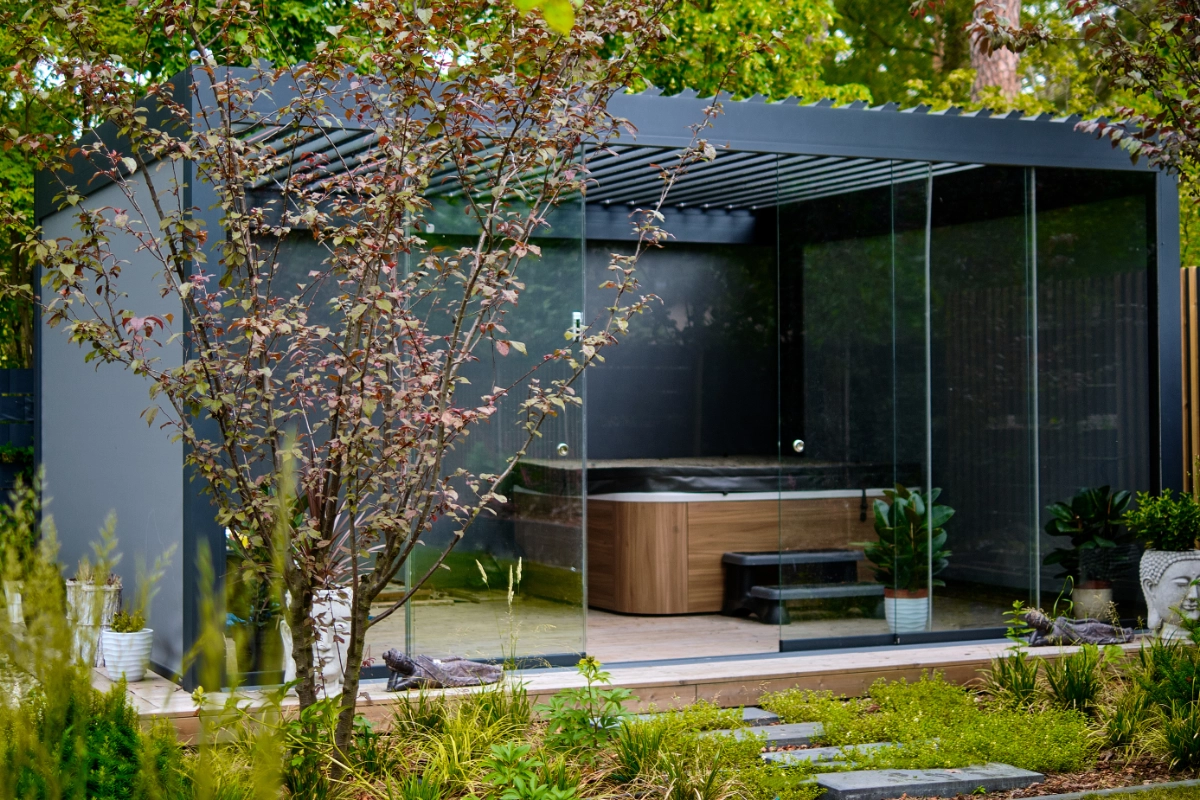

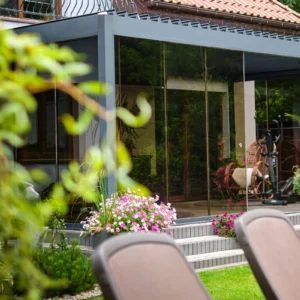

WIN GLASS
An incredible combination of optimal visual comfort and protection from external conditions. By using certified, tempered glass with a thickness of 10 mm and unique design solutions, the system ensures safe use of any terrace space, whether at home, in a restaurant, or in a hotel.

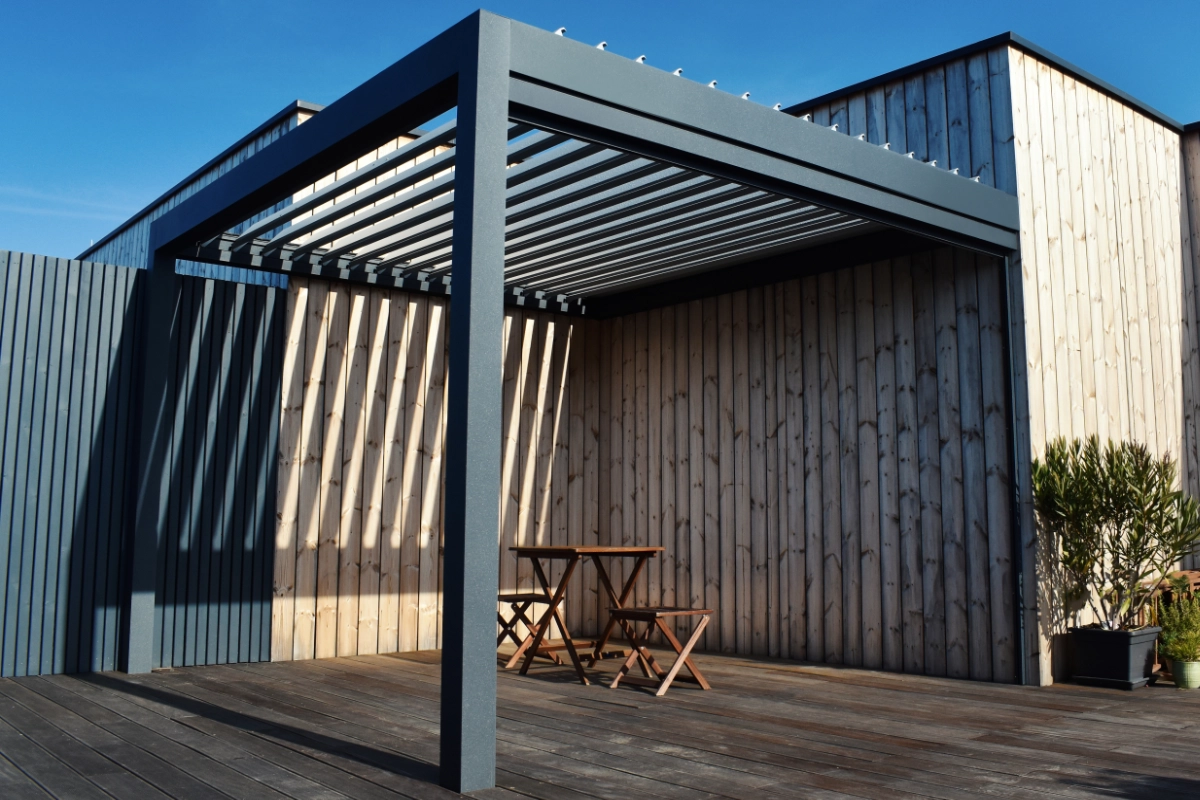

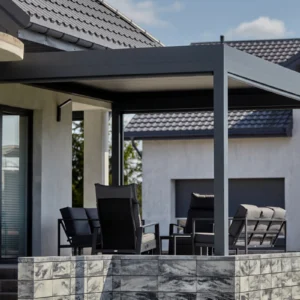

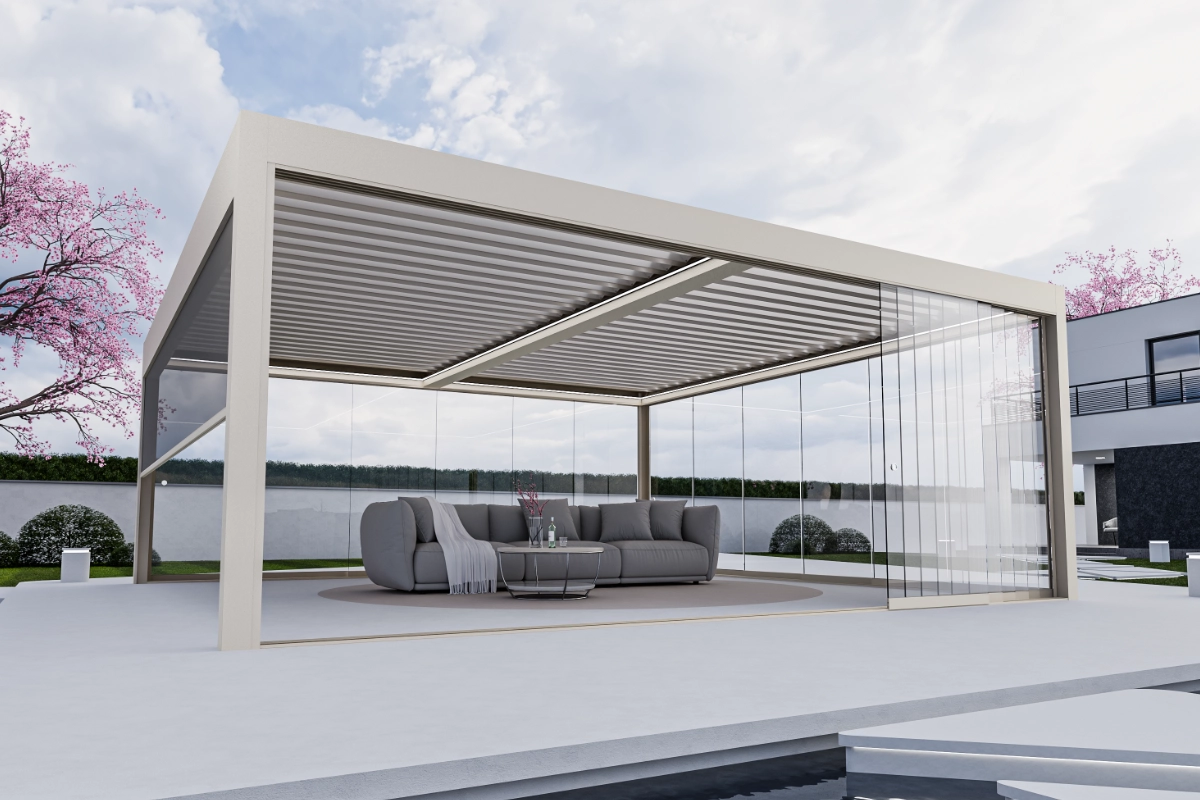

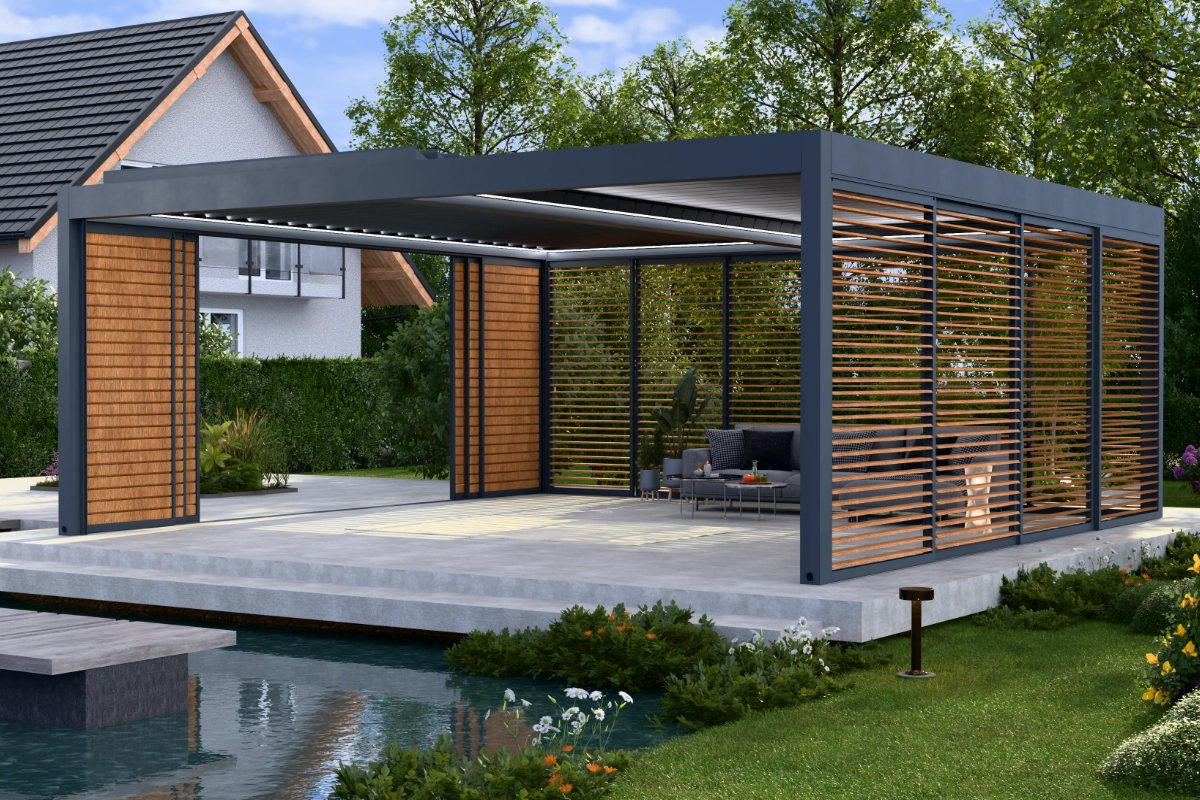

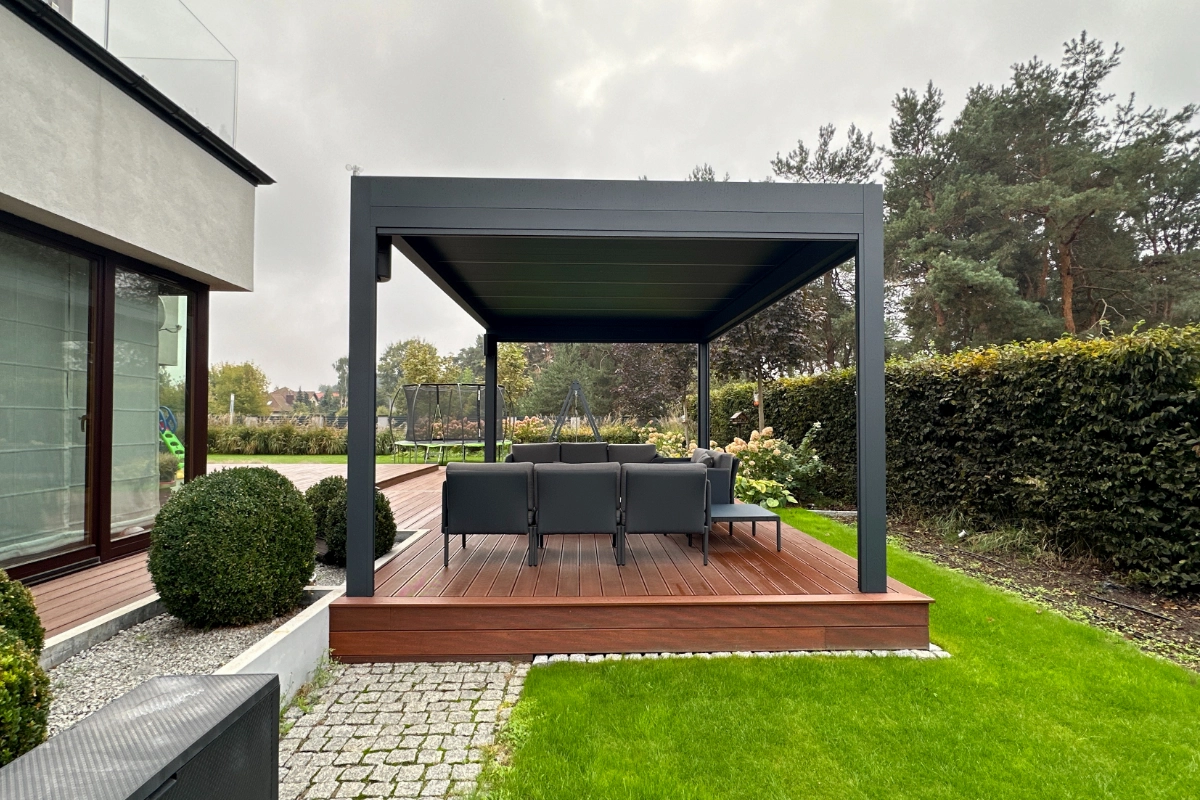

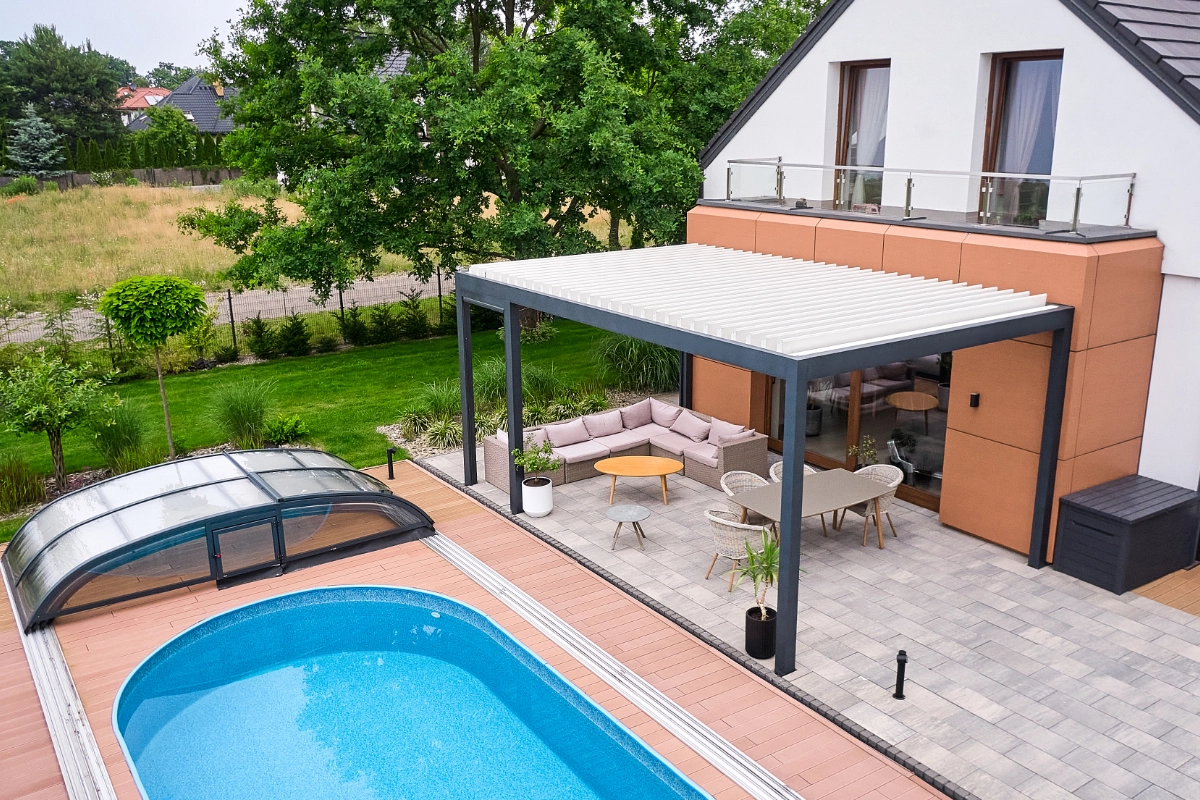

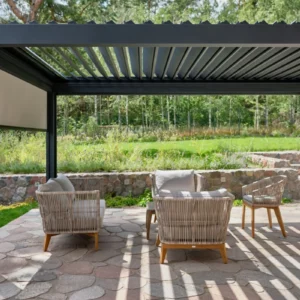

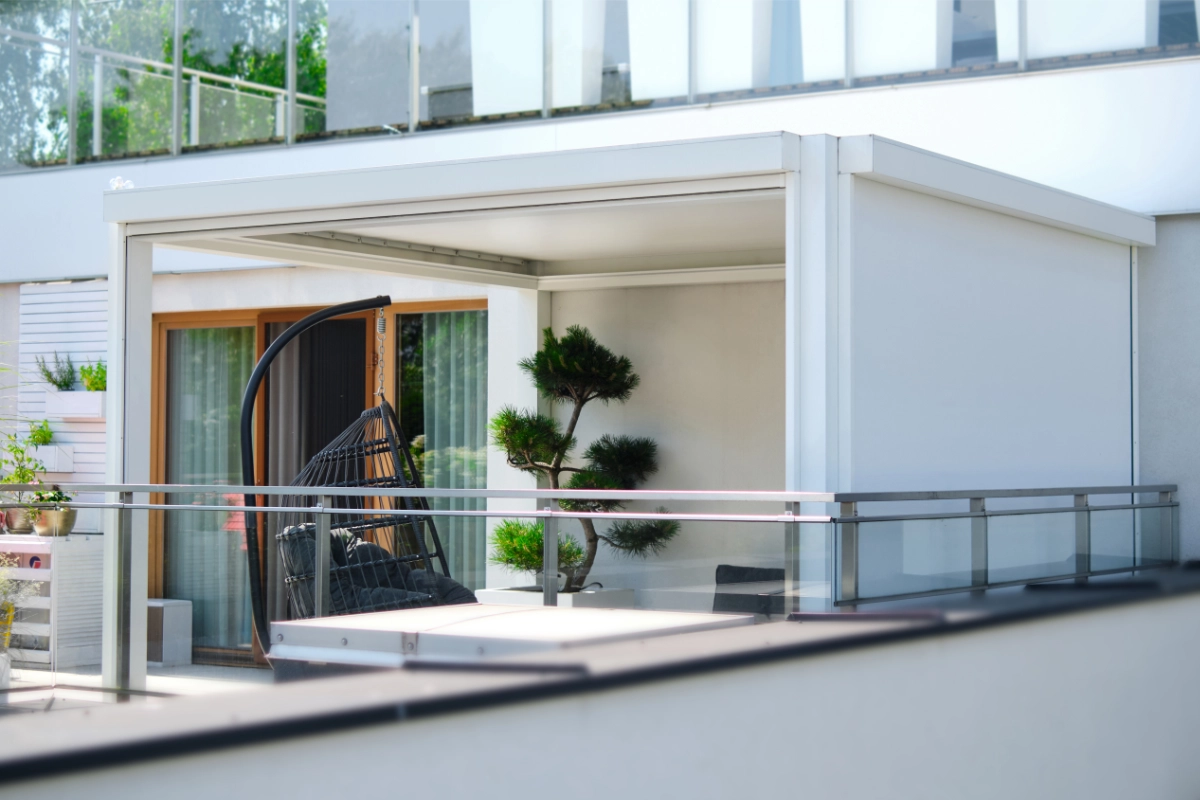

PERGOLA WIN CLIMATIC S500

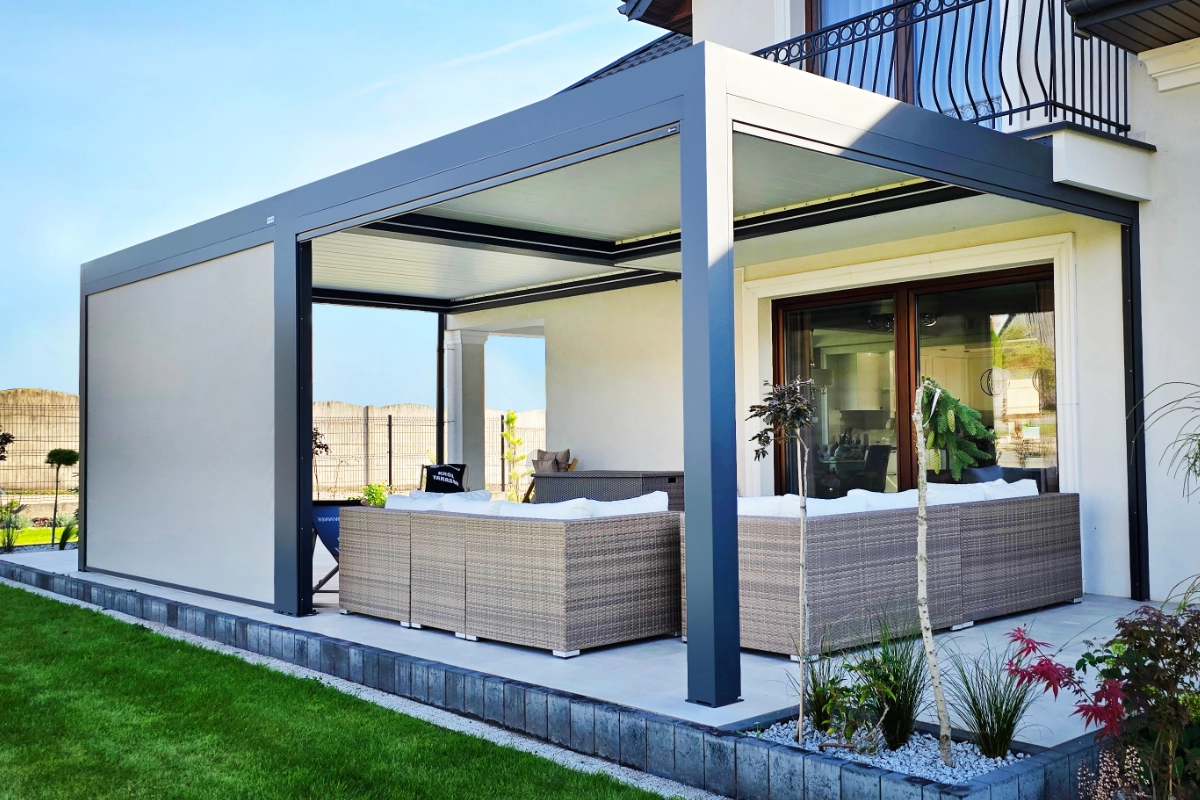

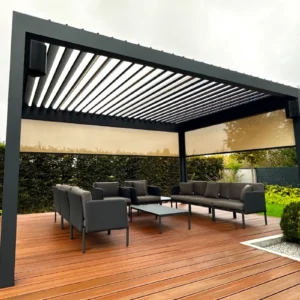

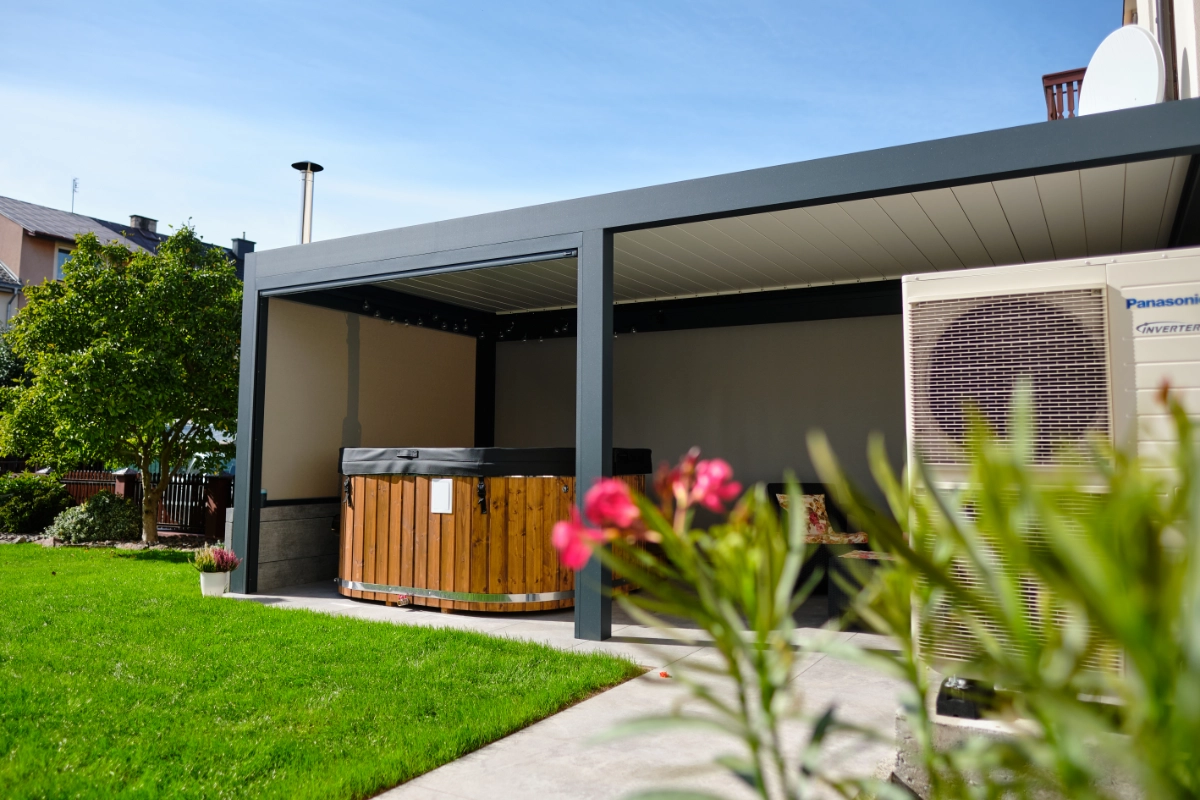

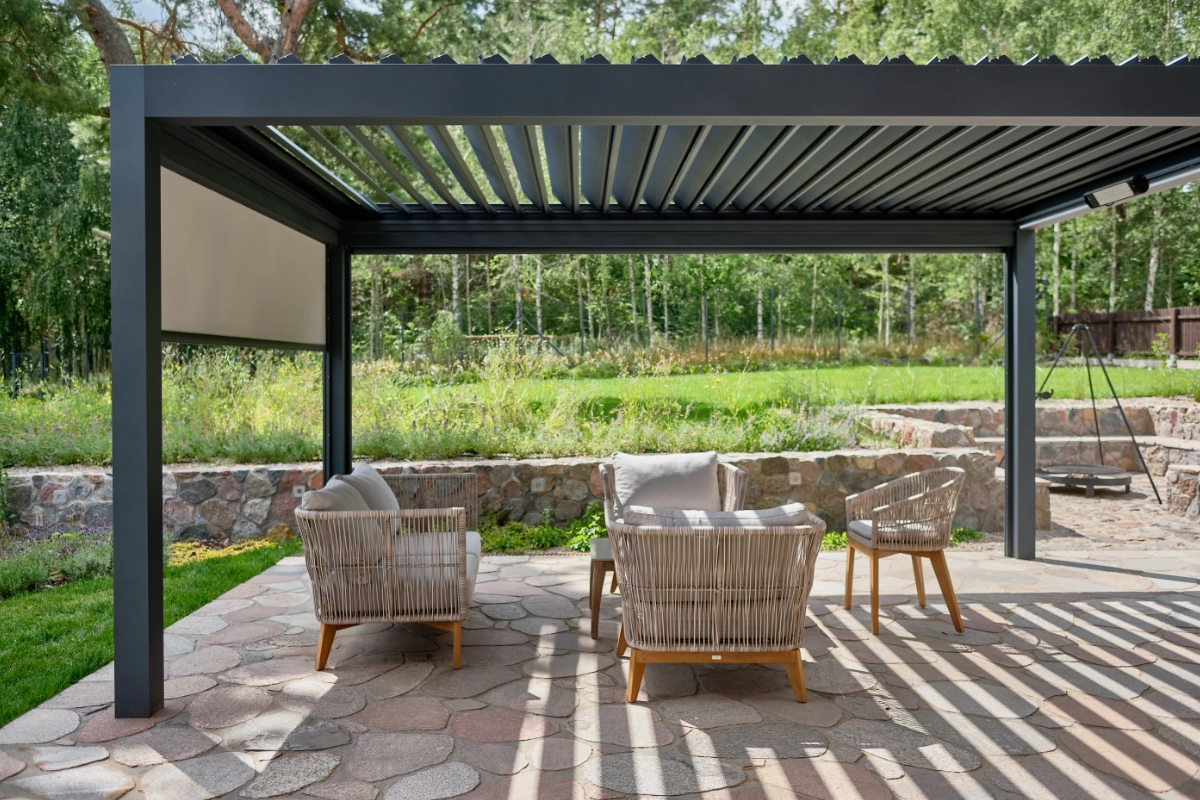

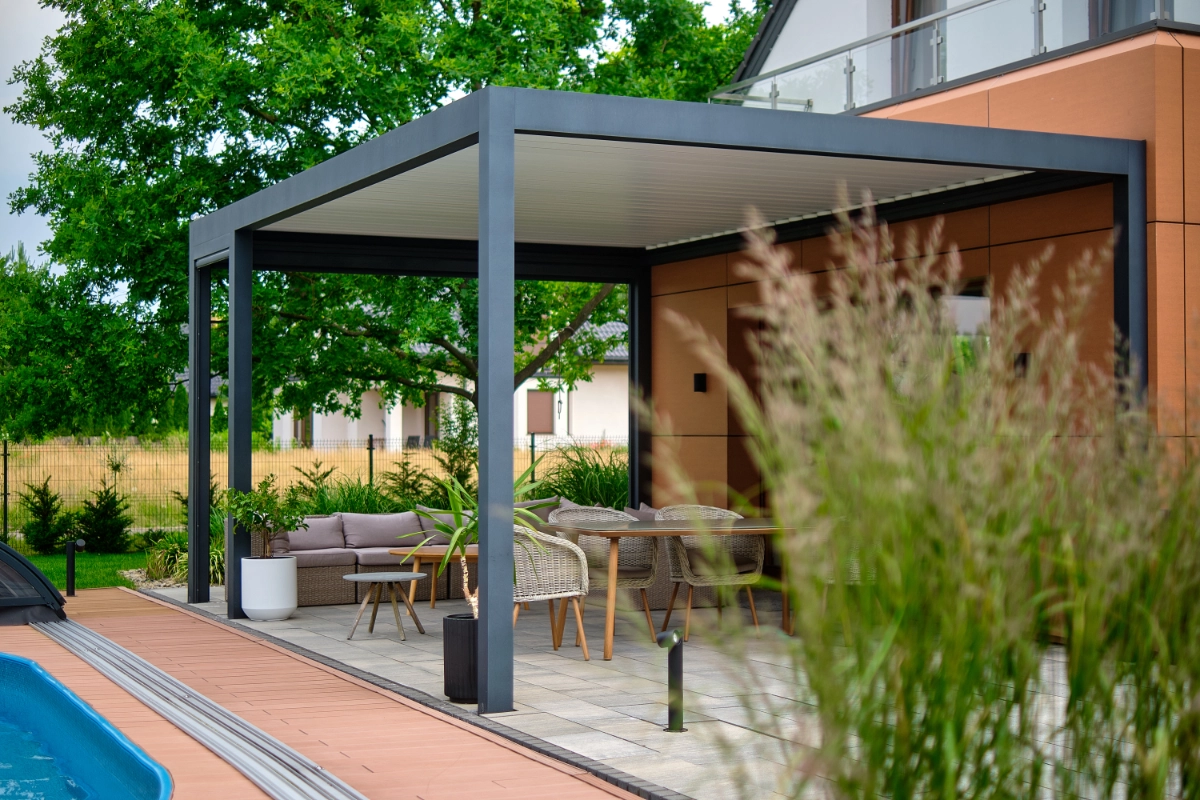

The WIN CLIMATIC S500 is the latest model in the SUN WINNER range. The S500 pergola is the most revolutionary and innovative, fully automatic terrace roofing system, crafted from durable powder-coated extruded aluminum and stainless steel. The impressive dimensions of the pergola surpass the global leaders in pergola manufacturing, making our product unmatched in the market.
The S500 model features 15 new profile designs and as many as 8 proprietary patented system solutions!

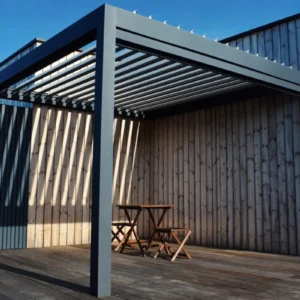

The pergola roof is made up of aluminum slats that can rotate from 0° to 135°, allowing control over the amount of sunlight while, in the closed position, providing protection from excessive sun exposure and weather conditions. The WIN CLIMATIC S500 is a solution designed for modern and demanding outdoor spaces such as terraces and gardens, as well as commercial areas like restaurant and hotel patios.

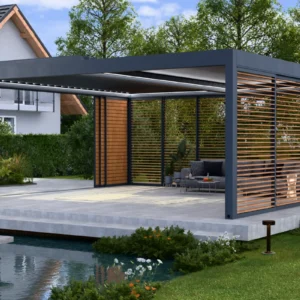

It also offers the possibility of enclosing the sides of the structure with WIN SCREEN external roller blinds, the WIN GLASS sliding glass system, or the WIN PANELS sliding panel system.

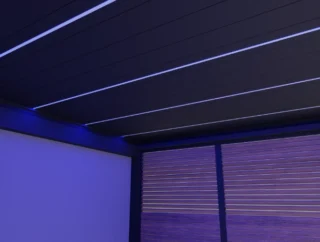

LINEAR LED LIGHTING IN roof LOUVERsImpressive possibilities for configuring and integrating LED lighting with the pergola structure.
Innovative LED louvers with an integrated diffuser in black or white.
Controlled via the pergola’s remote control, the waterproof LED COB WHITE, RGB, or RGB-W tape (WHITE 320 diodes/m, RGB 840 diodes/m) provides a continuous line of light without visible points.
Light color options: 3000 K – warm, 4000 K – neutral, or 6500 K – cold.

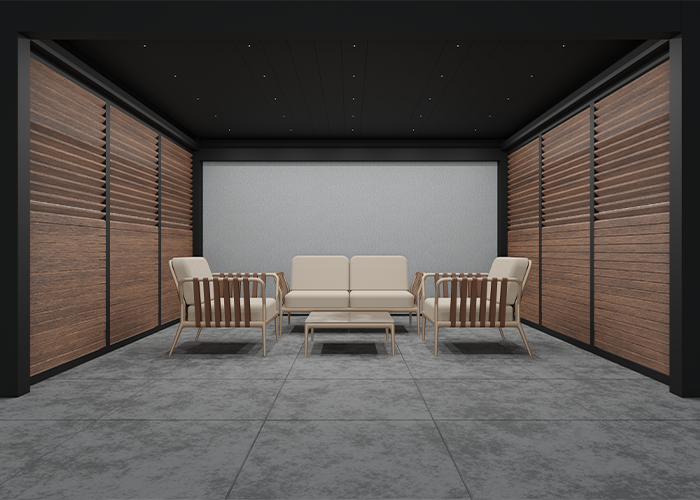

SPOT LED LIGHTING IN roof LOUVER
Impressive possibilities for configuring and integrating LED lighting with the pergola structure.
Spot LED lighting in the roof louvers discreetly blends with the pergola structure. The 2 W LED points, placed in the louvers, have a warm white color of 3000 K or a neutral color of 4000 K.
They have an IP 44 protection rating, while the power supply has an IP 67/65 rating. The lighting receiver allows control via the pergola’s remote control.
In a single pergola, 9 to 35 light points can be installed in the roof louvers.
Impressive possibilities for configuring and integrating LED lighting with the pergola structure.

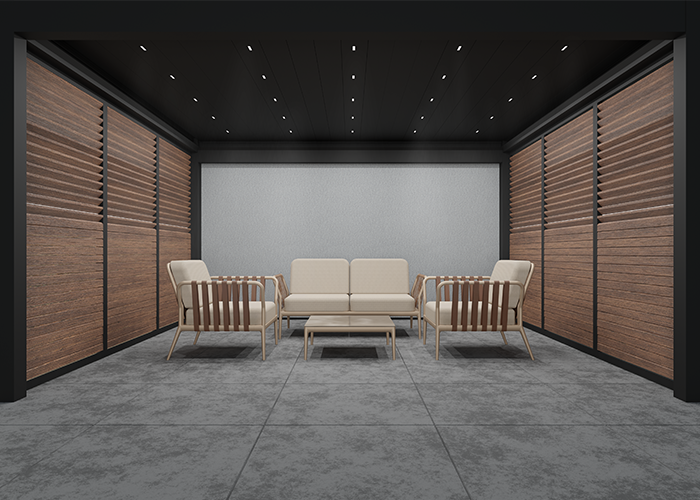

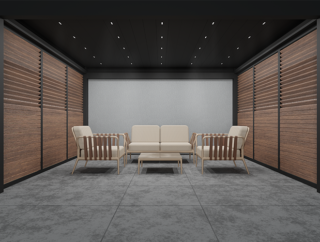

LED lamps in the roof louvers are an interesting alternative to spot lighting. The 4 W LED lamps, placed in the louvers, have a warm white color of 3000 K or a neutral color of 4000 K.
They have an IP 44 protection rating, while the power supply has an IP 67/65 rating. The lighting receiver allows control via the pergola’s remote control.
In a single pergola, 4 to 28 LED lamps can be installed in the roof louvers.
AMBIENT LIGHTING INTEGRATED WITH THE PERGOLA CROWNImpressive possibilities for configuring and integrating LED lighting with the pergola structure.
Innovative aluminum LED profile with integrated diffuser in black or white.
Controlled via the pergola’s remote control, the waterproof LED COB WHITE, RGB, or RGB-W tape (WHITE 320 diodes/m, RGB 840 diodes/m) provides a continuous line of light without visible points.
Light color options: 3000 K – warm, 4000 K – neutral, or 6500 K – cold.
SPOT LED LIGHTING INTEGRATED WITH THE PERGOLA CROWNImpressive possibilities for configuring and integrating LED lighting with the pergola structure.
Spot lighting in the pergola crown is a great visual addition to pergola structures without side coverings, which can be controlled via the pergola’s remote control.
The 2 W LED points have a warm white color of 3000 K or a neutral color of 4000 K.
VERTICAL LED LAMP ON THE pergola columnImpressive possibilities for configuring and integrating LED lighting with the pergola structure.
Double, vertical (upward/downward shining) LED lamps with 4.6 W power and a warm light color of 3000 K or a neutral light color of 4000 K are a very interesting addition to any pergola model.
The vertical lamp is an elegant complement to the pergola’s equipment and helps create a relaxing atmosphere.

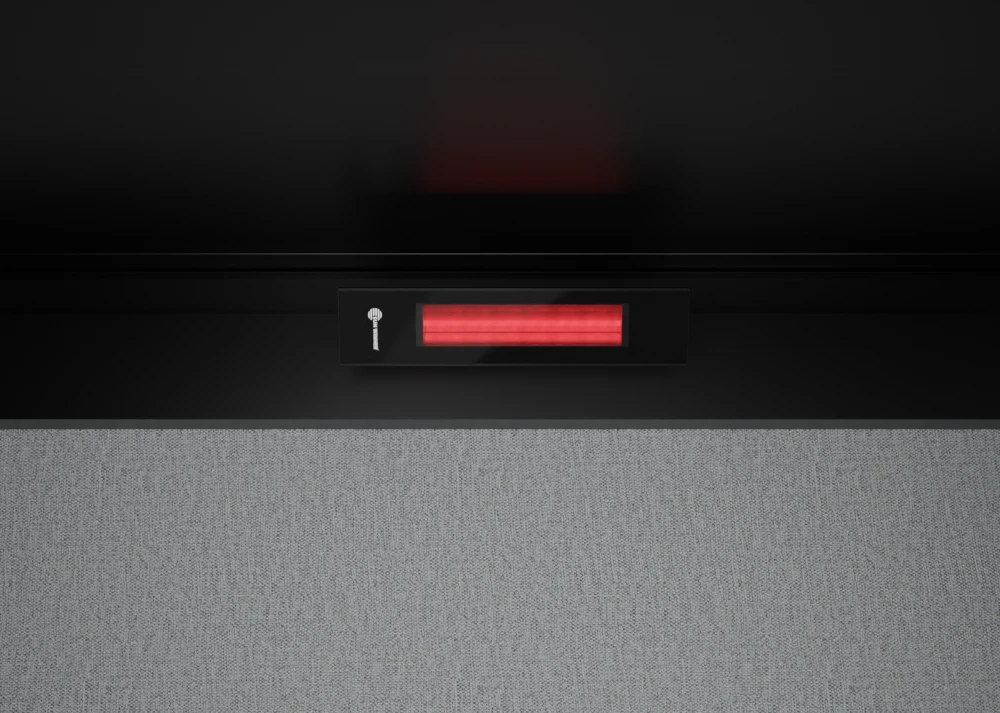

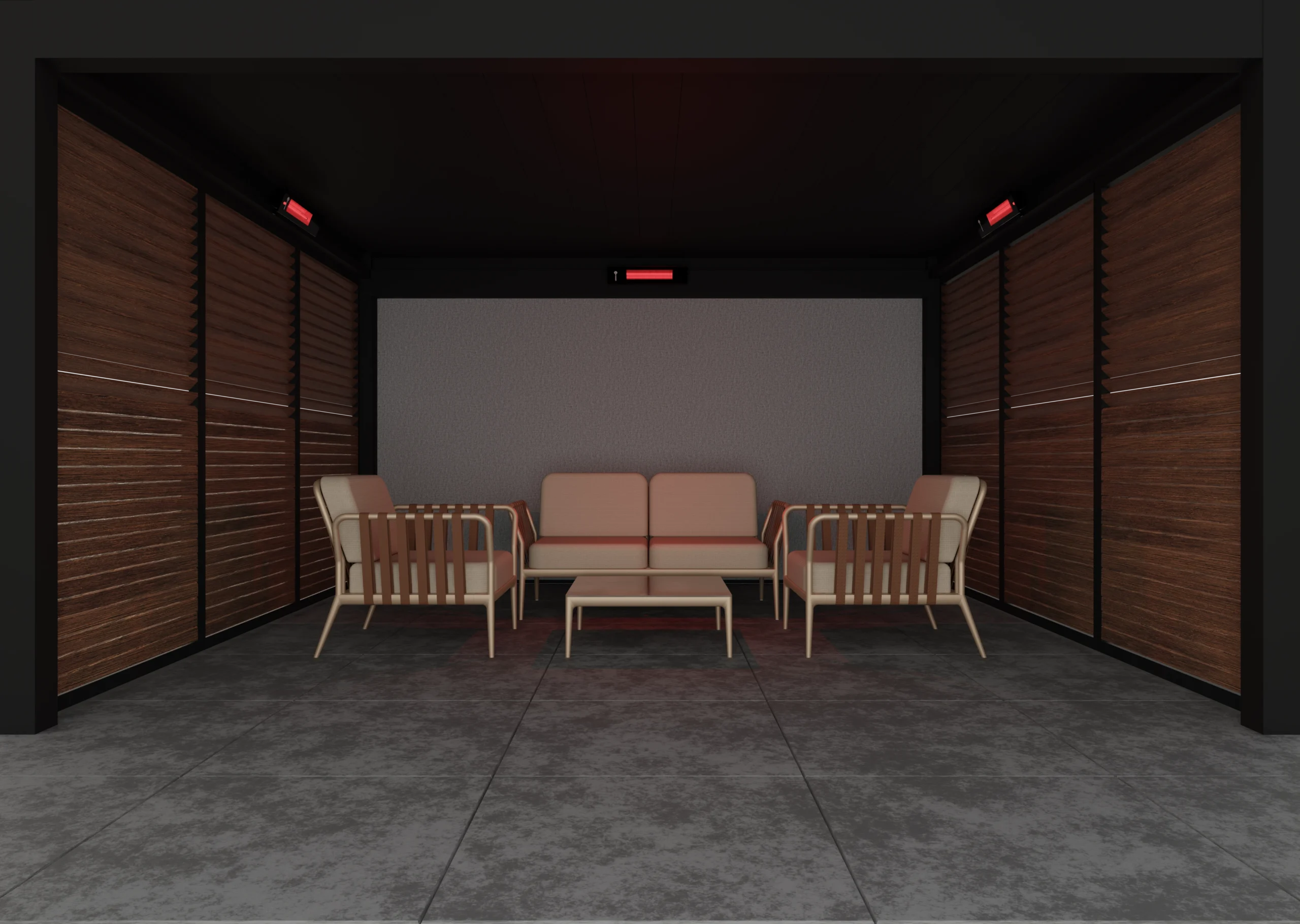

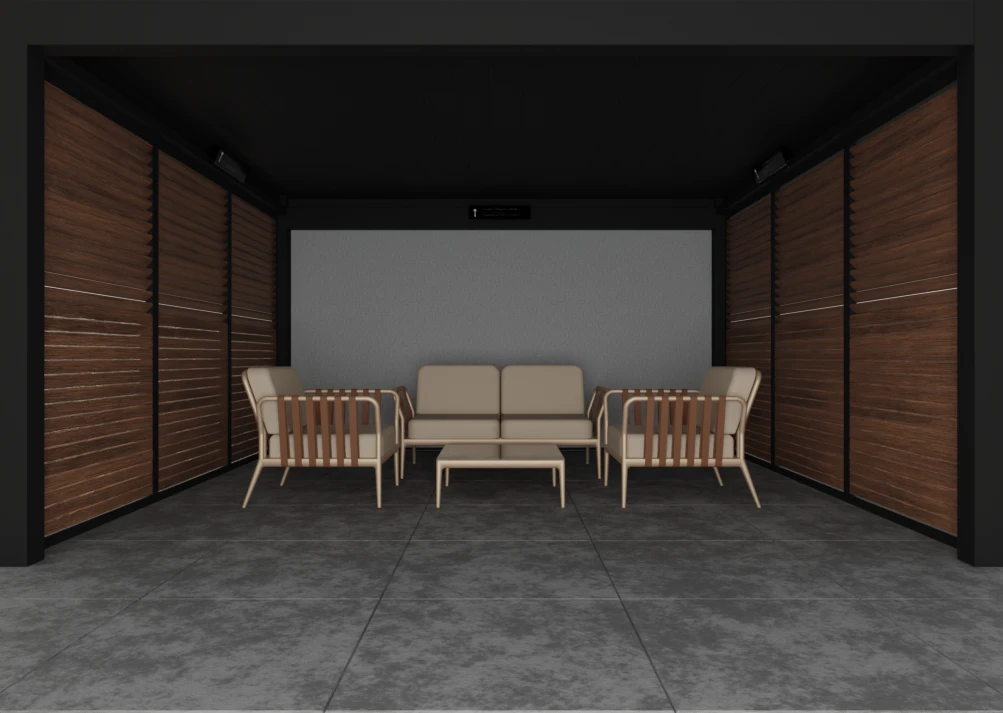

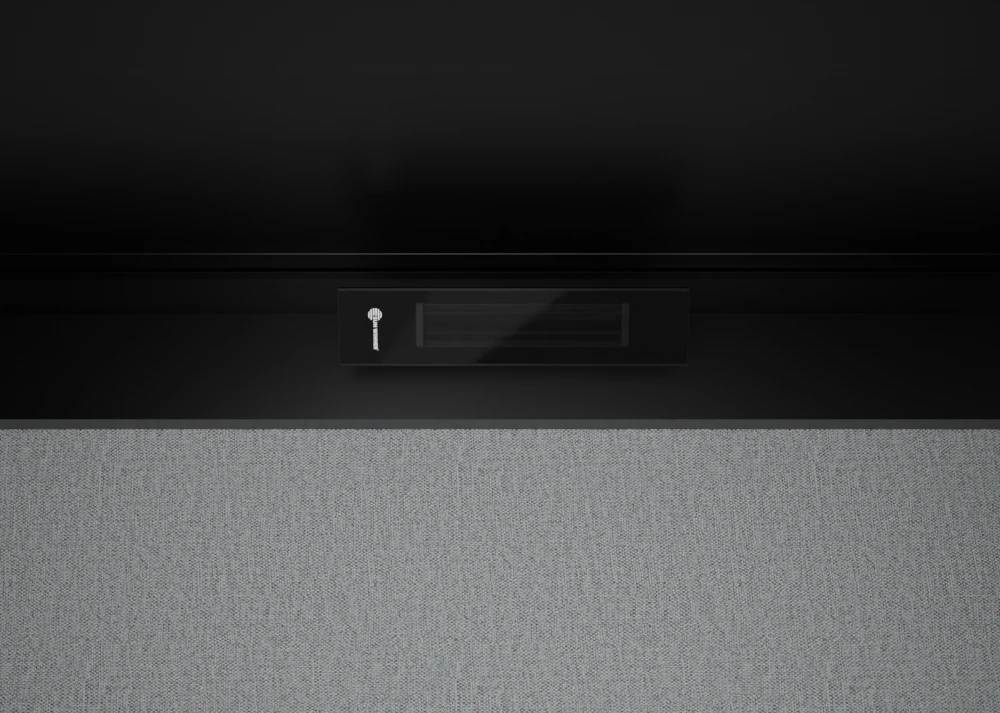

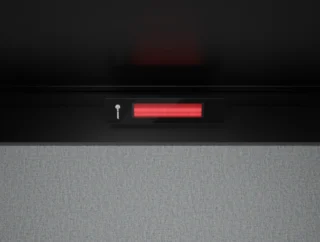

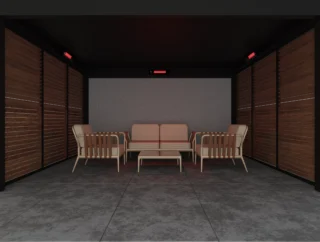

HEATERSEnsure thermal comfort in your relaxation area!
Equip your pergola with the chosen heater and use it all year round.
We offer single heaters with a power of 1500 W or double heaters with a power of 4000 W, in white or black, with the option to choose control: with heating power regulation or with an ON/OFF option. For user convenience, the heater can be controlled via the pergola’s remote control.
Additionally, the LOW GLARE function reduces the amount of light emitted by the heater.
AUDIO SYSTEMThe perfect pergola is a pergola with built-in sound!
Do you love music and value interior aesthetics? Perfect! Equip your pergola with an integrated audio system consisting of two waterproof speakers with a total power of 50 W.
The audio set includes an AUDIO BLUETOOTH control unit, which allows system control via a smartphone or tablet app.
The speakers are weather-resistant and do not require disassembly, e.g., during autumn or winter.
POWER SOCKETSElegant and practical!
Get rid of cable clutter in your pergola. By installing electrical sockets, you can freely power appliances or charge mobile devices without the need to extend cables.
We offer 230 V sockets with IP 54 protection or double USB 2 A sockets with IP 65 protection.
BLUETOOTH HUBWelcome to the 21st century!

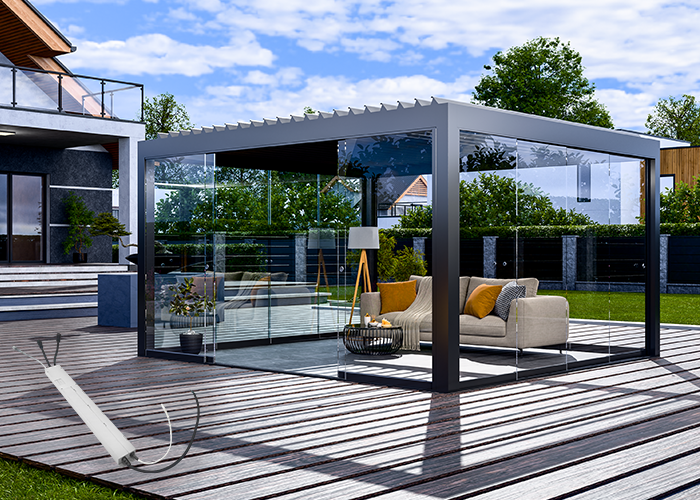

The smart control unit with a built-in Bluetooth interface is used for local control via a phone or tablet through an app.
It allows the creation of simple scenarios and programming of a weekly timer. Simple and quick installation without the need for online user registration.
WI-FI HUBWhy is a Wi-Fi control unit worth it?

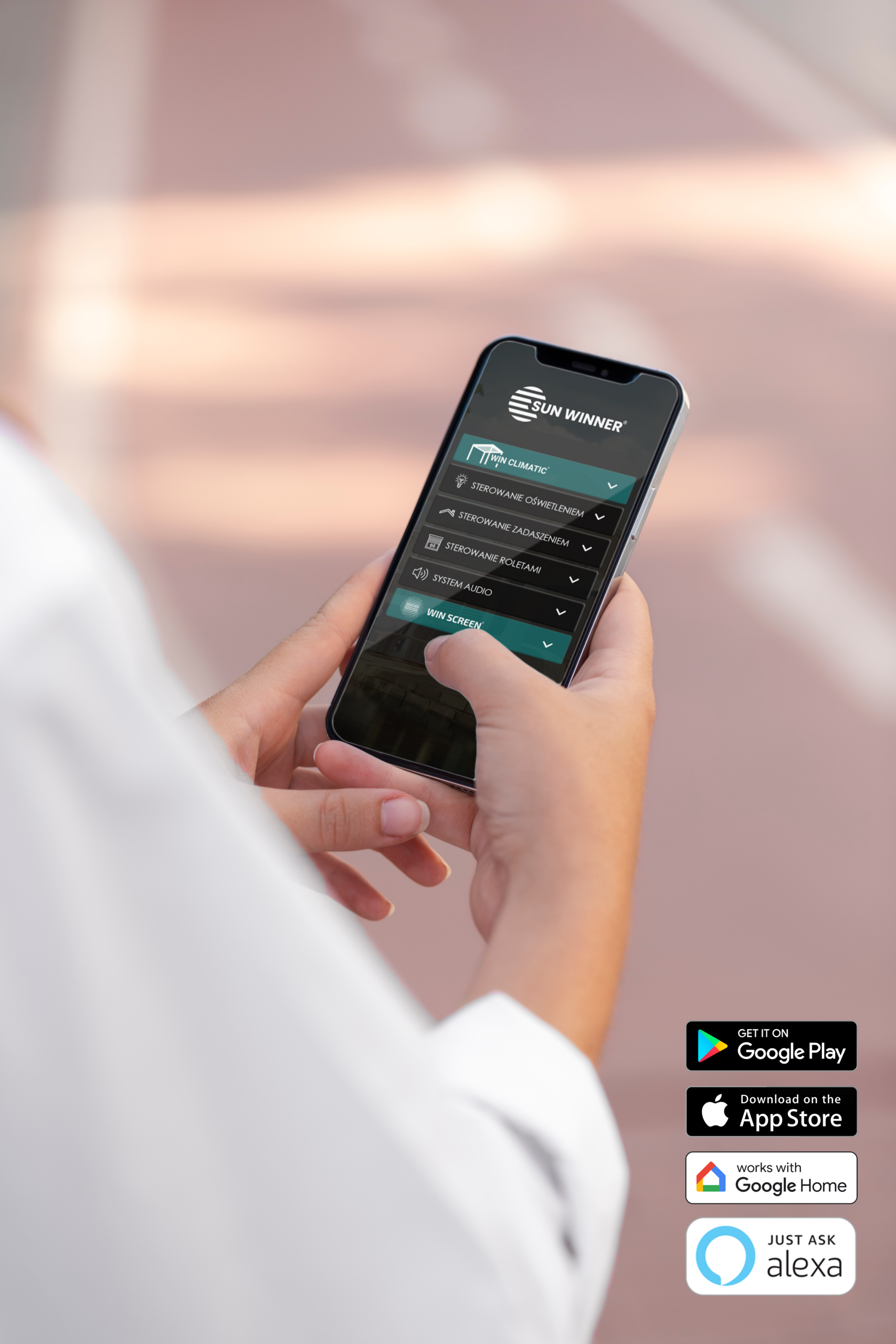

The smart control unit with a built-in Wi-Fi interface allows control via a phone or tablet through an app and offers remote control via the Internet.
It enables easy scenario creation and weekly timer programming.
The Wi-Fi control unit allows connection and control of devices via multiple smartphones or tablets simultaneously and also offers voice control via Google Home or Amazon Assistant.

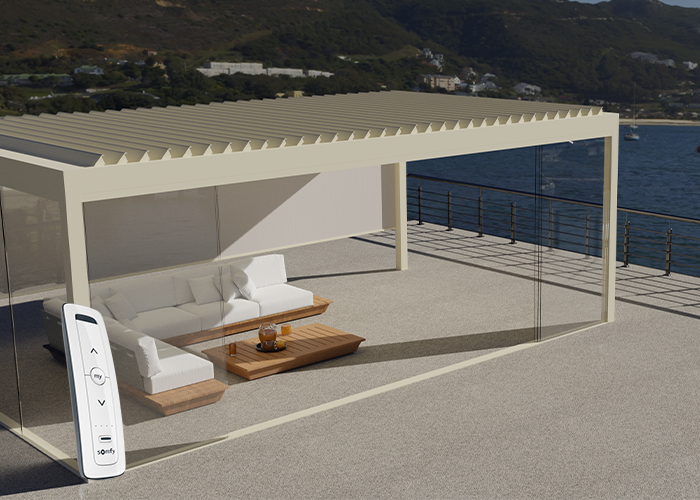

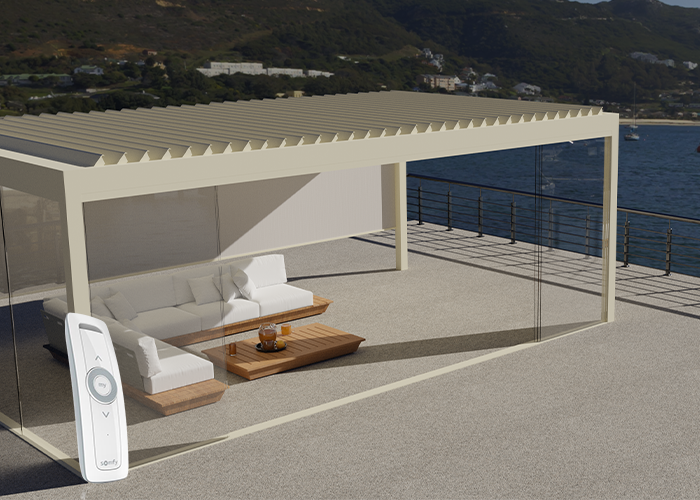

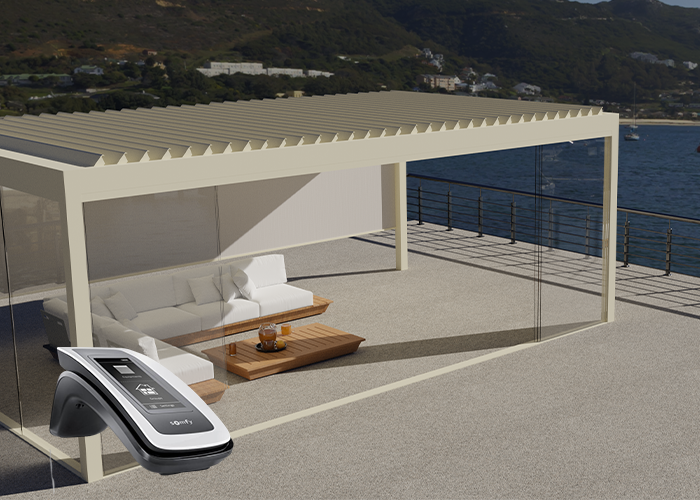

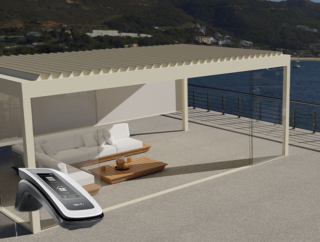

63 CHANNEL REMOTE CONTROLWHO HAS THE REMOTE, HAS THE POWER!
Additional remotes for controlling the pergola in white or black.
The 63 channels, divided into 9 product groups, allow control of: the pergola roof, WIN SCREEN blinds, LED lighting, and heaters.
WIND SENSORSAFETY FIRST!
With the use of a wind sensor, you can avoid damage to your pergola caused by strong winds.
The sensor detects strong wind and controls the pergola roof louvers to minimize wind resistance and protect the structure.
RAIN SENSORRAIN PROTECTION
The rain sensor automatically closes the roof when precipitation is detected, protecting the interior of the pergola.
By using the rain sensor, you can prevent the pergola’s interior from being flooded by water accumulating on the roof.
The sensor prevents the full opening of the louvers for several hours after detecting precipitation.
Additionally, the sensor has a heating function to prevent false activation in the case of snowfall or icing.
TEMPERATURE SENSORFROST PROTECTION
By using a temperature sensor, you can avoid damage to the pergola caused by freezing or icing.
If the temperature drops to +3°C, the sensor automatically tilts the roof louvers to prevent them from frosting.
SNOW SENSORSNOW PROTECTION
By using a temperature sensor combined with a rain sensor, you can avoid damage to the pergola due to excessive snow load.
When snow is detected, the sensor automatically tilts the roof louvers.
ALL IN ONE PACKAGEFORT HE MOST DEMANDING CUSTOMERS!
Comprehensive protection for your pergola is guaranteed by the installation of all available weather automation solutions.
Thanks to intelligent control, you don’t have to worry about your pergola being damaged by unexpected weather changes during your absence.
All-In-One Package = Peace of Mind

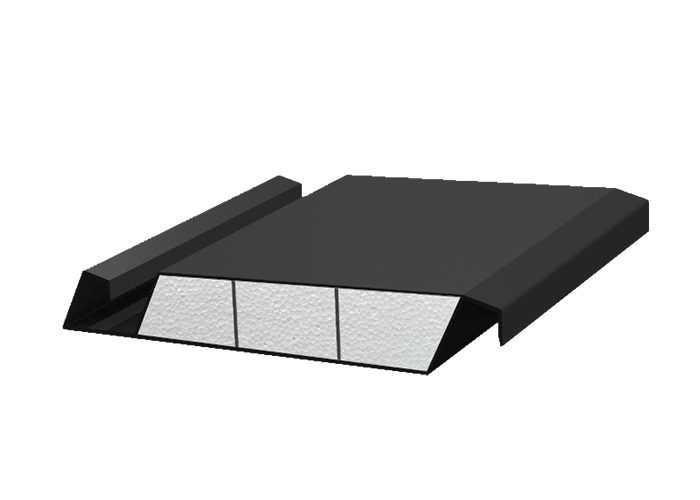

INSULATING THERMAL INSERT
IMPROVE THERMAL AND ACOUSTIC PERFORMANCE
By using an insulating insert, you can significantly enhance the acoustic and thermal properties of your pergola.
Enjoy extra protection from overheating during hot summers and ensure thermal comfort indoors during the winter months.

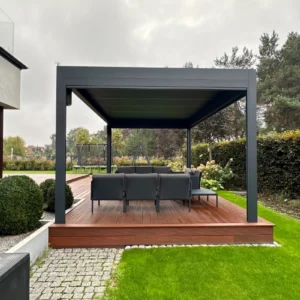

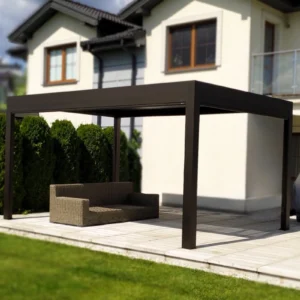

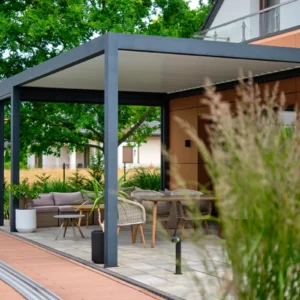

FREE STANDING PERGOLA TYPE AThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.

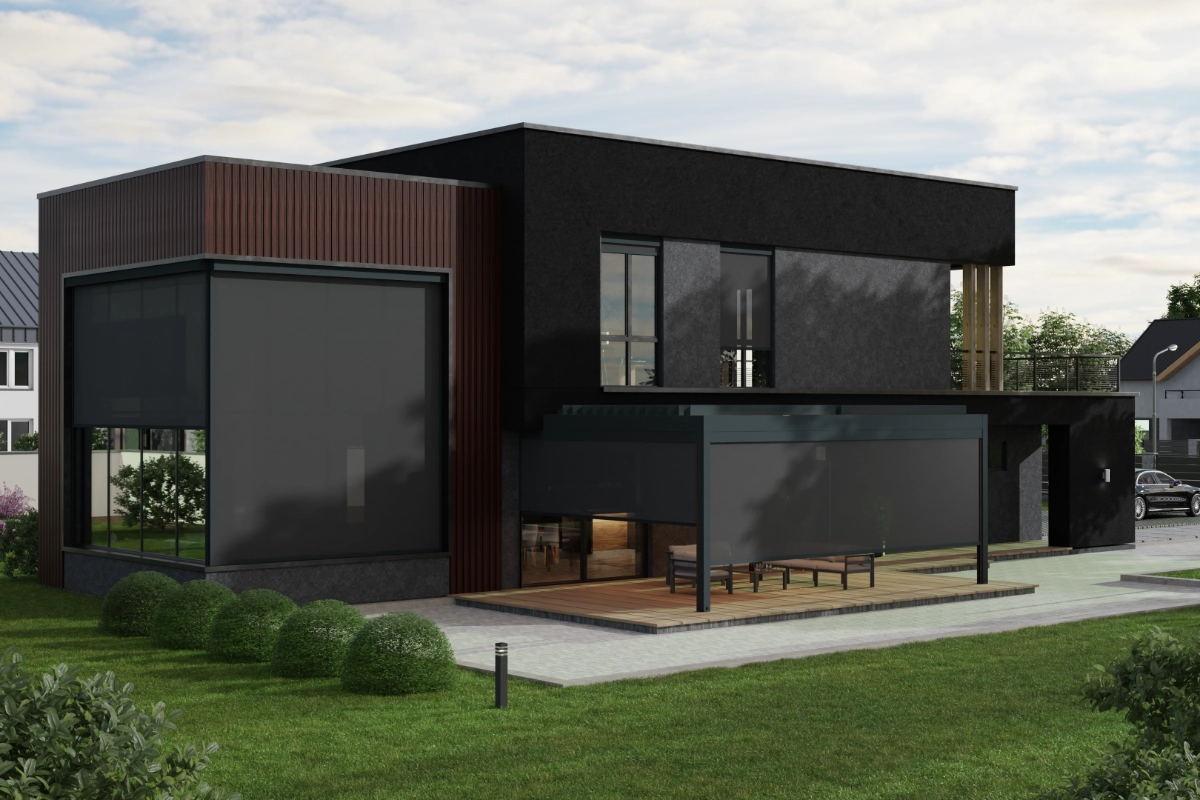

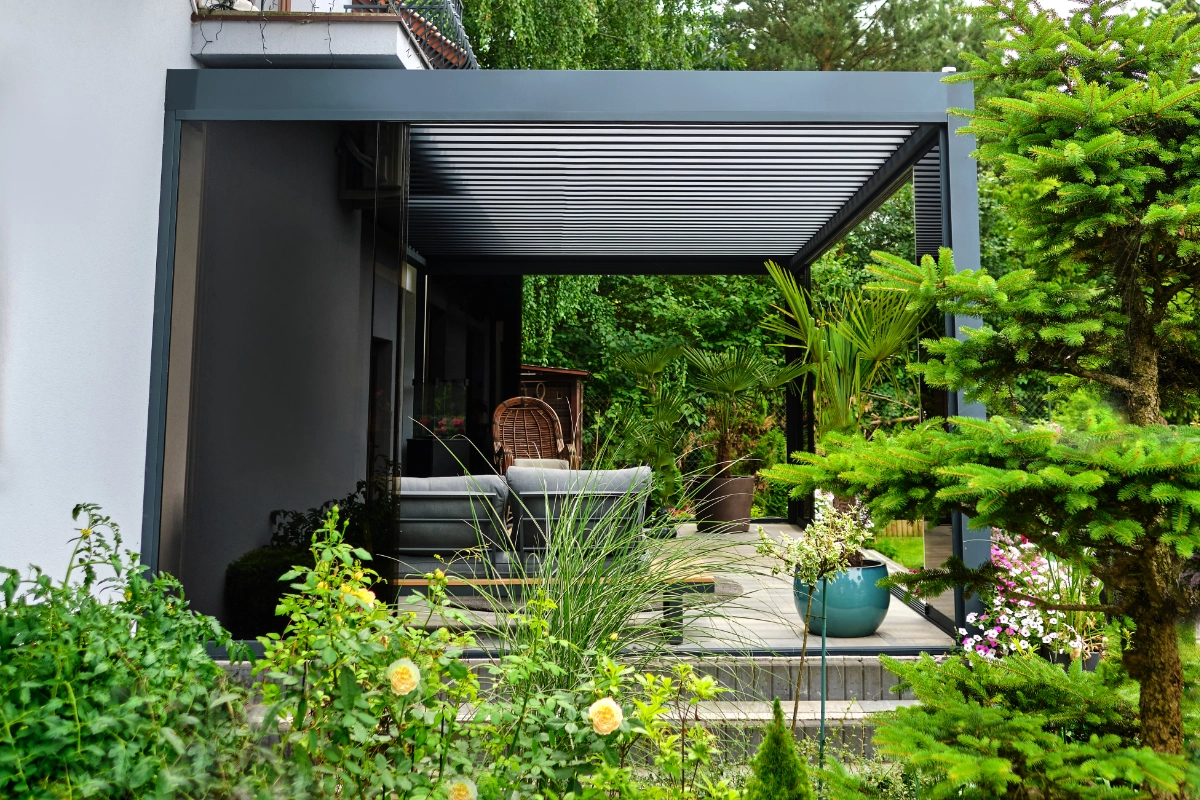

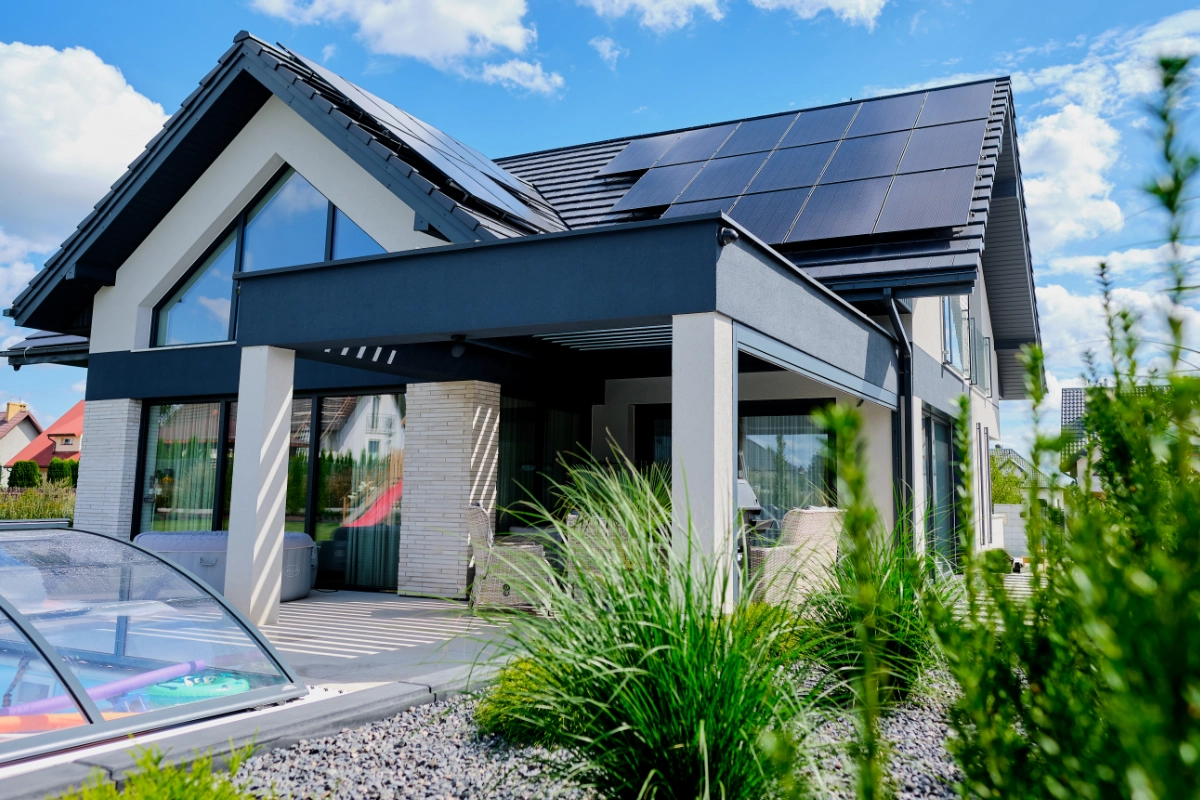

WALL-MOUNTED PERGOLA TYPE BThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
WALL-MOUNTED PERGOLA TYPE CThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
WALL-MOUNTED PERGOLE TYPE DThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
WALL-MOUNTED PERGOLA TYPE EThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.

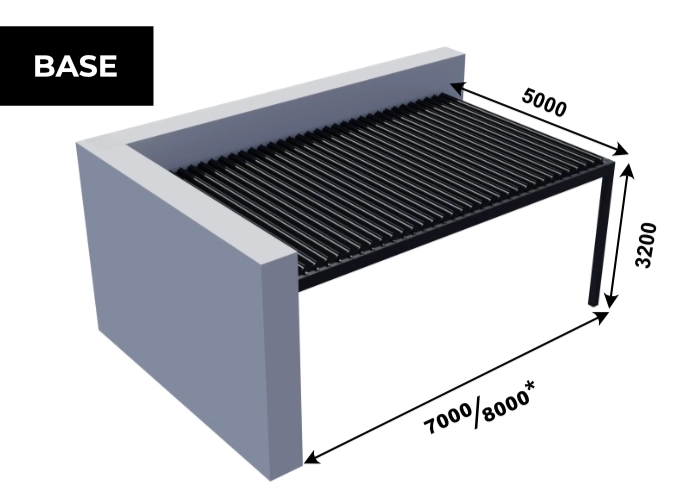

ROOF MODULE TYPE FThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
ROOF MODULE TYPE GThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
ROOF MODULE TYPE HThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.

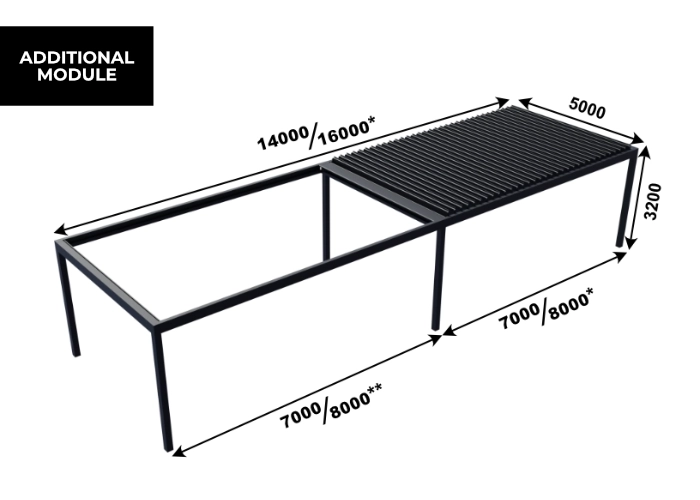

ADDITIONAL MODULE WITHOUT ROOFINGThe innovative design of the pergola ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom.
This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
DOUBLE FREESTANDING PERGOLA TYPE A 'DOUBLE FREESTANDING PERGOLA – WITHOUT CENTRAL SUPPORT POST (ADDITIONAL MODULE)
The innovative design of the double pergola without support post ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom. This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
DOUBLE WALL-MOUNTED PERGOLA TYPE C 'DOUBLE WALL-MOUNTED PERGOLA – WITHOUT CENTRAL SUPPORT POST (ADDITIONAL MODULE)
The innovative design of the double pergola without support post ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom. This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
DOUBLE WALL-MOUNTED PERGOLA TYPE D 'DOUBLE WALL-MOUNTED PERGOLA – WITHOUT CENTRAL SUPPORT POST (ADDITIONAL MODULE)
The innovative design of the double pergola without support post ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom. This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
DOUBLE ROOF MODULE TYPE F 'DOUBLE WALL-MOUNTED PERGOLA – WITHOUT CENTRAL SUPPORT POST (ADDITIONAL MODULE)
The innovative design of the double pergola without support post ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom. This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
DOUBLE ROOF MODULE TYPE G 'DOUBLE WALL-MOUNTED PERGOLA – WITHOUT CENTRAL SUPPORT POST (ADDITIONAL MODULE)
The innovative design of the double pergola without support post ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom. This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
DOUBLE ROOF MODULE TYPE H 'DOUBLE WALL-MOUNTED PERGOLA – WITHOUT CENTRAL SUPPORT POST (ADDITIONAL MODULE)
The innovative design of the double pergola without support post ensures that all screw connections are concealed within the support posts and the crown, leaving no visible screws on the sides, top, or bottom. This design provides a sleek, clean aesthetic.
The WIN CLIMATIC S500 also allows for the seamless combination of multiple pergola modules, offering limitless possibilities for creating custom covered spaces.
INDIVIDUAL PROJECTION OF THE PERGOLA
Individual projection with precision down to 1 mm! This is the perfect solution for suspended pergolas installed in concrete beams or terrace recesses. There is no need for additional spacers or flashing.
REPEATABLE LOUVERS PROJECTION STEP EVERY 250 mm
The pergola’s structure and all profiles have been designed to ensure a consistent, repeatable projection based on a louver step module of 250mm. This design provides flexibility and precision in adjusting the pergola’s projection, ensuring that each extension is uniform across the entire installation.

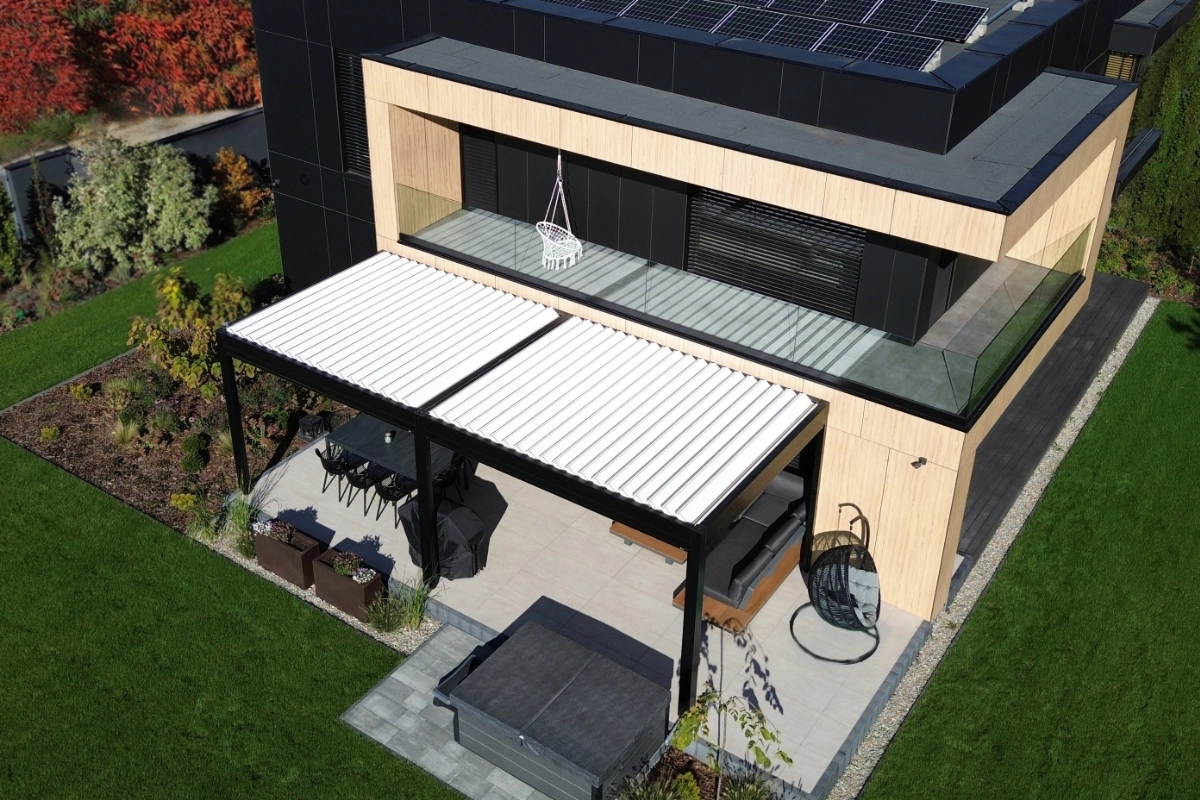

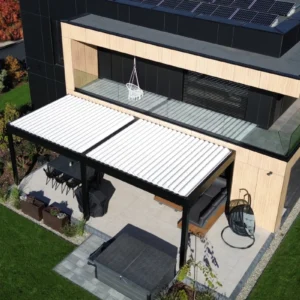

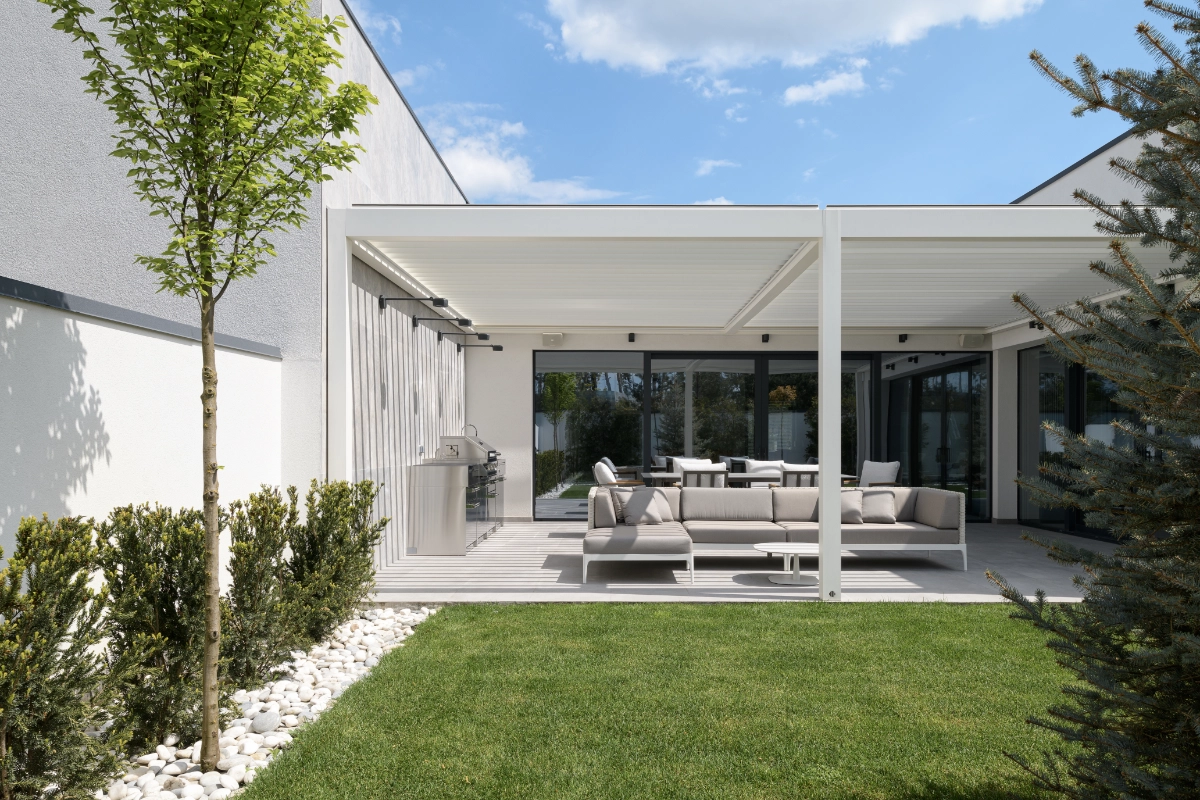

TWO-MODULE PERGOLA WITHOUT CENTRAL SUPPORT POST
The innovative design allows for the construction of a two-module pergola without the need for a central support post. The impressive maximum dimensions without the central support post are:
Max surface area: : 48,65 m2
Max width: 6950 mm
Max projection: 7000 mm
IMPRESSIVE AND UNMATCHED DIMENSIONS OF THE PERGOLAS
The system solutions used in the construction allow for large dimensions in both single and multi-module pergolas:
Single Pergola (1-module):
MAX area: 38,75 m2
MAX width: 5000 mm
MAX projection: 7750 mm
STABLE AND STRONGER PERGOLA CONSTRUCTION
The solid frame of the pergola ensures high resistance to loads caused by heavy snowfall and strong wind gusts. Compared to other pergolas available on the market, its construction is significantly stronger and more stable due to the use of additional strengthening chambers, stiffeners, and specially designed profile shapes. Reinforcements and ribbing have been applied to most of the profiles used, including the crown, louvers, gutter, support posts, and other profiles.
BOX IN A ROOF MODULE
The BOX is a practical and aesthetic solution designed to hide the control units and power supplies of the pergola. Made from the pergola’s support post, it features an access panel measuring 130 mm x 130 mm x 1500 mm in length. The module is centrally mounted along the width of the pergola frame, ensuring discreet integration with the overall structure. The BOX not only protects the control units from the elements but also enhances the aesthetics of the entire pergola structure.
SIDE WATER DRAINAGE
Side Water Drainage in the pergola column is made of aluminum and is powder-coated to match the color of the pergola’s structure, ensuring a seamless and aesthetically pleasing finish for the entire system. This solution allows for effective water drainage, ensuring safe and efficient removal of rainfall from the pergola’s structure. The side drainage combines functionality with elegant design, harmoniously blending with the other elements of the pergola.
AESTHETIC FIXING OF THE END CAP /COVER OF THE SUPPORT POST
Our support post cover is made from a cast aluminum alloy and is equipped with installation grooves, eliminating the need for visible screws and rivets. Unlike most pergolas available on the market, where covers are mounted using visible screws, our solution ensures a clean, aesthetic appearance without unnecessary mounting elements visible to the user.
BRUSH SEAL IN THE GUTTER
In the pergola frame, both in the single and double crown, there is a brush seal placed in the gutter section, responsible for collecting water from the louvered roof. When the roof is closed, this seal adheres to the sides of the louvers, effectively limiting water splashing and leakage during rainfall. This solution increases the comfort of using the pergola on rainy days, providing better protection against water.
IMPROVED LOUVER SEAL
A new type of seal has been applied in the louvers of the pergola, ensuring maximum tightness between the louvers of the roof. The seal has been designed to guarantee both full sealing and quiet operation of the entire system by maintaining its flexibility during the closure of the roof. This innovative solution makes the pergola even more comfortable to use, even in harsh weather conditions.
FASTER AND EASIER ASSEMBLY OF THE LOUVERS FOR THE ROOFING
The pergola roofing system allows for the quick and easy assembly of louvers without the need to insert and adjust them at an angle within the structure. The absence of the need for securing and positioning the louvers significantly speeds up the installation—up to four times faster—while ensuring perfect precision in the setup.
INVISIBLE SCREW CONNECTION OF THE CROWN WITH THE SUPPORT POST
The innovative pergola design is crafted so that all screw connections are hidden inside the support posts and the pergola crown. As a result, there are no visible screw connections on the sides, top, or bottom of the pergola, ensuring an exceptional aesthetic appearance.
INVISIBLE SCREW CONNECTION OF THE MODULAR CROWN WITHOUT A SUPPORT POST
The design of the double pergola without a central support post has been crafted so that all screw connections are hidden inside the modular crown. As a result, there are no visible screw connections on the sides, top, or bottom, providing a modern and aesthetic appearance.
INVISIBLE SCREW CONNECTION OF THE SUPPORT POST WITH THE MOUNTING BRACKETS
The design of the support post allows for the connection with the mounting bracket inside the post, making the screw connections hidden and invisible to the user from the outside.”
HIDDEN MOTOR FOR THE ROOFING
The innovative design of the pergola crown allows the electric to be hidden inside the pergola. Additionally, all mounting connections are invisible to the user from the outside, ensuring a high level of aesthetic quality and sound insulation for the operation of the electric motor.
INVISIBLE CONNECTION OF THE GUTTER TO THE PERGOLA CROWN
The pergola crown and gutter have been made as a single extruded profile, eliminating visible connections from the underside of the structure, such as the joint between the gutter and the pergola crown. As a result, there is no need for screws or sealant to connect the gutter.
INVISIBLE LOUVERS CONTROL BARS FOR THE ROOFING
The louvers control bar in the WIN CLIMATIC S500 pergola is hidden inside the structure, which enhances the visual effect. In most pergolas available on the market, the control bars are mounted on the top of the louvers on both sides of the pergola, making them visible from the outside and compromising the aesthetic of the entire louvered pergola.
INTEGRATED SURROUNDING GUTTERS AS STANDARD
Thanks to the use of integrated surrounding gutters as standard, water can freely circulate around the circular of the pergola without the risk of overflowing during heavy rainfall. The integrated gutters in the crown additionally reinforce the entire structure, allowing it to bear and withstand much greater loads.
INNOVATIVE INTEGRATED WATER DRAINAGE SYSTEM
Each WIN CLIMATIC S500 pergola is equipped with an innovative rainwater drainage system for the entire roofing. Elbows placed inside the pergola posts ensure airtightness and eliminate any leaks at the profile joints. The entire water drainage system uses a 54/63 mm drainpipe made in a single section, which further enhances the strength and reliability of the entire structure.
GRILL PROTECTING AGAINST CONTAMINATION
The water drainage system is standardly equipped with grilles that protect the elbows and downspout from debris such as leaves, needles, or small branches.
NO LEAKS DURING THE INSTALLATION OF WIN GLASS, WIN SCREEN, AND WIN PANELS
Additional chambers in the profiles eliminate the need for directly screwing into the gutter, which removes the risk of leaks at the screw connections. This solution allows for the safe installation of the WIN SCREEN roller blinds, WIN GLASS sliding glass, or WIN PANELS shutters without concerns about potential leaks
LOUVER WITH INTEGRATED WATER DRAINAGE SYSTEM
Each of the available louvers has been designed so that during smooth rotation up to 135°, the water remains on the louver and flows directly into the surrounding gutters, rather than spilling into the interior of the pergola. When the roof is fully closed (0°), the shape and tilt of the louvers allow for efficient water drainage, even during heavy rainfall.
POSSIBILITY OF USING BOTTOM AND SIDE DRAINS
In the support post with a revision, water drainage is achieved using a flexible PVC downspout pipe with a diameter of 54/63 mm, made in a single piece. This solution allows for both bottom and side drainage. The flexible pipe also provides easy access to electrical centers and installations, and an additional advantage is the ability to adjust the height of the side drainage.
INNOVATIVE CONNECTION BETWEEN THE CROWN AND GUTTER WITH THE SUPPORT POST – FASTER, EASIER, AND MORE SEALING INSTALLATION
The integrated pergola crown connected to the gutter in a single profile brings many benefits during both installation and use. The connection of the crown and gutter to the post is made through hidden screw connections, which speeds up assembly, ensures watertightness, and enhances the overall aesthetic of the structure. The gutters are not joined at a 45° angle,
AUTOMATIC ROOF CONTROL FROM 0° TO 135°
The built-in electric motor allows for automatic control of the louvers of the roofing from 0° to 135°.
2 MODELS OF PERGOLA CROWN COVERS
Thanks to the additional cover in the pergola crown, all fasteners and screw connections, such as the elements or the louver shafts, are completely hidden and invisible to the user from the outside. The covers are equipped with innovative, non-invasive mounting locks that eliminate the need for screws, or sealant, which significantly speeds up and simplifies the pergola installation. Additionally, the profiles are equipped with an integrated sealing gasket, ensuring proper sealing of the entire structure, eliminating gaps, and protecting against external dirt. Two models of innovative covers are available, suitable for both single and modular pergola.
2 MODELS OF INNOVATIVE AND MODERN ROOFING LOUVERS
There are two models of innovative roofing louvers used in the WIN CLIMATIC S500 pergola. The louvers are designed and applied based on the specific use and configuration of the pergola: standard louver, LED louver with integrated lighting, and louver for custom projections, with precision up to 1 mm. Each of our louvers is additionally reinforced, featuring ribs and chambers that increase the overall roof’s durability. The louvers have a modern, simple shape – they are perfectly flat on the inside of the pergola, without any curves or embossing, which makes the entire roofing create a uniform, modern surface.
INNOVATIVE MOUNTING AND SHAPE OF LED PROFILES INTEGRATED WITH THE GUTTER
Two models of LED profiles integrated with the gutter are available. The profiles are equipped with innovative mounting locks that eliminate the need to fasten them to the gutter with screws or glue, significantly speeding up and simplifying installation. The profile shape is designed so that the white LED strip is directed downward at an angle, illuminating the entire interior of the pergola. The second RGB LED strip, located in the same profile is directed upward illuminating.
REINFORCED SUPPORT POST
The open post with a revision flap consists of two aluminum profiles and is additionally reinforced, equipped with innovative mounting brackets. Thanks to the revision flap, which allows access to the inside of the post, it is ideally suited for the installation of controllers, control centers, and all the automation used in the pergola.
6 INNOVATIVE CLOSING PROFILES IN THE SHAPE OF LOUVERS
Six models of innovative closing profiles are available for both single and modular pergolas. These closing profiles are shaped like louvers, maintaining a uniform appearance across the entire roof surface of the pergola. They are equipped with mounting locks, eliminating the need for screw or bolt connections, which significantly speeds up and simplifies the pergola installation. The closing profile also features an integrated seal, ensuring proper sealing of the entire structure.

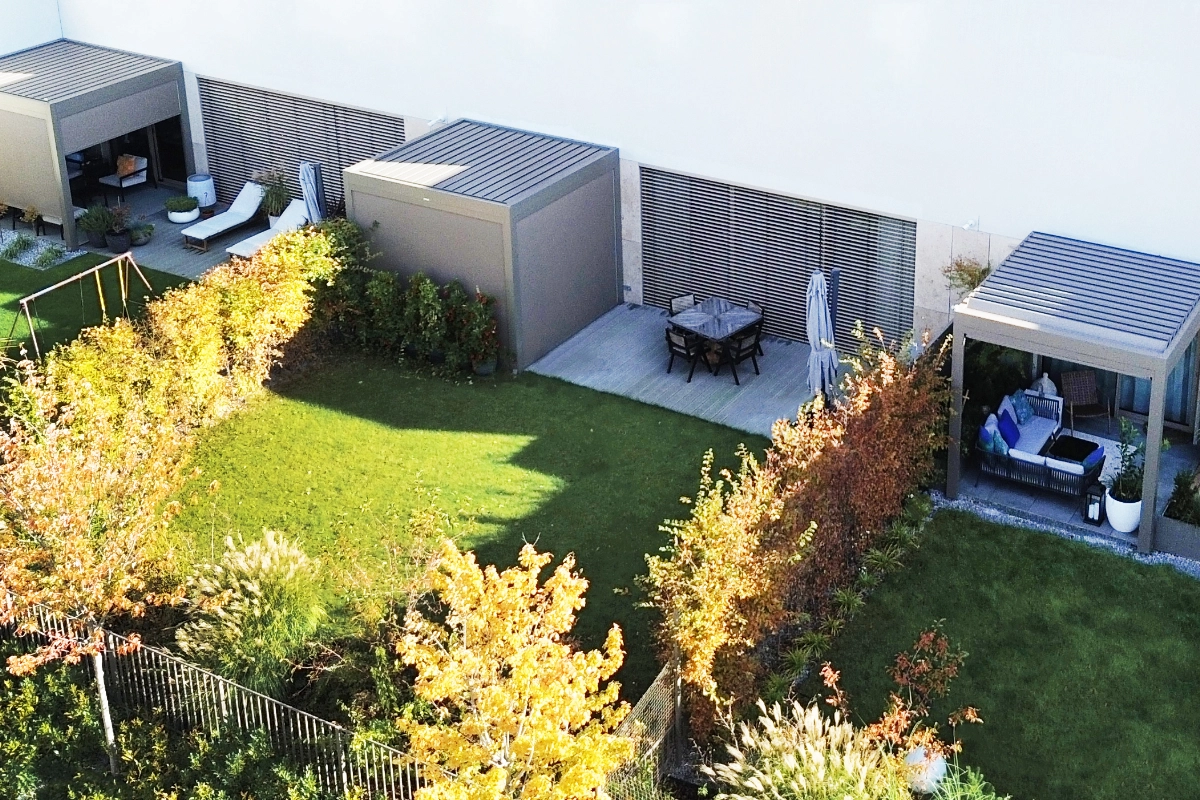

UNLIMITED MODULAR CONNECTIVITY OF THE PERGOLA
Thanks to the innovative modular crown, the pergola can be connected in modules, allowing for the creation of an unlimited roofed space. The combination of all these advantages makes the WIN CLIMATIC S500 pergola an unmatched, all-year-round product.
LED COVERS CHOSEN TO MATCH THE COLOR OF THE LOUVERS OR STRUCTURE WITHOUT VISIBLE CONNECTIONS
The LED covers used in the WIN CLIMATIC S500 pergola are color-matched to the louvers or the structure. The covers are individually stamped in both light and dark colors, providing a better visual effect for the entire structure. Most pergolas on the market feature covers in only white or frosted colors, without matching the structure’s color scheme, which negatively affects the aesthetics— such as using a white cover in an anthracite or black structure. Our own cover system is stamped in long sections, avoiding most visible connections and ensuring a consistent and aesthetically pleasing appearance.

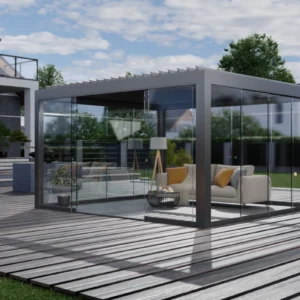

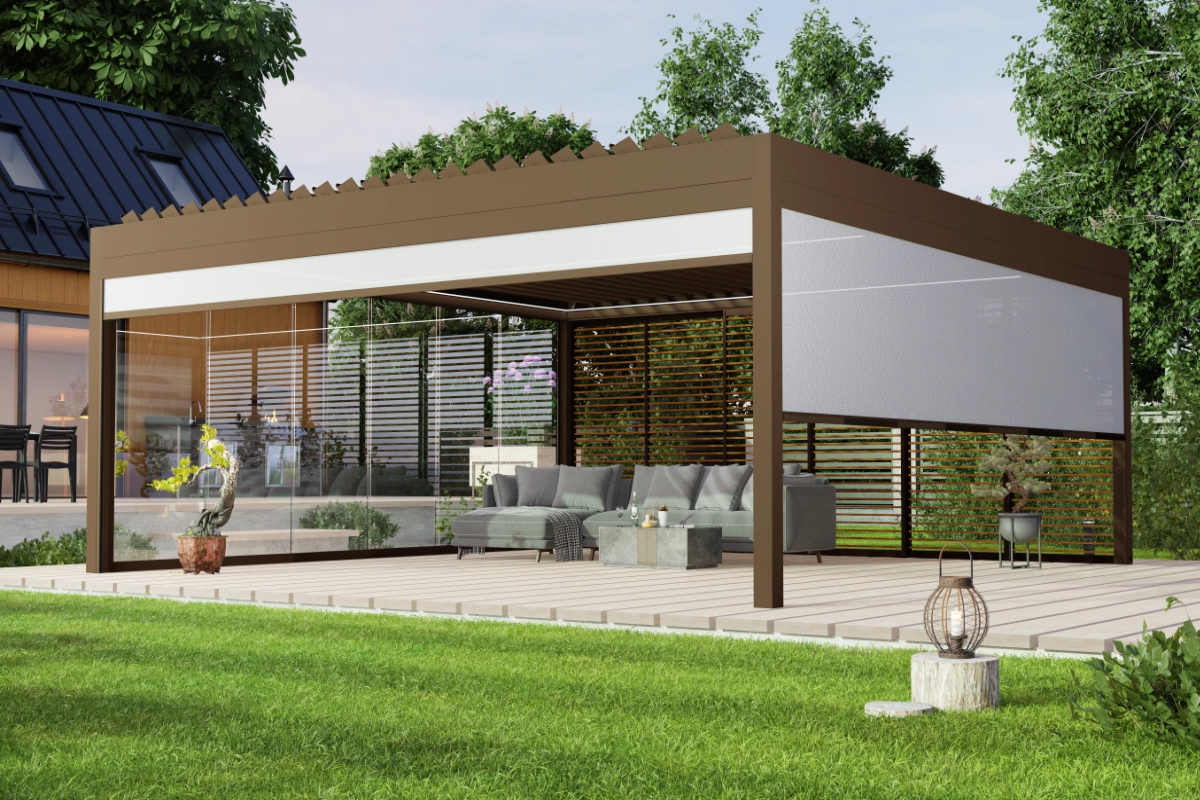

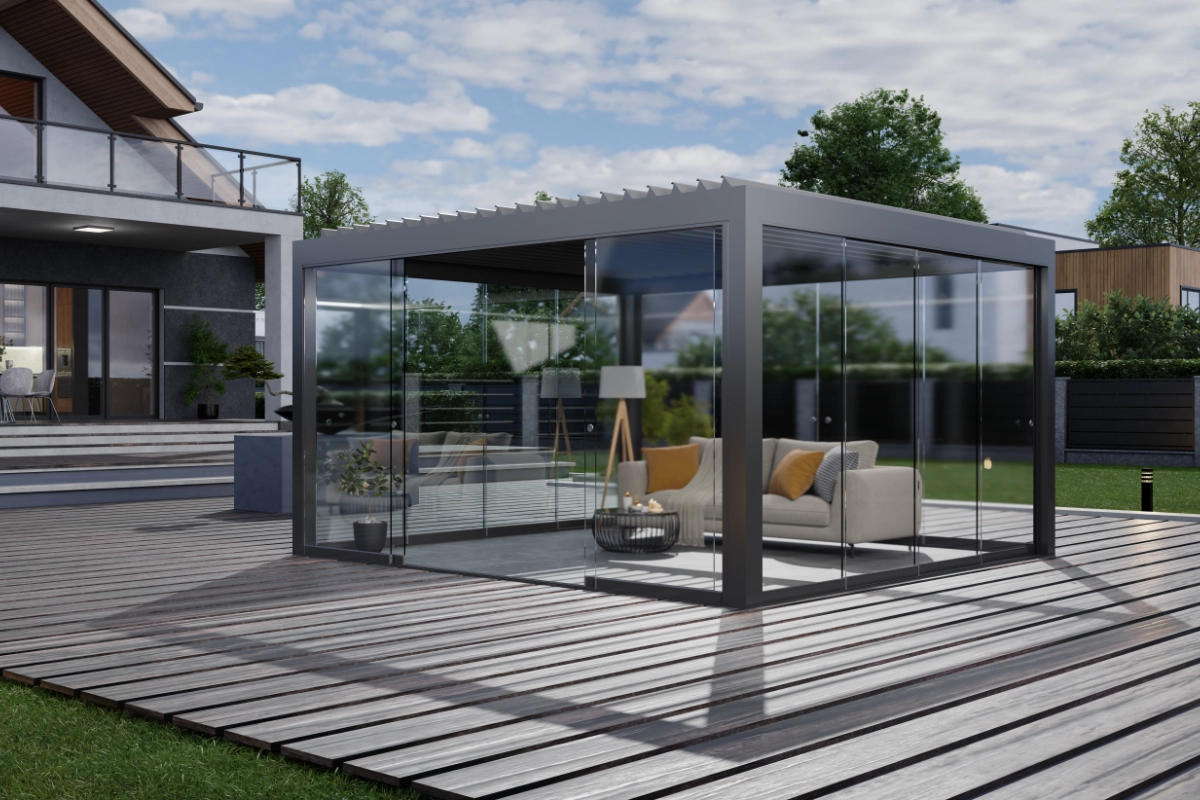

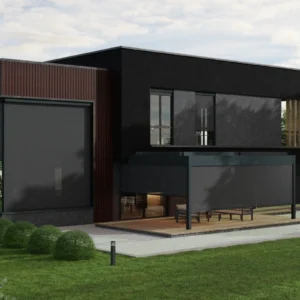

THE POSSIBILITY OF INSTALLING A HEATER IN THE PERGOLA STRUCTURE ALONG WITH WIN SCREEN SHADES OR THE WIN GLASS
Thanks to the innovative pergola design and the dual-chamber gutter, it is possible to mount a heat radiator directly on to the pergola structure, in combination with WIN SCREEN external blinds or the WIN GLASS sliding tempered glass system. The heaters electrical wiring is concealed within a special chamber in the main crown, protecting the installation from external factors such as rain or snow.
FAST DELIVERY TIME
A large stock of raw materials, our own component system, modern machinery, and a vast production and storage area guarantee the completion of standard orders within 4 to 6 weeks. Thanks to our in-house components and the majority of production processes carried out in our factory, we are 90% independent from external suppliers. This allows us to achieve faster order fulfillment, higher product quality, and a quicker response to warranty issues and custom orders.
STRUCTURE RESISTANT TO SNOW, WIND, AND RAIN
The structure is snow-resistant, with one of the best snow load results in the world, capable of withstanding up to 318 kg/m2 depending on the size and model of the structure. The pergola is also resistant to other weather conditions such as wind, rain, and sun, making our WIN CLIMATIC S500 pergola suitable for installation and use anywhere in the world.
INTEGRATED SEALING GASKET BETWEEN THE CROWN AND THE LOUVERS
Thanks to the use of an integrated sealing gasket between the crown and the louvers, the gap between the profiles has been eliminated. This innovative solution completely removes any gaps when the roof is closed and effectively protects the pergola interior from dirt and rain. Additionally, it significantly enhances the aesthetics of the pergola compared to other constructions available on the market.
FASTER AND EASIER ASSEMBLY OF INTEGRATED LED LIGHTING
All LED components are prepared in our factory to maximize and simplify the assembly process. The LED strip is factory-mounted on an aluminum profile, soldered, and equipped with quick connectors. Controllers and central units are installed inside the structure and programmed to work with the remote control. The LED lighting includes complete, described wiring that is properly distributed throughout the structure. Service technicians only need to connect the quick connectors and power the controller. This makes the installation of the lighting faster and easier, saving time and money for our customers compared to other solutions available on the market
PROGRAMMING AND CONFIGURATION OF ALL AUTOMATION INCLUDED AS STANDARD
All purchased control units, controllers, and accessories for the pergola are pre- programmed and configured free of charge in our factory to speed up and simplify the installation at the final location. All devices are programmed and assigned to the appropriate remote control. The ordered pergola comes with complete, labeled wiring, which is distributed throughout the structure.
The technicians’ work is limited to connecting the quick connectors and powering the system.
NO LEAKS BETWEEN THE PERGOLA CONNECTION AND THE WALL THANKS TO THE FLASHING DETAILING
All potential leaks at the connection between the pergola and the wall have been eliminated thanks to the metal flashing, produced in our factory. The flashing is available in standard shapes and can also be customized to meet the client’s specific needs. The color of the flashing is selected from 13 colors in the WIN CLIMATIC S500 palette or can be painted in any RAL color.
LED LIGHTING
The most extensive offering on the market of integrated lighting configurations within the pergola structure provides the ability to choose the type of lighting, colors, brightness, and light temperature. Regardless of the selected option, you can conveniently control the lighting using the pergola’s remote control.
MATERIALS OF THE HIGHEST QUALITY USED IN PRODUCTION
The innovative design with a roof structure is made from extruded aluminum and stainless steel. The profiles are extruded from high-quality aluminum with thick, durable walls, and are further reinforced with chambers and ribs. The steel elements in the WIN CLIMATIC S500 structure are made from top-quality stainless steel with a solid cross-section, ensuring the durability and strength of the entire pergola.
SMART CONTROL
Thanks to the use of a smart control unit, it is possible to operate the pergola and additional equipment via a smartphone or tablet from anywhere in the world.
RICH COLOR PALETTE OF THE STRUCTURE AS STANDARD WITH THE POSSIBILITY OF PAINTING IN ANY RAL COLOR!
We offer a wide selection of standard colors for the structure! The construction is powder-coated in seven colors from the standard WIN CLIMATIC S500 palette. Additionally, there is the possibility of custom powder coating in any color from the RAL palette or in wood-like finishes.
COMPLIANCE OF THE WIN CLIMATIC S500 PERGOLA WITH THE CE STANDARD
The WIN CLIMATIC S500 pergola meets the requirements of the PN-EN 1090-1 to PN- EN 1090-3 standards, introduced by the Polish Committee for Standardization for steel and aluminum structures, which is confirmed by the product’s CE marking.
QUALICOAT PAINTING QUALITY STANDARD
All profiles used in the production of the pergola are coated exclusively in a powder coating facility with a QUALICOAT quality certification, ensuring high quality and durability of the paint finish.
TIGER COATINGS
We use high-quality powder coatings from the renowned manufacturer Tiger Coatings to paint the pergola elements. These coatings ensure excellent finish quality, high resistance to weather conditions, and an aesthetically pleasing appearance for many years.
HIGH-QUALITY PRODUCT WORKMANSHIP AND PACKAGING
Our specialized team and state-of-the-art machinery allow us to achieve the highest production quality. Each product is thoroughly inspected by the quality control department before shipping to ensure it meets the order specifications and quality standards. We also place great emphasis on careful packaging and securing the goods for transport. By using specially tailored foam shapes, air mats, and durable, thick cartons we ensure that the ordered merchandise will reach you in perfect condition.
